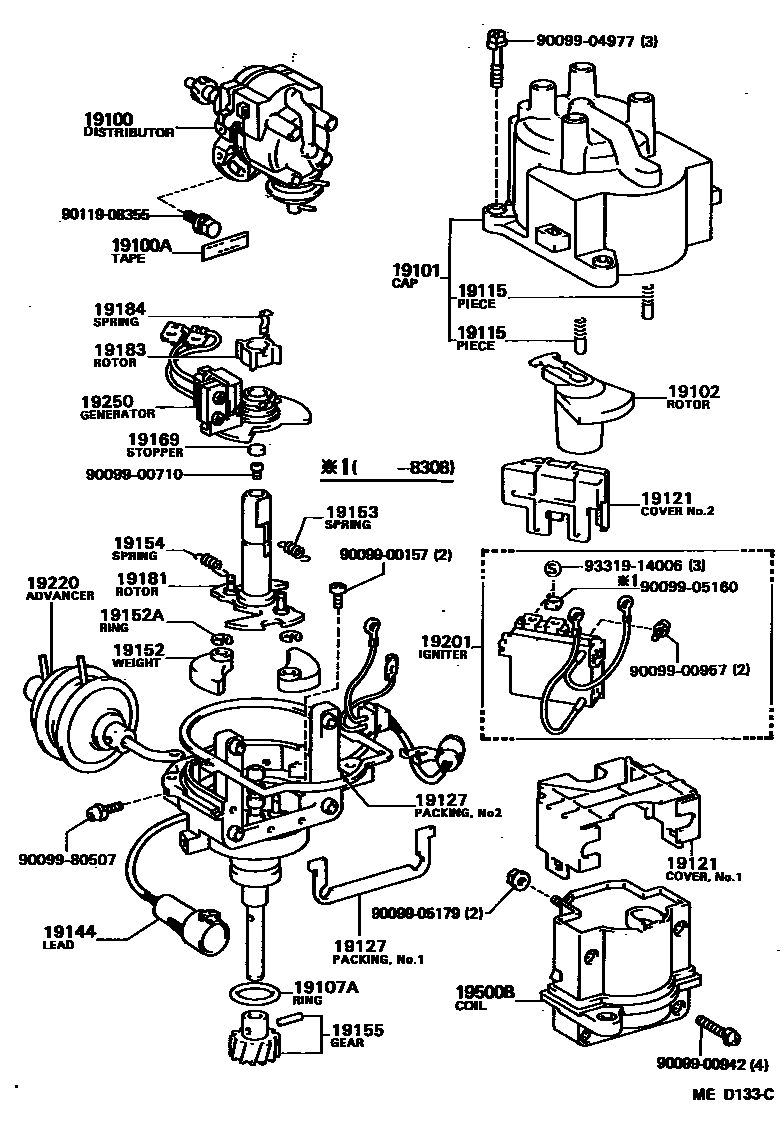

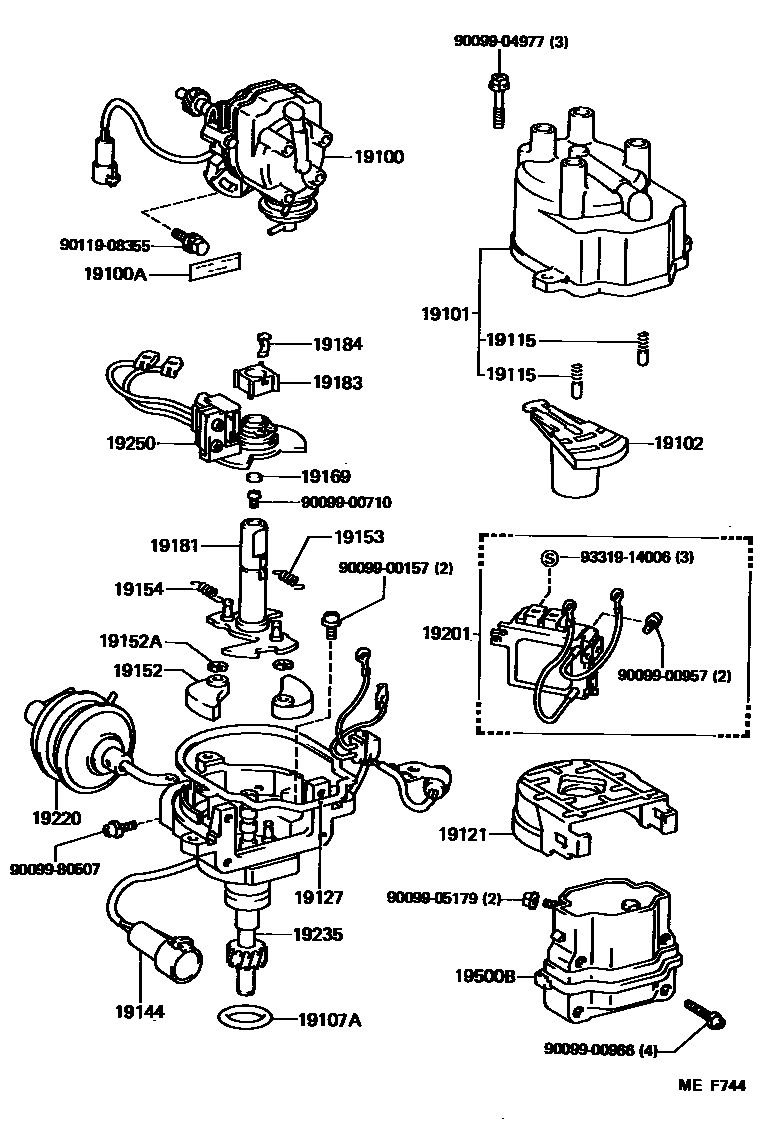

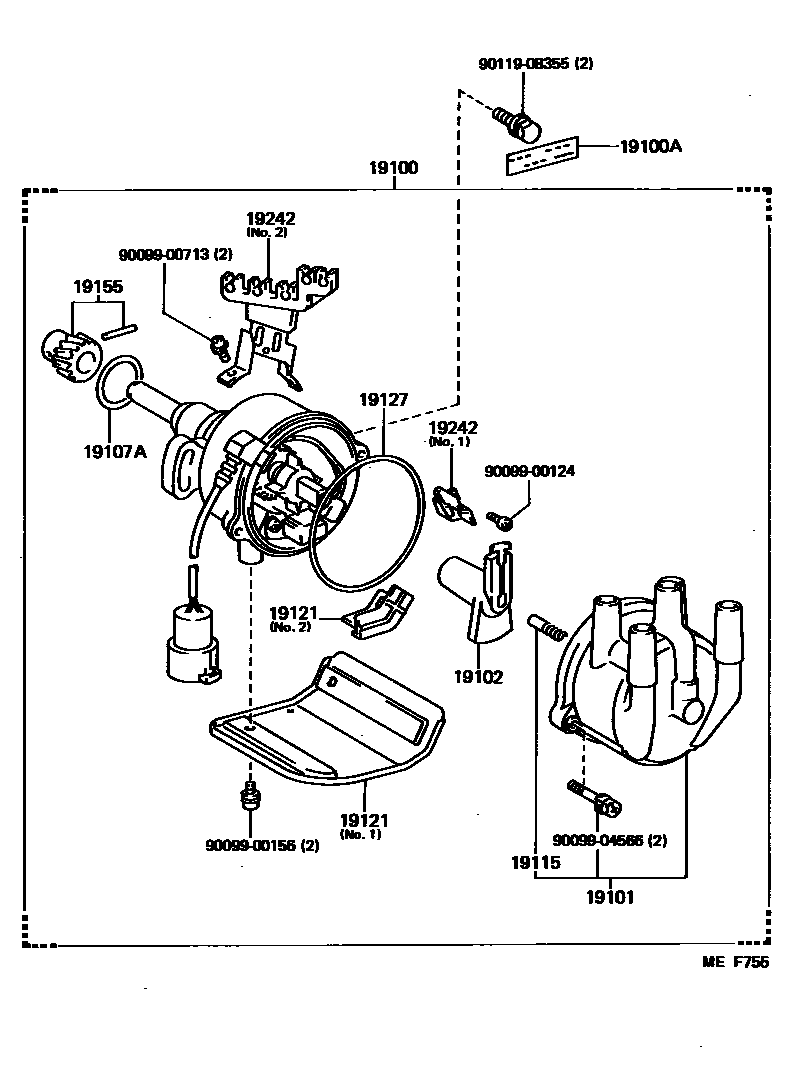

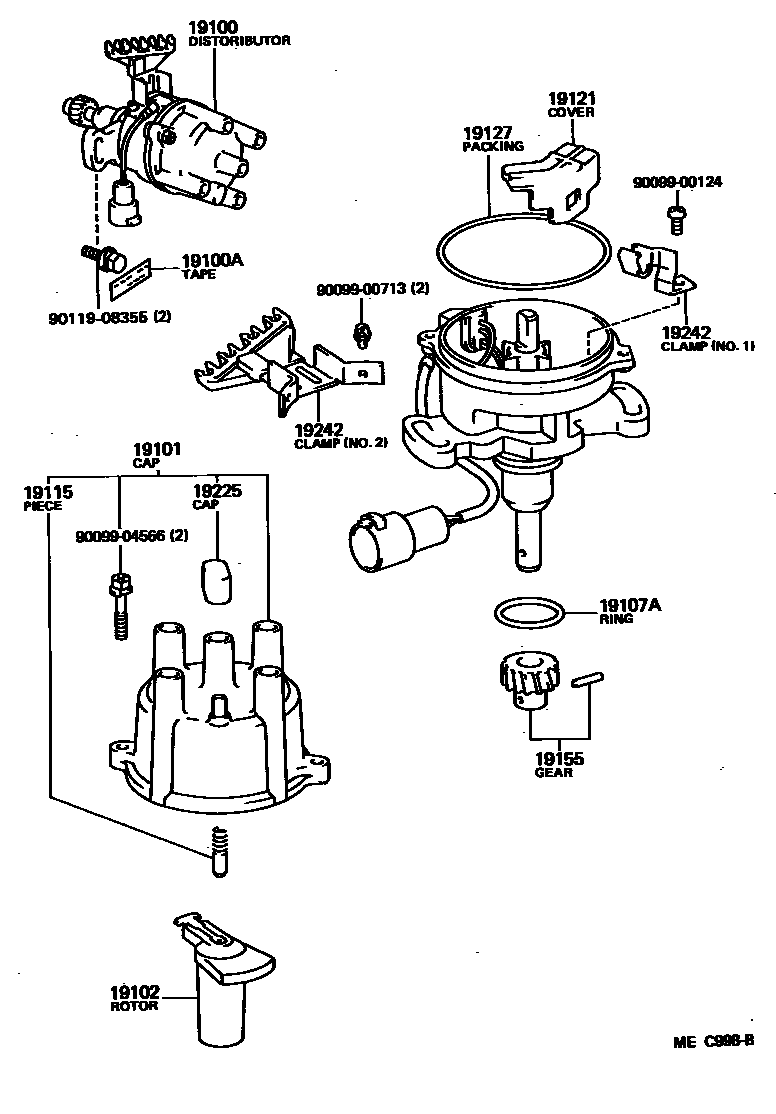

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19020-15010 · 19020-15100 · 19100-16040 · 19100-16080 |
| 19100A | sealing tape | 90919-24004 |
| 19101 | Distributor cover sub-assembly | 19101-11010 · 19101-15160 · 19101-16040 · 19101-16080 |
| 19102 | Distributor flame head sub-assembly | 19102-11010 · 19102-16040 · 19102-63010 |
| 19107A | Distributor housing O-ring | 96710-04030 · 96711-35030 |
| 19115 | Distributor cover center piece | 19115-50010 · 19115-63010 · 19115-71010 |
| 19121 | dust cover | 19121-11010 · 19121-11080 · 19121-15090 · 19121-16040 · 19121-16080 · 19121-63040 |
| 19127 | Dust seal | 19127-11010 · 19127-15021 · 19127-15090 · 19127-63020 |
| 19144 | Distributor breaker lead | 19144-15080 · 19144-15160 · 19144-15161 |
| 19152 | Speed regulator weight | 19152-15160 |
| 19152A | Snap ring (for governor weight) | 90099-07122 |
| 19153 | A governor spring | 19153-14160 · 19153-15170 · 19153-15171 |
| 19154 | B governor spring | 19154-14160 · 19154-15170 · 19154-15171 |
| 19155 | Distributor spiral gear | 19195-15021 · 19195-16040 |
| 19169 | Cam grease stop | 19169-32010 · 19169-63011 |
| 19181 | Distributor signal distributor | 19181-15170 · 19181-15270 |
| 19183 | Signal splitter | 19183-15010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-10120 · 89620-16070 |
| 19220 | Distributor vacuum advance device assembly | 19220-15100 · 19220-15270 |
| 19225 | rubber cap | 19225-16100 · 19225-38011 |
| 19235 | Distributor housing | 19235-14040 |
| 19242 | Cable clip | 19242-16030 · 19242-16040 · 19242-16080 |
| 19250 | Signal generator assembly | 19251-15090 · 19251-15091 |
| 19500B | Ignition coil assembly | 90919-02152 · 90919-02164 |
