Toyota COROLLA 分电器 — Figure 1902

Toyota COROLLA EPC diagram 1902, 分电器, with 3 images and 32 PNC and OE references.

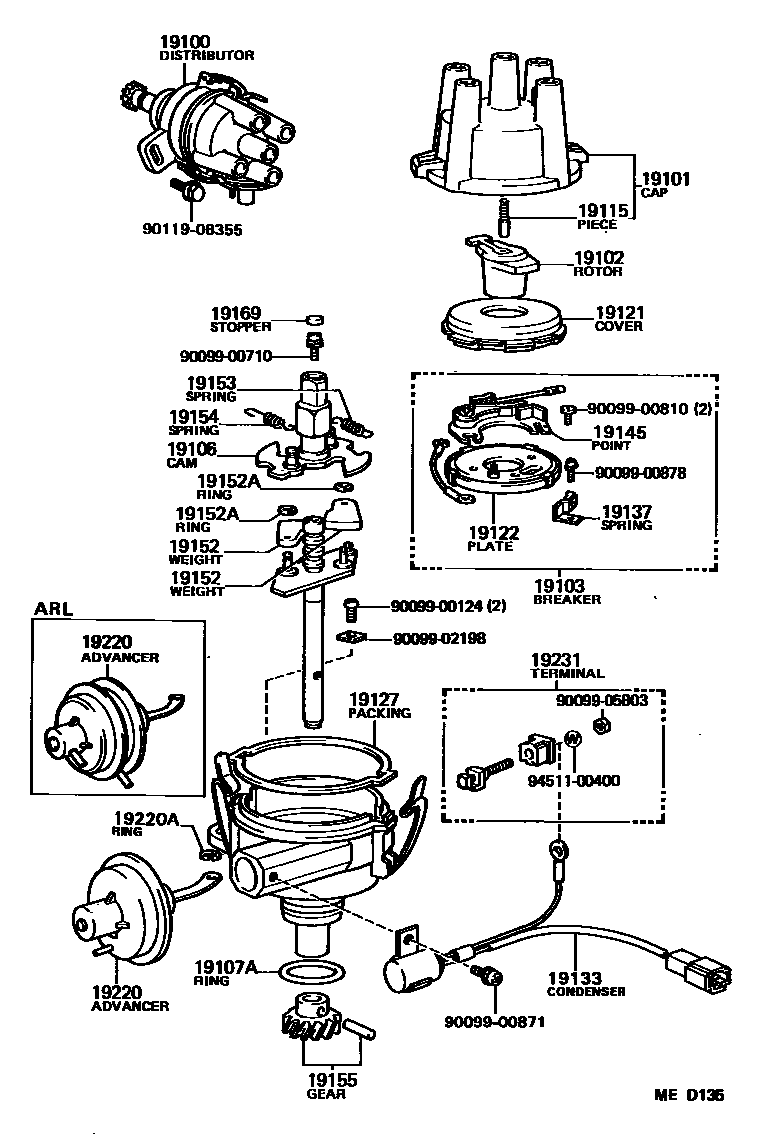

Toyota COROLLA 分电器 EPC diagram — MED135
分电器 — MED135 (198305 – 999999)

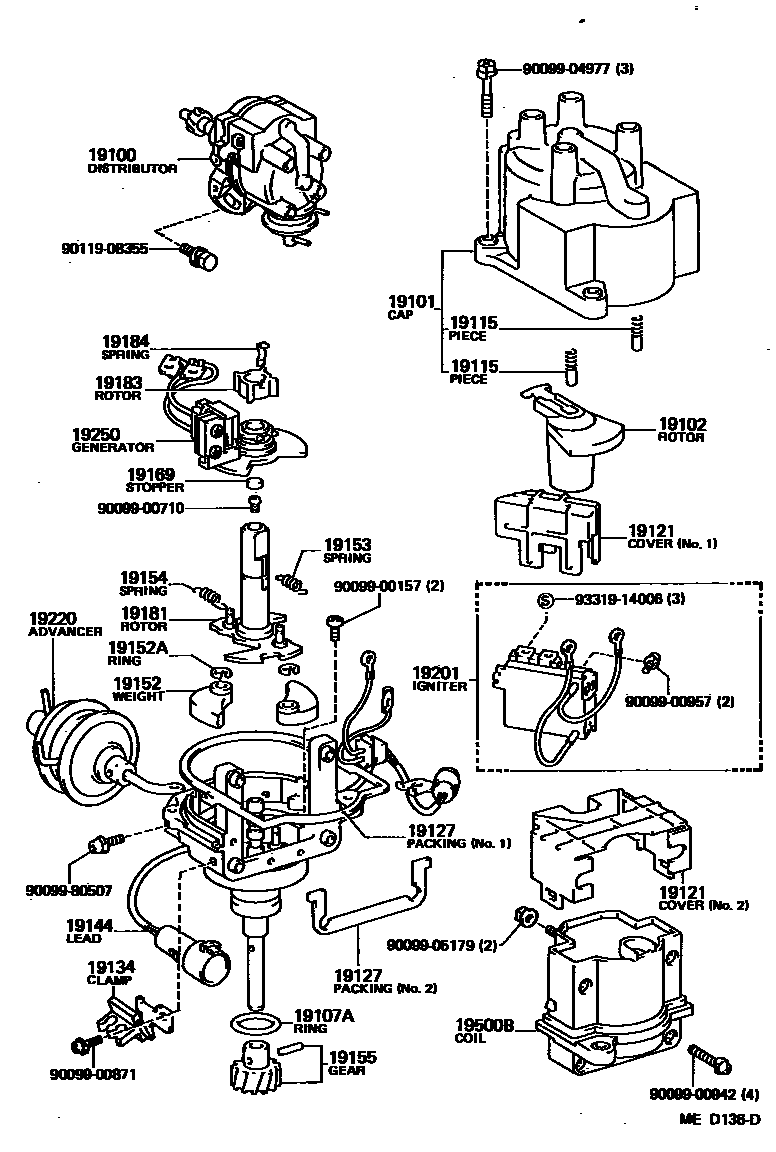

Toyota COROLLA 分电器 EPC diagram — MED136D
分电器 — MED136D (198308 – 198502)

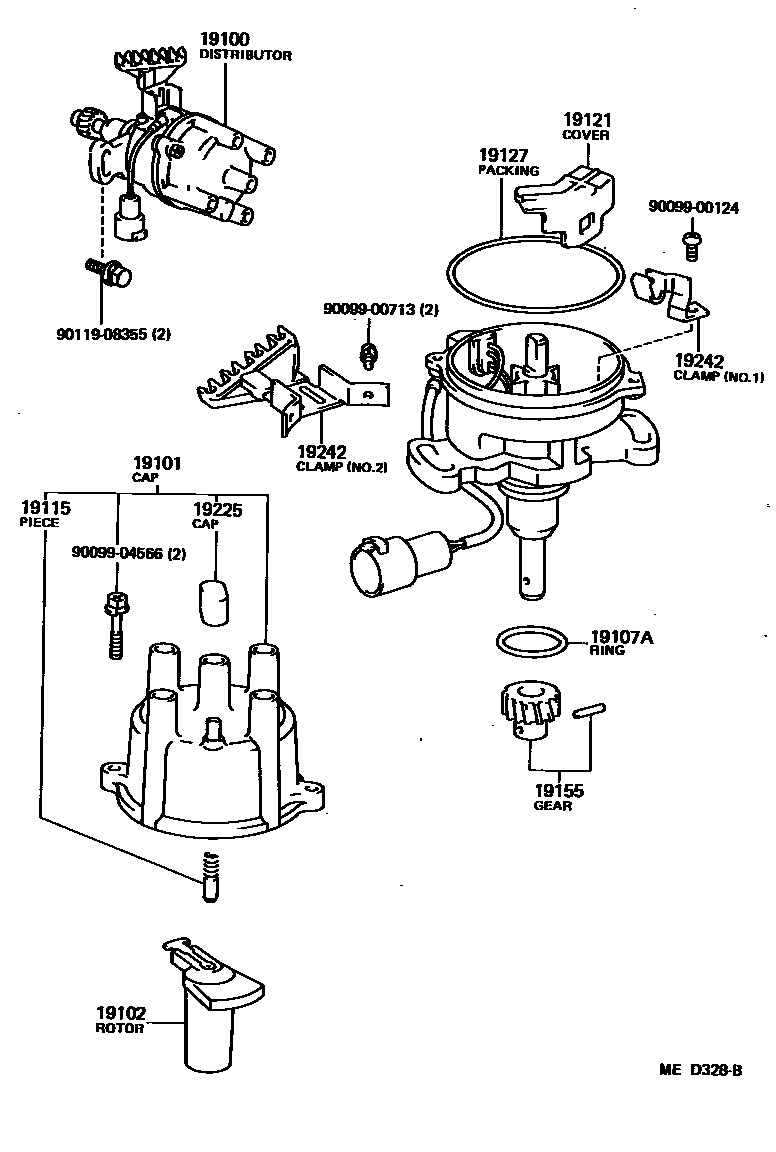

Toyota COROLLA 分电器 EPC diagram — MED328B
分电器 — MED328B (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19020-16030 · 19100-16030 · 19100-16040 · 19100-16050 · 19100-16060 · 19100-16100
19101Distributor cover sub-assembly19101-15010 · 19101-15160 · 19101-16040
19102Distributor flame head sub-assembly19102-10020 · 19102-16040 · 19102-16060 · 19102-26150 · 19102-26151 · 19102-33012 · 19102-35160 · 19102-73020
19103Distributor breaker sub-assembly19103-14010
19106Distributor cam sub-assembly19106-14050 · 19106-16030
19107ADistributor housing O-ring96710-04030 · 96711-35030
19115Distributor cover center piece19115-50010 · 19115-63010
19121dust cover19121-15090 · 19121-16040 · 19121-38030 · 19121-63040
19122Distributor fixing plate19122-14010
19127Dust seal19127-15010 · 19127-15021 · 19127-15090 · 19127-63020
19133Distributor capacitor90099-52076
19134Distributor clip assembly19134-16020
19137Shock absorber spring sub-assembly19137-14010
19144Distributor breaker lead19144-16011
19145Distributor contacts19145-14010
19152Speed regulator weight19152-15160 · 19152-44170
19152ASnap ring (for governor weight)90099-07109 · 90099-07122
19153A governor spring19153-16040 · 19153-16050 · 19153-16070
19154B governor spring19153-16050 · 19154-16040 · 19154-16070
19155Distributor spiral gear19195-15021 · 19195-16040
19169Cam grease stop19169-32010 · 19169-63011
19181Distributor signal distributor19181-16070
19183Signal splitter19183-15010
19184Distribution head fixed spring19184-63010
19201igniter89620-16070
19220Distributor vacuum advance device assembly19220-16040 · 19220-16050 · 19220-16070
19220ASnap ring (for distributor vacuum advance device)90099-07109
19225rubber cap19225-16100 · 19225-38011
19231Distributor terminals19231-24140
19242Cable clip19242-16030 · 19242-16040
19250Signal generator assembly19251-15091
19500BIgnition coil assembly90919-02152
