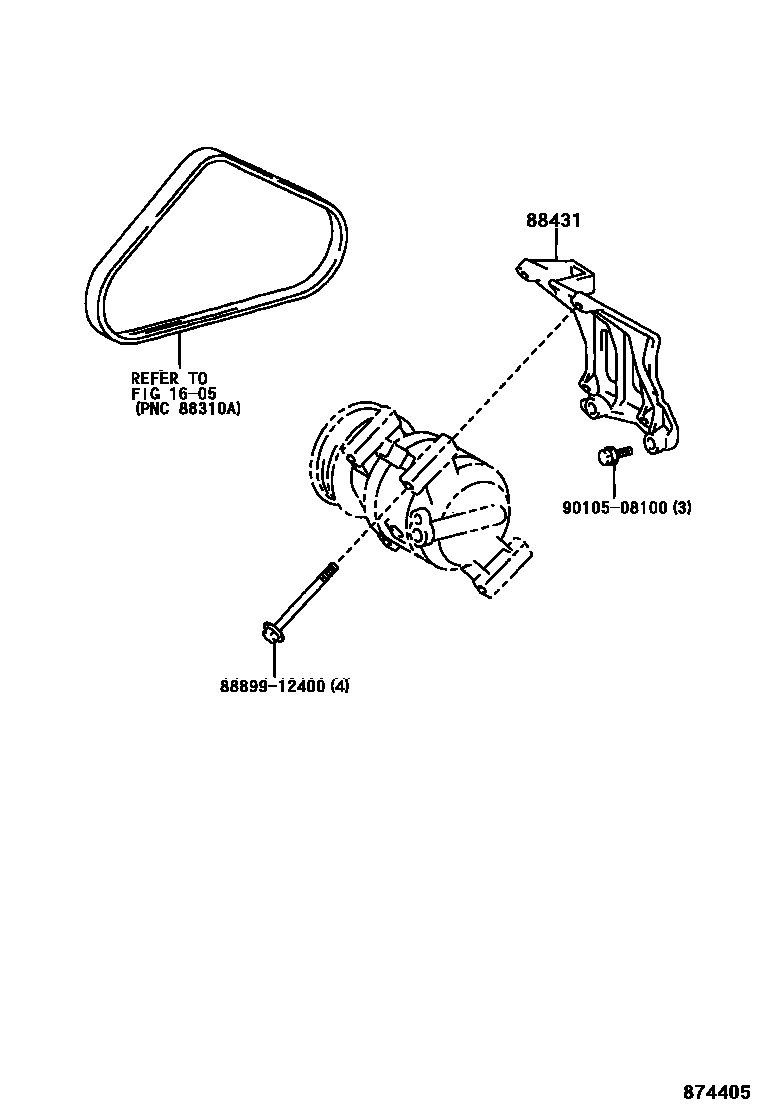

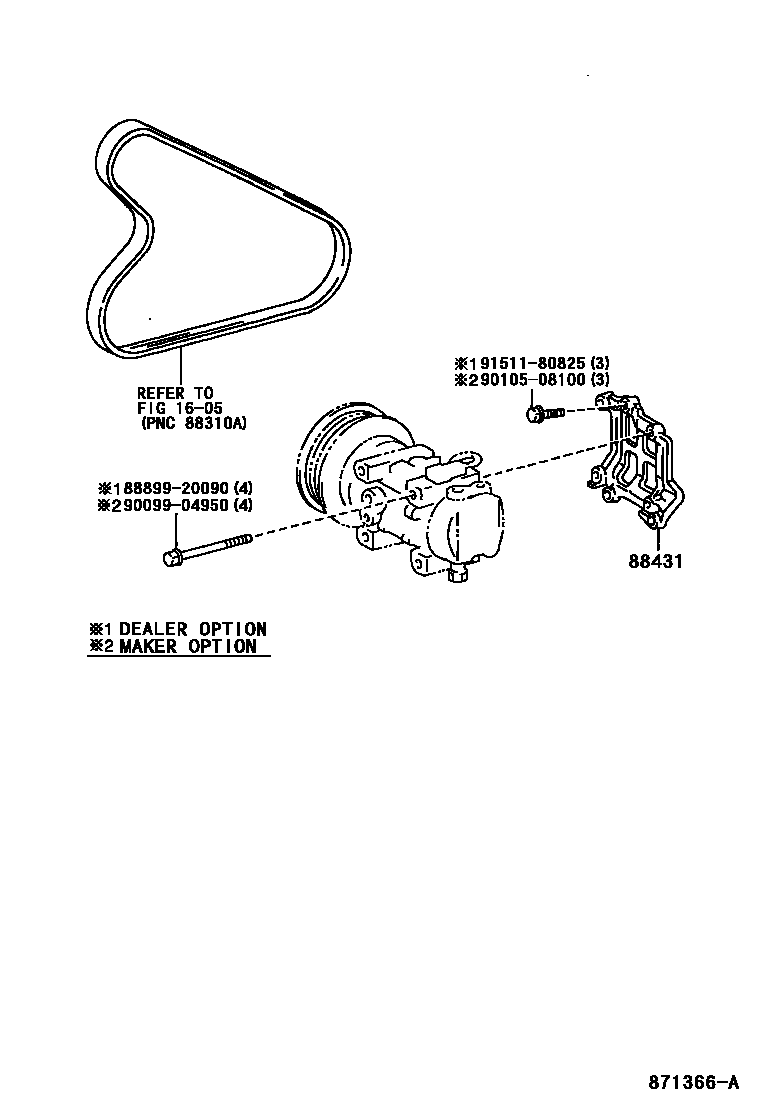

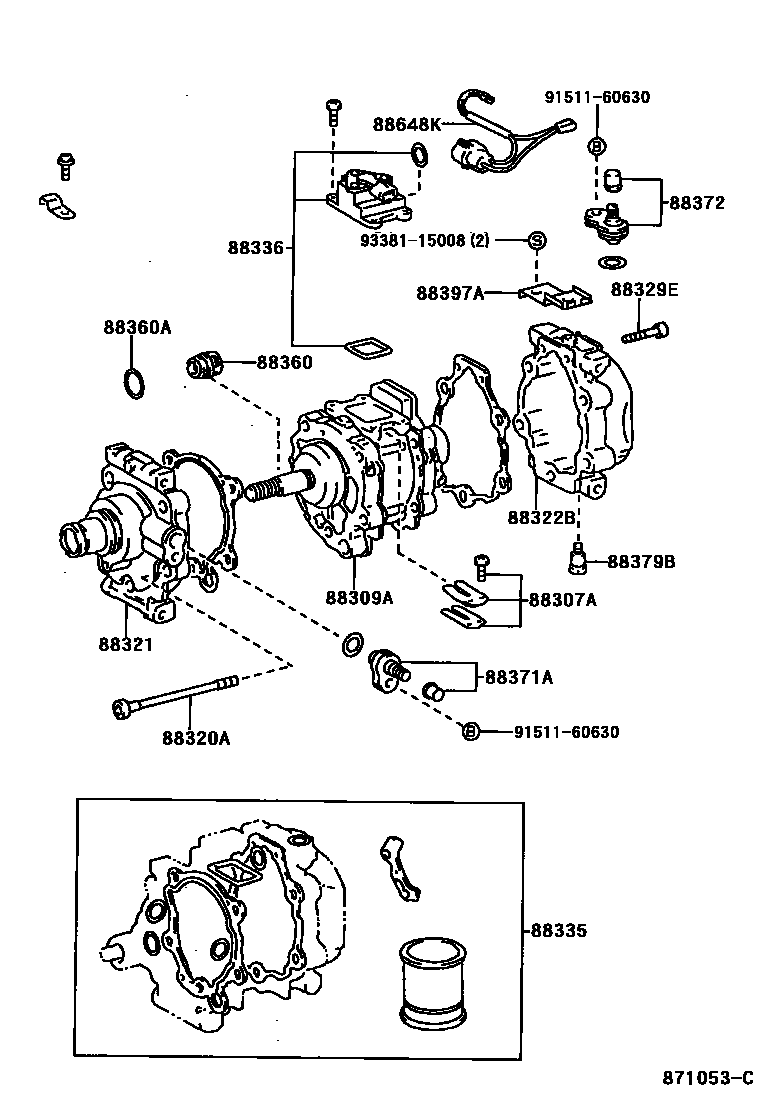

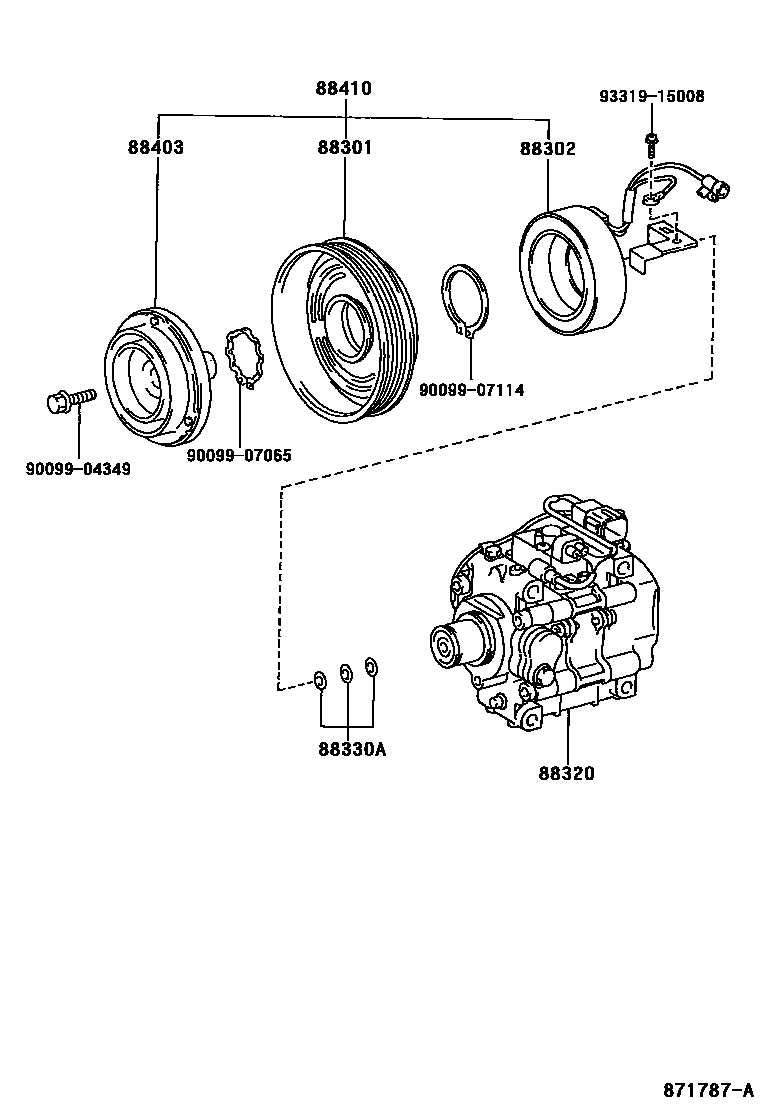

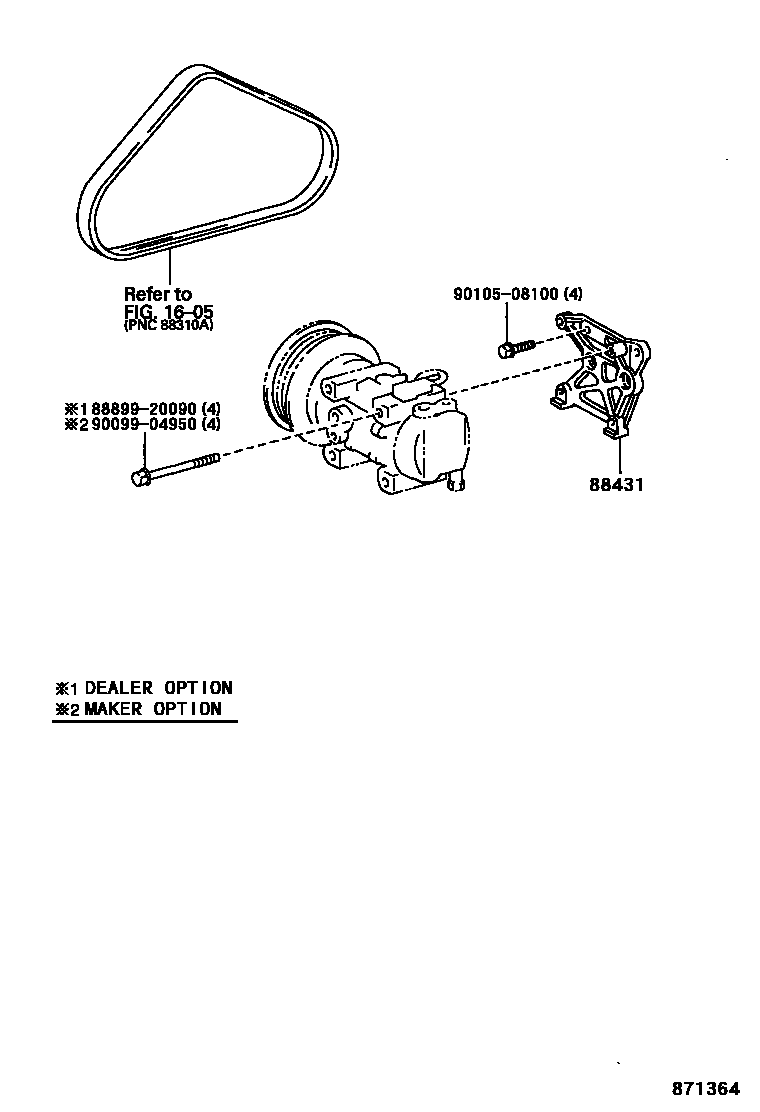

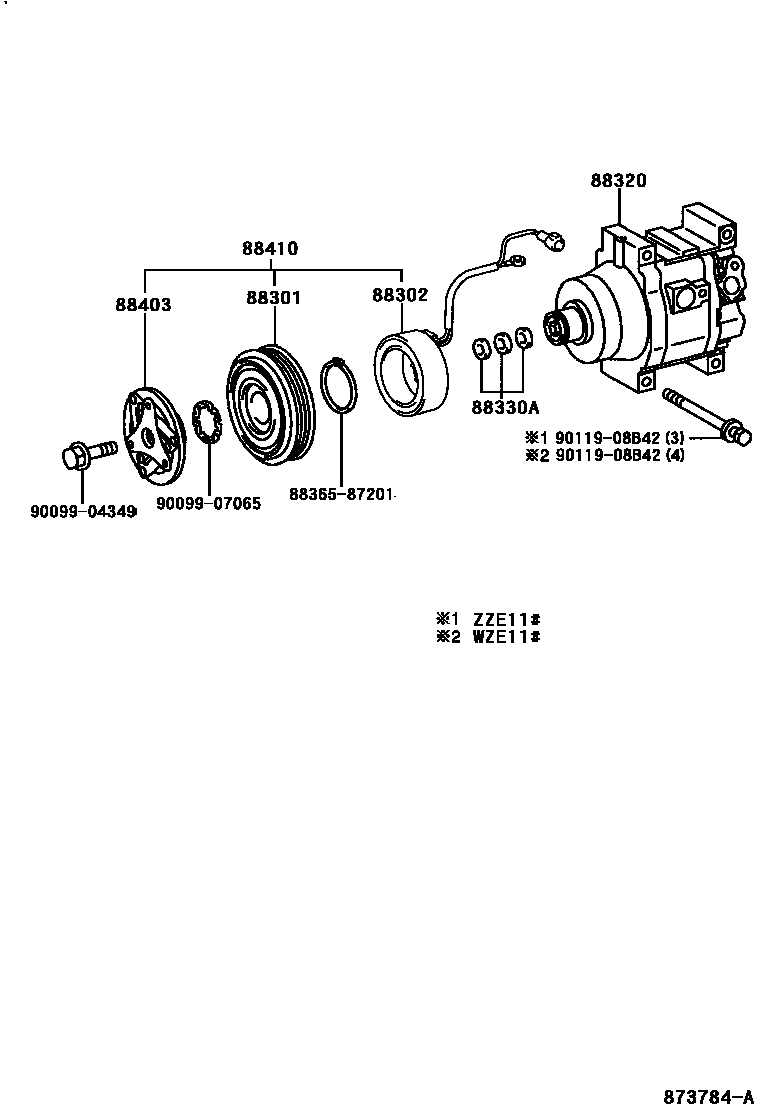

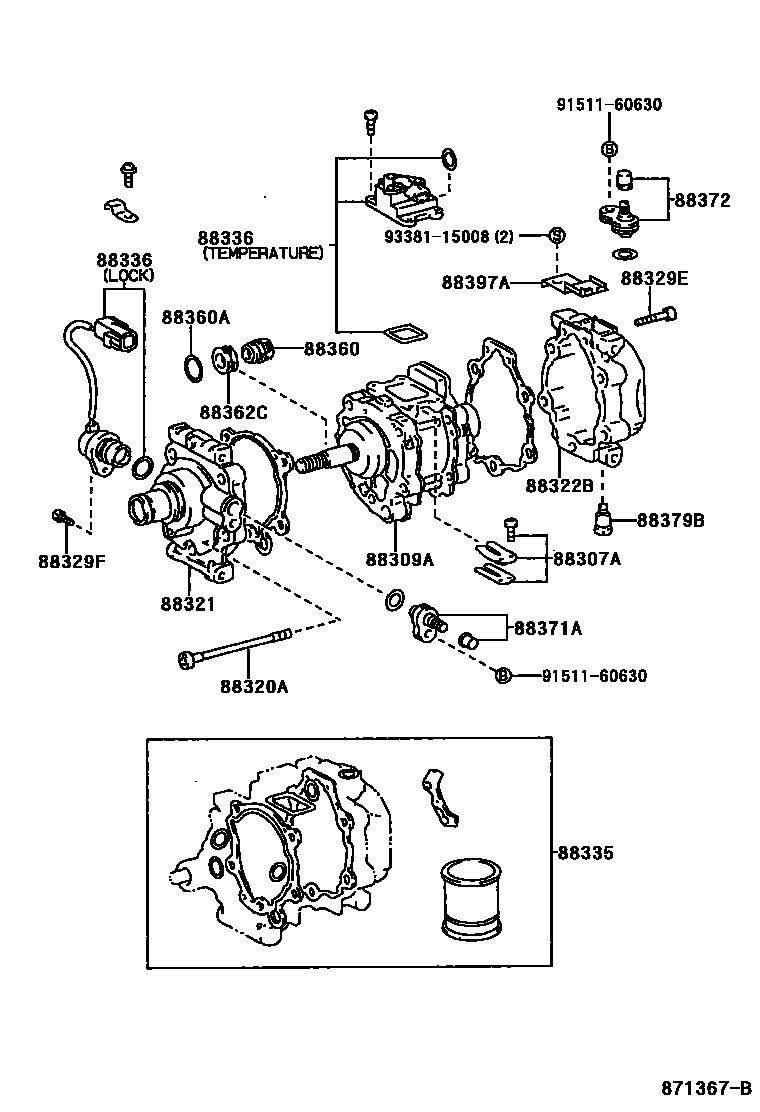

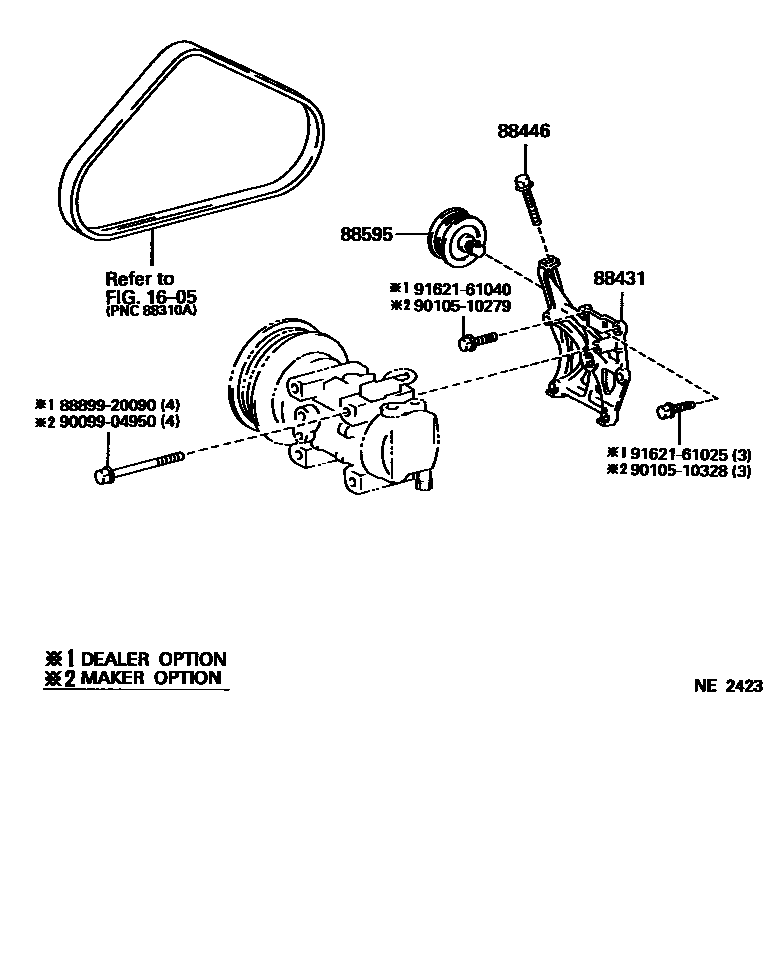

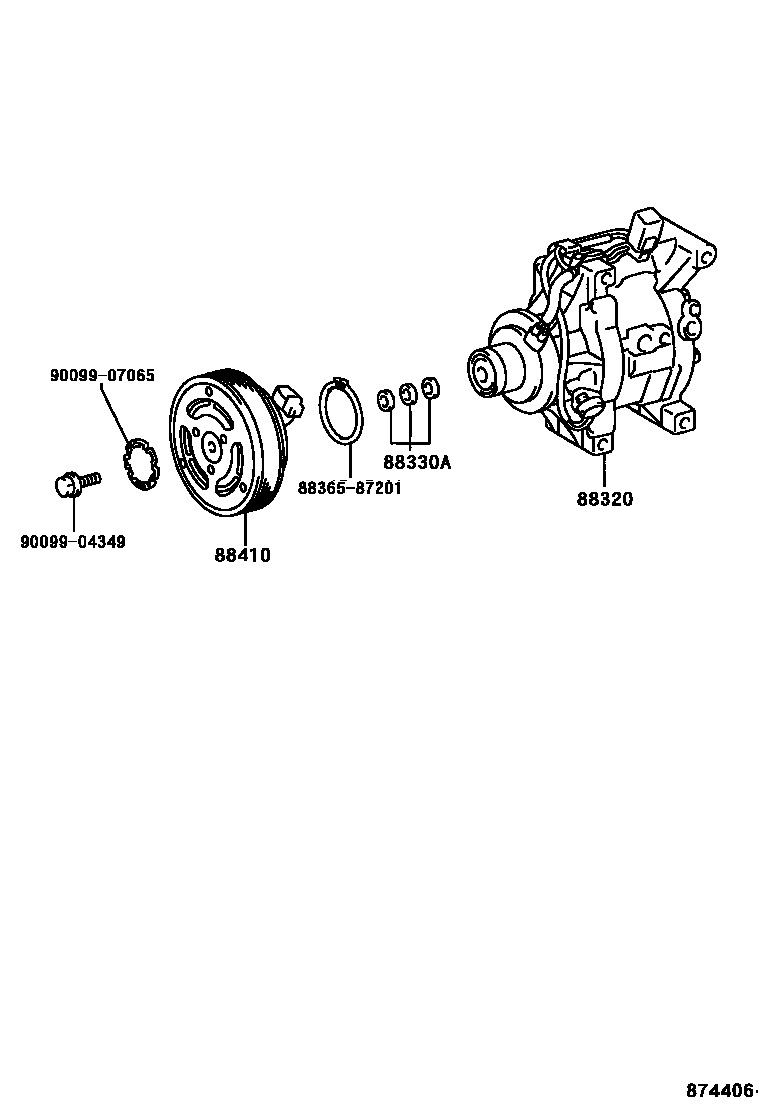

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 9 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-1A030 · 88412-1A040 · 88412-1A090 · 88412-1A150 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-16070 · 88411-1A040 |
| 88307A | Valve reed sub-assembly | 88307-10010 · 88307-12050 |
| 88309A | Compressor pump sub-assembly | 88309-12140 · 88309-12150 · 88309-12200 · 88309-12230 · 88309-12250 |
| 88320 | Cooler Compressor Assembly | 88320-02070 · 88320-1A290 · 88320-1A370 · 88320-1A440 · 88320-1A470 · 88320-1A520 · 88320-1A521 · 88320-47010 |
| 88320A | Through bolt | 88329-10010 · 88329-16010 |
| 88321 | Cooler compressor cylinder head | 88321-12081 · 88321-12130 · 88321-12140 |
| 88322B | oil separator housing | 88322-12080 · 88322-12100 |
| 88329E | No. 1 compressor bolt | 88329-10020 · 88329-16020 |
| 88329F | No. 2 compressor bolt | 88329-16030 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 · 90099-01553 · 90099-01554 · 90099-01555 |
| 88335 | Overhaul gasket assembly | 88335-12070 · 88335-12110 |
| 88336 | compressor sensor | 88336-10060 · 88336-12090 · 88336-16070 · 88336-16080 |
| 88360 | Cooler compressor shaft seal assembly | 88360-12090 · 88360-12100 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88362C | pulse plate | 88362-12010 · 88362-12020 |
| 88371A | suction valve | 88376-12010 |
| 88372 | Drain valve | 88376-12020 |
| 88379B | Pressure reducing valve | 88379-12050 |
| 88397A | Compressor clip | 88397-12040 · 88397-16030 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16020 · 88403-1A010 |
| 88410 | Magnetic Clutch Assembly | 88410-02060 · 88410-02070 · 88410-1A050 · 88410-1A100 · 88410-1A150 · 88410-1A200 · 88410-1A240 |
| 88431 | Compressor No. 1 mounting bracket | 88431-02040 · 88431-02050 · 88431-12510 · 88431-12511 · 88431-12540 · 88431-12560 · 88431-12610 |
| 88446 | Idler gear bolt | 88446-02020 · 88446-12030 |
| 88595 | Cooler compressor idler pulley | 88440-02020 · 88440-20160 · 88440-20170 |
| 88648K | Sensor wiring harness sub-assembly | 88648-12640 |
