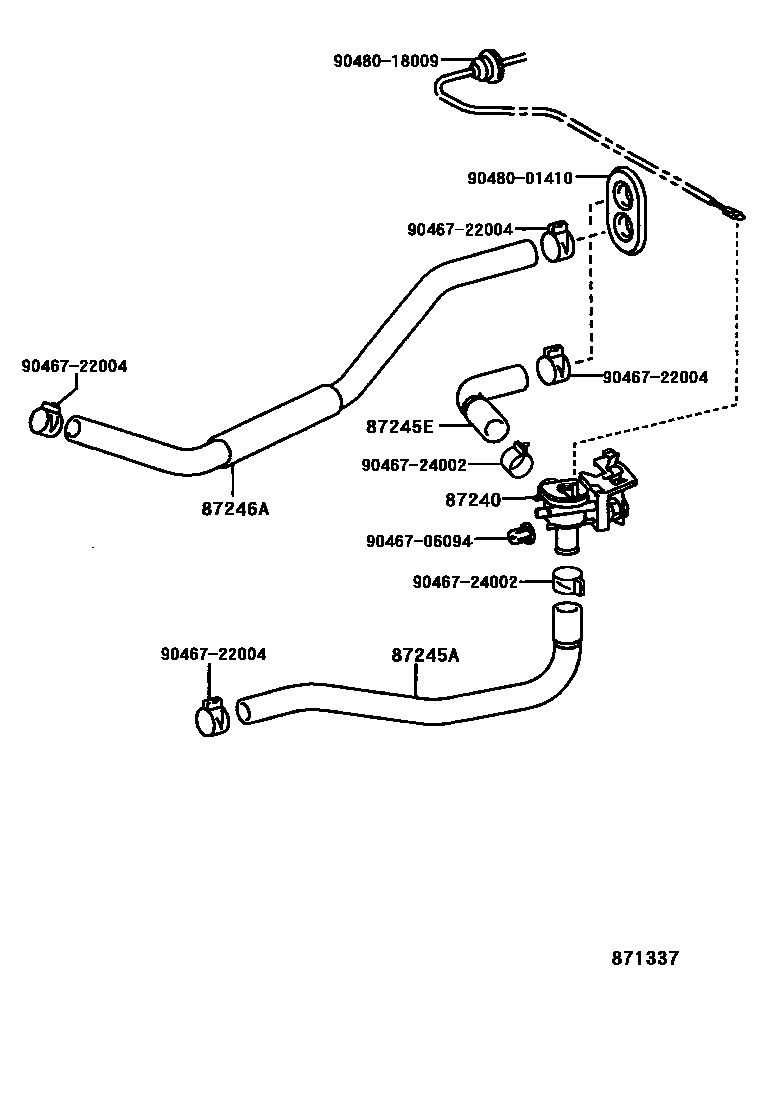

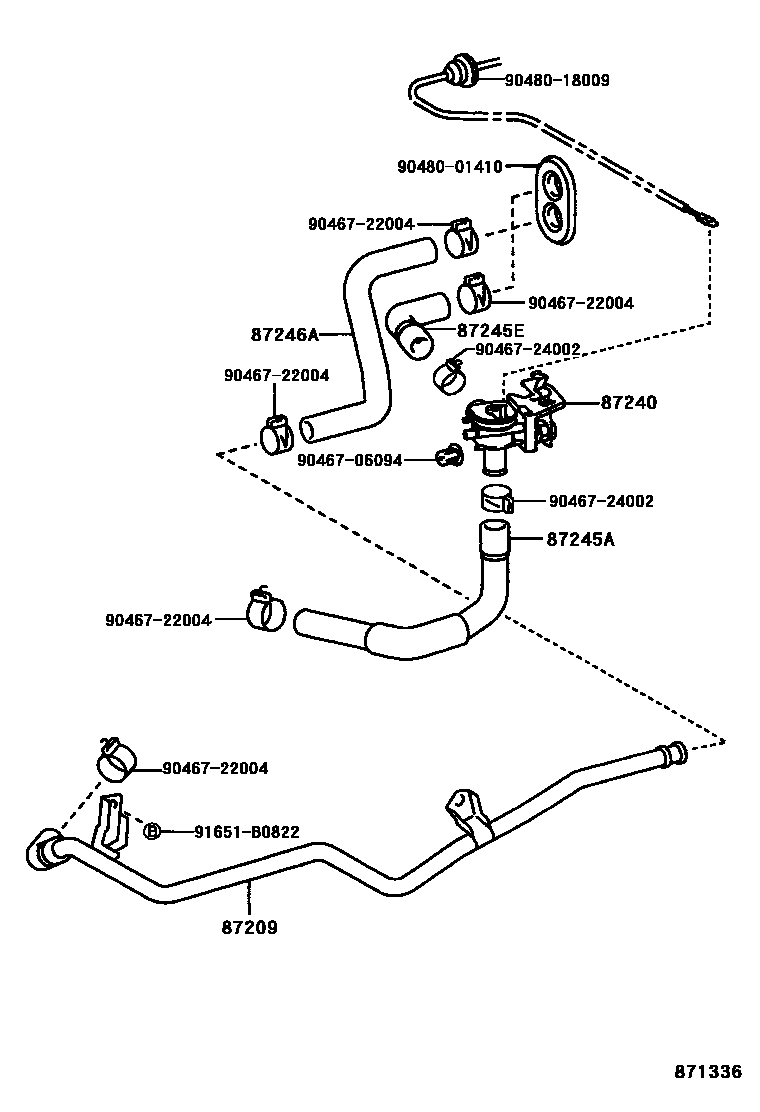

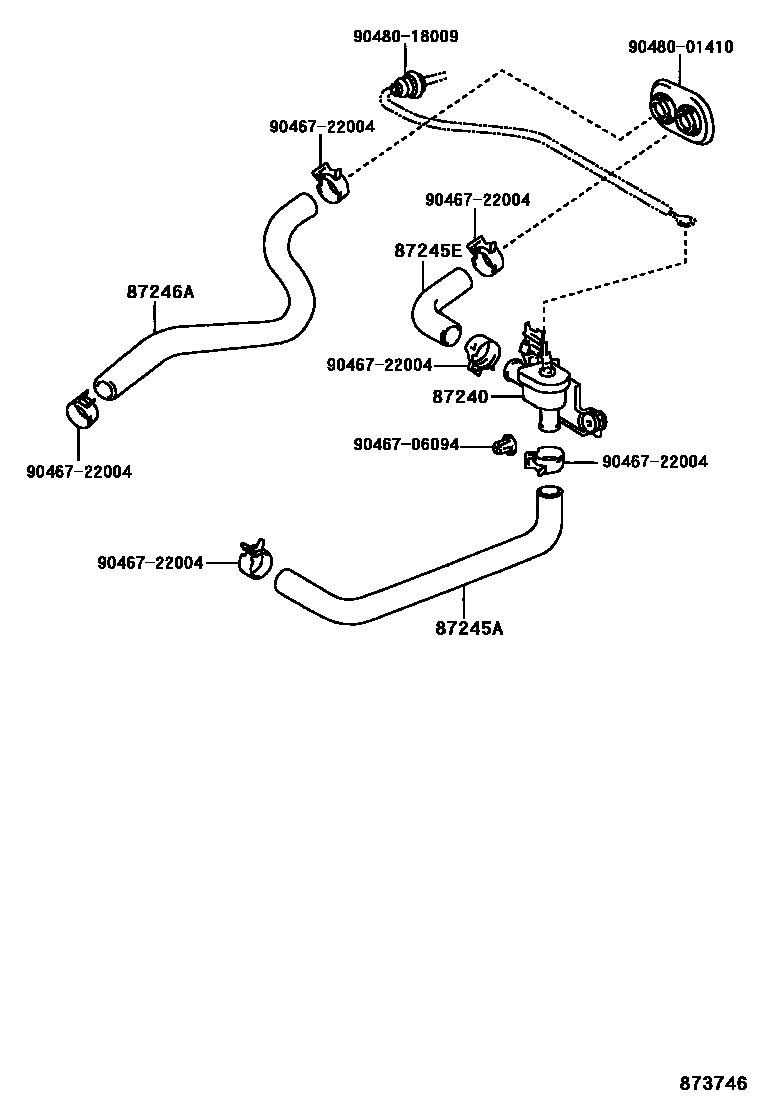

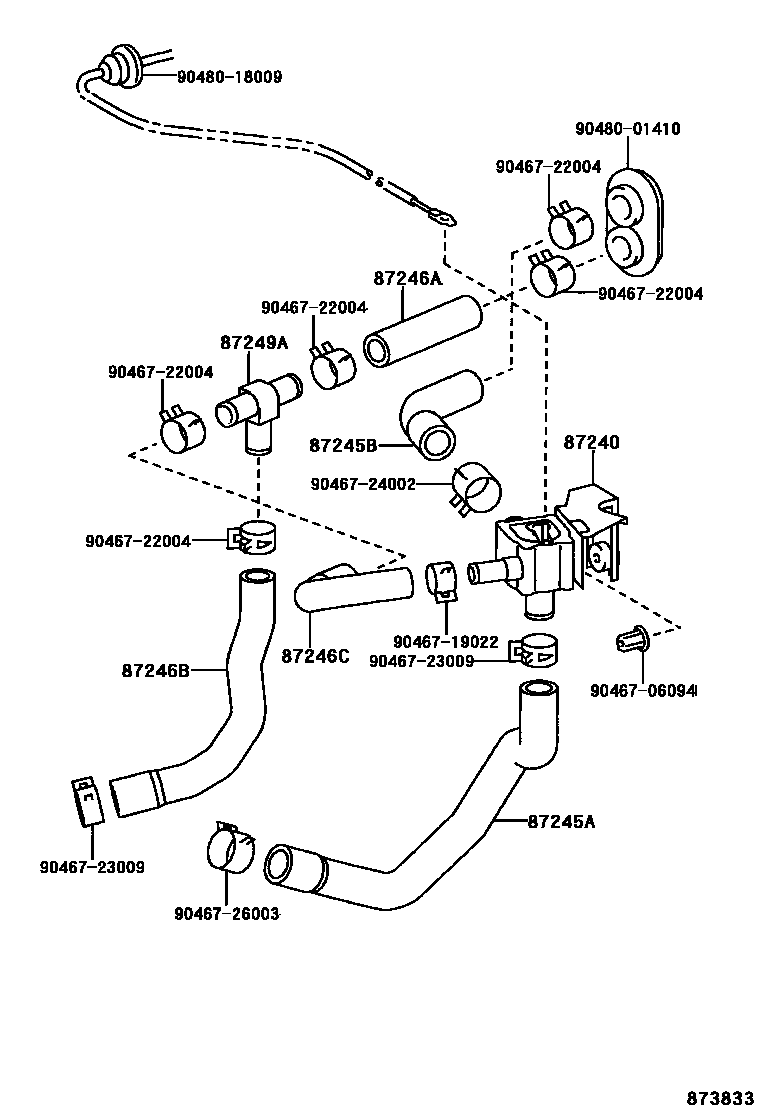

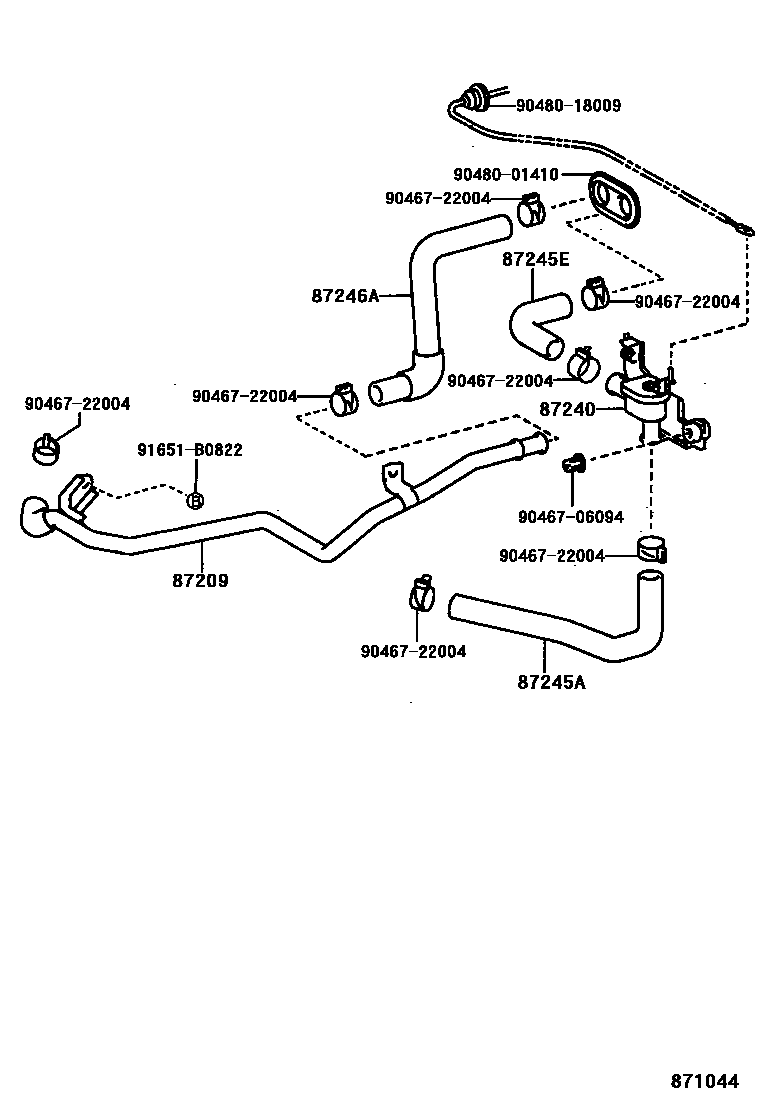

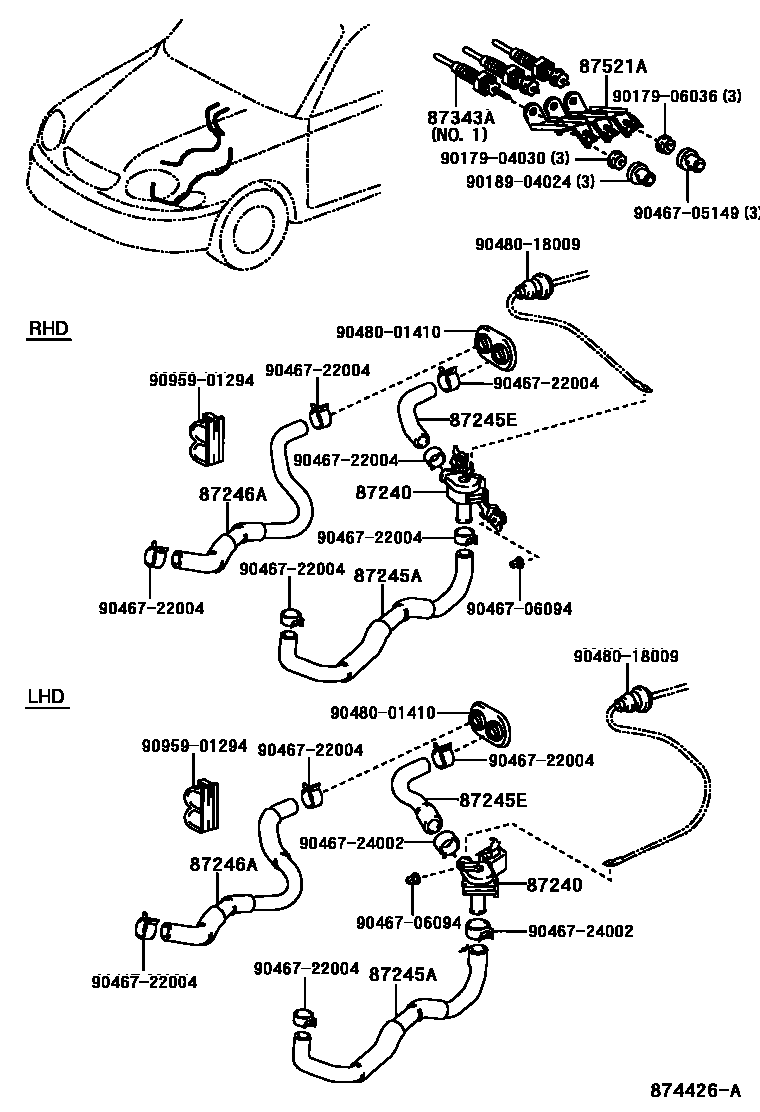

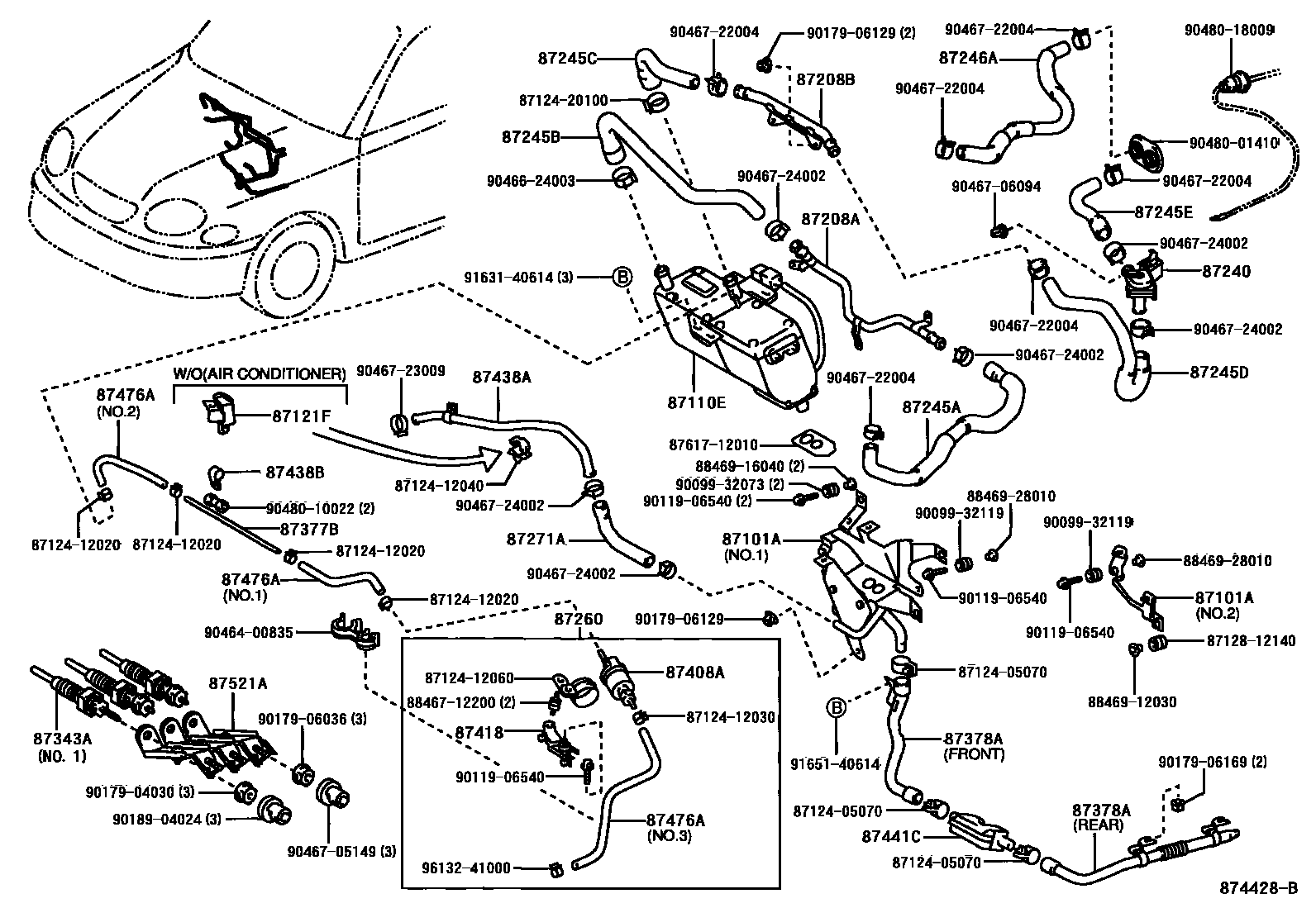

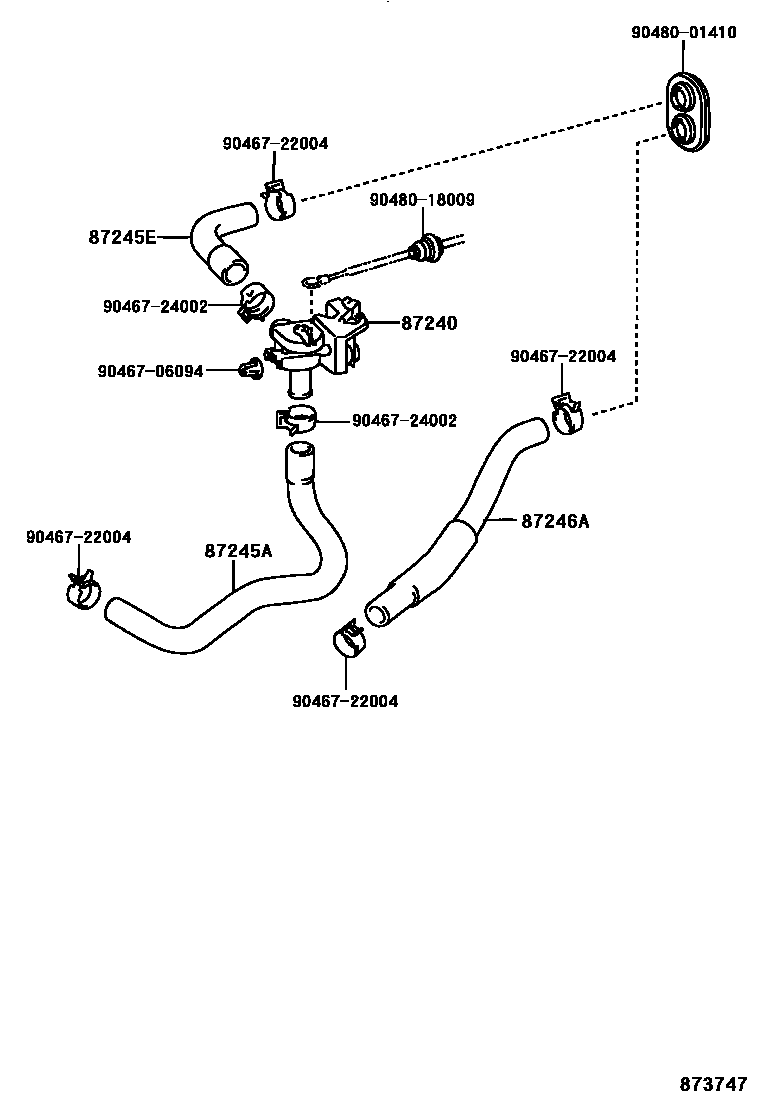

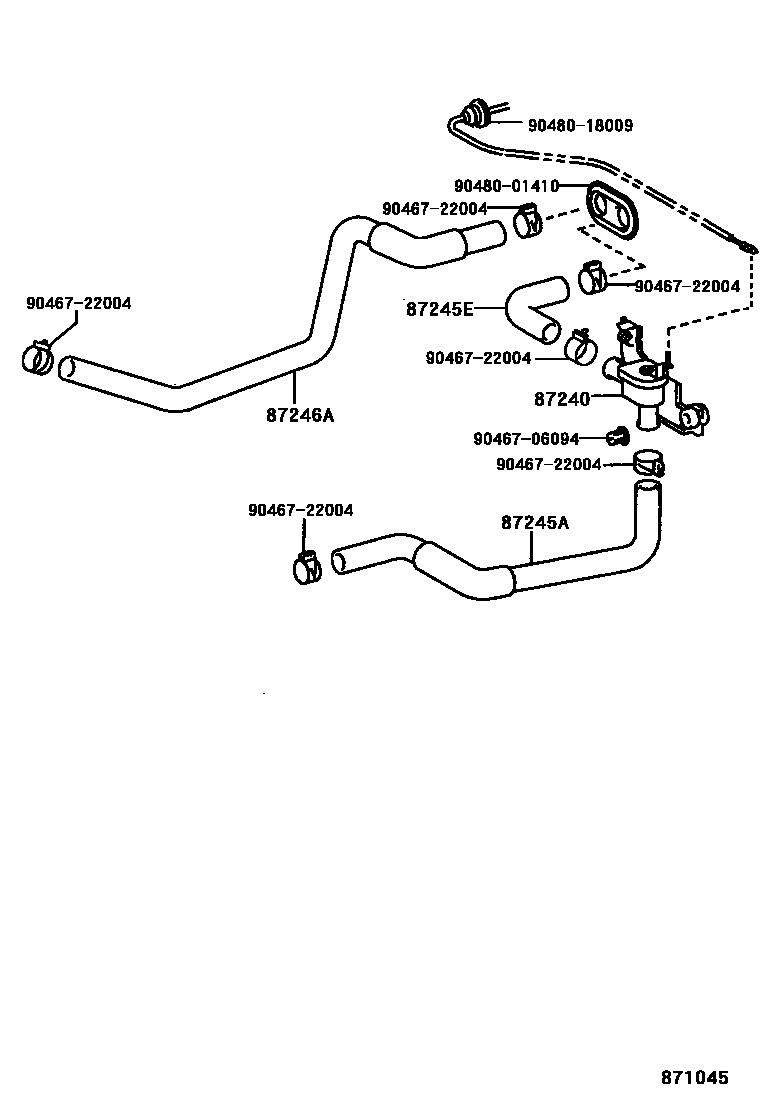

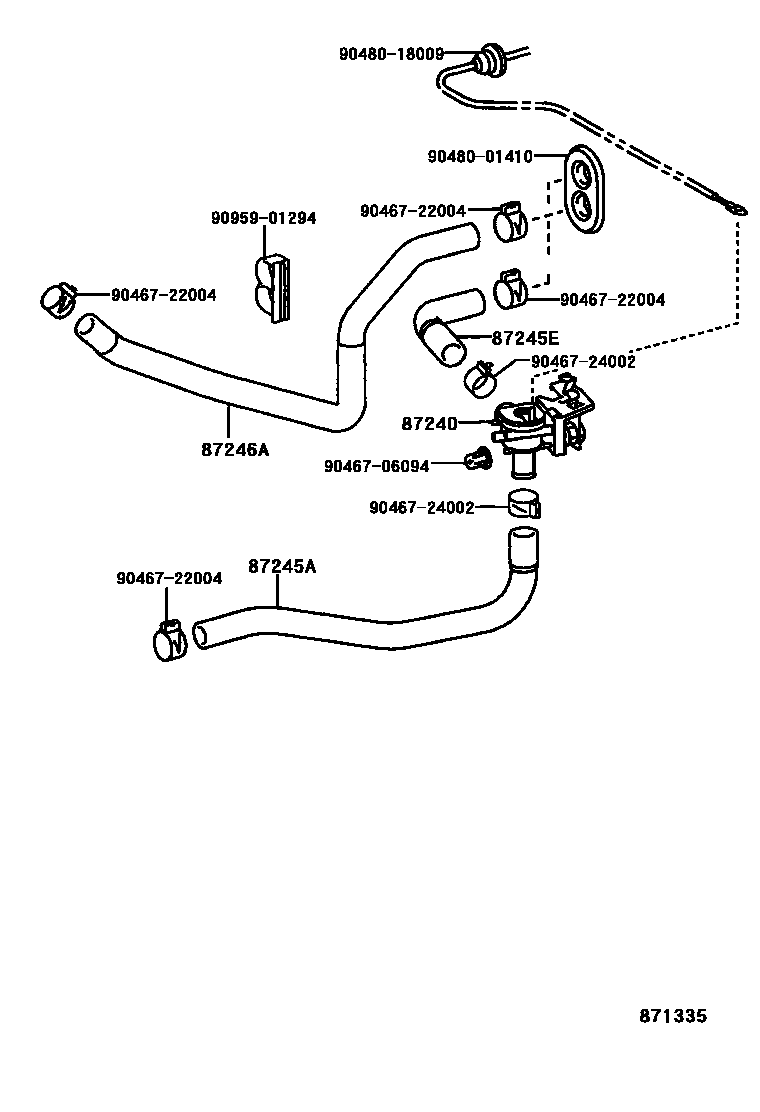

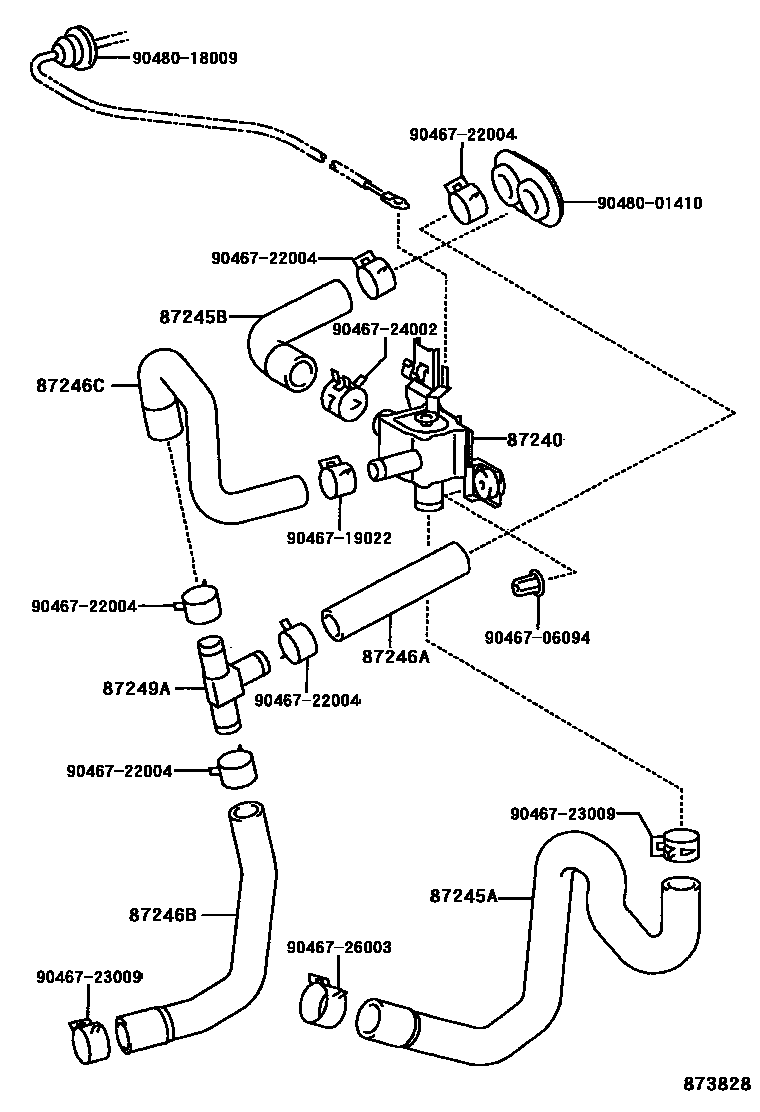

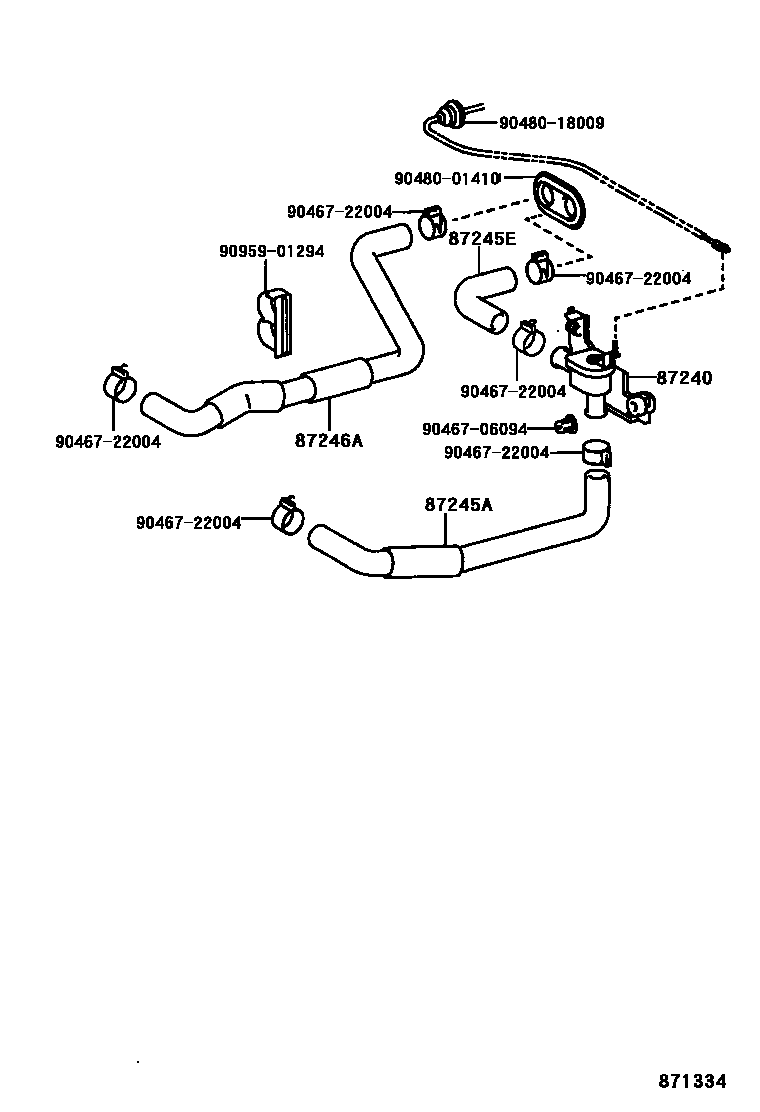

Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716
Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 13 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-12020 · 87101-12040 |

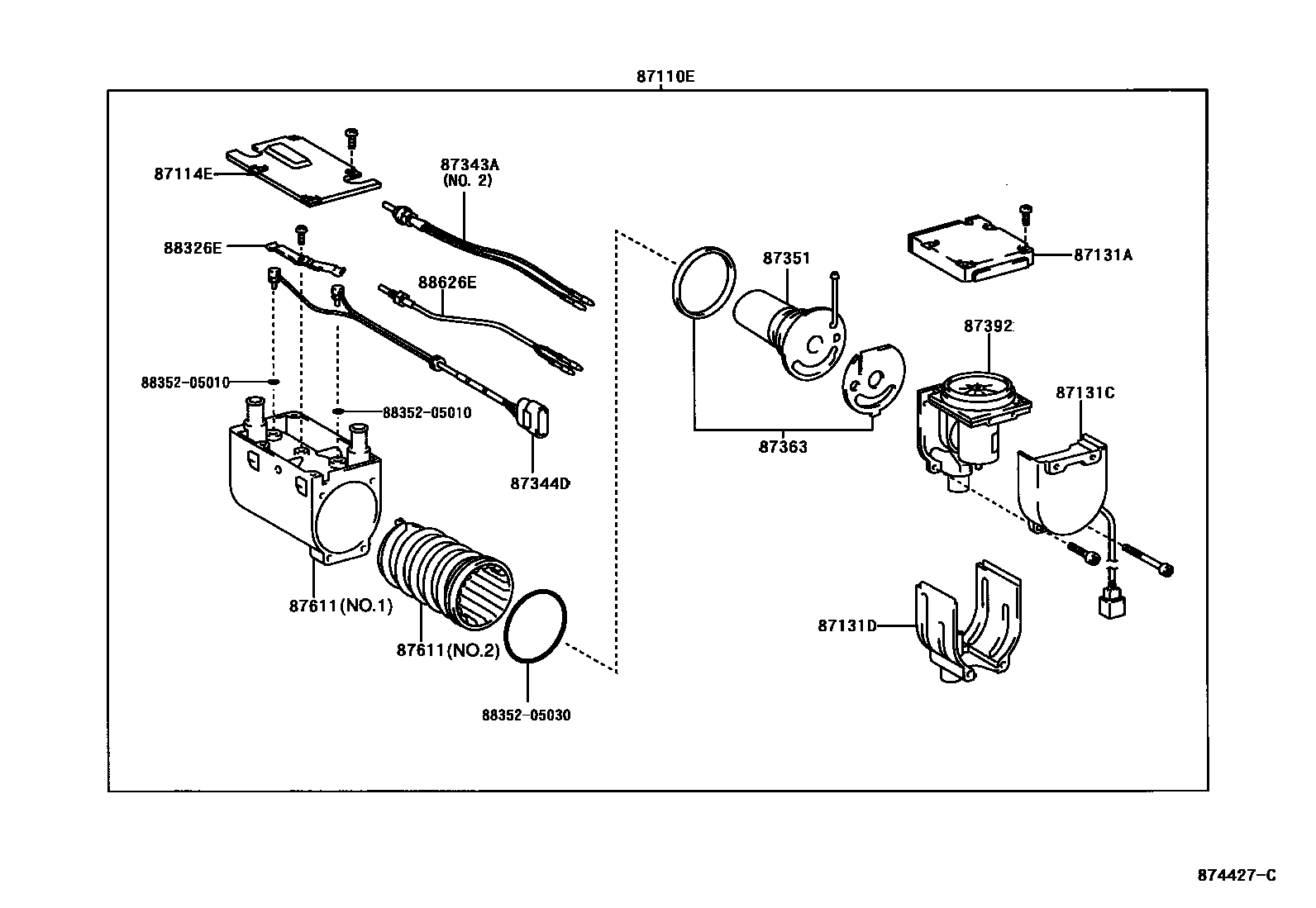

| 87110E | heater assembly | 87110-05030 |
| 87114E | Heater cover No. 1 | 87114-05050 |
| 87121F | heater bracket | 87121-12050 |
| 87131A | heater blower housing | 87131-05040 |
| 87131C | No. 2 heater blower housing | 87131-05050 |
| 87131D | No. 3 heater blower housing | 87131-05060 |
| 87208A | Heater water pipe sub-assembly A | 87208-12040 |
| 87208B | Heater water pipe sub-assembly B | 87208-12050 |
| 87209 | Water hose sub-assembly | 87209-12450 |
| 87240 | Heater water valve assembly | 87240-02030 · 87240-02040 · 87240-12250 · 87240-12260 · 87240-12270 · 87240-12290 · 87240-12310 · 87240-12320 |
| 87245A | Heater water inlet hose A | 87245-02110 · 87245-02130 · 87245-02170 · 87245-02190 · 87245-02250 · 87245-02270 · 87245-02300 · 87245-1A542 · 87245-1A570 · 87245-1A640 · 87245-1A680 · 87245-1A690 · 87245-1A711 · 87245-1A790 · 87245-1A810 · 87245-1A840 · 87245-1A860 · 87245-1E240 · 87245-1E250 · 87245-1E280 |
| 87245B | Heater water inlet hose B | 87245-1A530 · 87245-1E020 · 87245-1E270 |
| 87245C | Heater water inlet hose C | 87245-1E210 |
| 87245D | Heater water inlet hose D | 87245-1E260 |
| 87245E | Heater water inlet hose E | 87245-02090 · 87245-02100 · 87245-1A440 · 87245-1A530 · 87245-1E220 · 87245-1E230 |
| 87246A | Heater outlet hose A | 87245-02120 · 87245-02140 · 87245-02180 · 87245-02200 · 87245-02260 · 87245-02290 · 87245-1A273 · 87245-1A581 · 87245-1A601 · 87245-1A630 · 87245-1A670 · 87245-1A700 · 87245-1A800 · 87245-1A830 · 87245-1E030 · 87245-1E040 · 87245-1E290 · 87245-1E300 |
| 87246B | Heater outlet hose B | 87245-02280 · 87245-02310 · 87245-1A820 · 87245-1A850 |
| 87246C | Heater outlet hose C | 87245-1A880 · 87245-1E010 |
| 87249A | Heater outlet pipe A | 87248-08030 |
| 87260 | Heater pump assembly | 87260-12010 |
| 87271A | Heater Vacuum Hose No. 1 | 87271-12010 |
| 87343A | Combustion heater glow plug | 87343-05010 · 87343-20010 |
| 87344D | heating wire | 87344-05010 |
| 87351 | fuel regulator chamber | 87351-05010 |
| 87363 | fuel regulator cover gasket | 87363-05010 |
| 87377B | fuel pipe | 87377-12010 |
| 87378A | Exhaust Pipe | 87378-12030 · 87378-12040 |
| 87392 | Motor housing | 87392-05020 |
| 87408A | Fuel pump sub-assembly | 87408-05010 |
| 87418 | fuel adapter | 87418-12010 |
| 87438A | intake pipe | 87421-12010 |
| 87438B | Heater tube bracket C | 87438-12010 |
| 87441C | Silencer | 87441-05010 |
| 87476A | Heater No. 1 fuel hose | 87476-12010 · 87476-12020 · 87476-12030 |
| 87521A | Engine block heater bracket | 87521-12010 |
| 87611 | heat exchanger box | 87611-05010 · 87611-05020 |
| 88326E | Cover plate | 88326-05040 |
| 88626E | water temperature sensor | 88626-05020 |
