Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

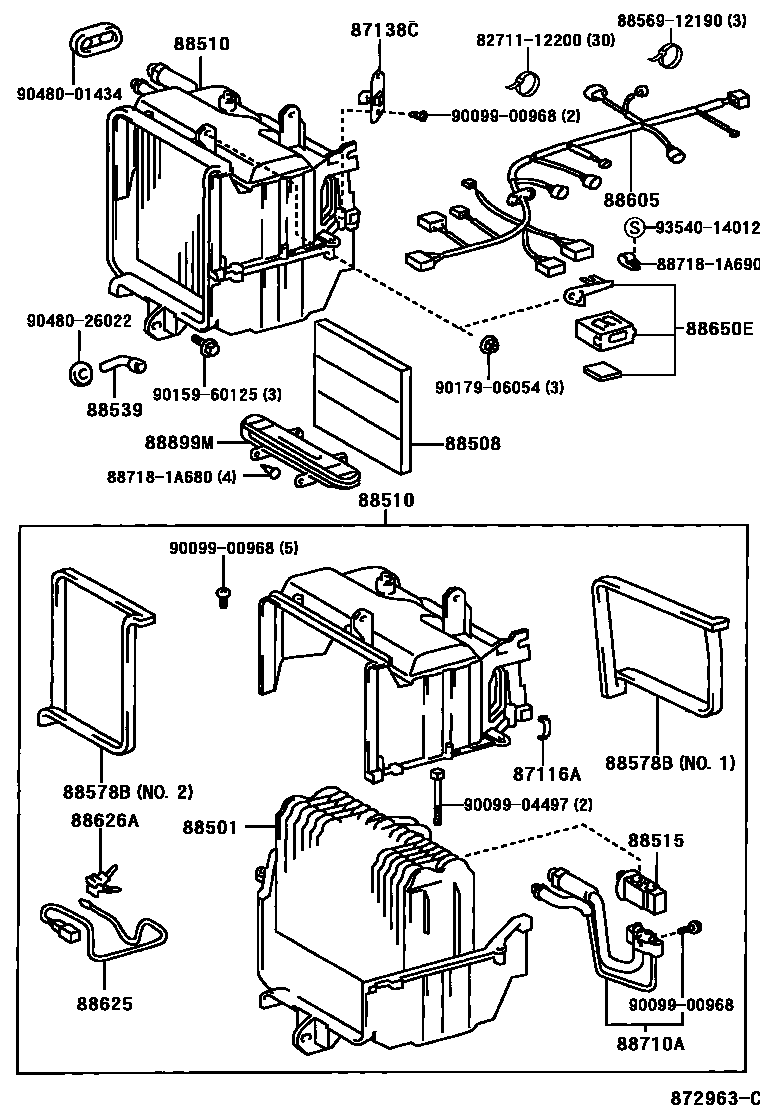

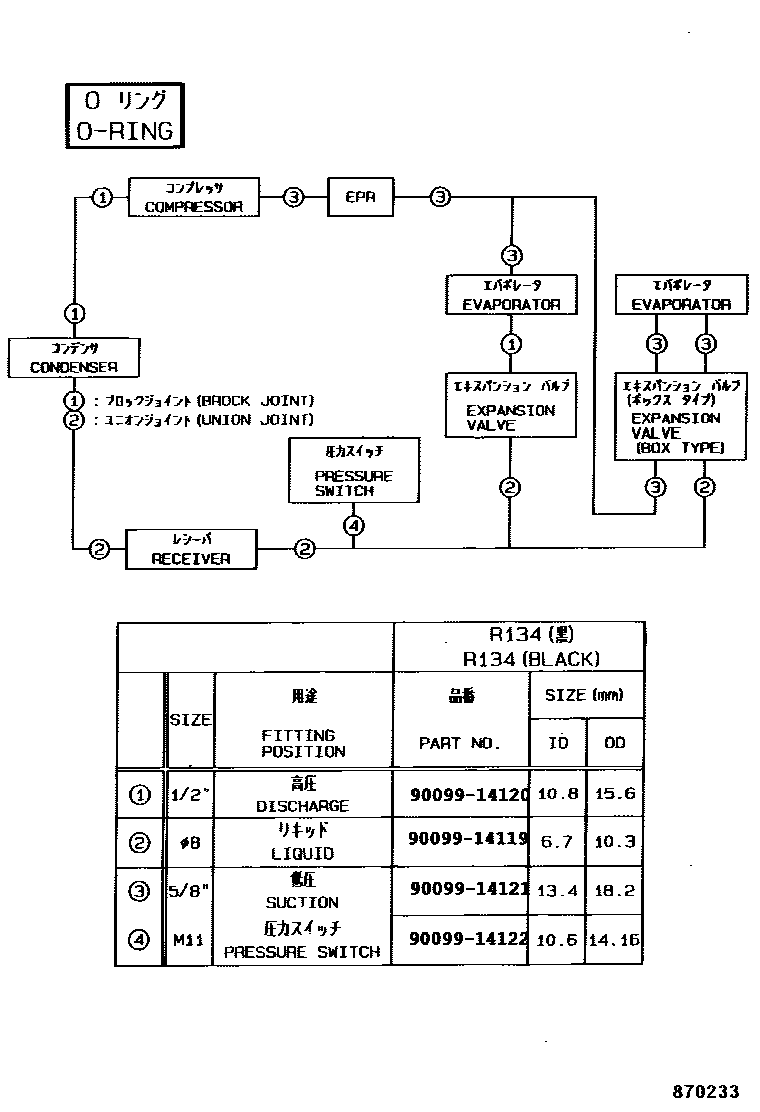

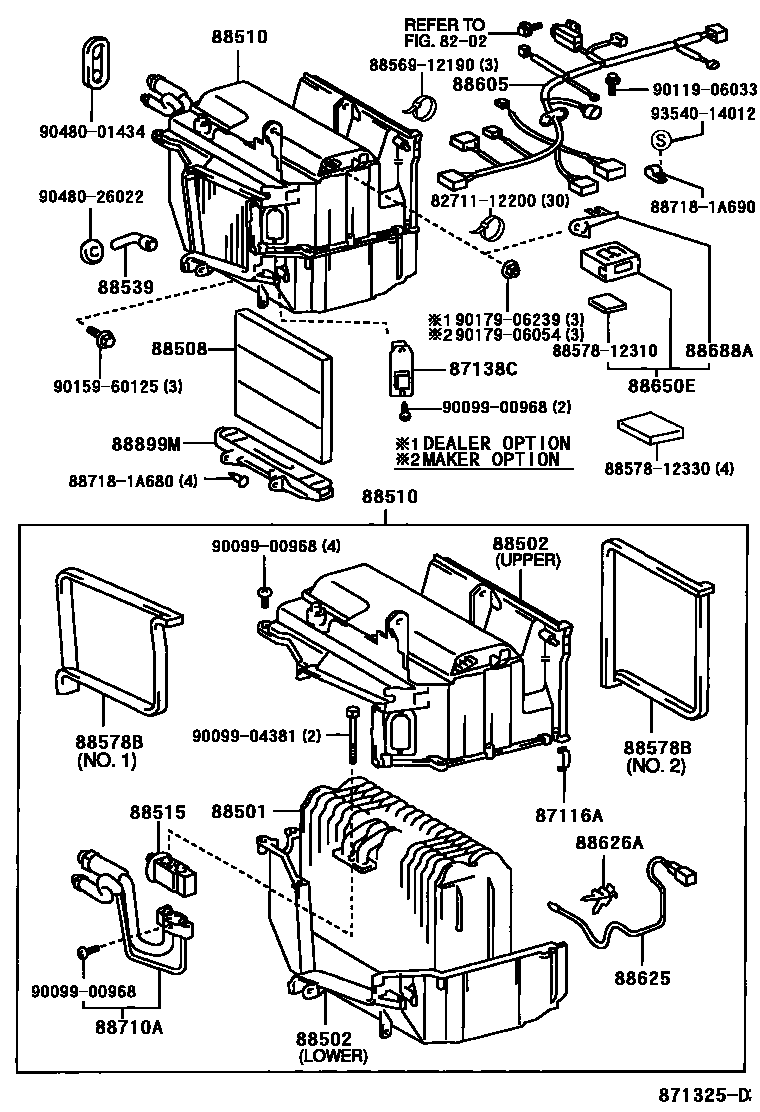

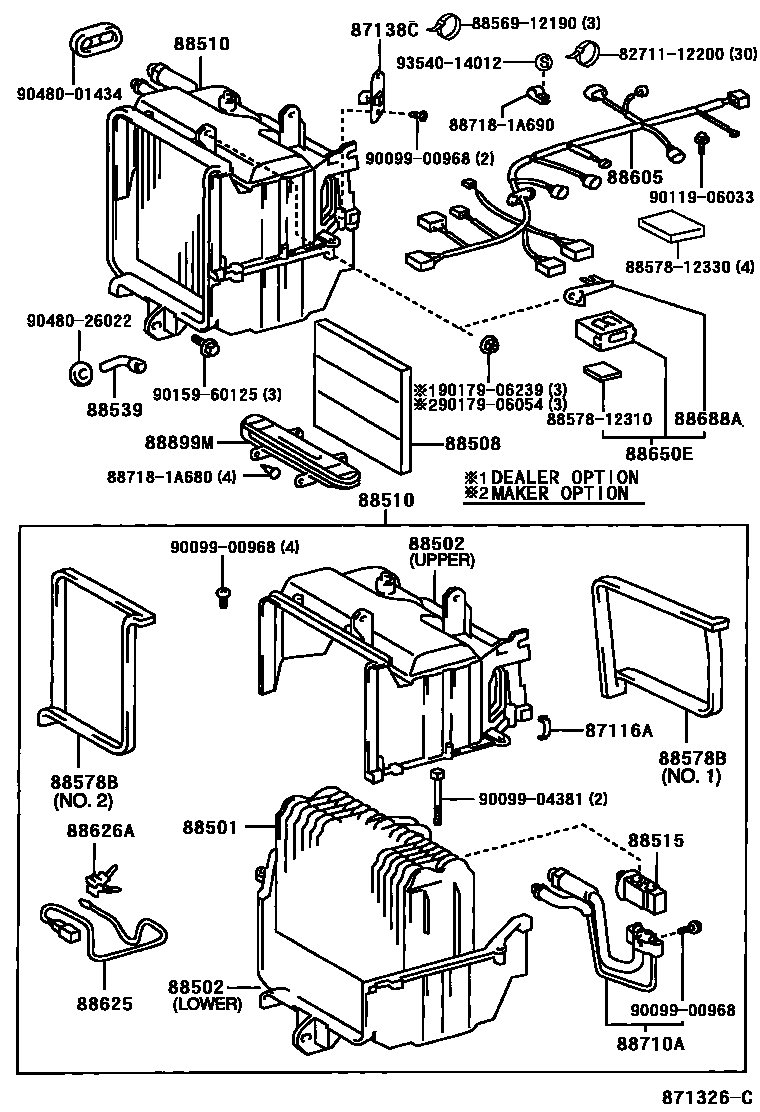

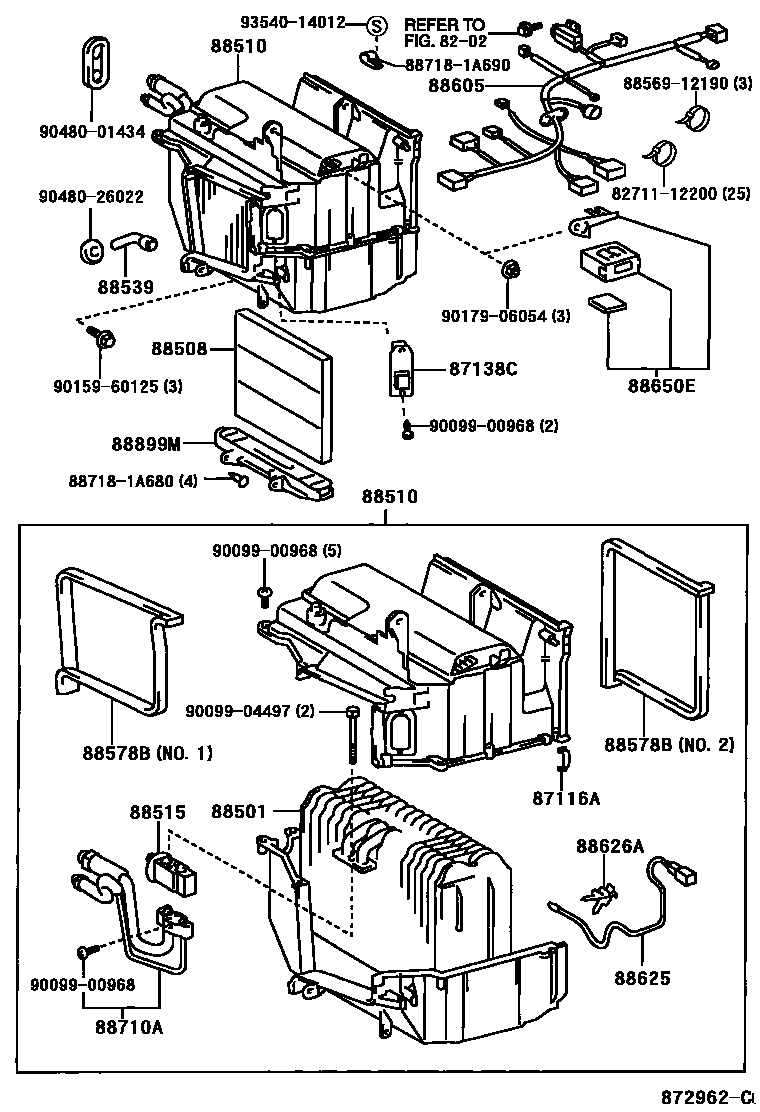

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 87138C | Blower resistor | 87138-12140 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02030 · 88501-02031 · 88501-02040 · 88501-12391 · 88501-12401 |
| 88502 | Cooling device shell sub-assembly | 88502-12190 · 88502-12210 · 88502-12260 · 88502-12270 |
| 88508 | Air purification filter sub-assembly | 88508-02010 · 88508-02020 · 88508-12010 · 88508-12020 |
| 88510 | Cooler device assembly | 88510-02100 · 88510-02120 · 88510-1A620 · 88510-1A640 · 88510-1A690 · 88510-1A700 |
| 88515 | Cooler expansion valve | 88515-16050 · 88515-20100 · 88515-48040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12160 |
| 88578B | Cooling unit seal No. 1 | 88578-12470 · 88578-12490 · 88578-12510 · 88578-20470 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-02070 · 88605-02080 · 88605-02090 · 88605-02100 · 88605-02110 · 88605-02120 · 88605-02130 · 88605-02140 · 88605-1K240 · 88605-1K250 · 88605-1K260 · 88605-1K270 · 88605-1K280 · 88605-1K290 · 88605-1K380 · 88605-1K390 · 88605-1K400 · 88605-1K410 · 88605-1K430 · 88605-1K440 |
| 88625 | Cooler No. 1 Thermistor | 88625-02020 · 88625-12280 |
| 88626A | Thermistor mount | 88626-28010 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-02180 · 88650-02190 · 88650-02220 · 88650-1E040 · 88650-1E050 · 88650-1E230 · 88650-1E320 · 88650-1E340 |
| 88688A | Cooler stabilized amplifier stand | 88688-1A090 |
| 88710A | Air conditioning pipe assembly | 88710-02090 · 88710-02091 · 88710-02100 · 88710-12330 · 88710-12340 · 88710-12490 · 88710-12500 |
| 88899M | cover (for air cleaner) | 88899-02020 · 88899-02030 · 88899-12340 · 88899-12350 |
