Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 7 PNC and OE references.

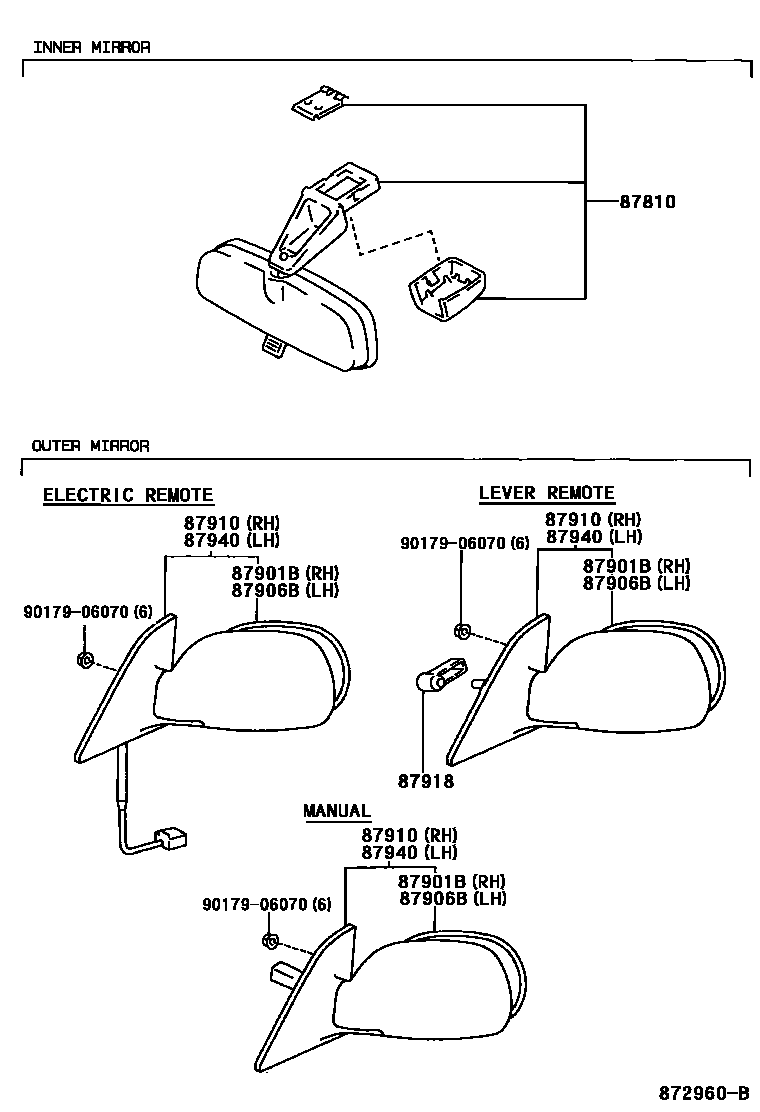

Toyota COROLLA 后视镜 EPC diagram — 872960B
后视镜 — 872960B (199809 – 999999)

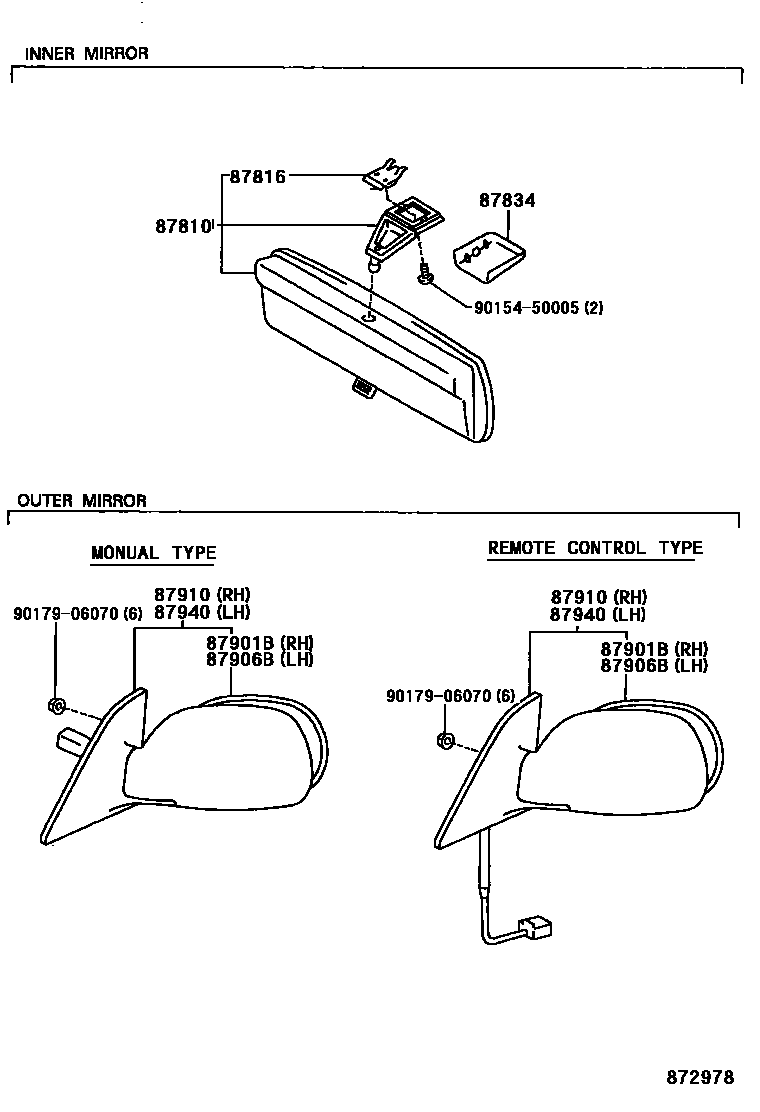

Toyota COROLLA 后视镜 EPC diagram — 872978
后视镜 — 872978 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-05020
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87908-02140 · 87908-02150 · 87908-02160 · 87908-02161 · 87908-02180 · 87908-02181 · 87931-1A820 · 87931-1E630 · 87931-1E640 · 87931-1E641 · 87931-1E660 · 87931-1E661
87906BLeft exterior rearview mirror sub-assembly87909-02140 · 87909-02150 · 87909-02160 · 87909-02161 · 87909-02180 · 87909-02181 · 87961-1E820 · 87961-1E850 · 87961-1E851 · 87961-1E860 · 87961-1E880 · 87961-1E881
87910Right exterior rearview mirror assembly87910-02140 · 87910-02150 · 87910-02180 · 87910-02181 · 87910-02182 · 87910-1A800 · 87910-1E630 · 87910-1E650 · 87910-1E651 · 87910-1E652
87918Exterior rearview mirror control handle87918-02010
87940Left exterior rearview mirror assembly87940-02140 · 87940-02150 · 87940-02180 · 87940-02181 · 87940-02182 · 87940-1E790 · 87940-1E860 · 87940-1E870 · 87940-1E871 · 87940-1E872
