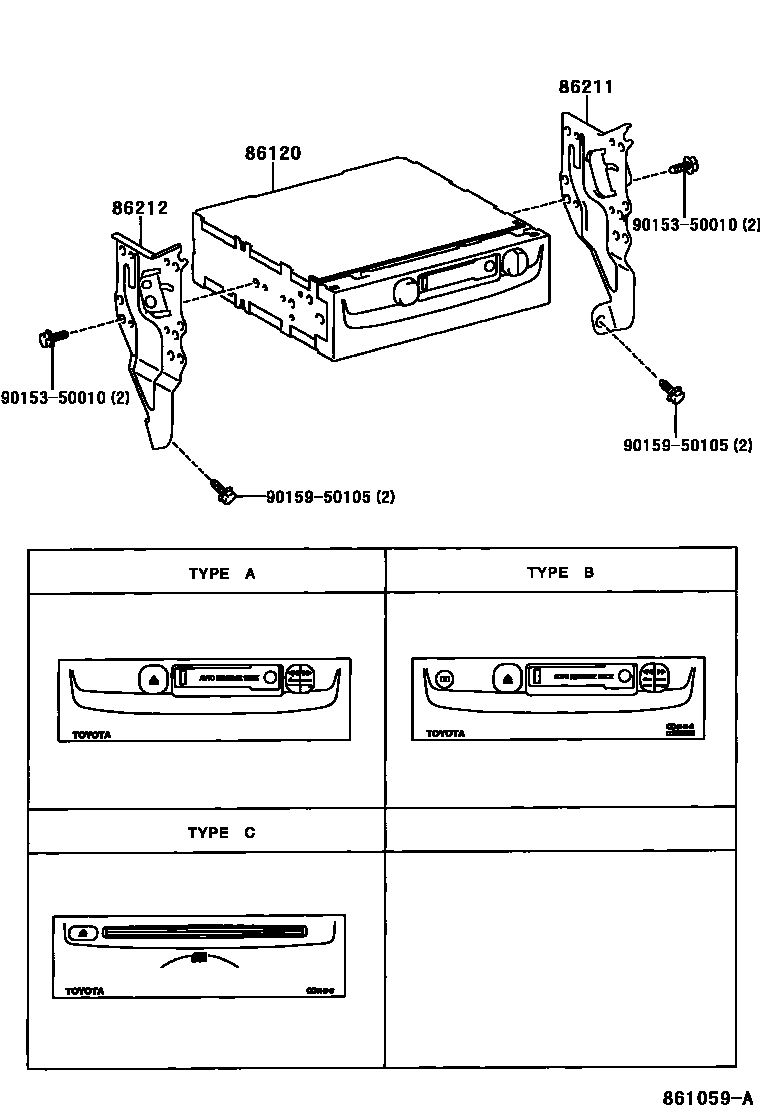

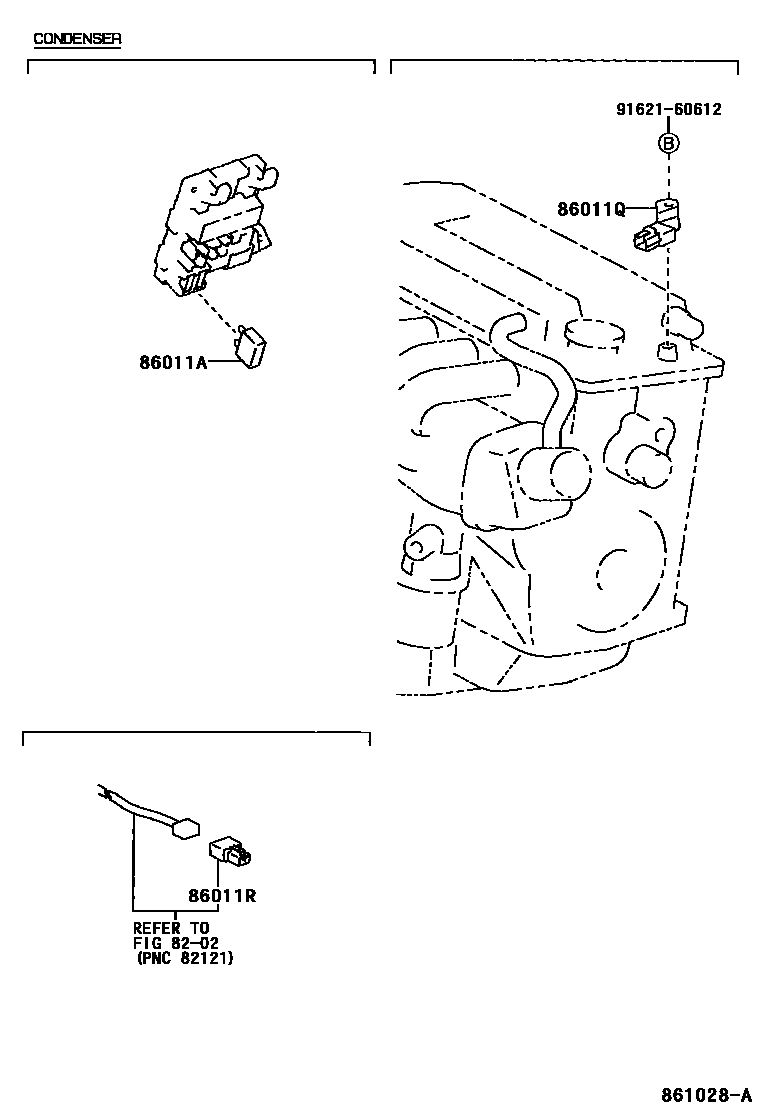

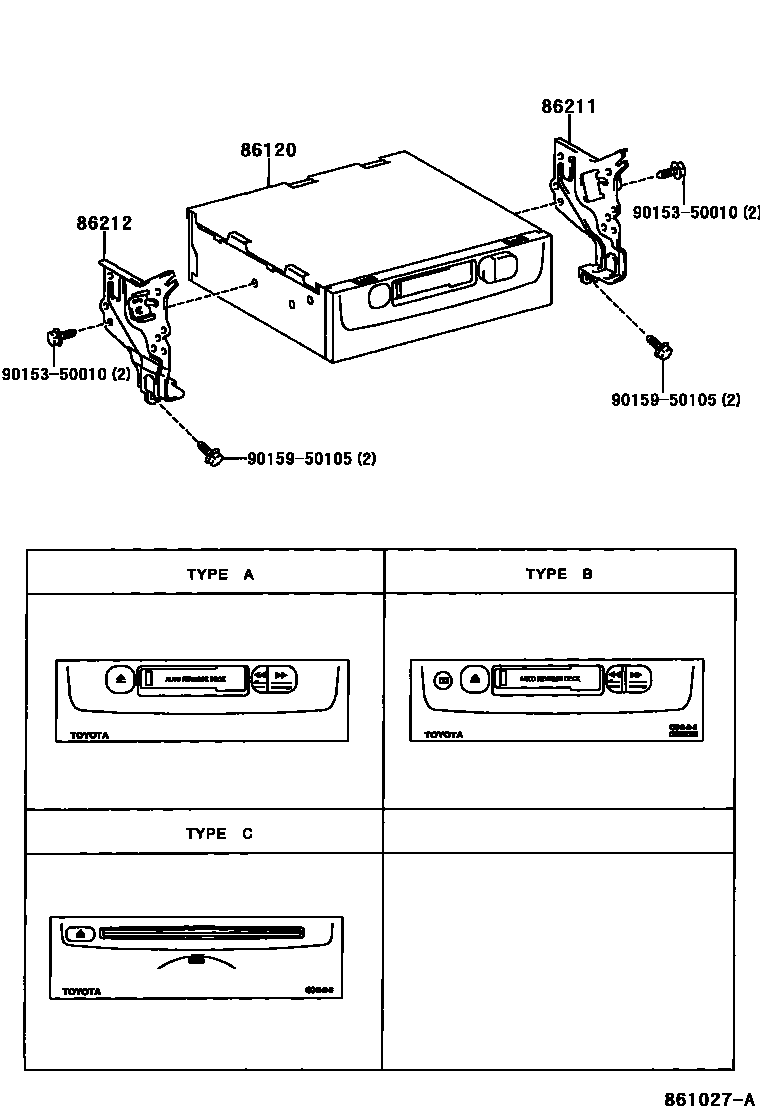

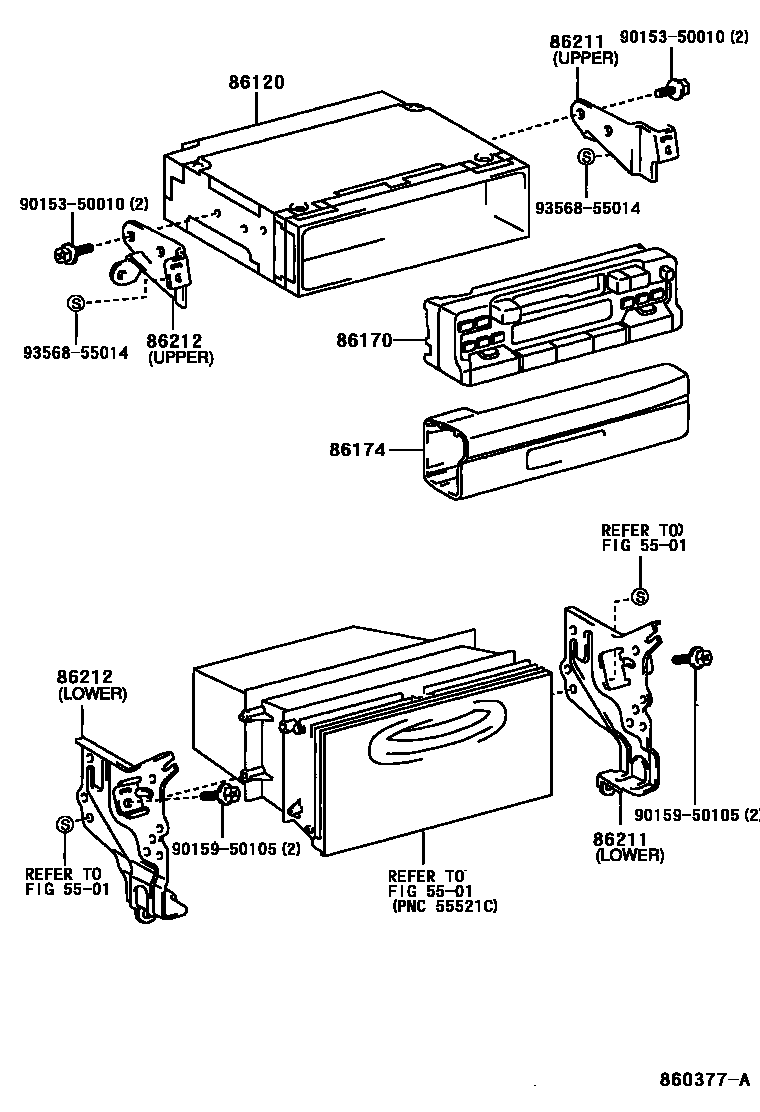

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04066 |
| 86011Q | radio settings phase modulator | 90980-04154 |
| 86011R | radio settings phase modulator | 90980-04111 |
| 86120 | Radio assembly | 86120-02170 · 86120-02180 · 86120-02190 · 86120-05040 · 86120-1A110 · 86120-1A120 · 86120-1A130 · 86120-60210 |
| 86170 | Radio switch and volume assembly | 86170-05010 · 86170-60010 |
| 86174 | Switch and volume box | 86174-05010 · 86174-60010 |
| 86211 | No. 1 radio bracket | 86211-02080 · 86211-02090 · 86211-12340 · 86211-12350 |
| 86212 | No. 2 radio bracket | 86212-02080 · 86212-02090 · 86212-12320 · 86212-12330 |
