Toyota COROLLA 前大灯清洗器 — Figure 8505

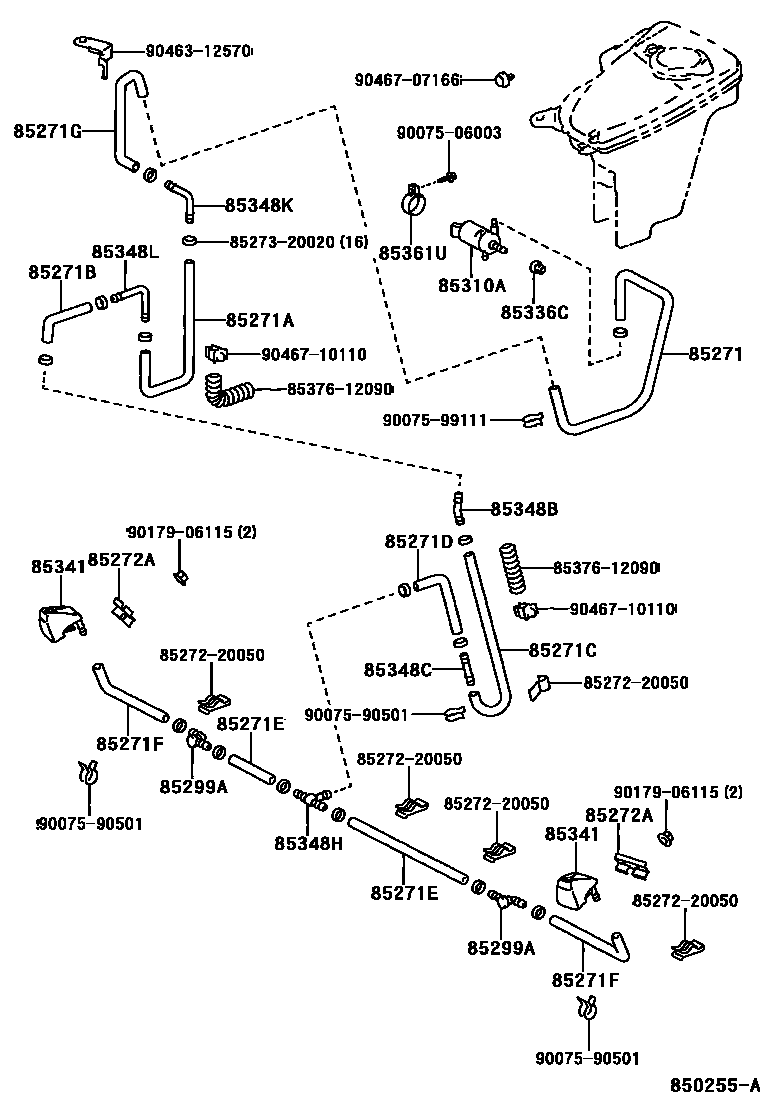

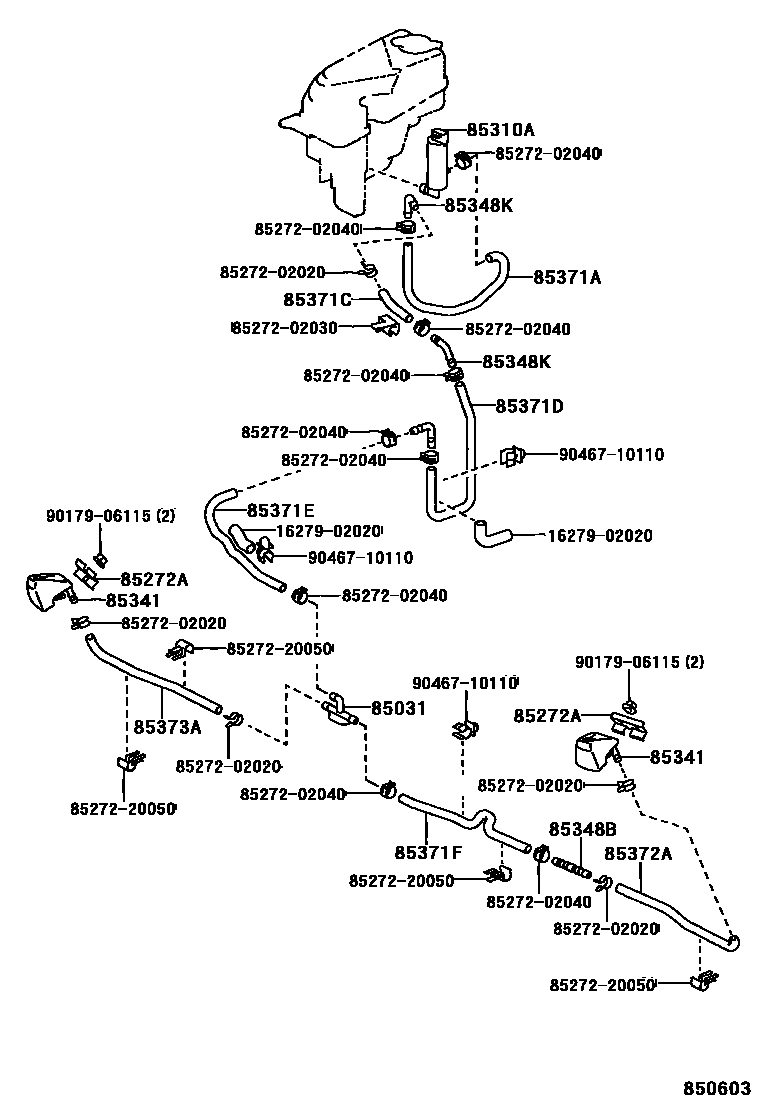

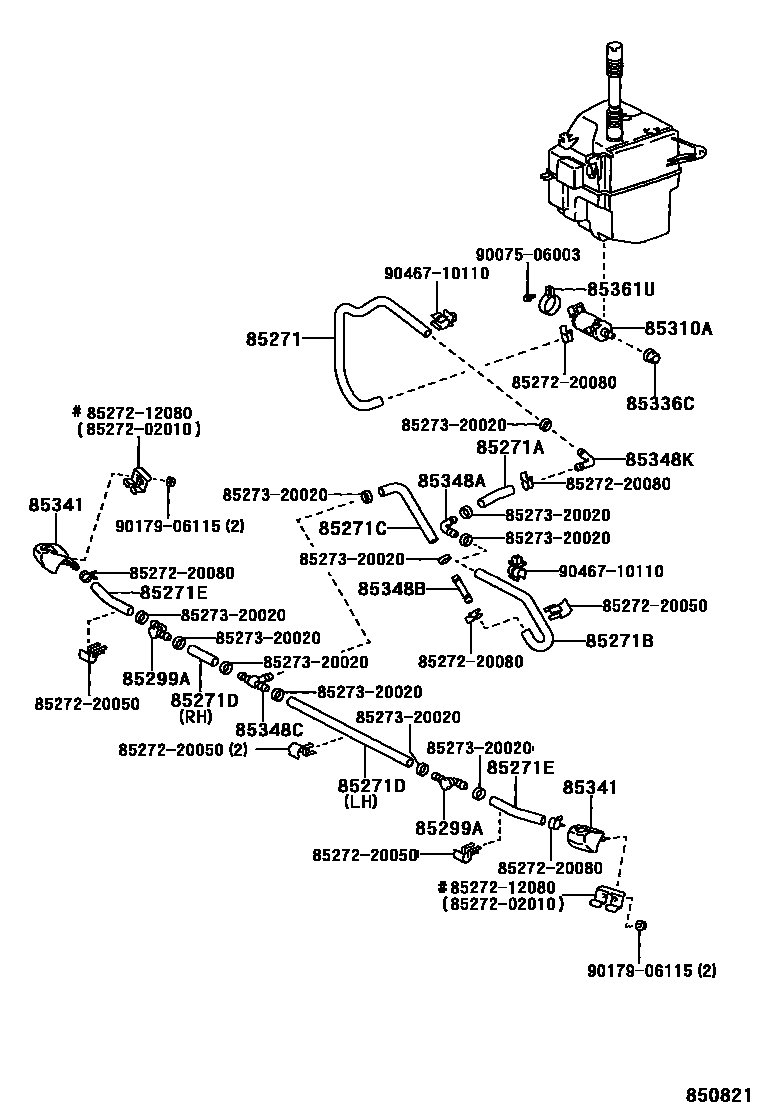

Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85287-02010 |
| 85271 | No. 1 headlight washer hose | 85271-12060 · 85275-12070 · 85375-20190 |
| 85271A | No. 2 headlight washer hose | 85275-12010 · 85375-20190 · 90075-15002 |
| 85271B | No. 3 headlight washer hose | 85275-12010 · 85275-12050 · 85343-95700 |
| 85271C | No. 4 headlight washer hose | 85275-12010 · 85275-12050 · 85375-22061 · 85376-14301 |
| 85271D | No. 5 headlight washer hose | 85275-12050 · 85375-22061 · 85376-14301 · 90445-14046 |
| 85271E | No. 6 headlight washer hose | 85375-22061 · 85376-14301 · 90445-14046 |
| 85271F | No. 7 headlight washer hose | 85289-20590 |
| 85271G | headlight hose | 90075-15001 |
| 85272A | Headlight washer No. 1 clip | 85272-02010 · 85272-12080 |
| 85299A | One-way valve assembly | 85299-33020 |
| 85310A | Headlight washer motor and pump assembly | 85280-02010 · 85280-12060 · 85280-20020 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85044-02010 · 85044-12080 · 85044-12090 |
| 85348A | Headlight washer hose connector No. 1 | 85379-90K04 |
| 85348B | No. 2 headlight washer hose connector | 85287-02030 · 85379-30010 · 85379-89131 |
| 85348C | No. 3 headlight washer hose connector | 85352-12010 · 85379-89131 |
| 85348H | No. 4 headlight washer hose connector | 85352-12010 |
| 85348K | No. 1 headlight washer elbow joint | 85278-20590 · 85287-02020 · 85379-22080 |
| 85348L | No. 2 headlight washer elbow joint | 85279-60080 |
| 85361U | Headlight washer bracket | 85361-33020 |
| 85371A | Headlight washer hose (from motor to connector) | 85271-02070 |
| 85371C | No. 1 headlight washer hose | 85271-02030 |
| 85371D | No. 2 headlight washer hose | 85271-02040 |
| 85371E | No. 3 headlight washer hose | 85271-02050 |
| 85371F | No. 4 headlight washer hose | 85271-02060 |
| 85372A | Headlight washer hose (from fitting to fitting or nozzle) | 85271-02020 |
| 85373A | Headlight washer hose (from connector to nozzle) | 85275-02010 |
