Toyota COROLLA 后清洗器 — Figure 8504

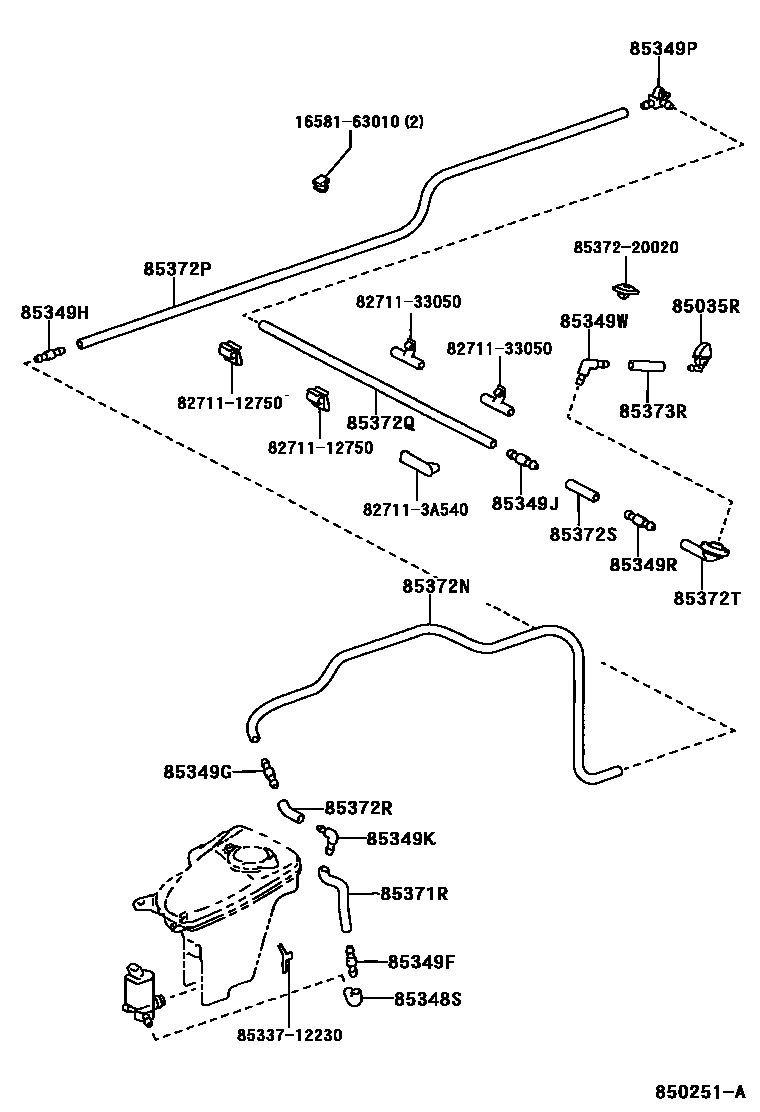

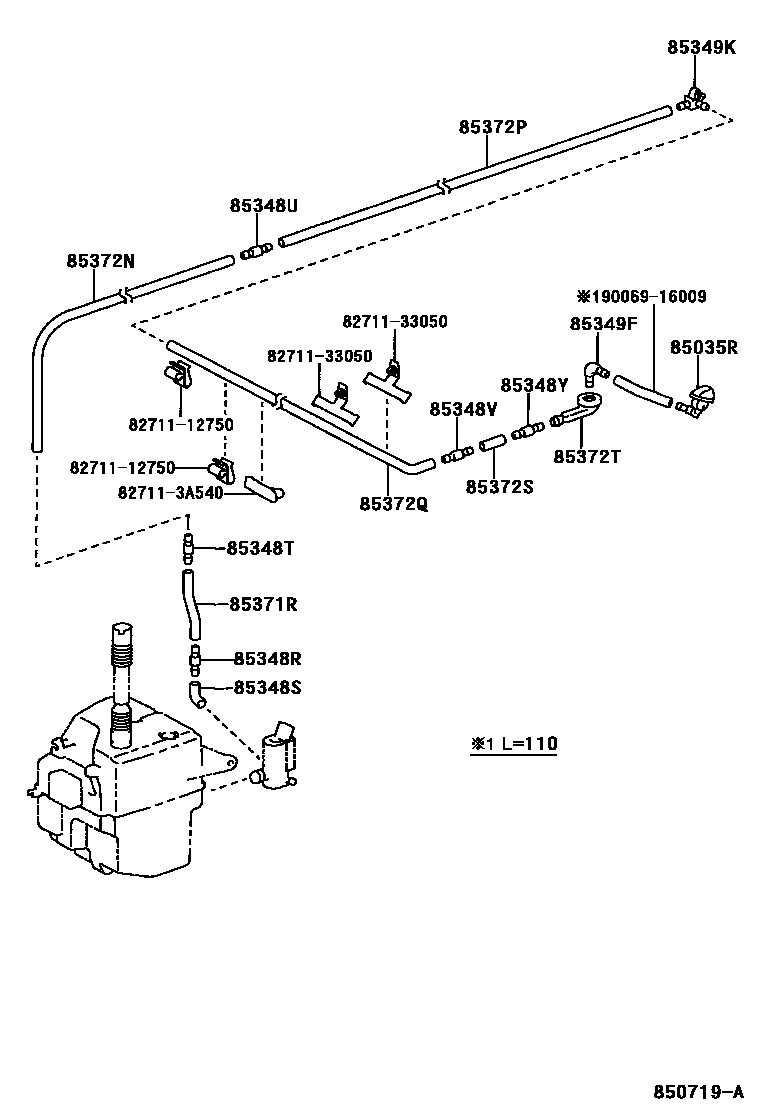

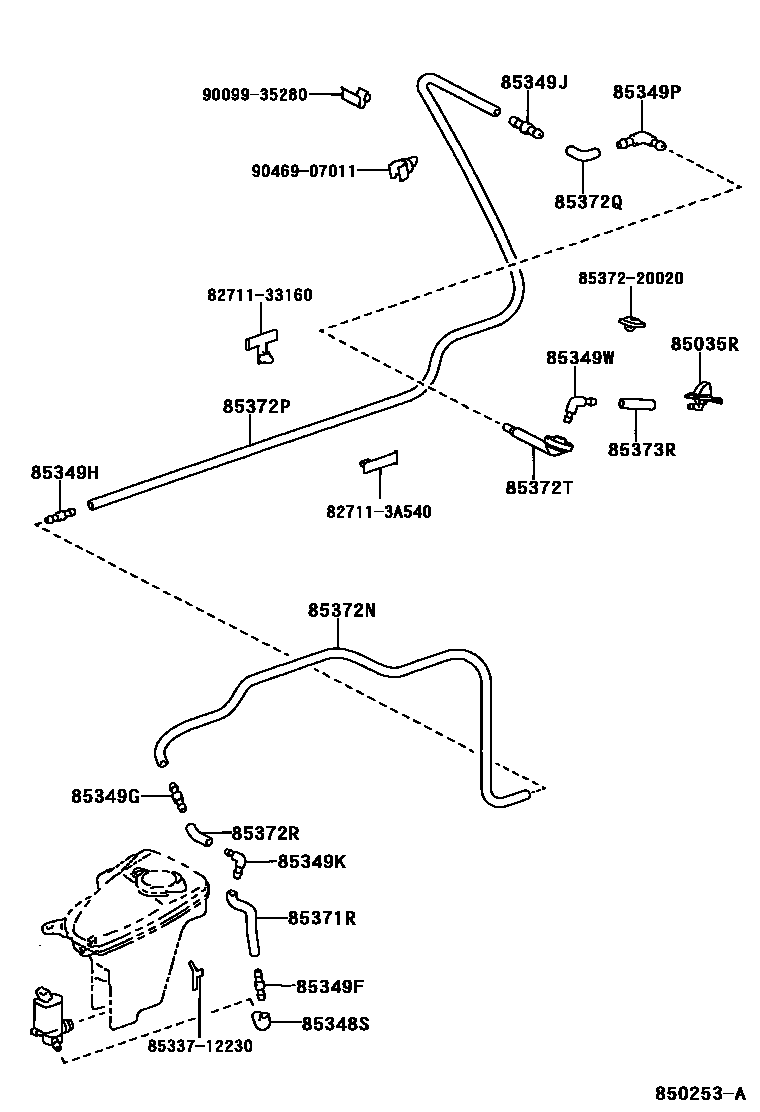

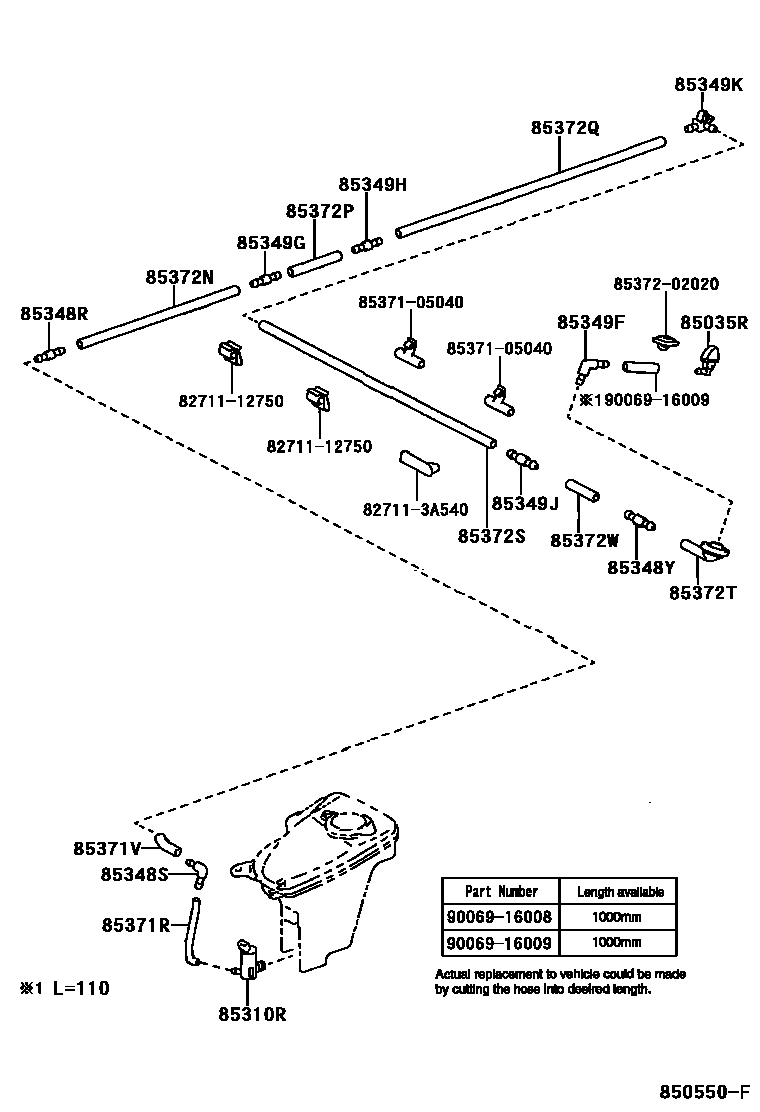

Toyota COROLLA EPC diagram 8504, 后清洗器, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-02010 · 85395-12030 · 85395-12040 |
| 85310R | Rear washer motor assembly | 85340-05010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 · 85375-05050 |
| 85348S | No. 1 rear cleaner elbow joint | 85336-12230 · 85355-14481 · 85395-0D010 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348U | No. 3 rear washer hose connector | 85349-89122 |
| 85348V | No. 4 rear washer hose connector | 85349-89122 |
| 85348Y | No. 5 rear washer hose connector | 85349-89122 |
| 85349F | No. 1 rear washer hose connector | 85349-89122 · 85355-20200 · 85375-10260 |
| 85349G | No. 2 rear washer hose connector | 85349-89122 · 85375-05050 |
| 85349H | No. 3 rear washer hose connector | 85349-89122 · 85375-05050 |
| 85349J | No. 4 rear washer hose connector | 85349-89122 · 85375-05050 |
| 85349K | No. 2 rear cleaner elbow joint | 85317-12230 · 85387-02070 · 85387-14540 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 · 85387-14540 |
| 85349R | No. 5 rear washer hose connector | 85349-89122 |
| 85349W | No. 4 rear cleaner elbow joint | 85355-20200 |
| 85371R | Rear washer hose (from motor to connector) | 90069-46001 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 85374-02140 |
| 85372T | Cleaner seal | 85372-20040 · 85373-14020 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 85374-02130 |
