Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

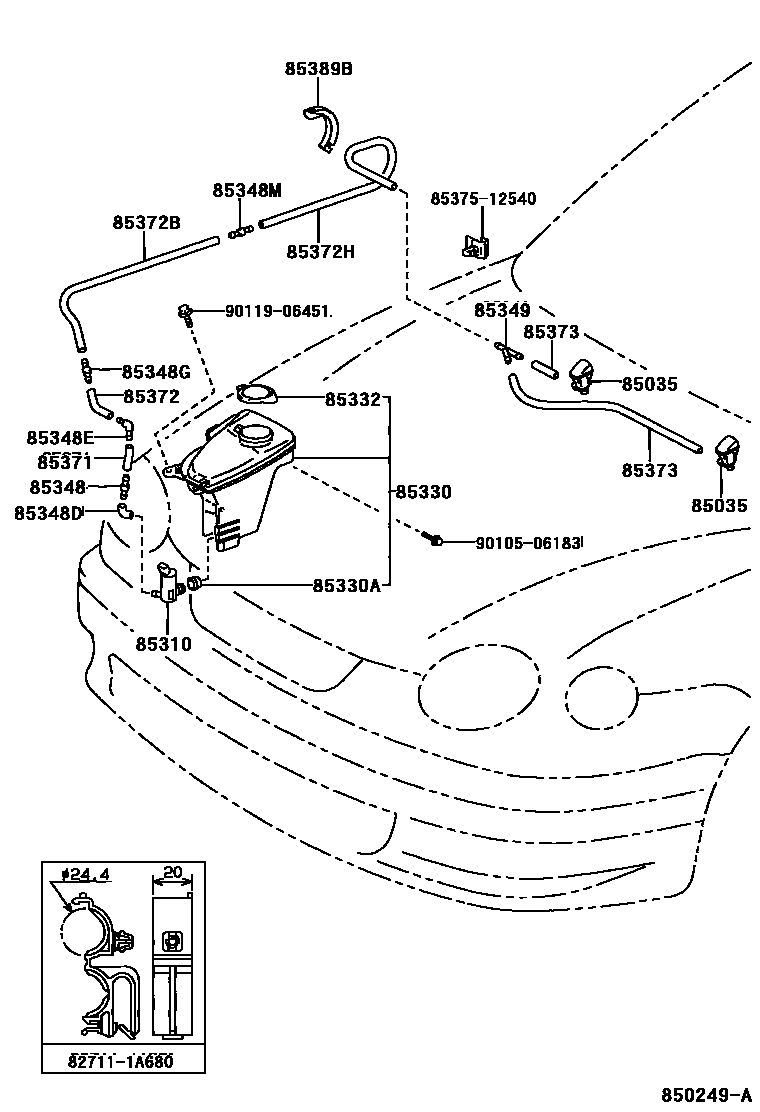

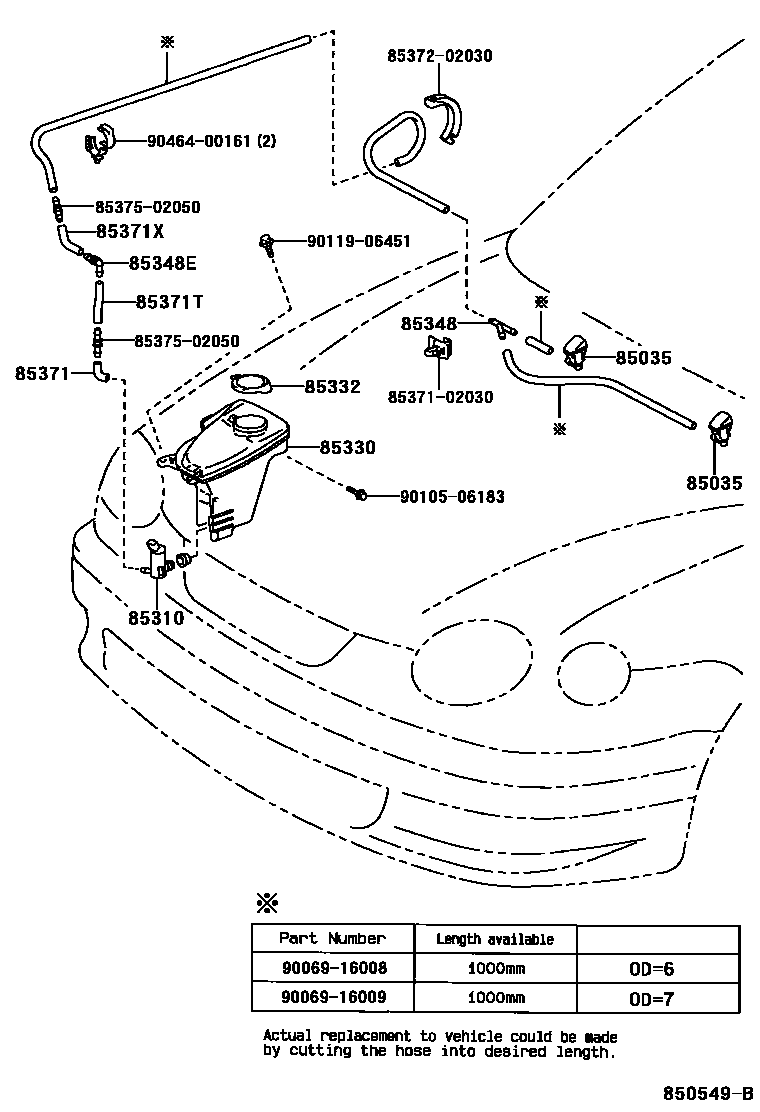

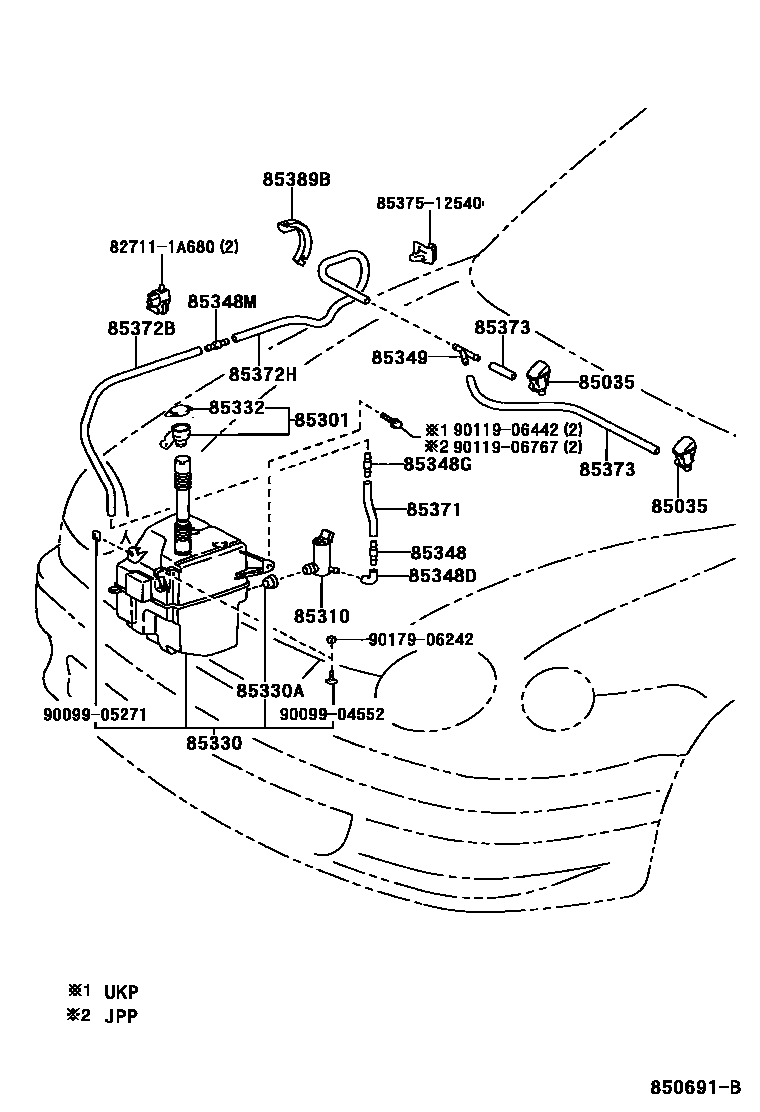

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-02040 · 85381-02050 · 85381-02060 · 85381-02070 · 85381-12050 · 85381-12100 · 85381-12170 · 85381-12180 · 85381-12190 · 85381-12200 |
| 85301 | Cleaner water inlet sub-assembly | 85301-12010 |
| 85310 | Windshield washer motor and pump assembly | 85330-05030 · 85330-44010 |
| 85330 | Windshield washer fluid tank assembly | 85315-02050 · 85315-02060 · 85315-12221 · 85315-12240 · 85315-12260 · 85315-12430 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-02050 · 85316-12221 · 85316-42011 |
| 85348 | Windshield washer hose connector No. 1 | 85334-22480 · 85375-10260 · 85378-05030 |
| 85348D | No. 1 windshield washer elbow joint | 85336-12410 · 85355-32110 |
| 85348E | No. 2 windshield washer elbow joint | 85317-12410 · 85395-0D010 |
| 85348G | Windshield washer hose connector No. 2 | 85319-12410 |
| 85348M | No. 3 windshield washer hose connector | 85334-22470 |
| 85349 | Windshield washer hose connector No. 1 | 85348-14390 |
| 85371 | Windshield washer hose (from motor to connector) | 90069-46002 |
| 85371T | Windshield washer hose (from connector to connector) | 90069-46003 |
| 85371X | Windshield washer hose (from connector to connector) | 90069-46004 |
| 85389B | Windshield washer protection device | 85389-12700 |
