Toyota COROLLA 后刮水器 — Figure 8502

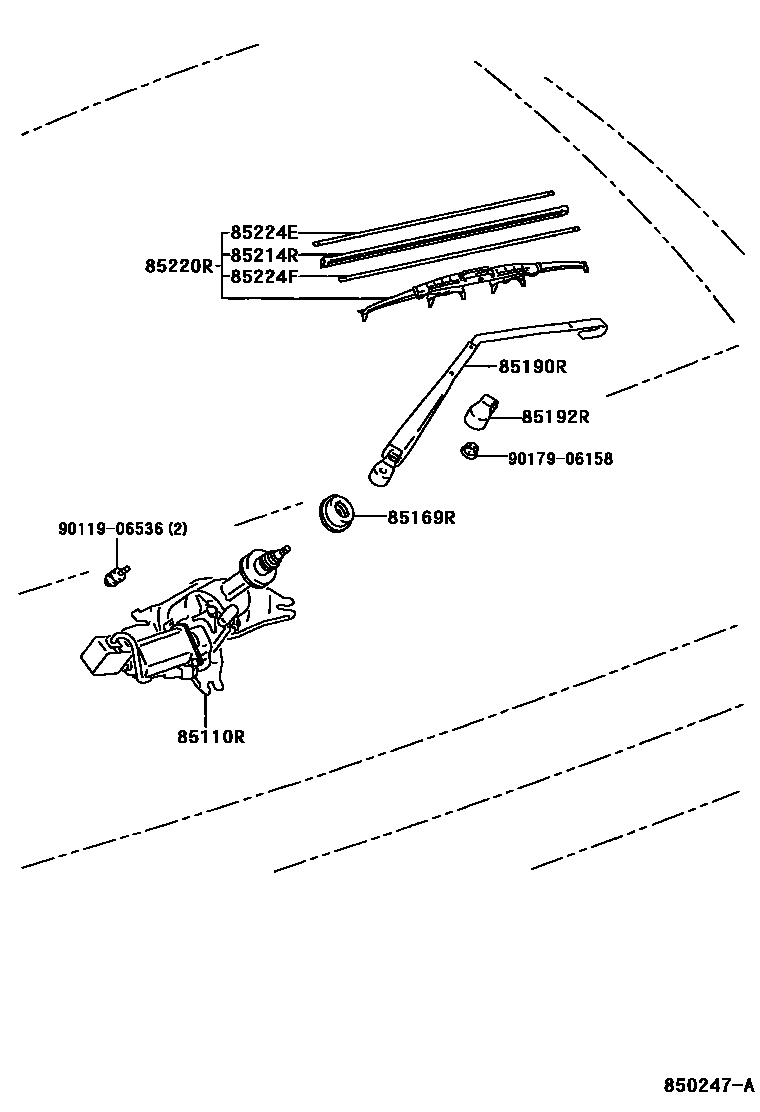

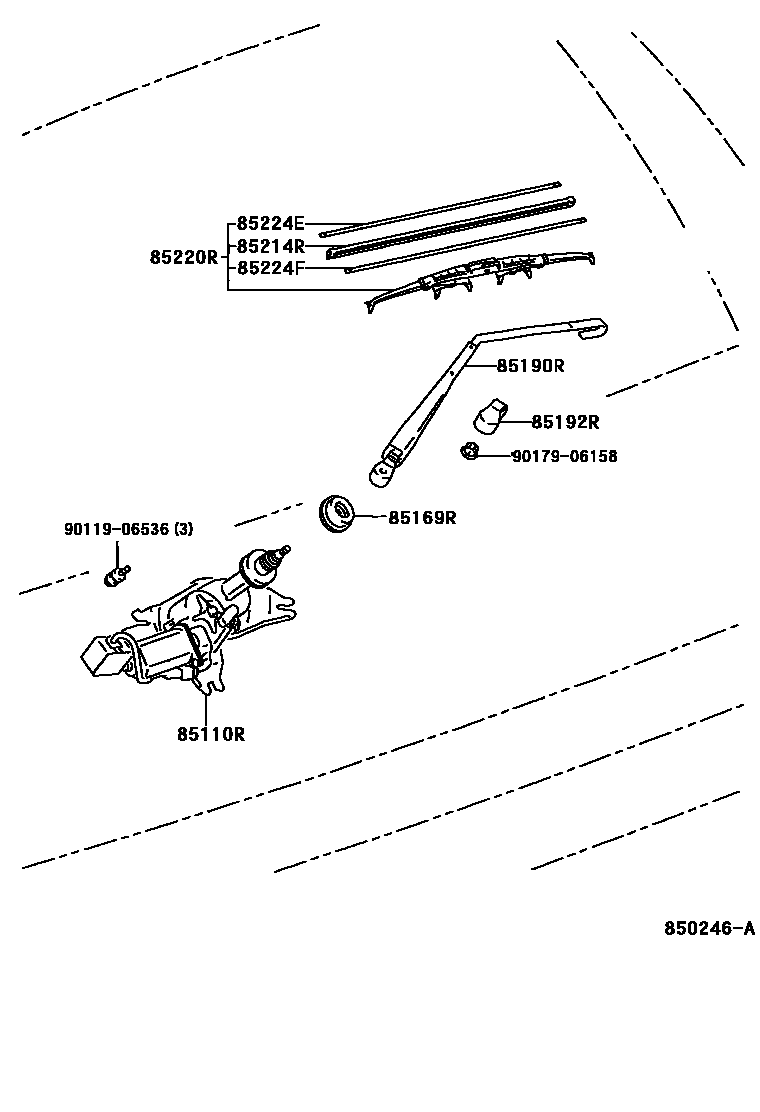

Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-0W010 · 85130-0W011 · 85130-12850 |
| 85169R | No. 1 rear wiper link pivot washer | 85143-02010 · 85143-12770 · 85143-12780 |
| 85190R | Rear wiper arm assembly | 85241-0W010 · 85241-12090 |
| 85192R | Rear wiper arm cover | 85192-13060 · 85244-0W010 |
| 85214R | Rear wiper rubber strip | 85214-0W050 · 85214-12290 |
| 85220R | Rear wiper blade assembly | 85242-0W010 · 85242-12080 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-0W050 · 85224-44030 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-0W050 · 85224-44030 |
