Toyota COROLLA 防盗装置 — Figure 8424

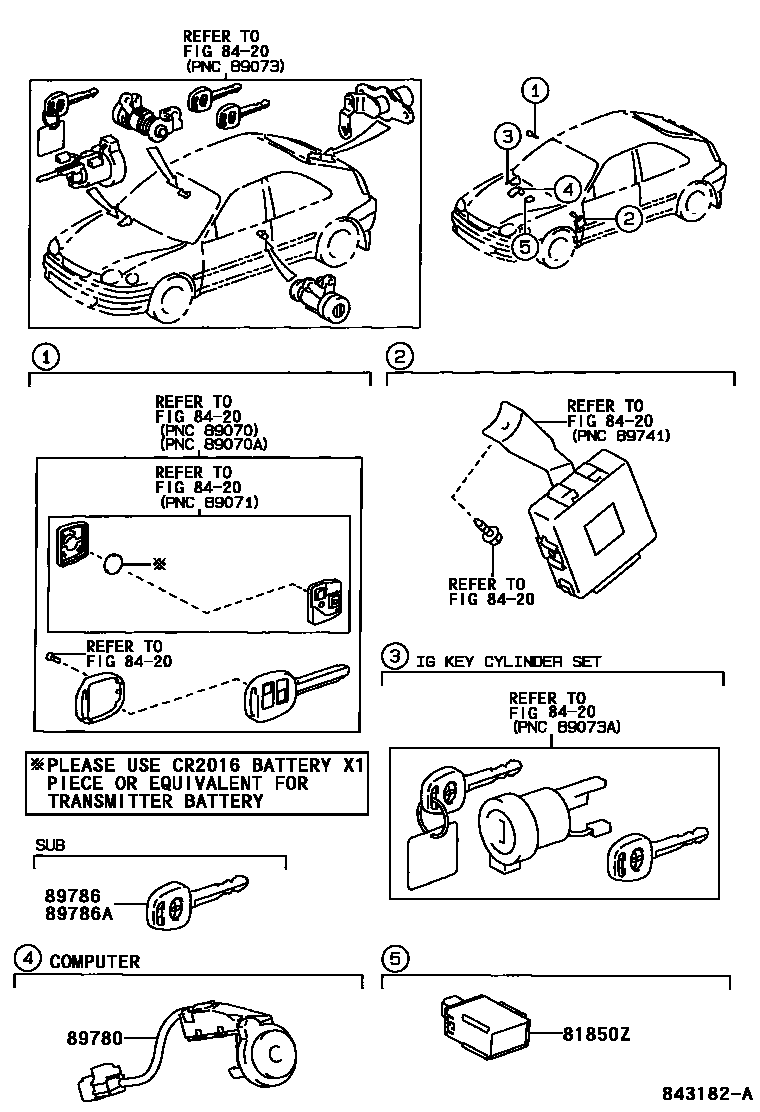

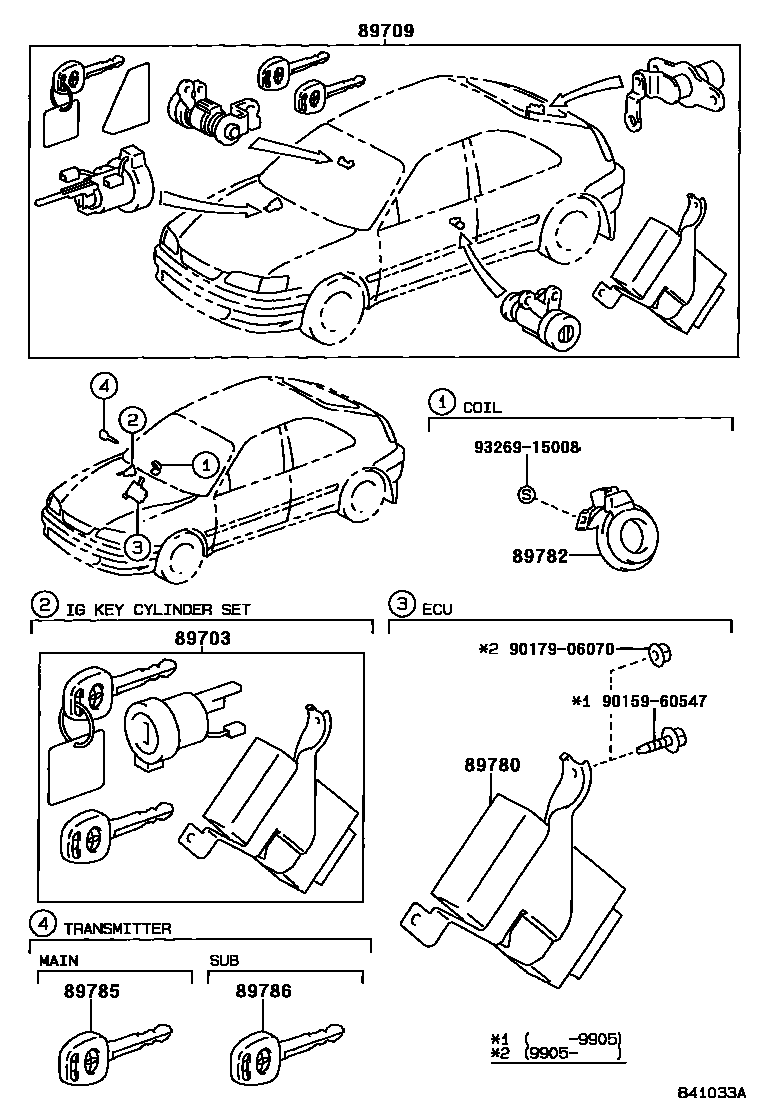

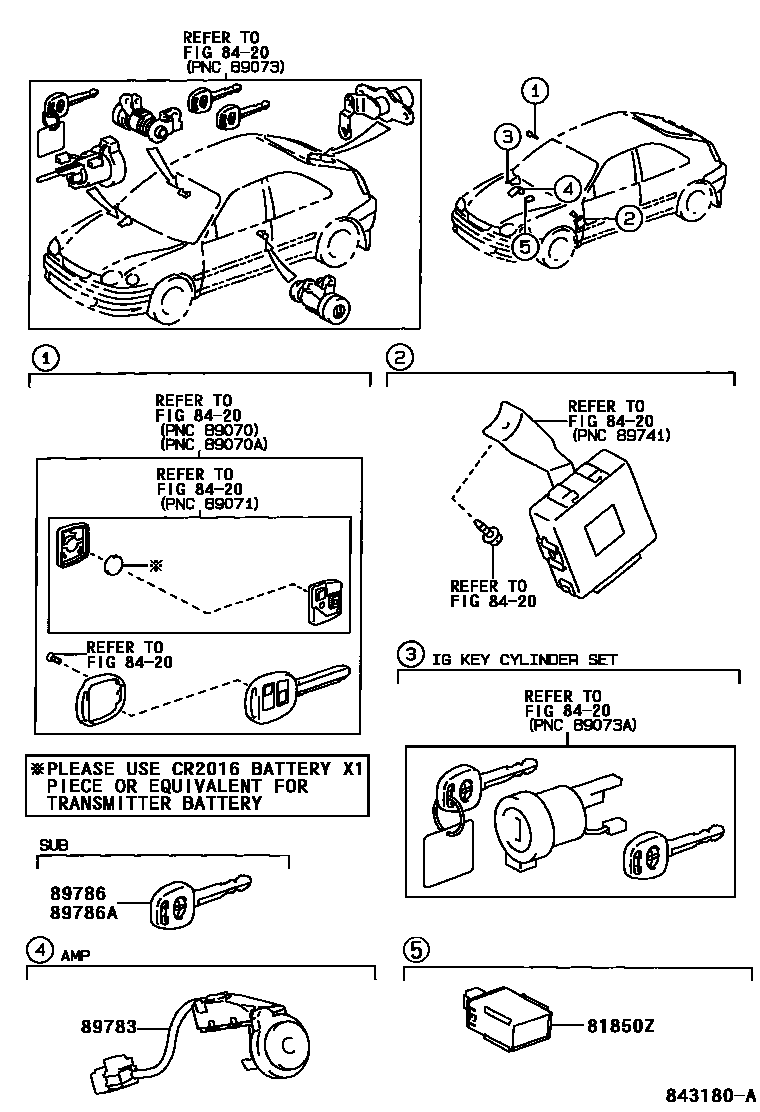

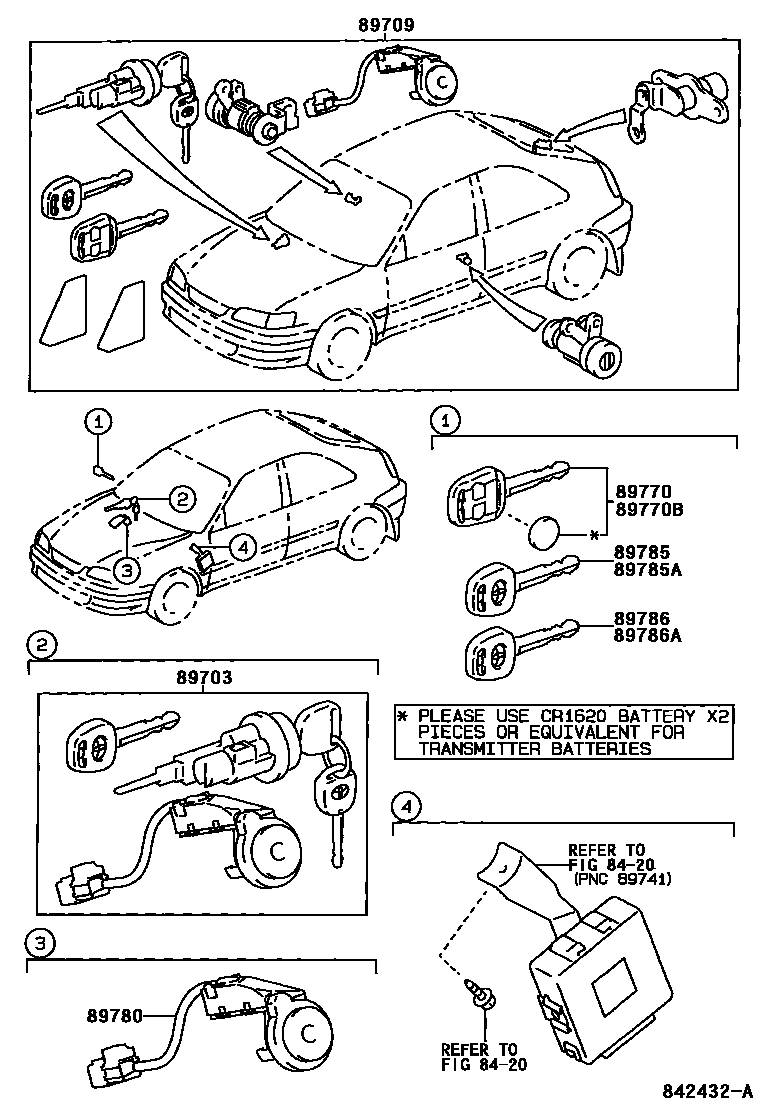

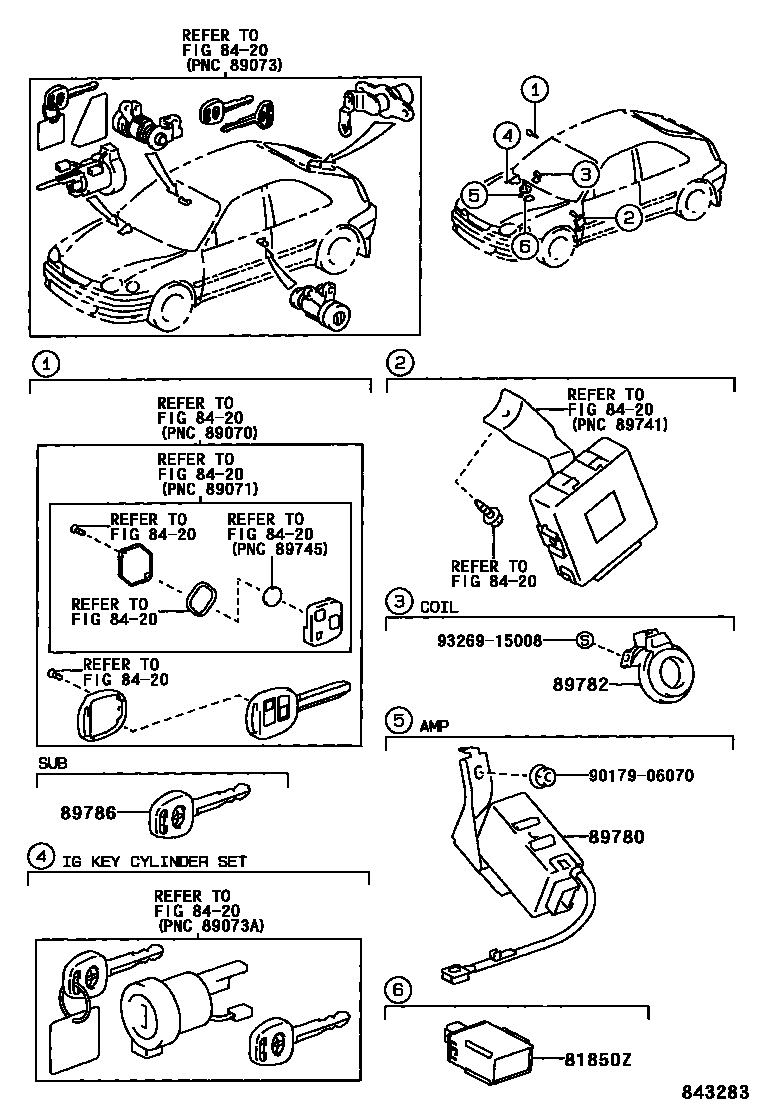

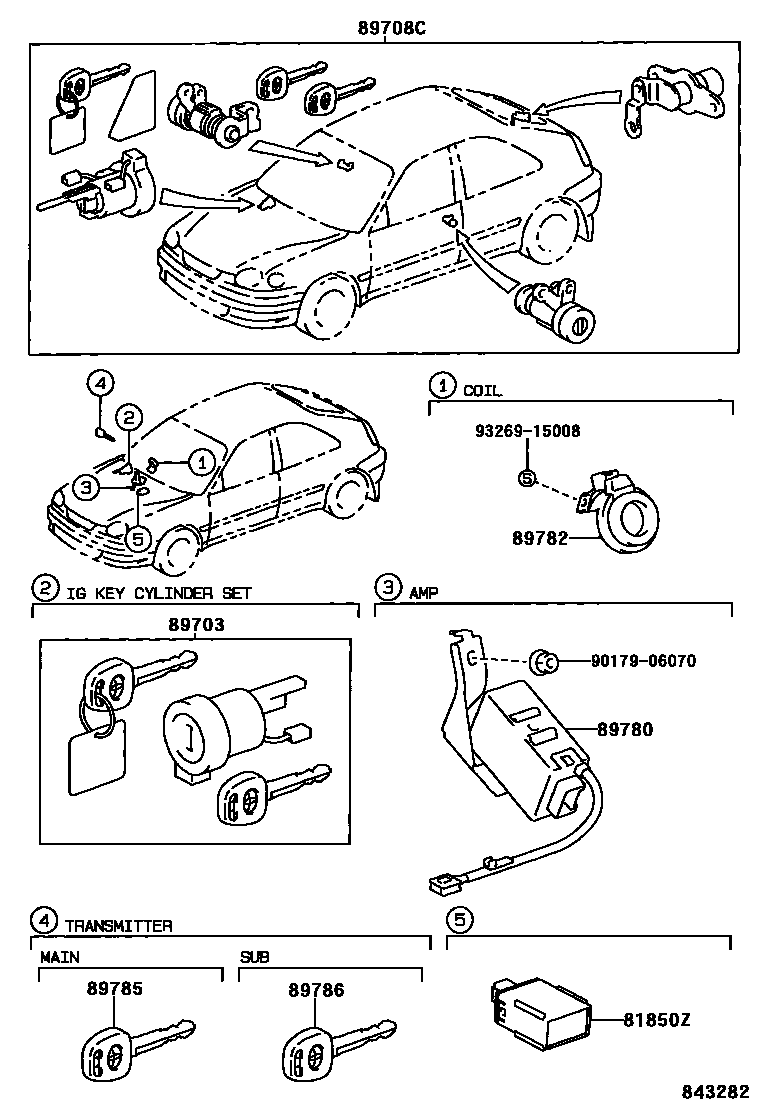

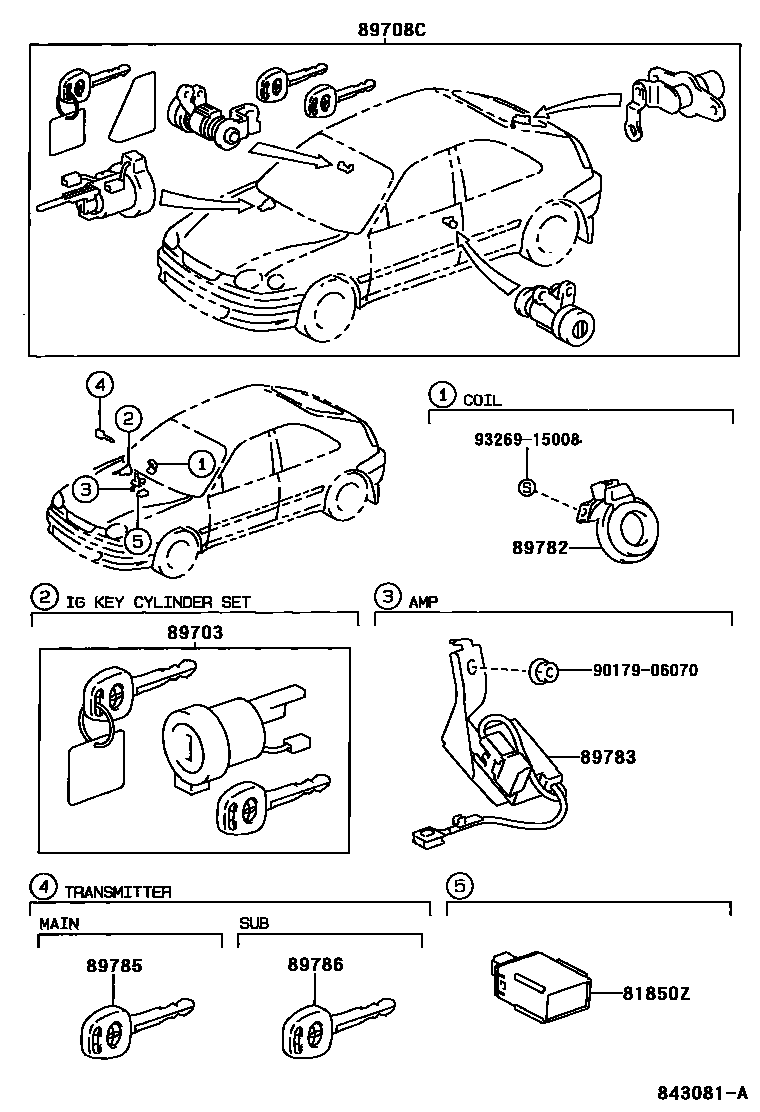

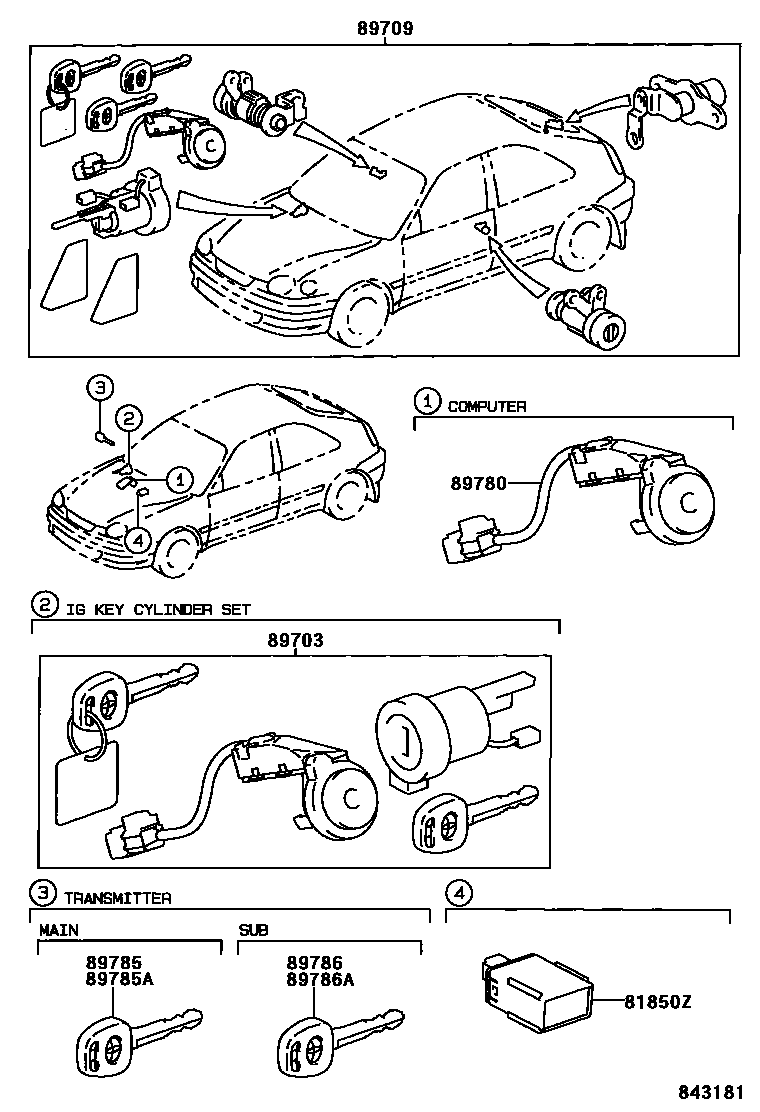

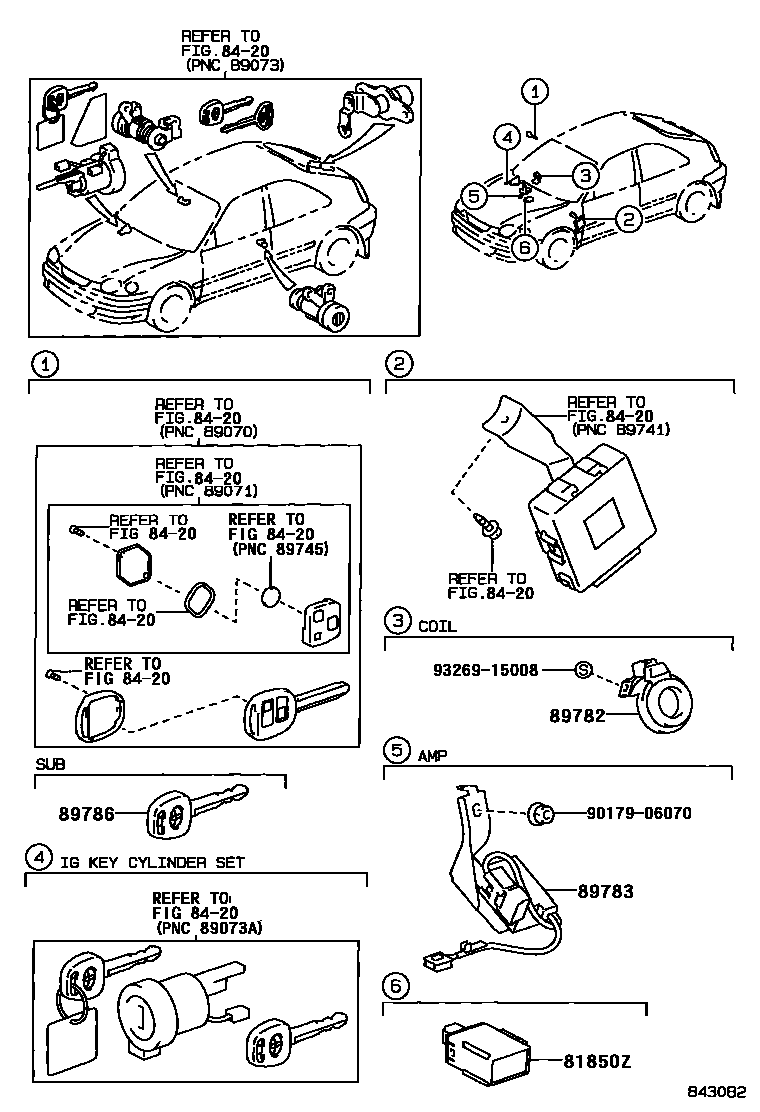

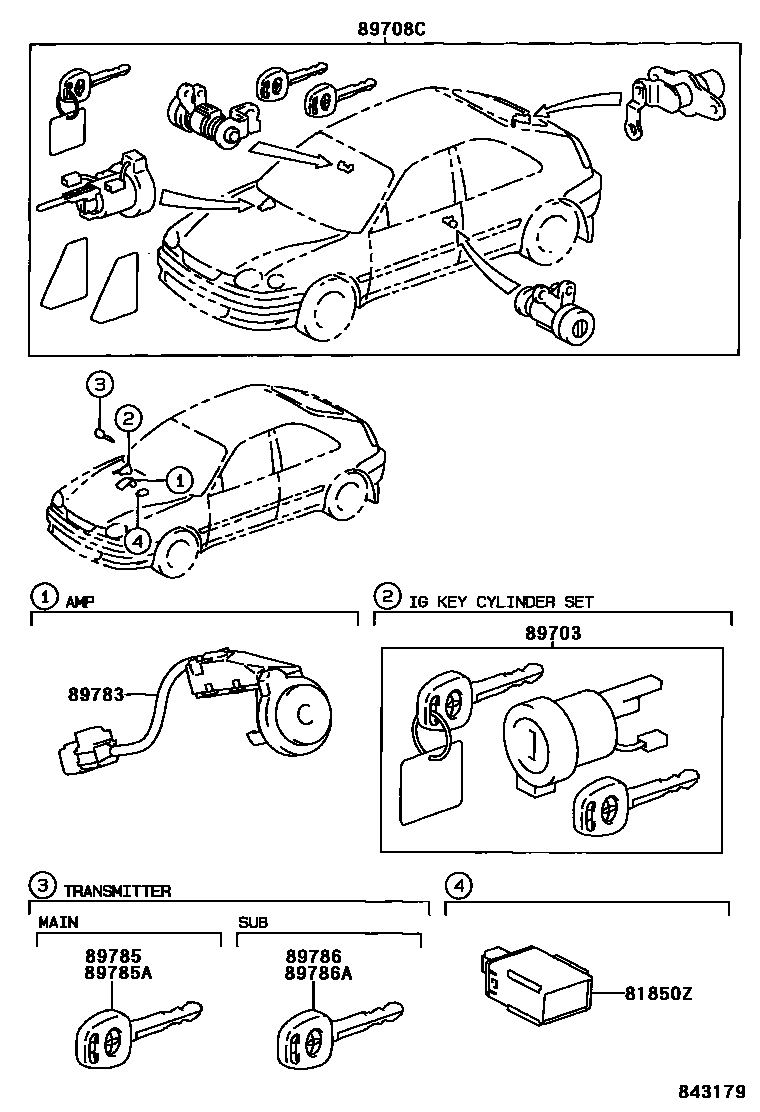

Toyota COROLLA EPC diagram 8424, 防盗装置, with 10 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-12250 |
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-02010 · 89703-02020 · 89703-02030 · 89703-12050 · 89703-12051 · 89703-12060 · 89703-12061 · 89703-12140 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 89708-02020 · 89708-12070 |
| 89709 | Transceiver key ECU assembly | 89709-02010 · 89709-02020 · 89709-02030 · 89709-02040 · 89709-02050 · 89709-02070 · 89709-02080 · 89709-12240 · 89709-12241 · 89709-12250 · 89709-12251 |
| 89770 | Transceiver and remote control transmitter assembly with shutdown system (blanking) | 89770-02020 · 89770-02070 · 89770-02080 · 89770-02090 |
| 89770B | Transceiver and radio transmitter assembly with shutdown system (cut off) | 89770-02030 · 89770-02100 · 89770-02110 · 89770-02120 |
| 89780 | Transceiver key ECU assembly | 89780-02010 · 89780-02020 · 89780-12060 · 89780-12061 · 89780-12070 · 89780-12071 · 89780-12080 · 89780-12090 · 89780-12110 · 89780-12120 |
| 89782 | transceiver key coil | 89782-44010 |
| 89783 | transceiver key amplifier | 89783-02010 · 89783-12020 · 89783-12030 |
| 89785 | transceiver key master transmitter | 89785-02050 · 89785-05020 · 89785-26020 |
| 89785A | Transceiver Internal Tooth Key Master Transmitter | 89785-02060 · 89785-05030 |
| 89786 | transceiver key secondary transmitter | 89786-02020 · 89786-05020 · 89786-26020 |
| 89786A | Transceiver Internal Tooth Key Sub-Transmitter | 89786-02030 · 89786-05030 |
