Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 3 images and 11 PNC and OE references.

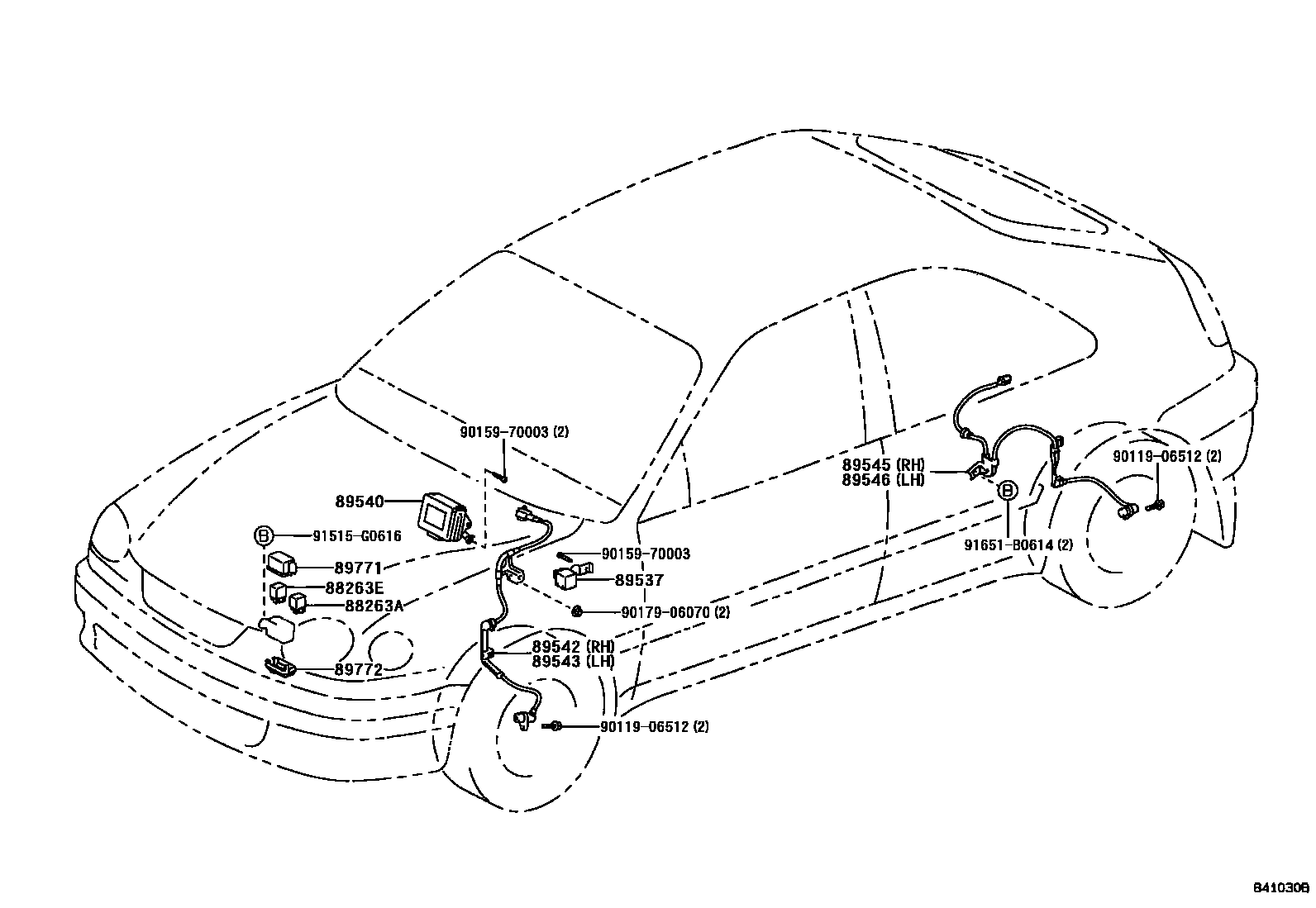

Toyota COROLLA ABS 和 VSC EPC diagram — 841030B
ABS 和 VSC — 841030B (199704 – 999999)

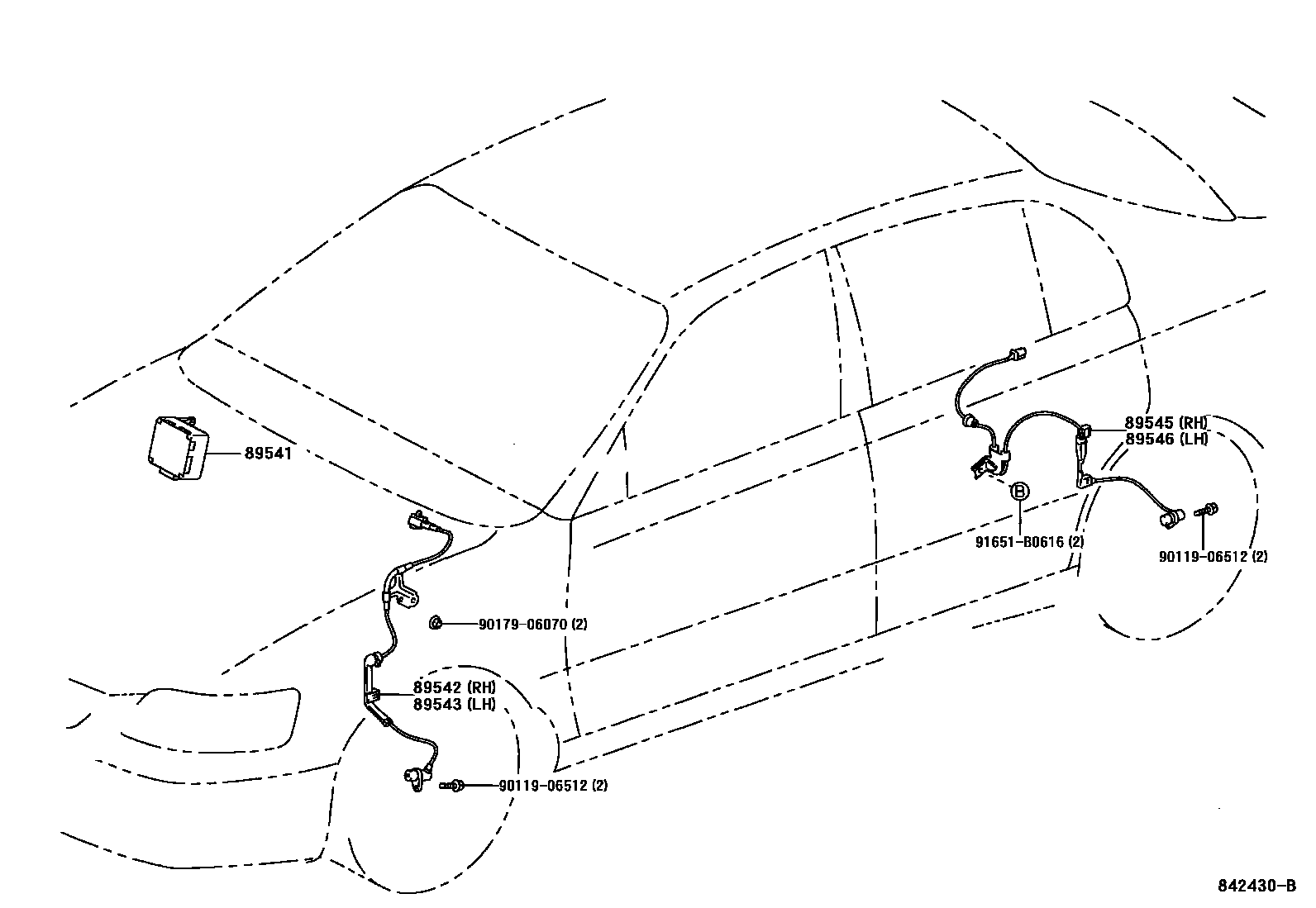

Toyota COROLLA ABS 和 VSC EPC diagram — 842430B
ABS 和 VSC — 842430B (199809 – 999999)

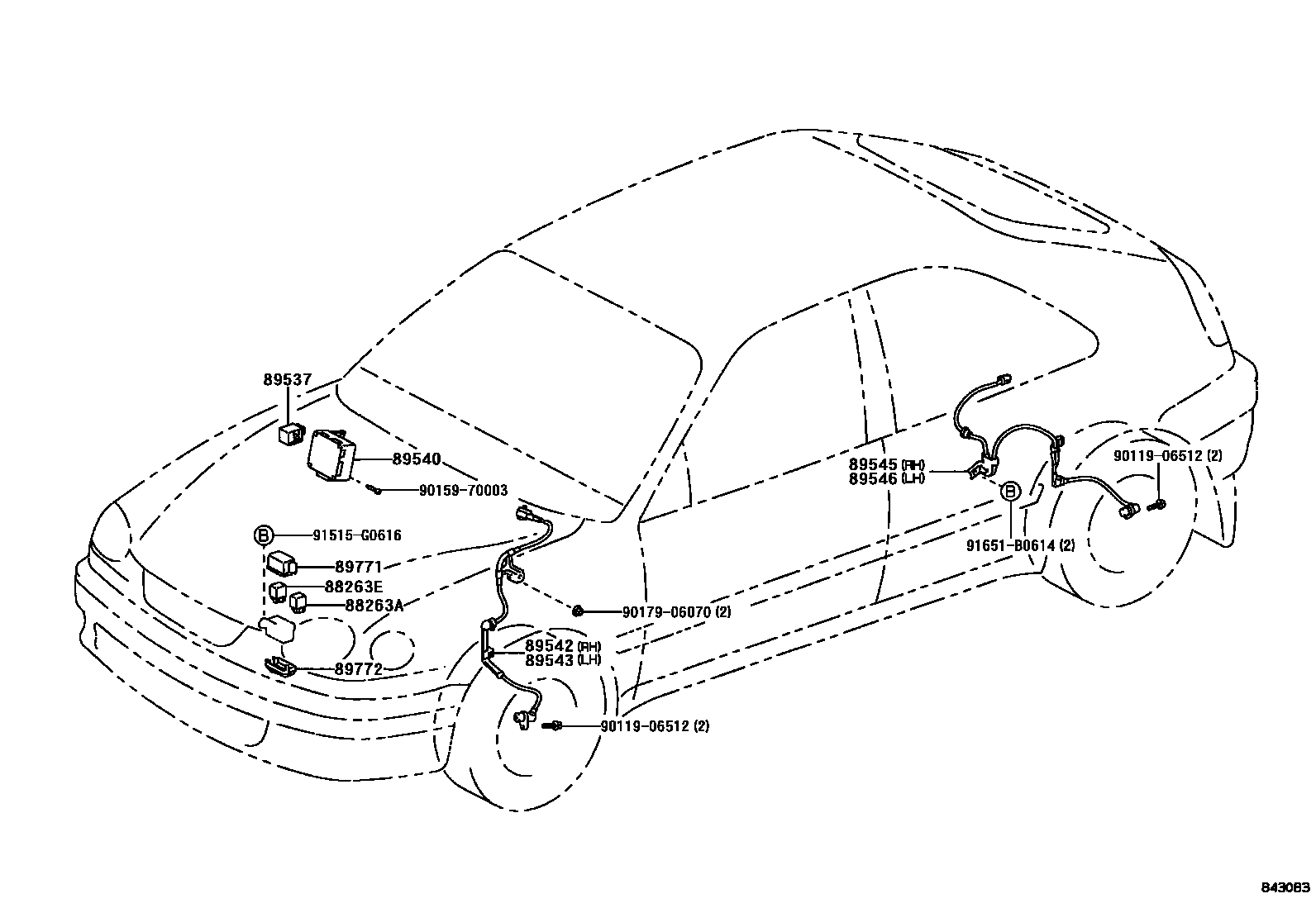

Toyota COROLLA ABS 和 VSC EPC diagram — 843083
ABS 和 VSC — 843083 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
88263AAnti-skid control relay88263-14110
88263ENo. 2 anti-skid control relay88263-24030
89537Active headlight relay89537-12010 · 89537-12020
89540Anti-skid control ECU assembly89540-12410 · 89540-12420 · 89540-12490 · 89540-12500
89541Anti-skid control ECU89541-02010 · 89541-02020
89542Right front wheel speed sensor89542-02020 · 89542-12040 · 89542-12060
89543Left front wheel speed sensor89543-02020 · 89543-12040 · 89543-12060
89545Right rear wheel speed sensor89545-02010 · 89545-12040
89546Left rear wheel speed sensor89546-02010 · 89546-12040
89771ABS relay box upper cover89771-12010
89772ABS relay box lower cover89772-12010
