Toyota COROLLA 超速档和电子控制变速器 — Figure 8410

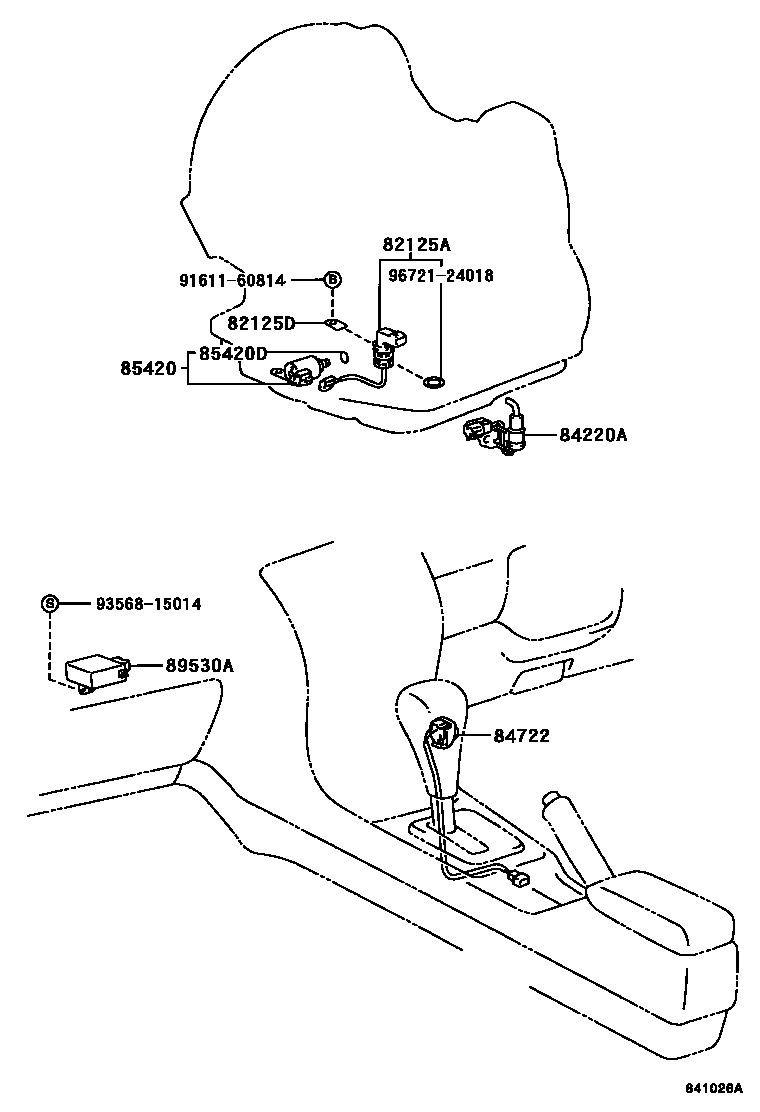

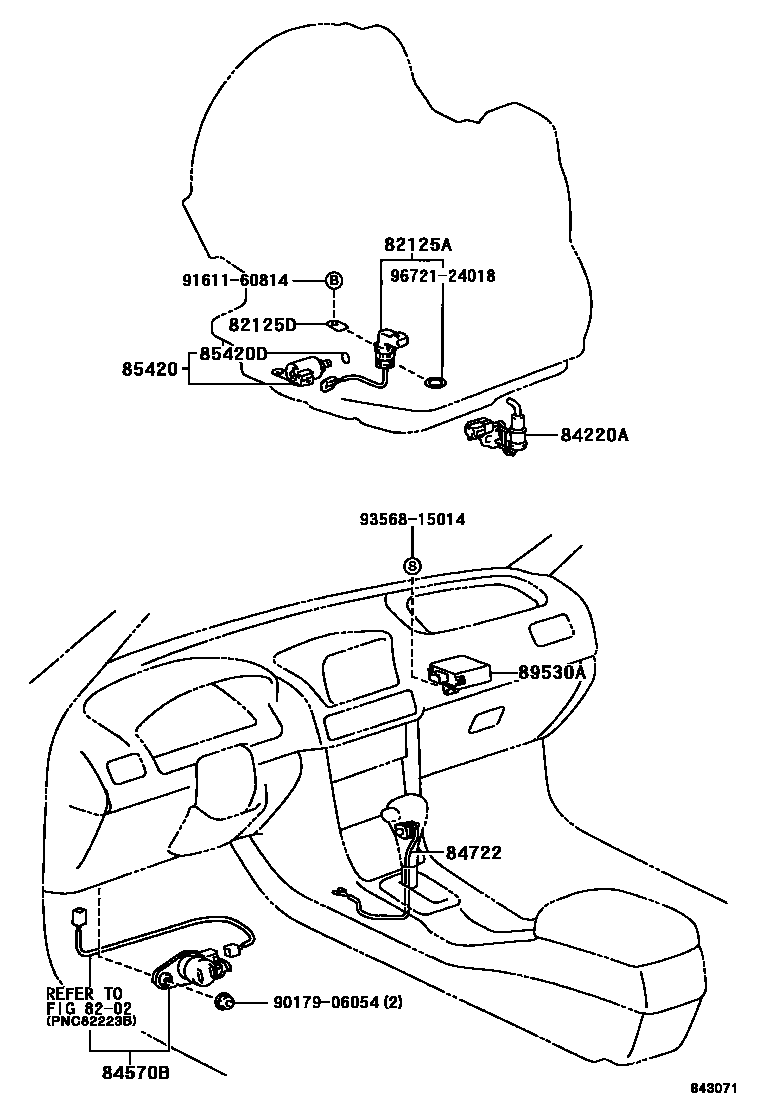

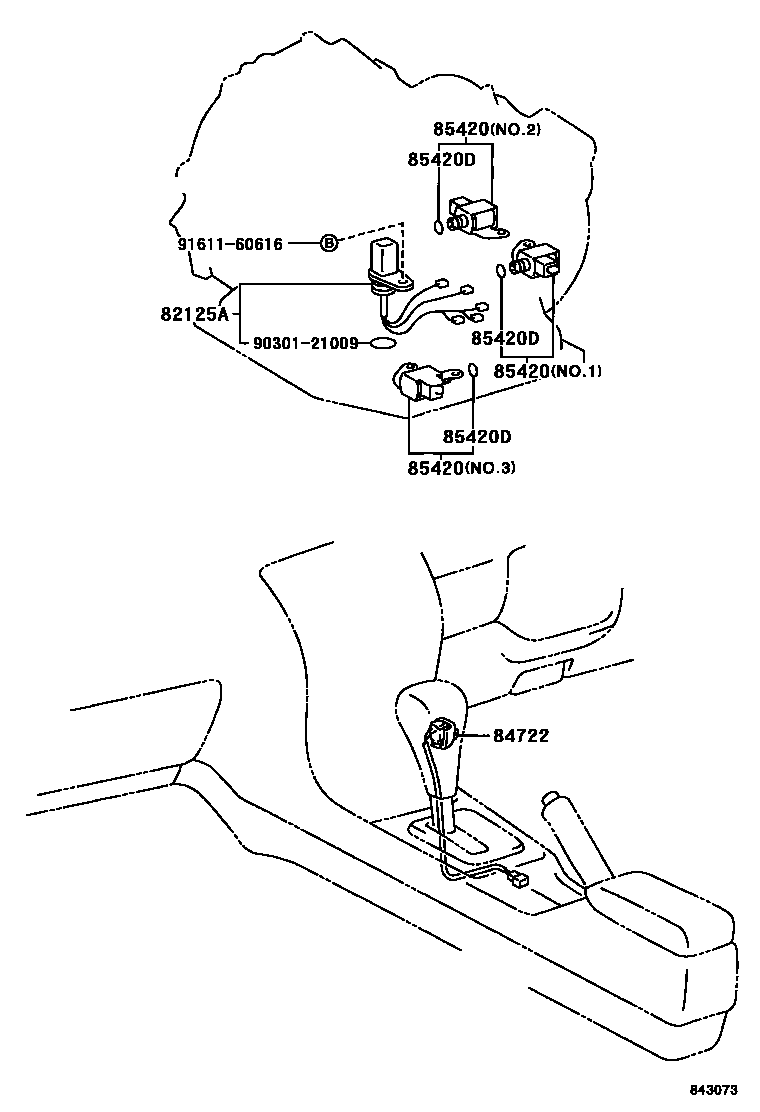

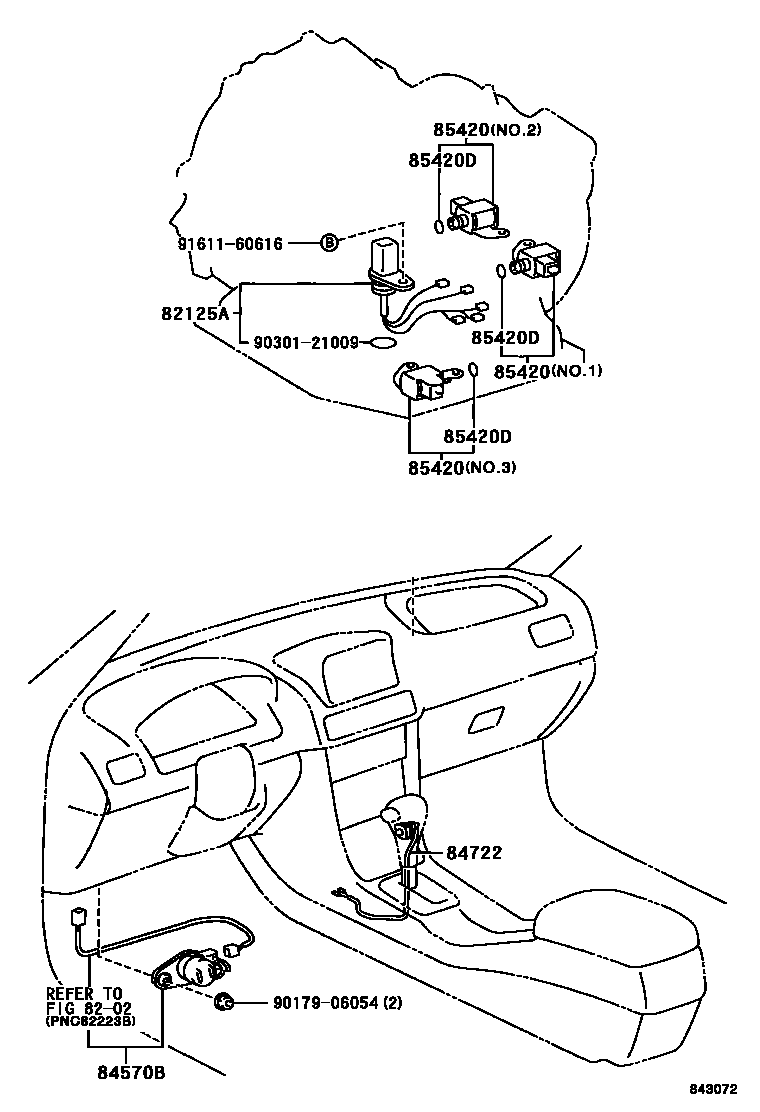

Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-12360 · 82125-12370 |
| 82125D | Transmission harness locking plate | 33485-30020 |
| 84220A | Transmission position indicator light switch assembly | 84220-20100 |
| 84570B | Forced downshift switch assembly | 84570-12010 |
| 85420 | Transmission solenoid valve assembly | 85420-20180 · 85420-21010 · 85420-21040 · 85420-21110 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 89530A | Transmission control ECU assembly | 89530-12190 · 89530-12200 |
