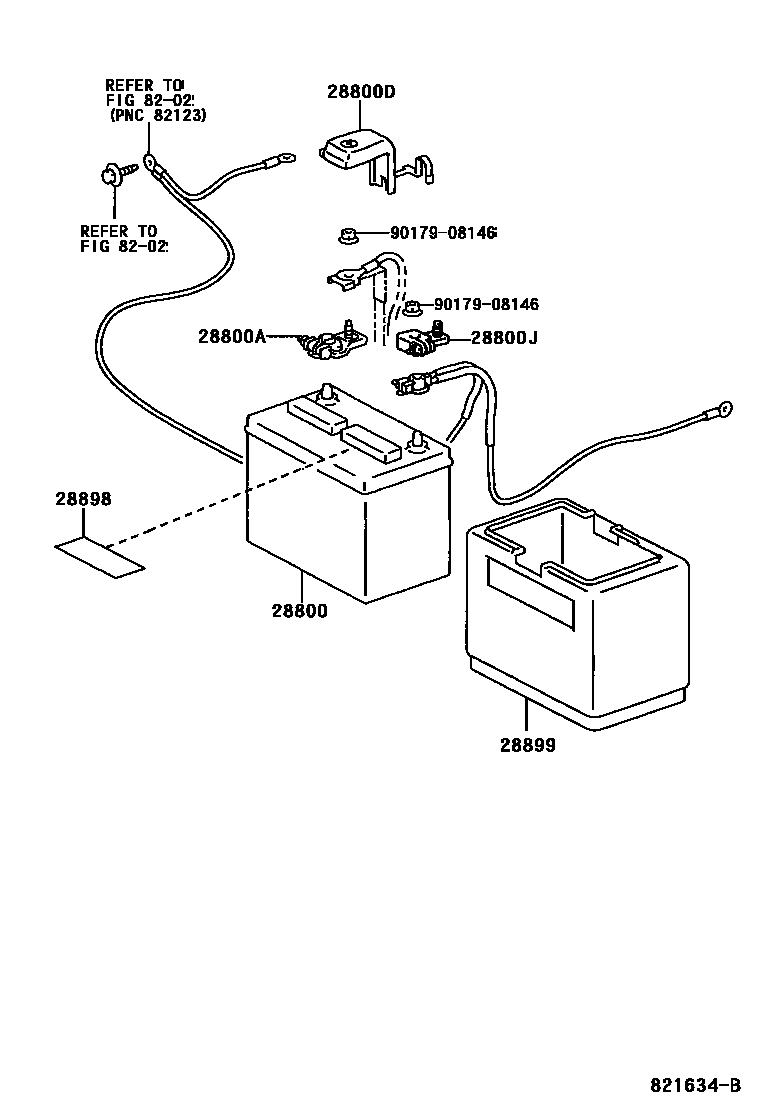

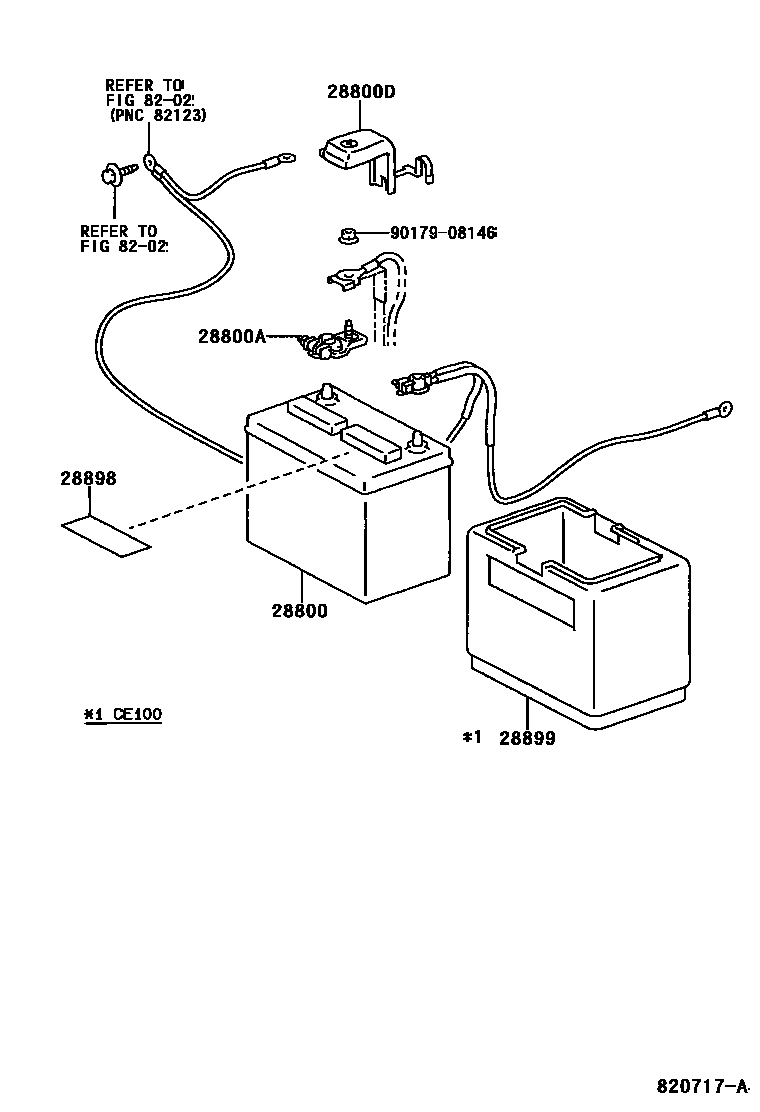

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-03071 · 28800-03081 · 28800-0B011 · 28800-0B020 · 28800-0D080 · 28800-0D090 · 28800-16130 · 28800-16160 · 28800-17121 · 28800-54370 · 28800-64030 · 28800-64122 · 28800-64130 · 28800-64170 · 28800-64180 · 28800-64182 · 28800-64191 · 28800-70060 · 28800-70070 · 28800-76080 |
| 28800A | battery positive terminal | 90982-05035 · 90982-05037 · 90982-05054 · 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 · 82821-12300 · 82821-12480 · 82821-12490 |
| 28800J | battery negative terminal | 90982-06028 |
| 28898 | battery plates | 28898-0B010 · 28898-16020 · 28898-46010 · 28898-46020 |
| 28899 | Battery insulation cover | 28899-53010 · 28899-54050 · 28899-64110 |
