Toyota COROLLA 车内灯 — Figure 8121

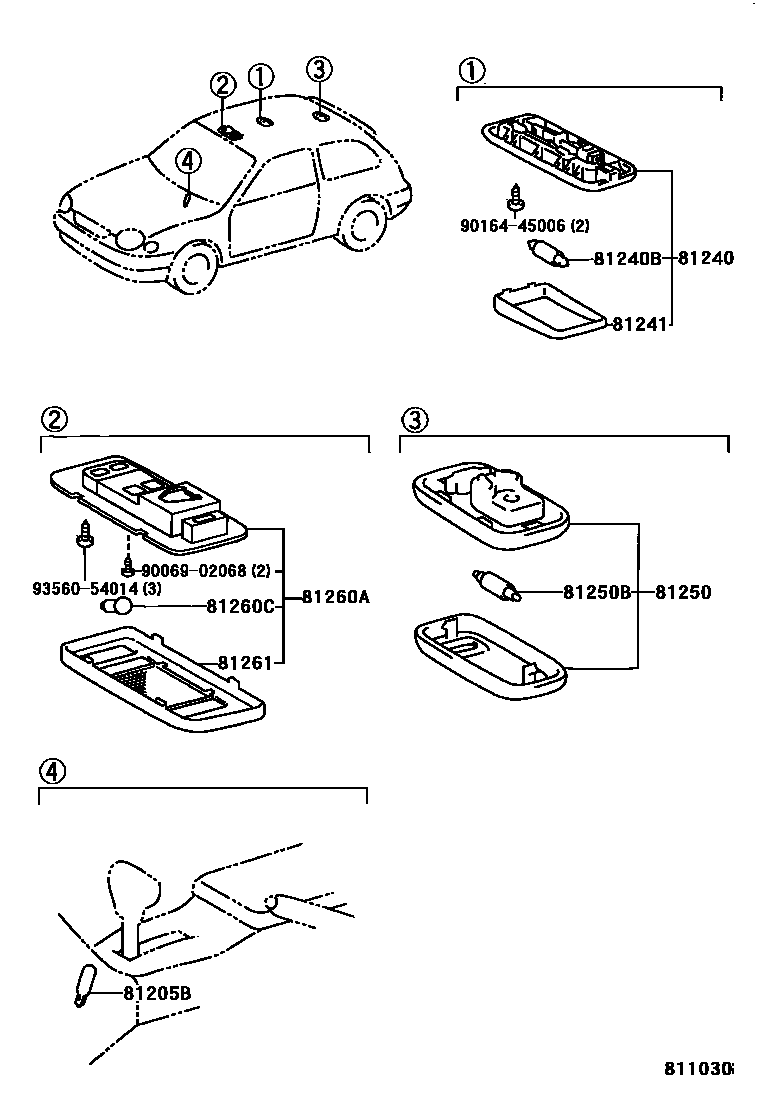

Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11018 |
| 81240B | Interior light bulb No. 1 | 90080-81047 · 90080-81078 · 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-05010 · 81241-12020 |
| 81250B | Interior light bulb No. 2 | 90080-81049 · 99132-13050 |
| 81251 | Interior light cover No. 2 | 81251-12030 |
| 81260C | Light bulb (for reading lamp) | 90011-11006 · 90981-12014 |
