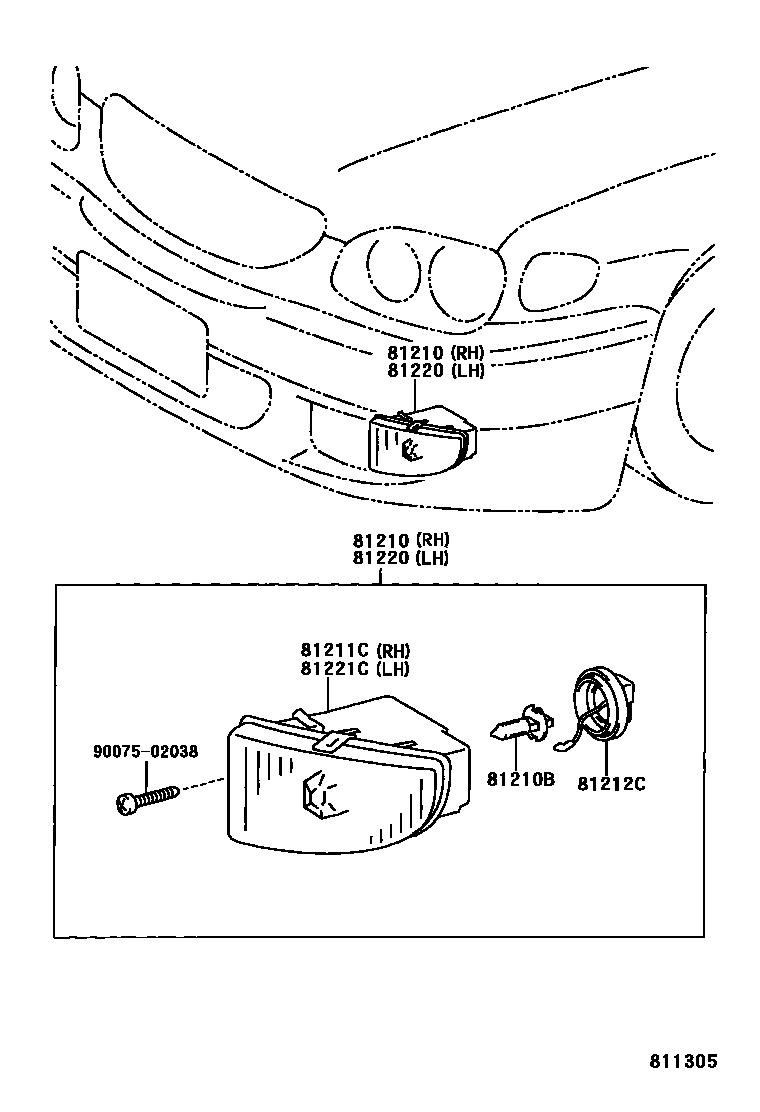

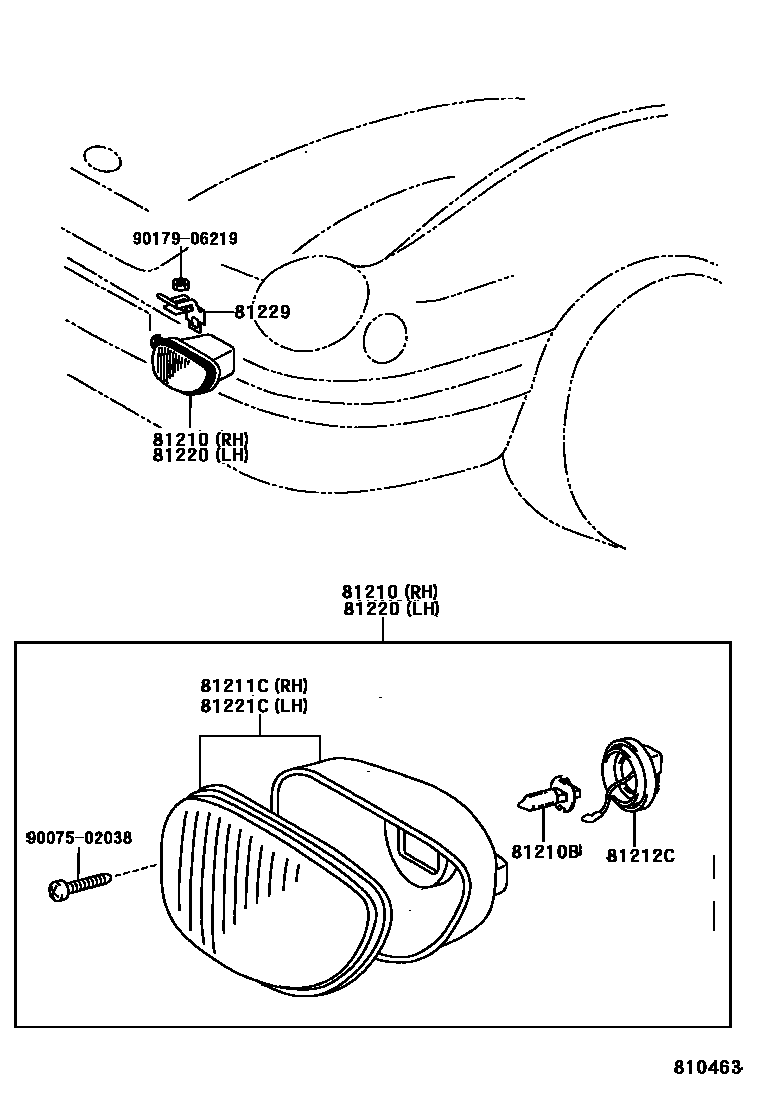

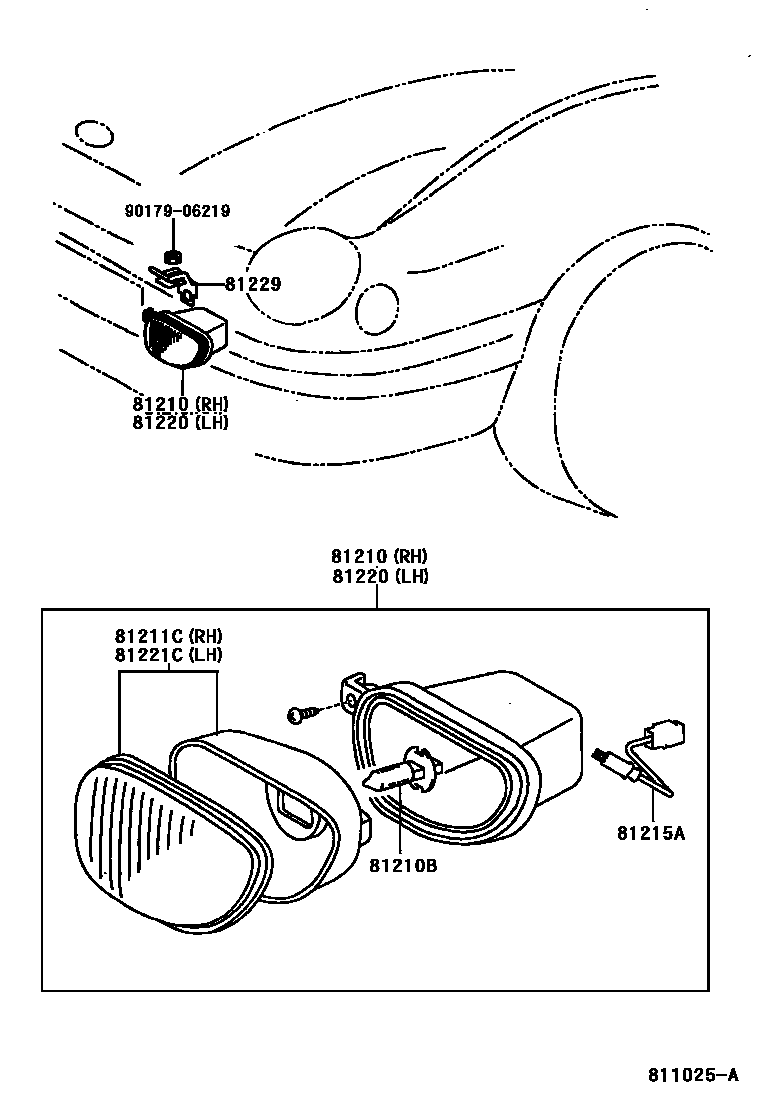

Toyota COROLLA Fog Lamp — Figure 8102
Toyota COROLLA EPC diagram 8102, Fog Lamp, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-02020 · 81210-12120 · 81210-12160 |
| 81210B | fog light bulb | 90080-81074 · 90981-13018 |
| 81211C | Right fog light assembly | 81211-02020 · 81211-12120 · 81211-12160 |
| 81212C | fog light cover | 90075-66001 |
| 81215A | Fog light holder and wiring harness | 81215-02020 · 81225-02010 |
| 81220 | Left fog light assembly | 81220-02010 · 81220-12110 · 81220-12150 |
| 81221C | Left fog light assembly | 81221-02010 · 81221-12110 · 81221-12150 |
| 81229 | Fog light bracket | 81481-02010 · 81481-12030 |
