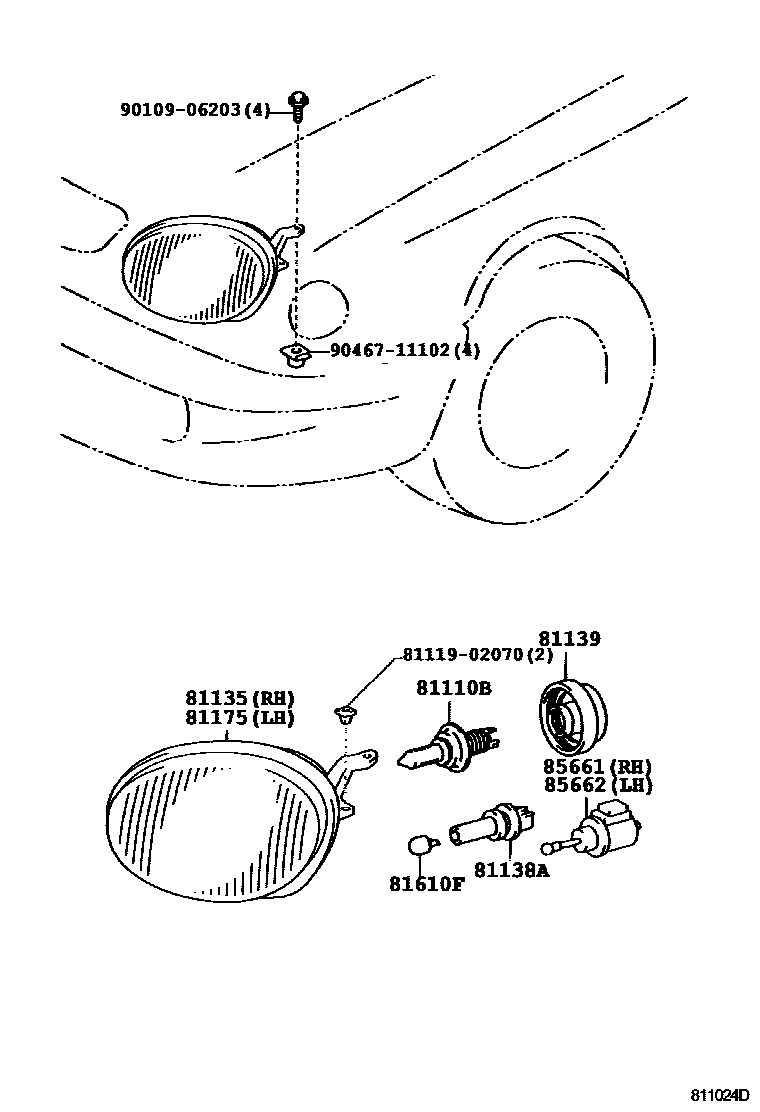

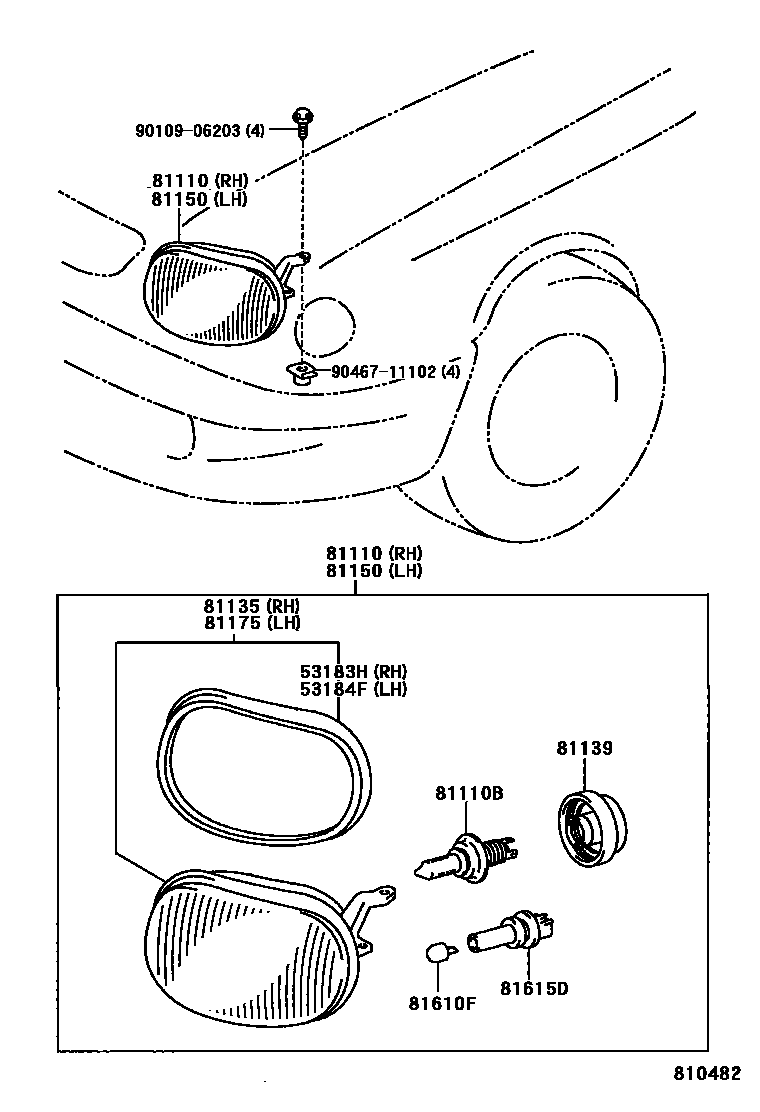

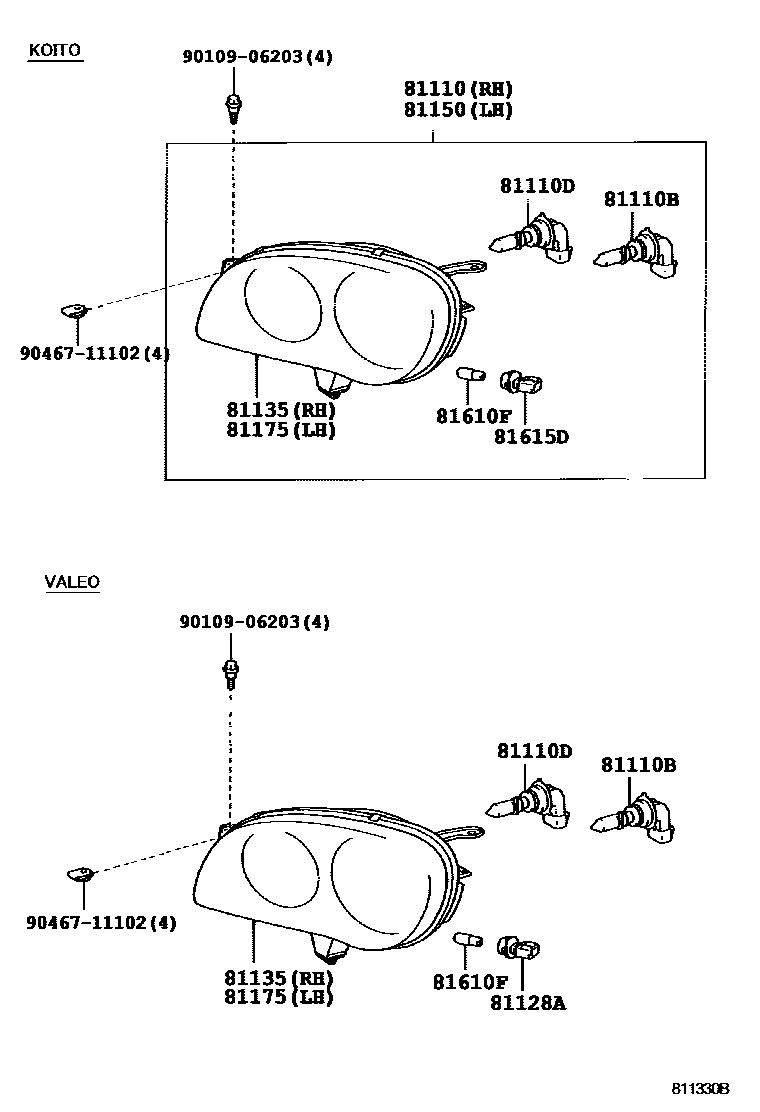

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-12190 |
| 53184F | Left headlight cover seal | 53184-12110 |
| 81110 | Right headlight assembly | 81110-1E370 · 81110-1E410 · 81110-1E520 · 81110-1E530 |
| 81110B | Bulb (for headlight No. 1) | 90080-81031 · 90080-81040 · 90080-81081 · 90981-22004 · 99132-12050 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 · 90080-81082 |
| 81128A | headlight lamp holder | 81128-02090 |
| 81135 | Right headlight assembly | 81130-02070 · 81130-02080 · 81130-02090 · 81130-02100 · 81130-1E370 · 81130-1E410 · 81130-1E520 · 81130-1E530 |
| 81138A | Headlight holder and wiring harness | 81138-02070 |
| 81139 | Headlight lamp holder cover | 81139-02070 · 90075-65002 |
| 81150 | Left headlight assembly | 81150-1E240 · 81150-1E280 · 81150-1E400 · 81150-1E410 |
| 81175 | Left headlight assembly | 81170-02060 · 81170-02070 · 81170-02080 · 81170-02090 · 81170-1E240 · 81170-1E280 · 81170-1E400 · 81170-1E410 |
| 81610F | Light bulb (for width indicator light) | 90080-81030 · 90080-81080 · 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 · 90075-60020 |
| 85661 | Right headlight beam height adjustment motor | 85661-02010 |
| 85662 | Left headlight beam height adjustment motor | 85661-02010 |
