Toyota COROLLA 燃油箱和燃油管 — Figure 7701

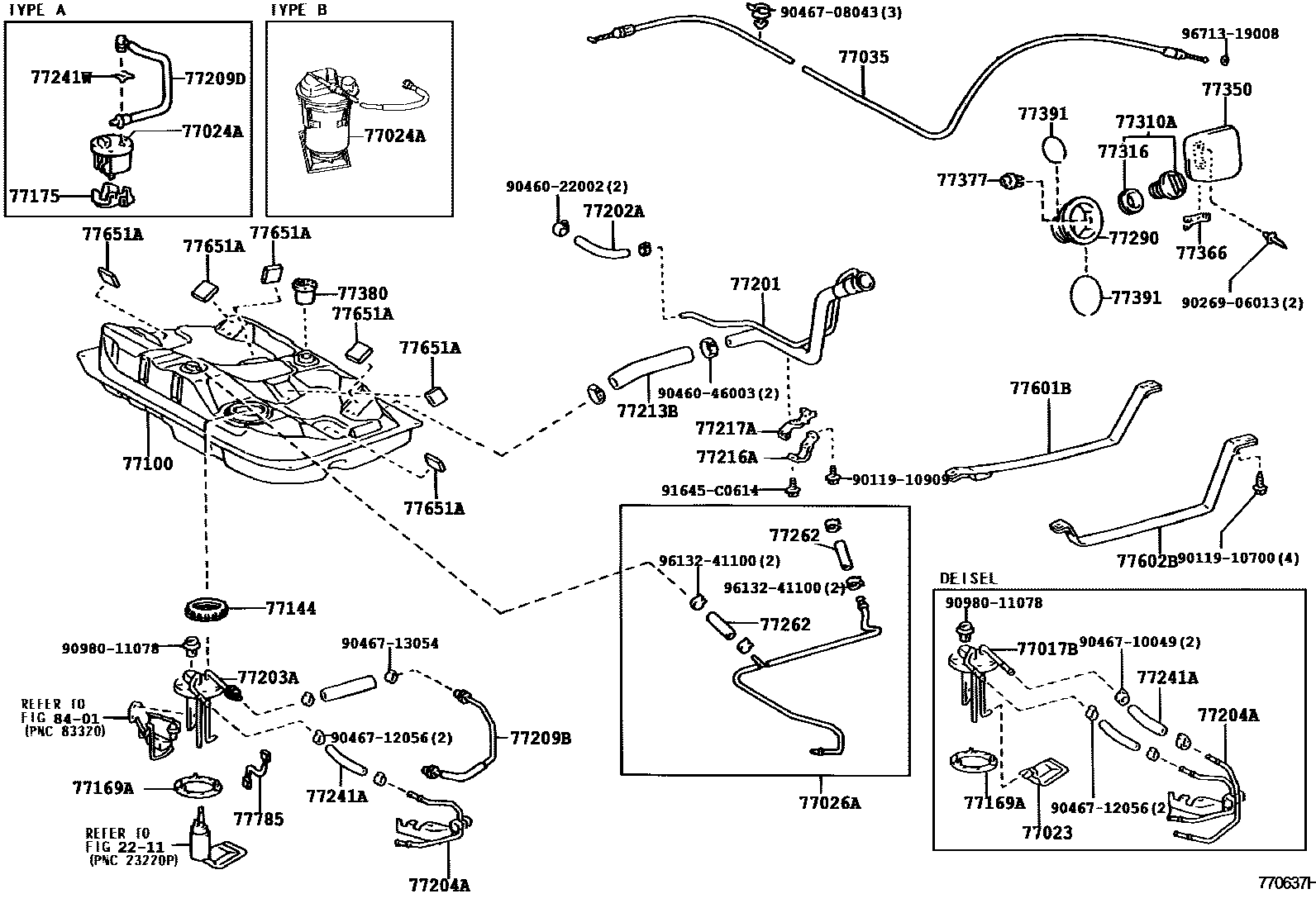

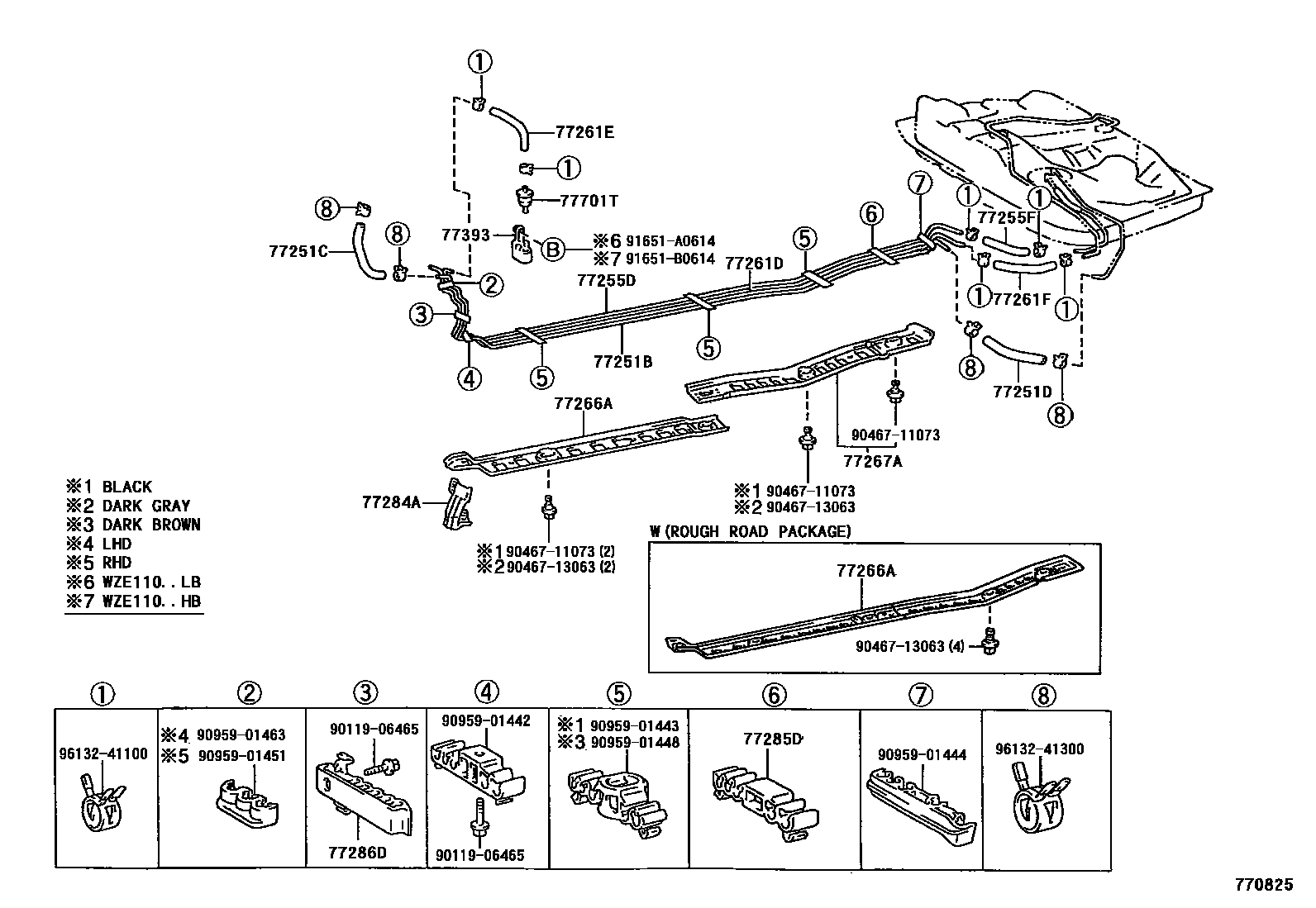

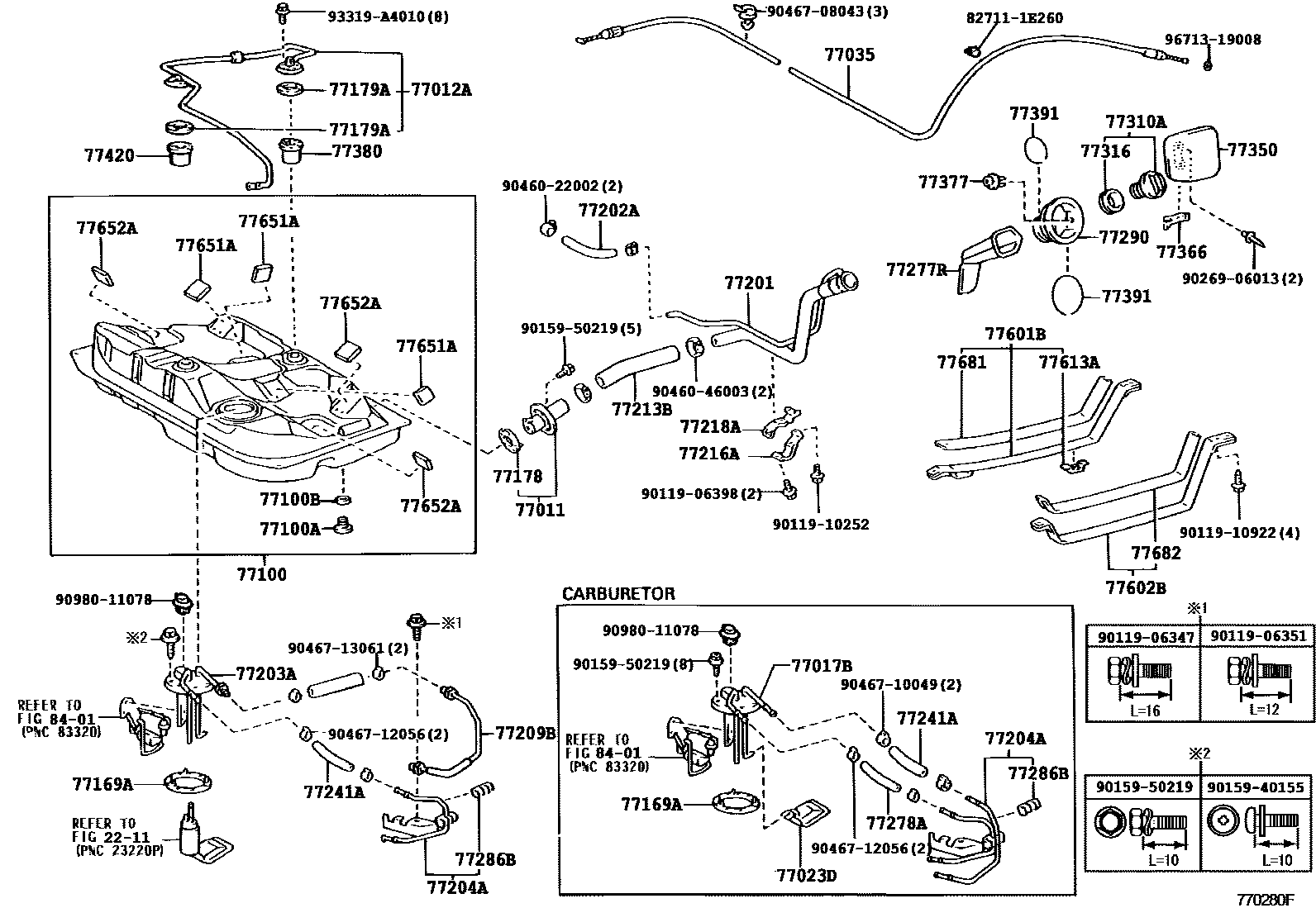

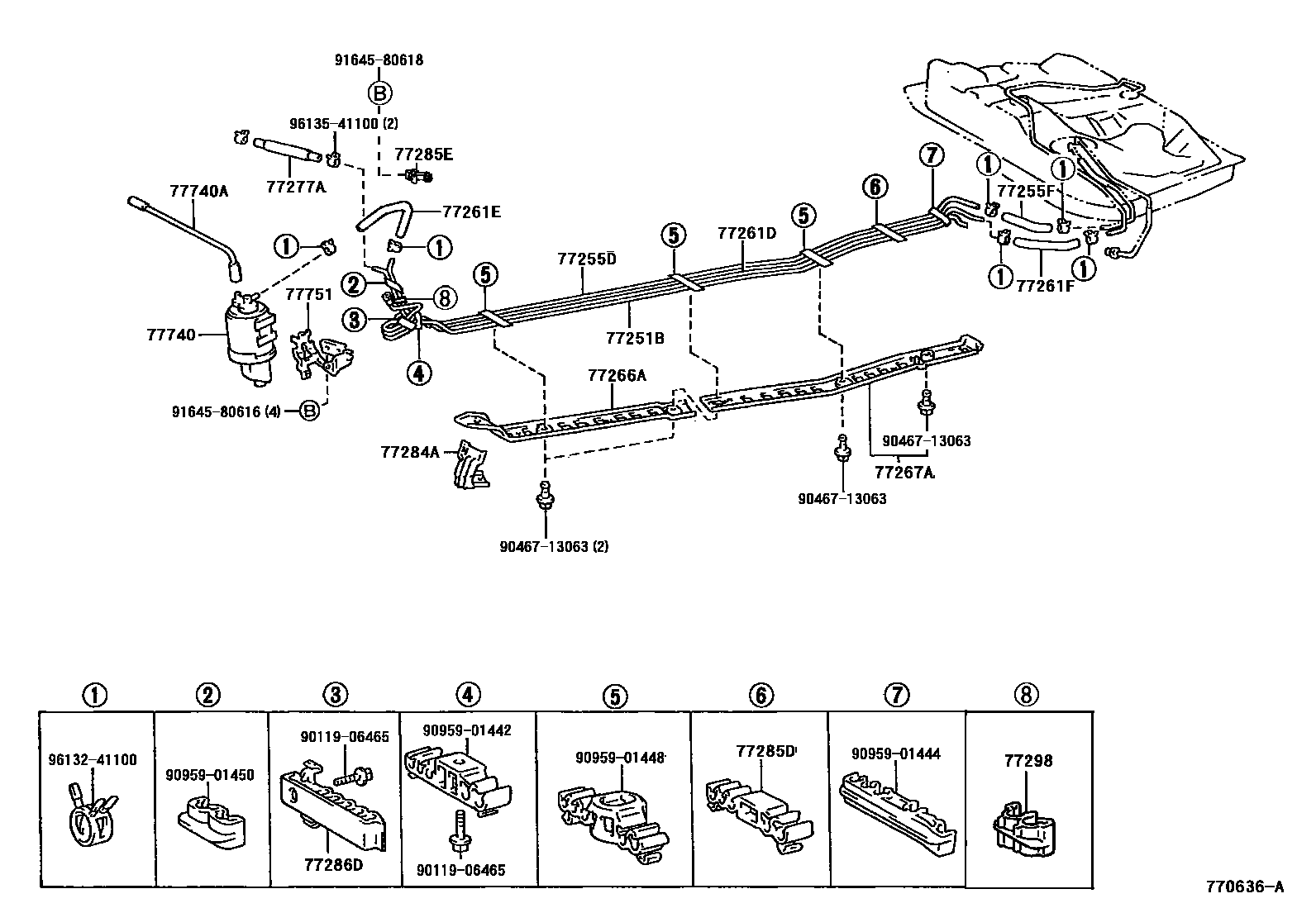

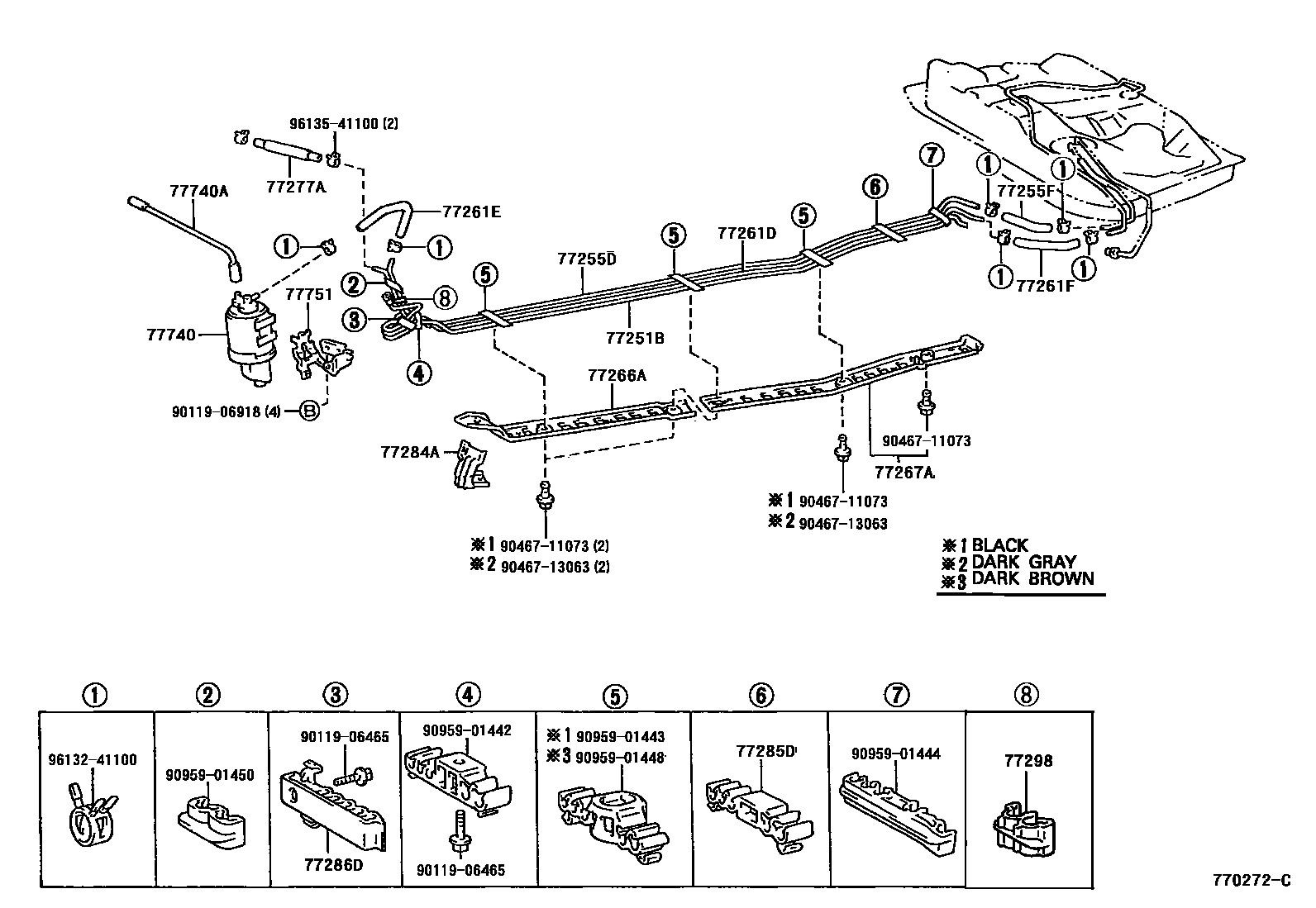

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 5 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12090 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-12140 · 77012-12180 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-02030 · 77017-12600 · 77017-12660 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77023D | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77024A | Fuel absorber sub-assembly | 77024-52010 · 77240-02050 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02020 · 77026-12020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02030 · 77035-02040 · 77035-12350 · 77035-12360 · 77035-12380 · 77035-12390 |
| 77100 | fuel tank assembly | 77001-02050 · 77001-02080 · 77001-02090 · 77001-02100 · 77001-12810 · 77001-12931 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77144 | Fuel pump instrument fixture | 77144-02010 · 77144-02020 · 77144-02030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-02030 · 77169-02040 · 77169-12030 |
| 77175 | No. 2 oil suction pipe bracket | 77175-47010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-02040 · 77201-02060 · 77201-02070 · 77201-12430 · 77201-12500 |
| 77202A | No. 1 fuel hose (for breather pipe) | 77259-02040 · 77259-02050 · 77269-12050 · 95311-13022 |
| 77203A | Fuel suction pipe sub-assembly | 77203-02040 · 77203-12170 · 77203-12280 |
| 77204A | fuel tank return pipe | 77204-02020 · 77204-12010 · 77204-12020 |
| 77209B | Fuel pump pipe sub-assembly | 77209-02030 · 77209-12080 · 77209-12150 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-02040 · 77209-12140 |
| 77213B | Fuel tank to filler pipe hose | 77213-02020 · 77213-02030 · 77213-12160 · 77213-12170 · 77213-12220 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02030 · 77216-12070 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02010 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-12030 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 95334-06014 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-02070 · 77251-02100 · 77251-02120 · 77251-02140 · 77251-12560 · 77251-12570 · 77251-12580 · 77251-12630 |
| 77255D | fuel return pipe | 77255-02070 · 77255-02100 · 77255-02120 · 77255-12500 · 77255-12510 · 77255-12520 · 77255-12570 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02070 · 77261-02100 · 77261-02110 · 77261-02130 · 77261-12320 · 77261-12330 · 77261-12370 · 77261-12420 · 77261-12430 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-12200 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 95327-06008 · 95333-06010 |
| 77266A | No. 1 fuel line protection device | 77266-02020 · 77266-12080 · 77266-12110 |
| 77267A | No. 2 fuel pipe protection device | 77267-02020 · 77267-12100 · 77267-12120 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90080-44108 · 90080-44109 · 90447-12139 · 90447-12150 |
| 77277R | Fuel tank filler pipe protection device | 77277-12160 |
| 77284A | No. 3 fuel pipe protection device | 77284-02020 · 77284-12030 · 77284-12050 |
| 77285D | No. 1 fuel pipe clamp | 77285-12020 |
| 77285E | No. 1 fuel pipe clamp with retaining ring | 77285-20090 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77285-12040 |
| 77286D | No. 2 fuel pipe clamp | 77286-12040 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-02010 · 77291-12110 · 77291-12130 |
| 77298 | No. 4 fuel pipe clamp with retaining ring | 77298-12010 |
| 77310A | Fuel tank cap assembly | 77300-12010 · 77300-52010 · 77310-06011 · 77310-12150 · 77310-16011 · 77310-32011 · 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-06010 · 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-12400 · 77350-12420 |
| 77366 | Fuel filler cap hinge spring | 77360-12080 · 77360-12100 |
| 77377 | Fuel filler cap lock retainer | 77377-02020 · 77377-12050 |
| 77380 | Fuel shut-off valve assembly | 77380-12020 · 77380-26010 |
| 77391 | fuel inlet ring | 77391-12010 · 77391-12020 |
| 77393 | One-way valve protection device | 77393-12010 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-12010 · 77420-26010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02030 · 77601-12210 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02030 · 77602-12130 |
| 77613A | No. 1 fuel tank strap bracket | 77613-16030 |
| 77651A | No. 1 fuel tank liner | 77651-12070 · 77651-20090 |
| 77652A | No. 2 fuel tank liner | 77652-12100 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77701T | Check valve (for main fuel tank) | 90917-10082 |
| 77740 | Carbon canister assembly | 77740-02090 · 77740-12630 · 77740-12680 · 77740-12690 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04147 |
| 77751 | Carbon canister base bracket | 77750-12090 · 77750-12100 · 77750-12120 · 77750-12130 · 77750-12140 · 77751-12250 |
| 77785 | fuel pump wiring harness | 77785-20010 · 77785-52020 |
