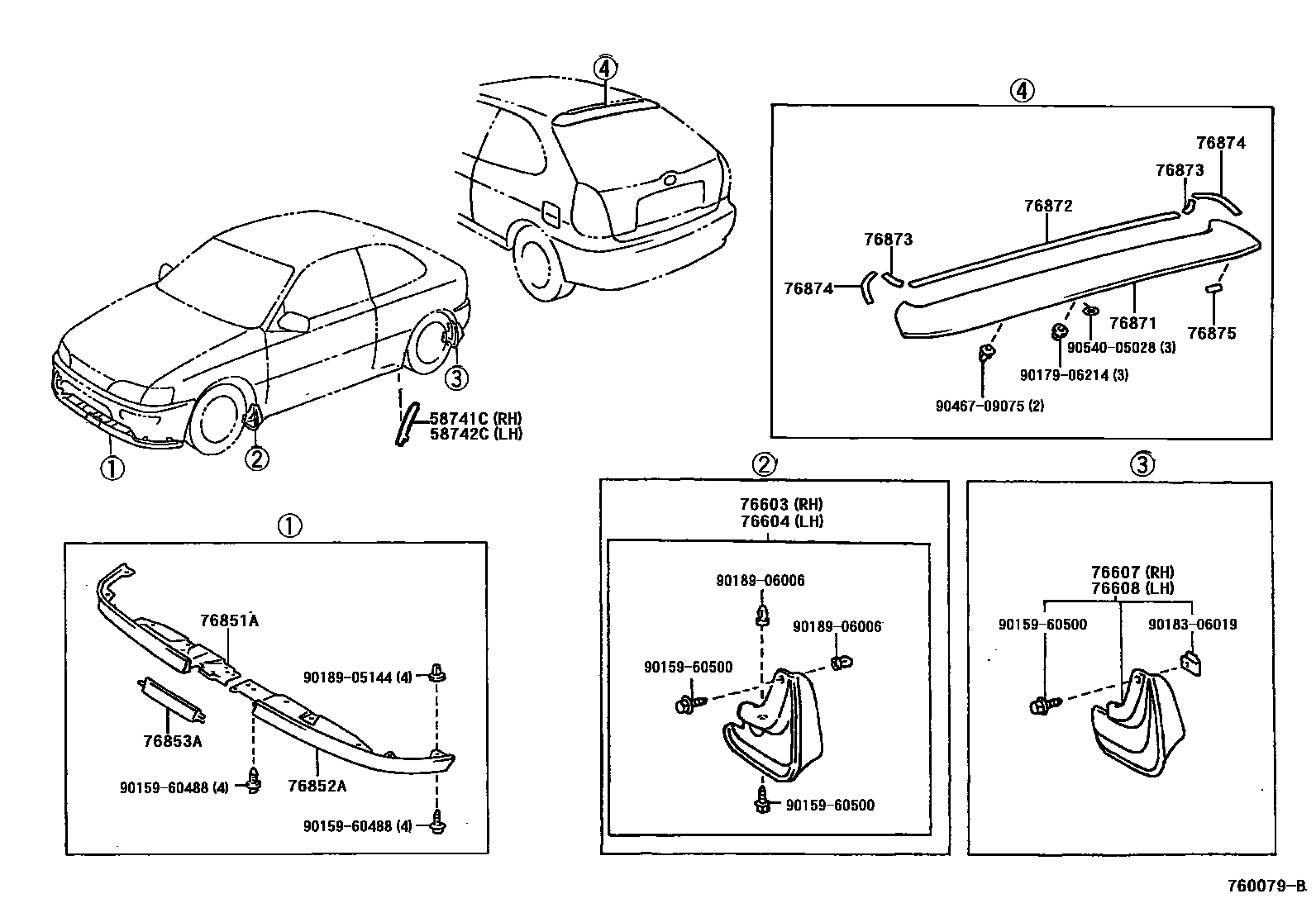

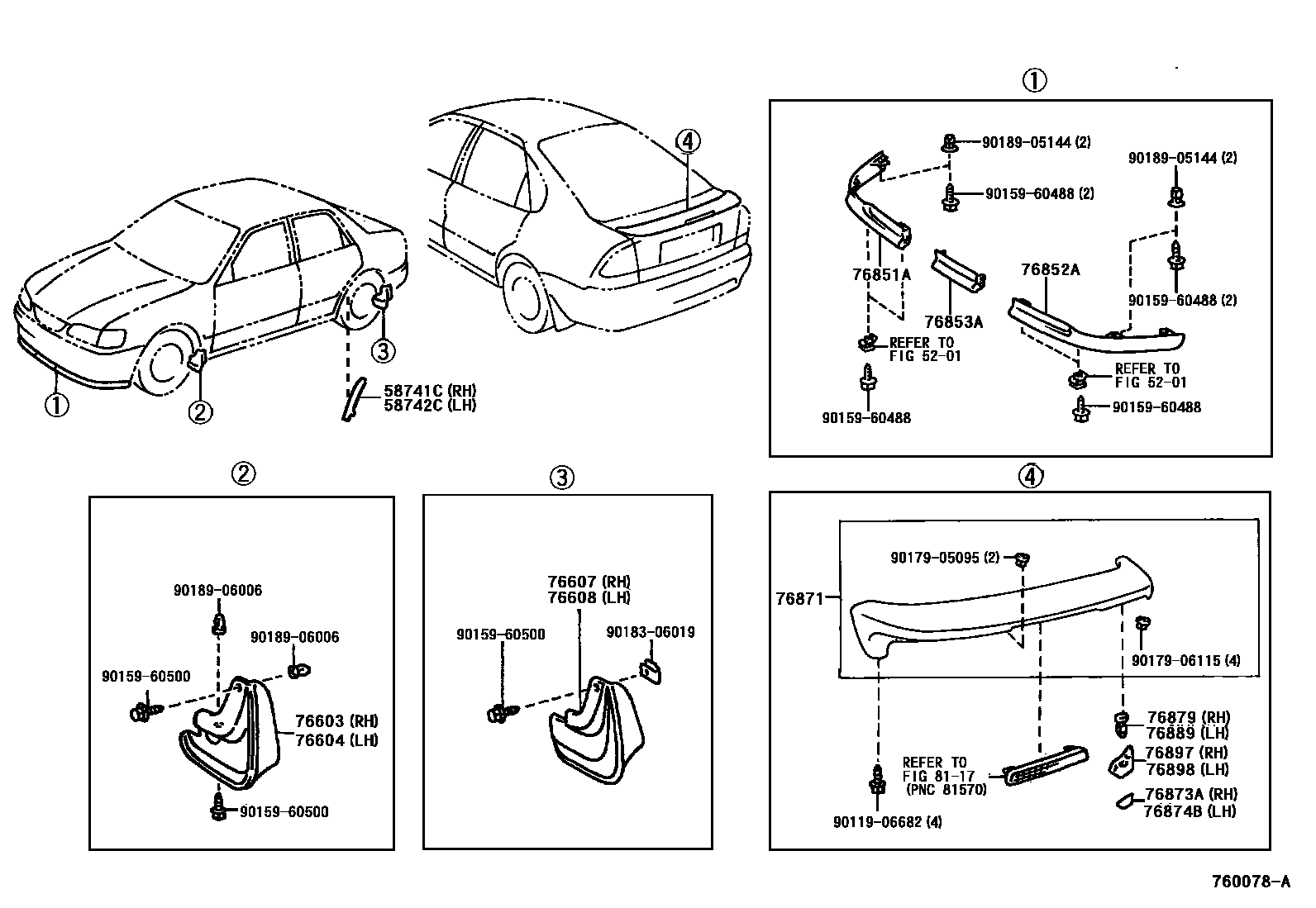

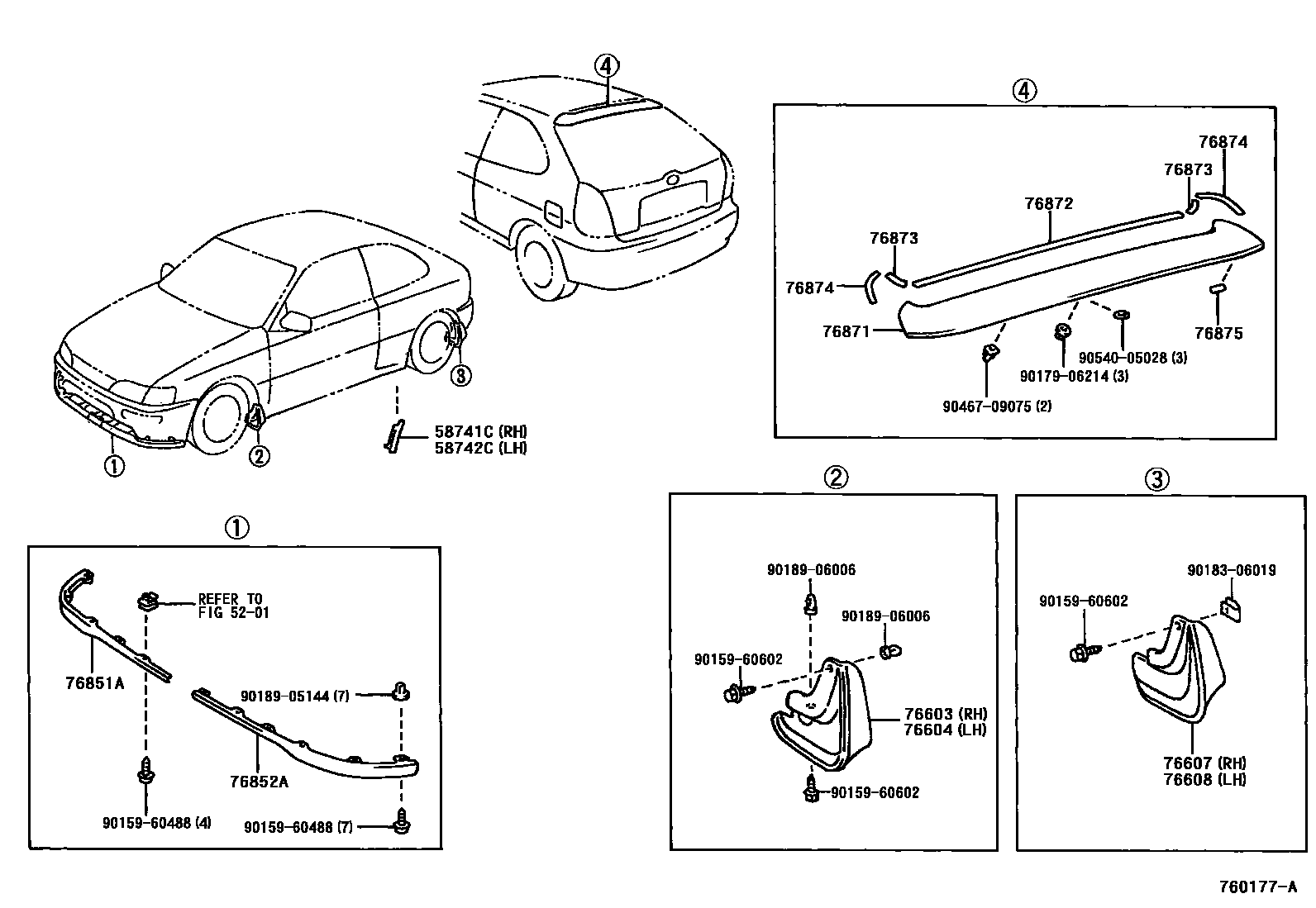

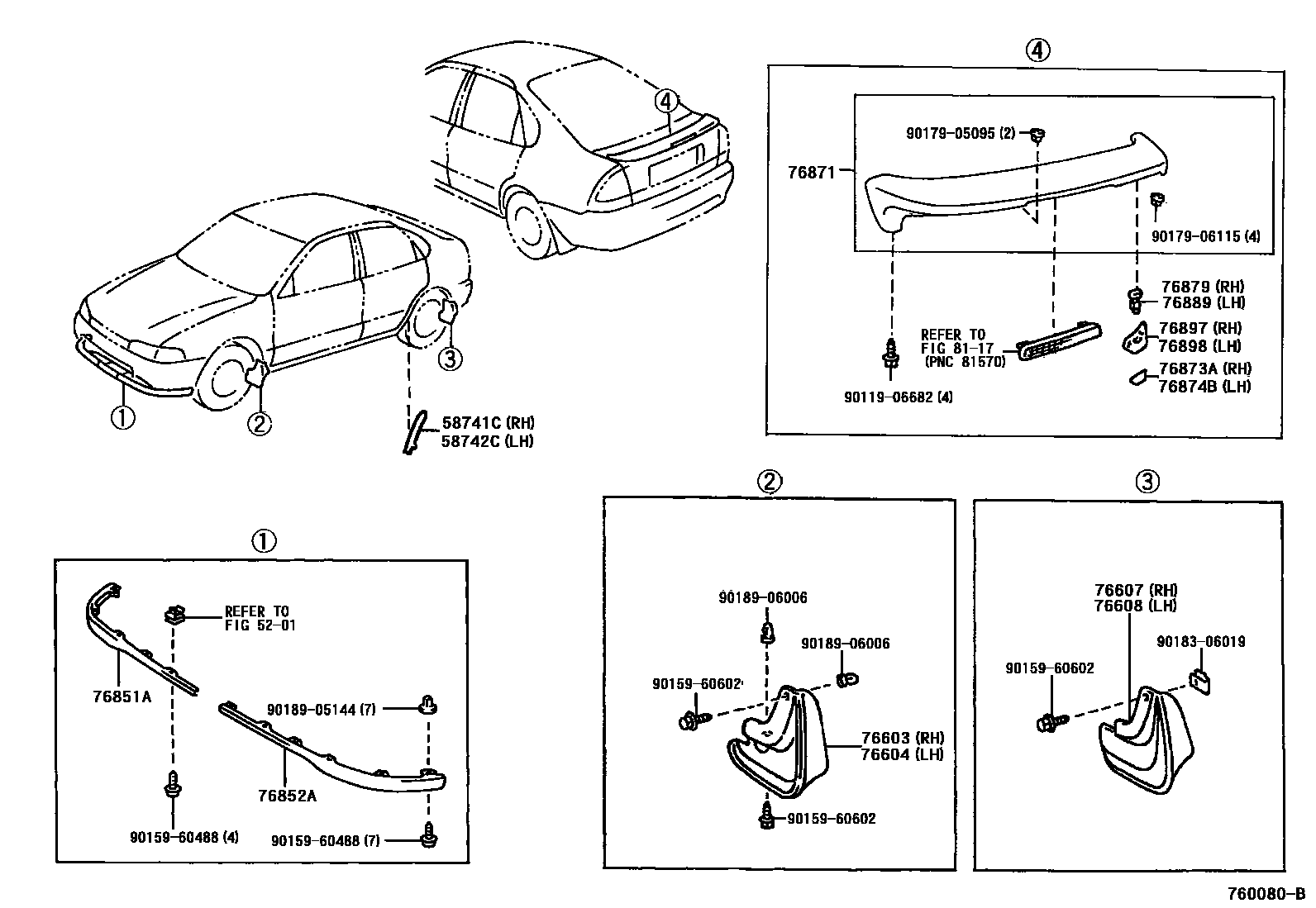

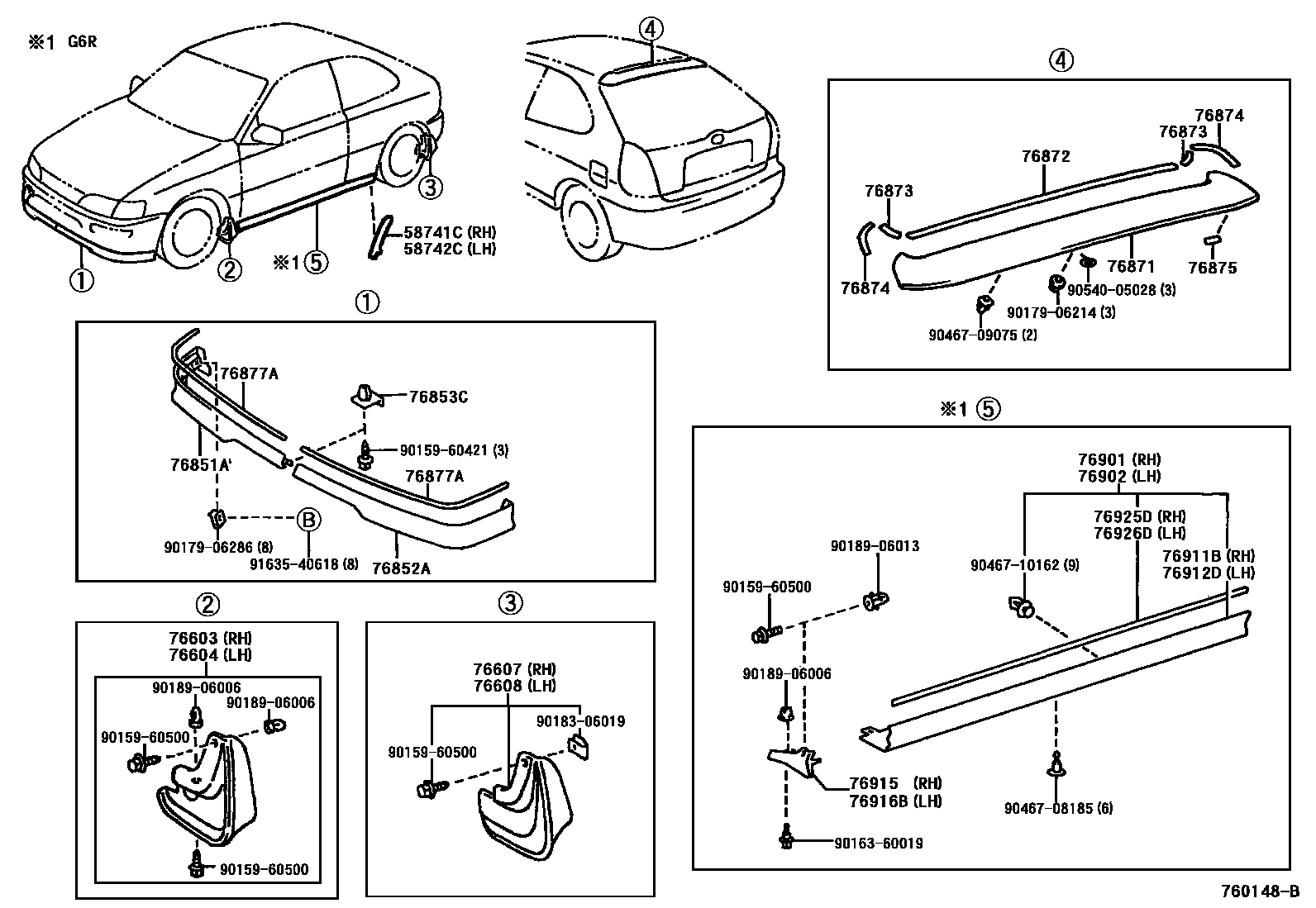

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 5 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741C | Right side enclosure protection panel | 58741-02020 · 58741-12120 · 58741-12130 |
| 58742C | Left side enclosure protection panel | 58742-02020 · 58742-12110 · 58742-12120 |
| 76603 | Right front fender fender sub-assembly | 76621-02070 · 76621-12181 |
| 76604 | Left front fender fender sub-assembly | 76622-02070 · 76622-12181 |
| 76607 | Right rear side fender sub-assembly | 76625-02070 · 76625-12440 |
| 76608 | Left rear side fender sub-assembly | 76626-02070 · 76626-12430 |
| 76851A | Right front spoiler cover | 76851-02010 · 76851-12090 · 76851-12130 · 76851-12150 |
| 76852A | Left front spoiler cover | 76852-02010 · 76852-12070 · 76852-12090 · 76852-12110 |
| 76853A | No. 1 front spoiler fixings | 76853-02010 · 76853-12070 |
| 76853C | No. 1 front spoiler fixing piece | 76853-12110 |
| 76871 | rear spoiler | 76871-12260 · 76871-12908 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12160 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12110 |
| 76873A | Right rear spoiler protective strip | 76781-12010 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12120 · 76874-12170 |
| 76874B | Left rear spoiler protective strip | 76782-12010 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12100 |
| 76877A | Front spoiler protection strip | 76877-12050 |
| 76879 | No. 1 rear spoiler clip | 76879-12050 |
| 76889 | No. 2 rear spoiler clip | 76889-12040 |
| 76897 | Right rear spoiler protection strip | 76897-12130 |
| 76898 | Left rear spoiler protection strip | 76898-12130 |
| 76911B | right fender | 76911-12901 |
| 76912D | left fender | 76912-12901 |
| 76915 | Right rear door fender | 76915-12090 |
| 76916B | Left rear door fender | 76916-12090 |
| 76925D | Right fender protection strip | 76925-12050 |
| 76926D | Left fender protection strip | 76925-12050 |
