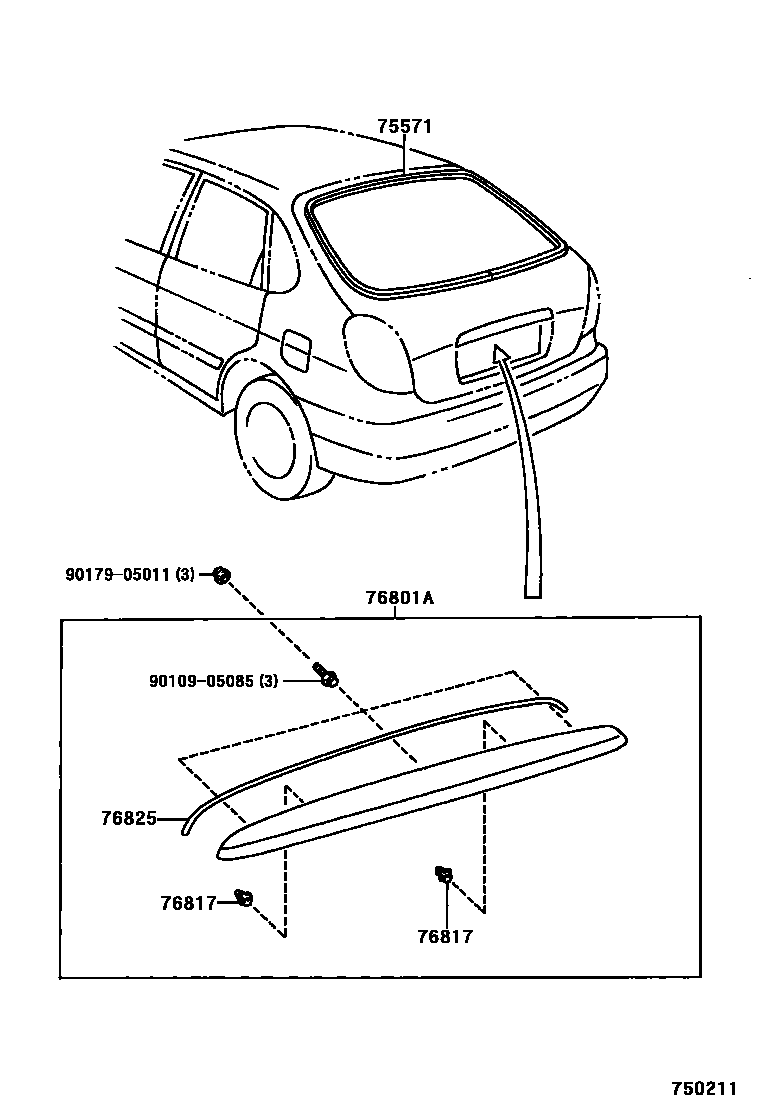

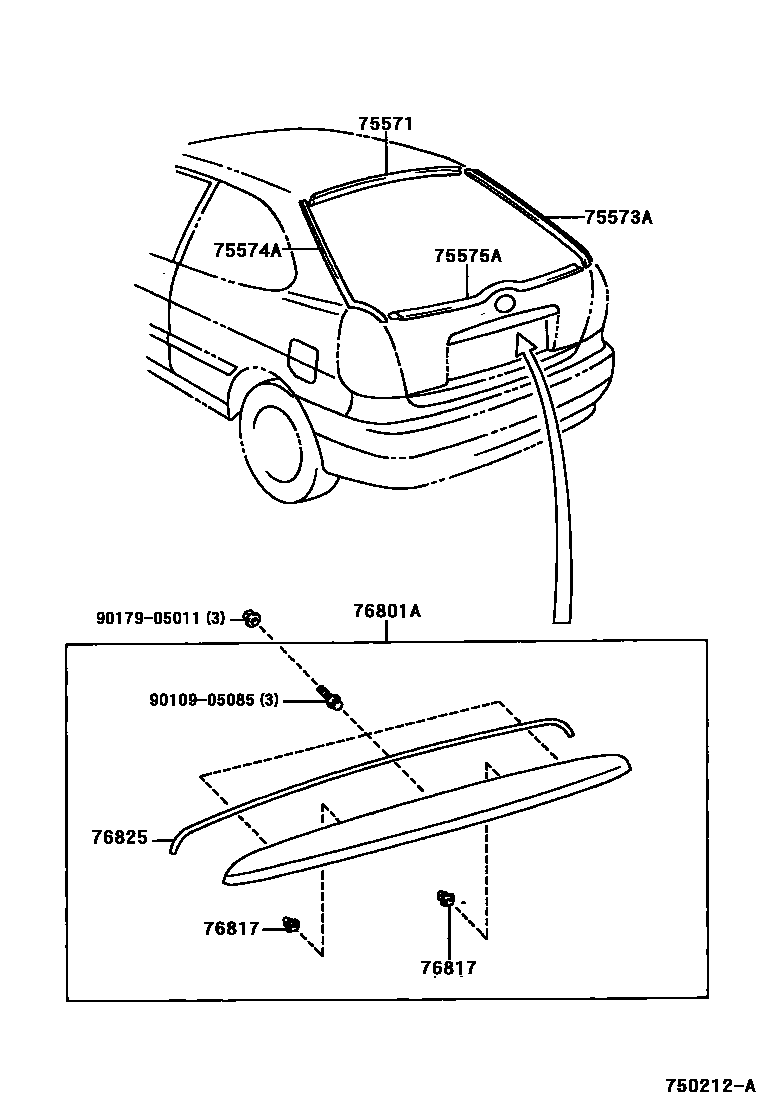

Toyota COROLLA 后防护条 — Figure 7504
Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-02070 · 75571-12810 · 75571-12840 |
| 75573A | Right outer protective strip of back window | 75573-12310 |
| 75574A | Rear window left outer protective strip | 75574-12160 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-12430 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-12550 |
| 76817 | Rear door exterior decorative strip clip | 76817-12050 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-02010 · 76825-12020 · 76825-12030 |
