Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

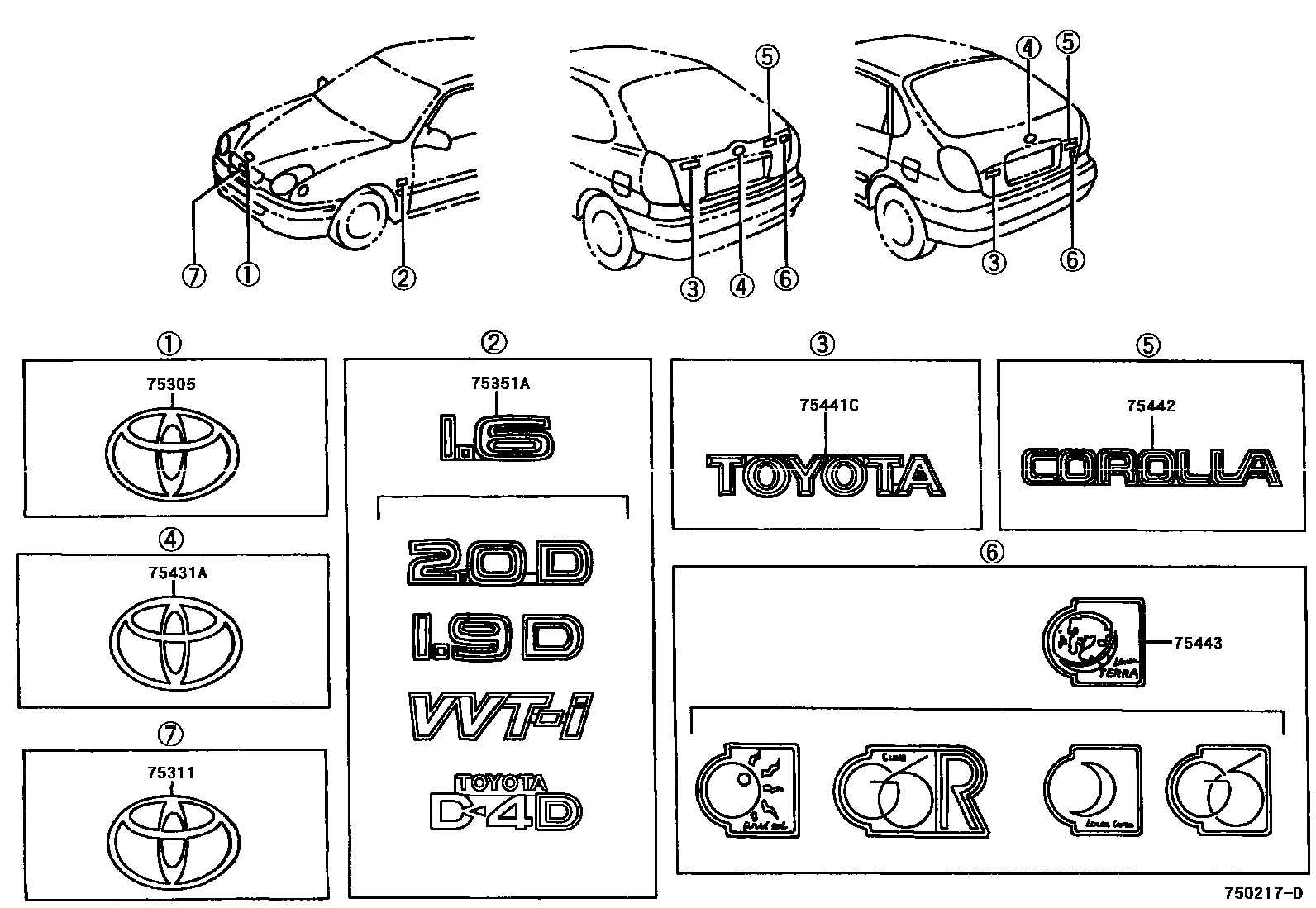

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75305 | engine cover plate | 75331-02010 · 75331-12100 |
| 75311 | Radiator grille (or front panel) plate | 75311-02060 · 75311-1E010 |
| 75351A | Front fender label | 75351-02010 · 75351-02030 · 75351-02050 · 75351-02060 · 75351-12040 · 75351-12050 · 75351-12100 · 75351-12120 · 75351-12130 · 75351-12140 · 75351-12150 |
| 75431A | No. 1 sign on back door | 75431-02010 · 75431-12130 · 75431-12140 |
| 75441C | Back door nameplate | 75441-02030 · 75441-12650 |
| 75442 | Trunk door number plate No. 2 | 75442-02030 · 75442-1A400 · 75442-1A410 |
| 75443 | No. 3 nameplate on back door | 75444-02030 · 75444-02040 · 75444-02050 · 75444-02060 · 75444-1A540 · 75444-1A550 · 75444-1A560 · 75444-1A580 · 75444-1A590 · 75444-1A600 · 75444-1A610 · 75444-1A640 · 75444-1A650 · 75444-1A670 |
