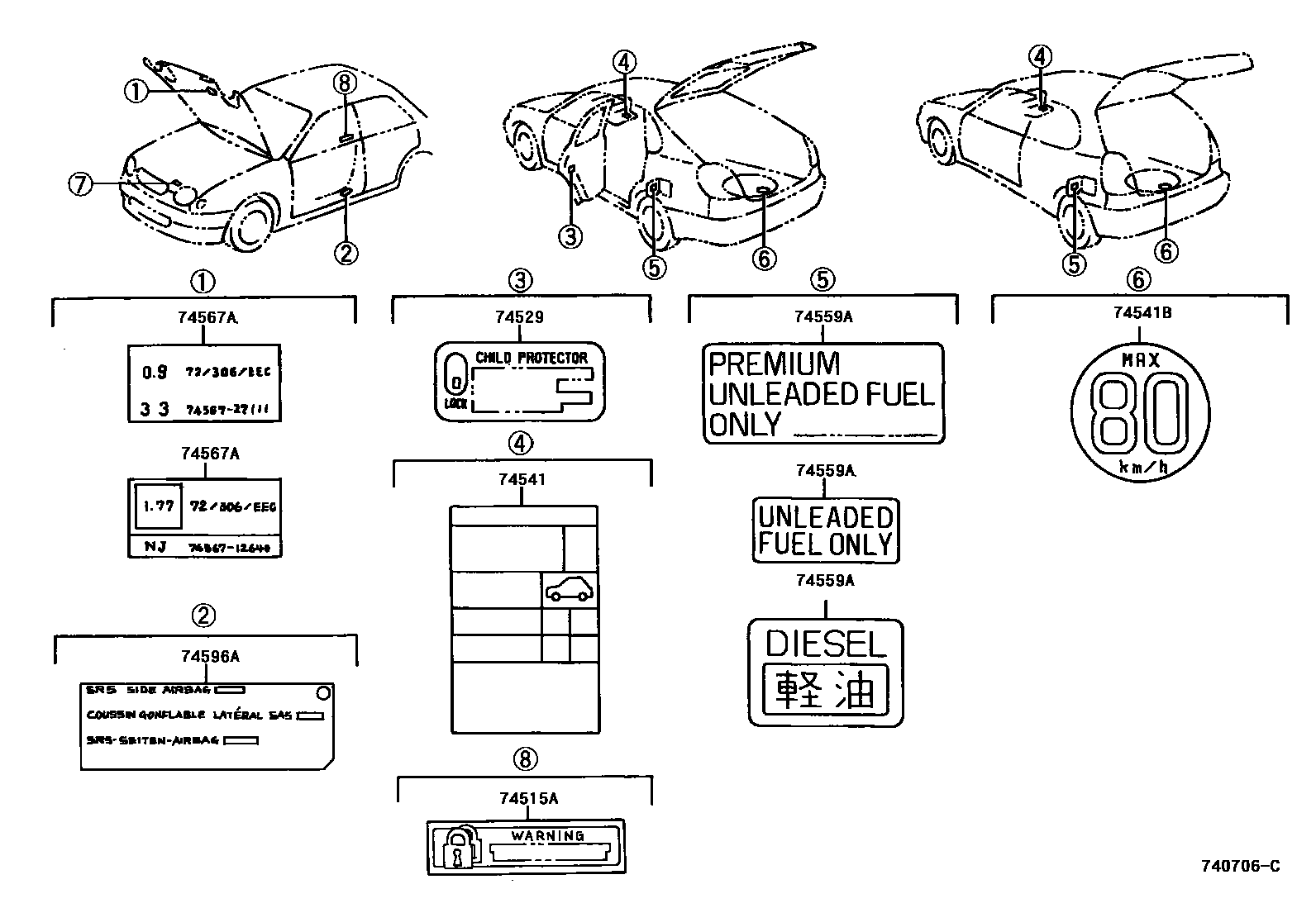

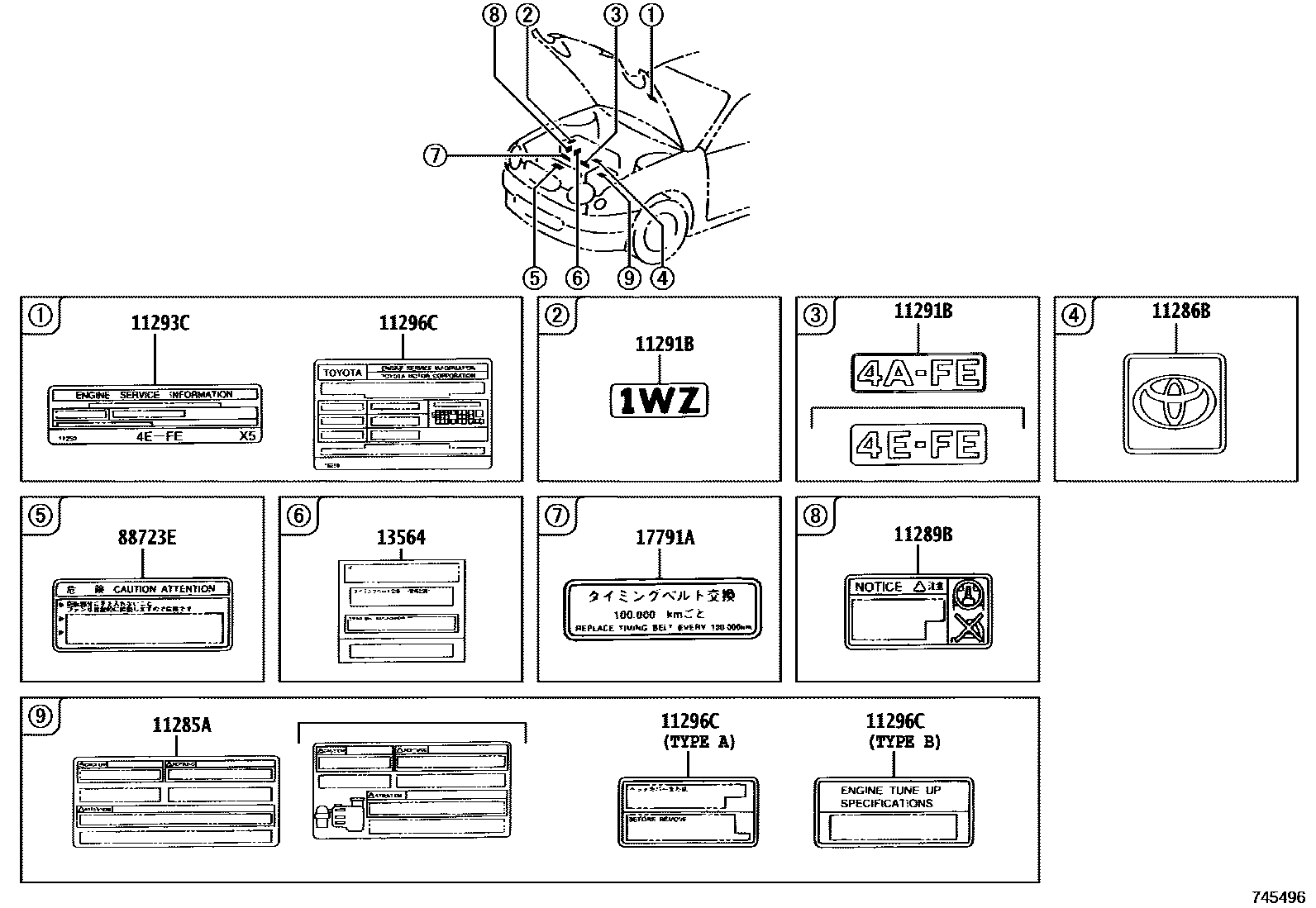

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-27010 · 11285-53010 |
| 11286B | PLAQUE, SPECIFICATION MOTEUR | 11286-53010 |
| 11289B | spark plug caution label | 11289-62020 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11291-11050 · 11291-53010 · 11291-64080 · 11292-16020 |
| 11293C | Adjust specification information label | 11293-11250 |
| 11296C | Engine maintenance information label | 11296-02060 · 11296-16170 · 11296-64010 · 11296-64040 |
| 13564 | ETIQUETTE, INFO REMPLACEMENT COURROIE DISTRIBUTION | 13564-10010 |
| 17791A | ETIQUETTE D'INFORMATION D'ENTRETIEN | 17791-55010 |
| 74515A | Anti-theft warning nameplate | 74515-20010 · 74515-52010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-03010 · 69339-12010 |
| 74541 | tire pressure warning plate | 42661-02140 · 42661-02150 · 42661-02190 · 42661-1A830 · 42661-1A840 · 42661-1A850 · 42661-1E070 · 42661-1E080 · 42661-1E090 · 42661-1E100 · 42661-1E110 |
| 74541B | Small spare tire warning plate | 42668-20020 |
| 74559A | Fuel warning plate | 74559-05010 · 74559-14030 · 74559-14050 · 74559-50010 |
| 74567A | E.C.E approval number plate | 74567-12640 · 74567-27111 |
| 74596A | Side air bag warning label | 74596-12010 · 74596-12011 |
| 88723E | Cooler maintenance warning label | 16793-75010 · 88723-20081 |
