Toyota COROLLA 扶手和遮阳板 — Figure 7401

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 2 PNC and OE references.

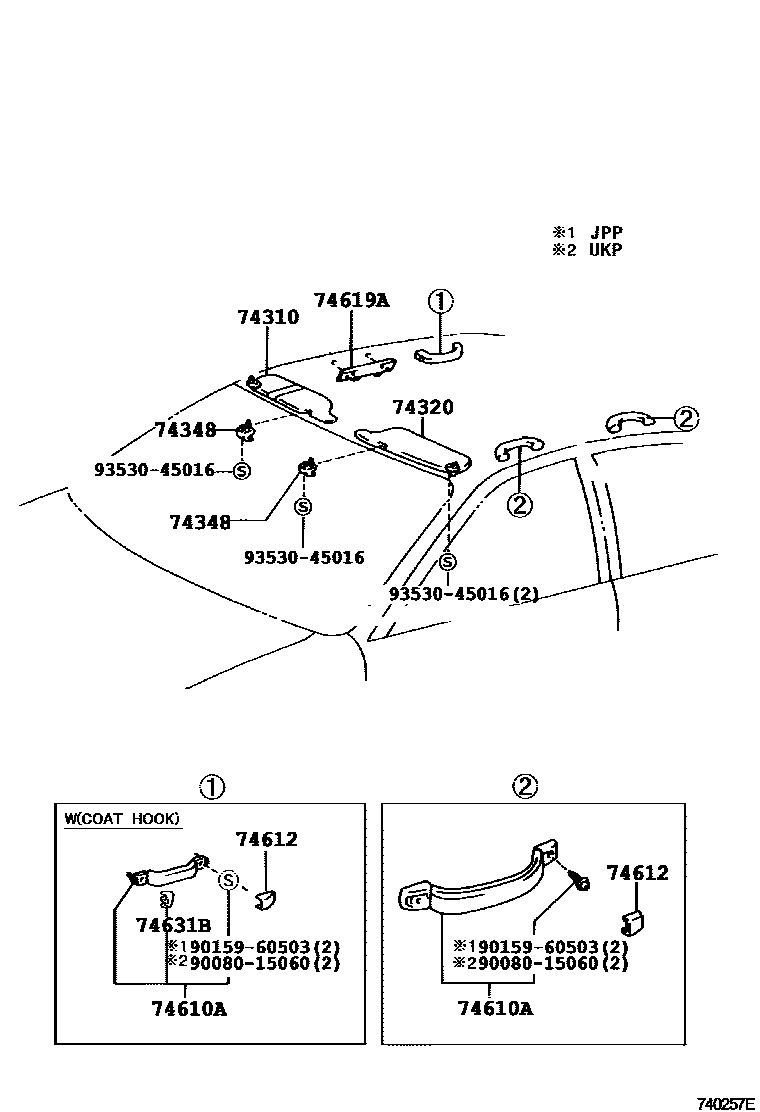

Toyota COROLLA 扶手和遮阳板 EPC diagram — 740257E
扶手和遮阳板 — 740257E (199704 – 999999)

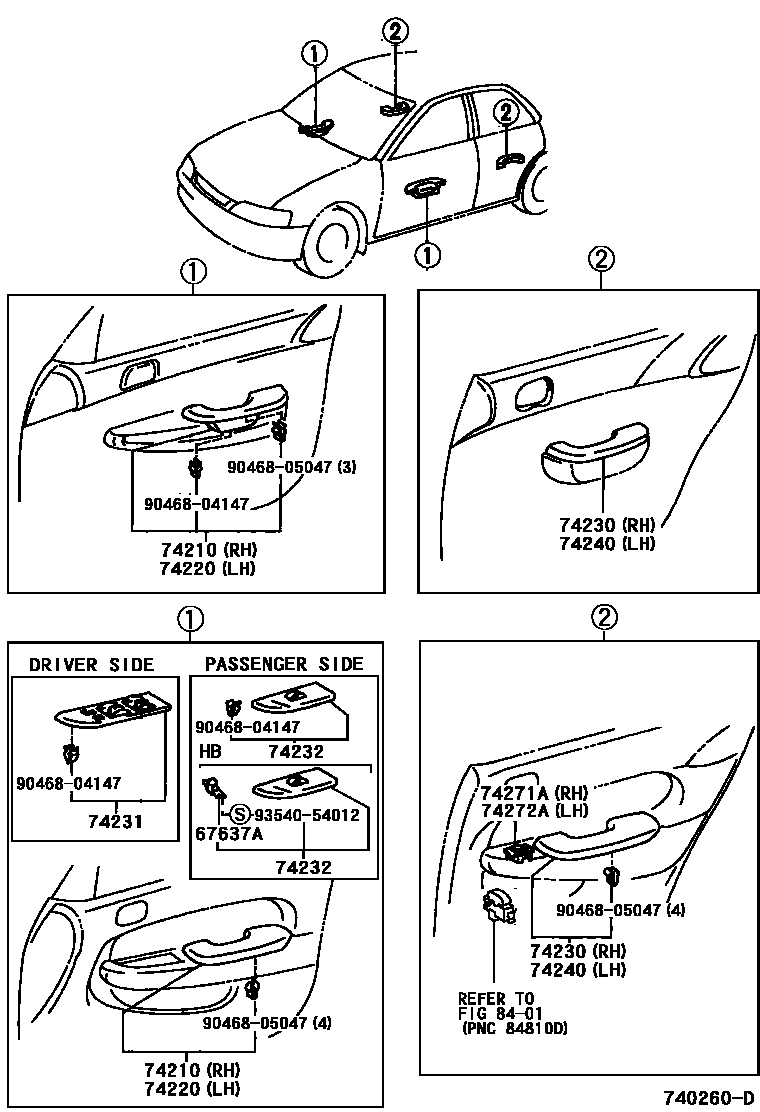

Toyota COROLLA 扶手和遮阳板 EPC diagram — 740260D
扶手和遮阳板 — 740260D (199704 – 999999)

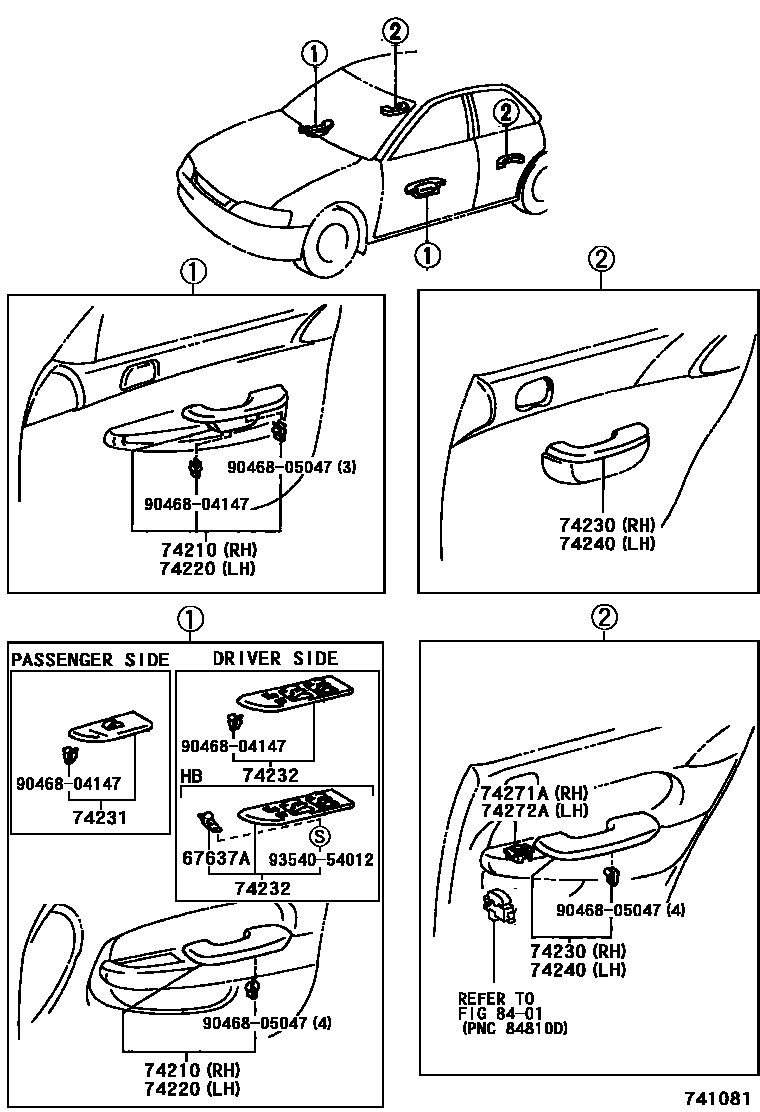

Toyota COROLLA 扶手和遮阳板 EPC diagram — 741081
扶手和遮阳板 — 741081 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
67637AFront door decorative panel67637-12030
74619AAuxiliary handle cushion74619-02020 · 74619-12020
