Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

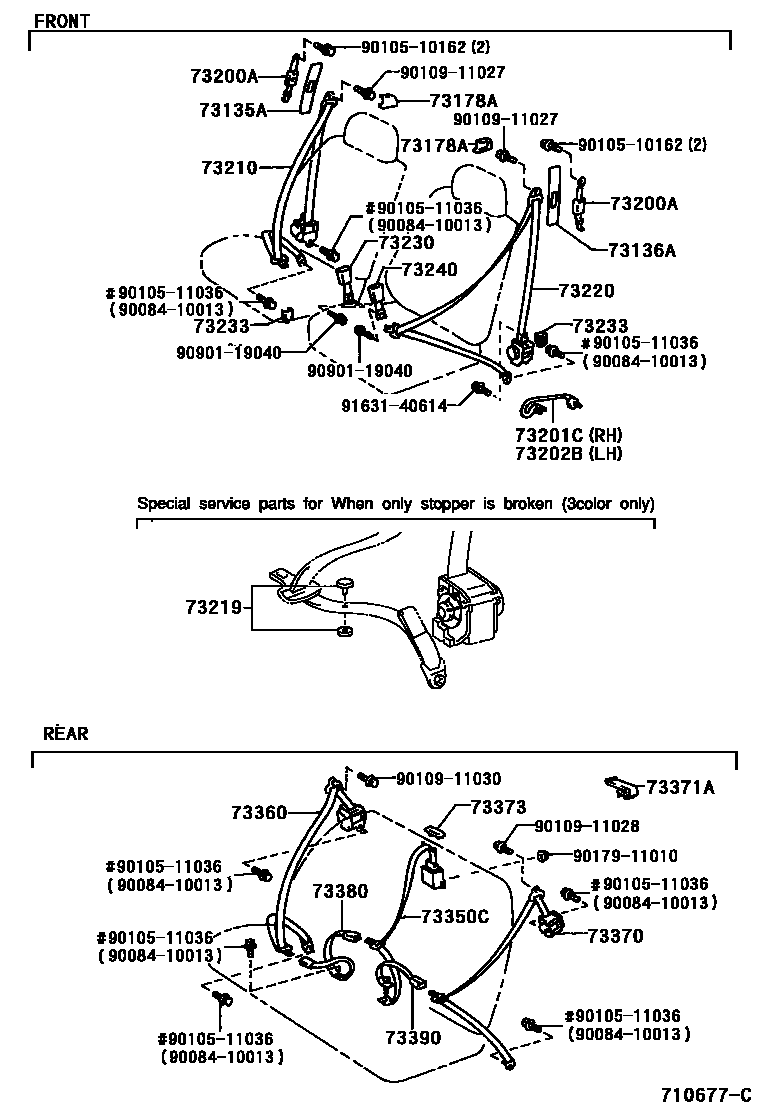

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73201C | Front right seat outer seat belt lever sub-assembly | 73201-12030 |
| 73202B | Front left seat outer seat belt lever sub-assembly | 73202-12020 |
| 73219 | Tongue plate stop | 73219-33010 · 73219-33020 · 73219-33030 |
