Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 34 PNC and OE references.

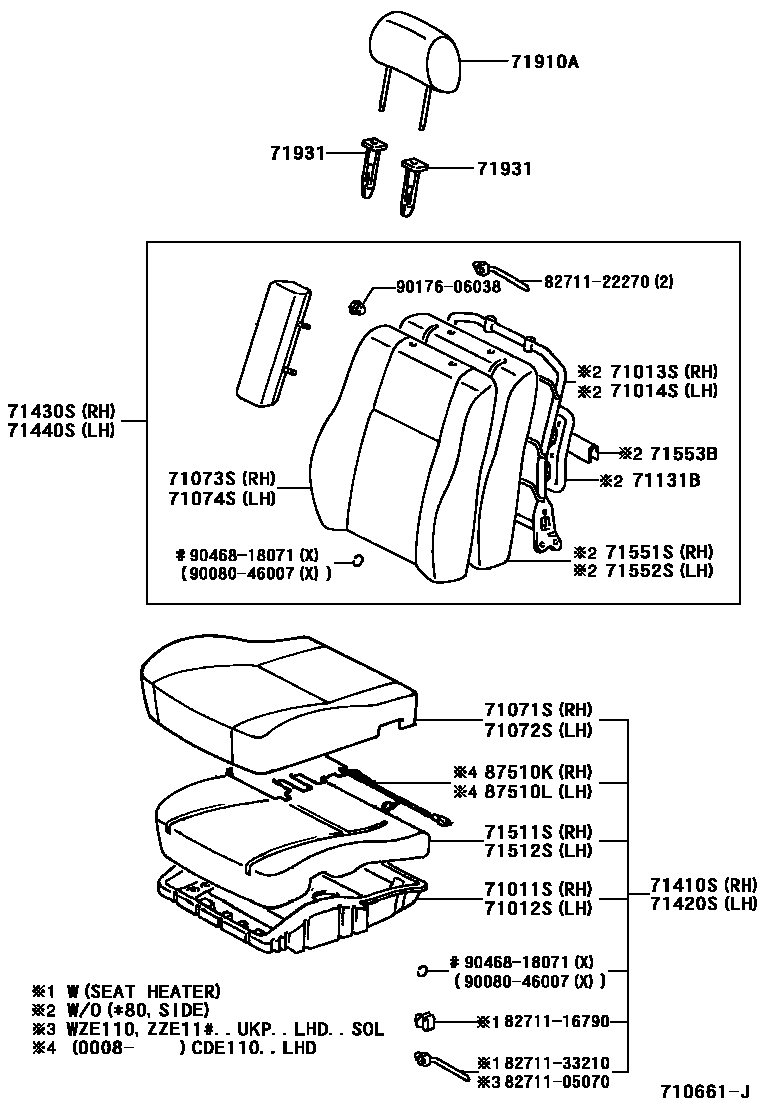

Toyota COROLLA 前排座椅和座椅滑轨 EPC diagram — 710661J
前排座椅和座椅滑轨 — 710661J (199704 – 999999)

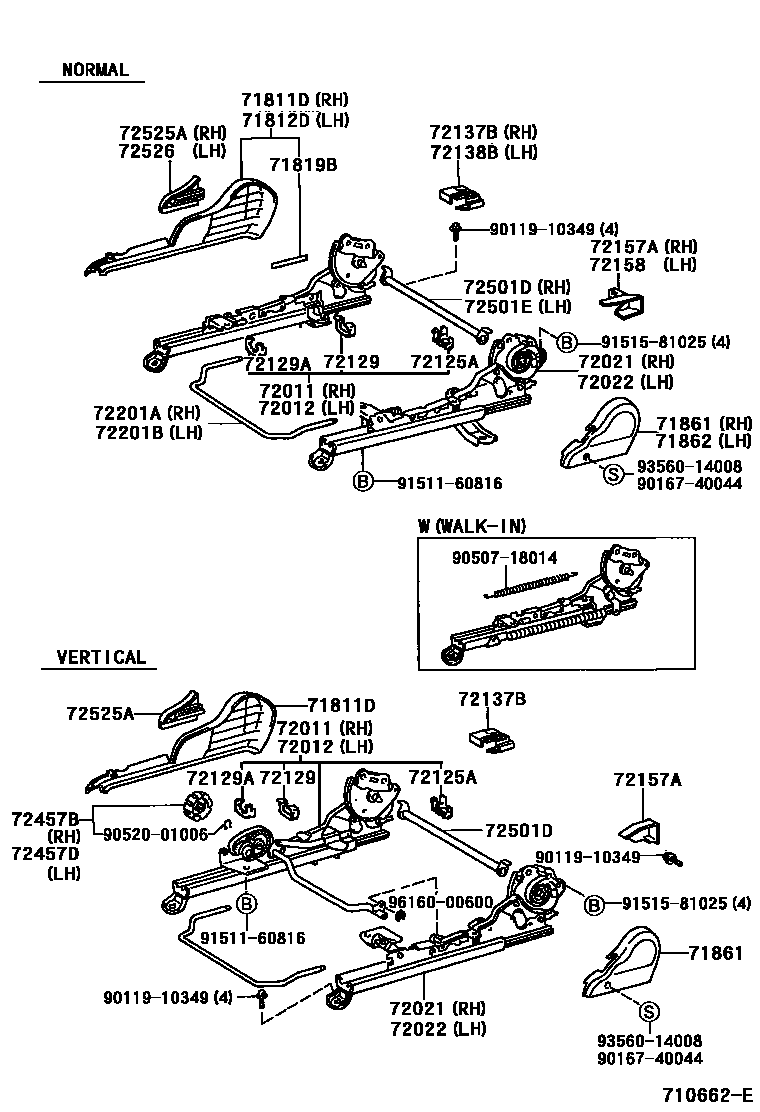

Toyota COROLLA 前排座椅和座椅滑轨 EPC diagram — 710662E
前排座椅和座椅滑轨 — 710662E (199704 – 999999)

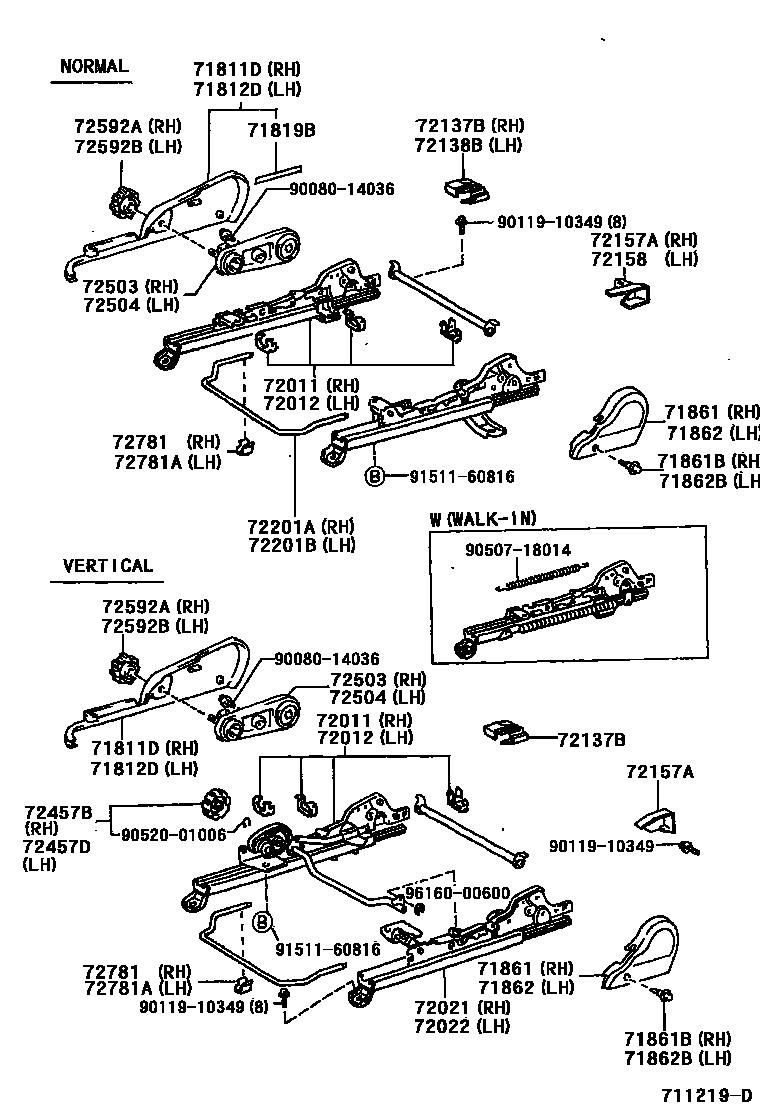

Toyota COROLLA 前排座椅和座椅滑轨 EPC diagram — 711219D
前排座椅和座椅滑轨 — 711219D (199809 – 999999)

PNC and OE references

PNCPart nameOE numbers
71011SFront right seat cushion frame sub-assembly71011-02030 · 71011-20430 · 71011-20440
71012SFront left seat cushion frame sub-assembly71011-02030 · 71011-20430 · 71011-20440
71013SFront right seat back frame sub-assembly71013-12630 · 71013-12631 · 71630-02040 · 71630-02041
71014SFront left seat back frame sub-assembly71013-12630 · 71013-12631 · 71640-02020 · 71640-02021
71131BFront seat cushion 171131-12050
71410SFront right seat cushion assembly (for split seats)71410-1N070 · 71410-1N120
71420SFront left seat cushion assembly (for split seats)71420-1H530 · 71420-1H770
71440SFront left seat back assembly (for split seats)71430-1L311
71511SFront right seat cushion cushion (for split seats)71511-02060 · 71511-02080 · 71511-12890 · 71511-1A010 · 71511-1A020 · 71511-1A030
71512SFront left seat cushion cushion (for split seats)71511-02060 · 71511-02080 · 71511-12890 · 71511-1A010 · 71511-1A020 · 71511-1A030
71551SFront right seat back cushion (for split seats)71551-02040 · 71551-02041 · 71551-02060 · 71551-02061 · 71551-12610 · 71551-12630 · 71551-12680 · 71551-12690 · 71551-12710 · 71551-12730 · 71551-12750 · 71551-12760
71552SFront left seat back cushion (for split seats)71551-12610 · 71551-12630 · 71551-12680 · 71551-12710 · 71551-12730 · 71552-02040 · 71552-02041 · 71552-02050 · 71552-02051 · 71552-12220 · 71552-12260 · 71552-12270
71553BFront B seat back cushion71553-12360
72011Front right seat outer adjuster sub-assembly72011-02050 · 72011-02051 · 72011-02060 · 72011-02061 · 72011-12250 · 72011-12260 · 72011-12270
72012Front left seat outer adjuster sub-assembly72012-02050 · 72012-02051 · 72012-02060 · 72012-02061 · 72012-12210 · 72012-12280 · 72012-12290
72021Front right seat inner adjuster sub-assembly72021-02050 · 72021-02051 · 72021-02060 · 72021-02061 · 72021-12220 · 72021-12230 · 72021-12240
72022Front left seat inner adjuster sub-assembly72022-02050 · 72022-02051 · 72022-02060 · 72022-02061 · 72022-12270 · 72022-12280 · 72022-12290
72125ARear seat upper slide rail cover72125-10010
72129No. 1 seat slide rail lower rail protective cover72129-12010
72129ANo. 2 seat slide rail lower rail ring protective cover72129-20020
72137BRight seat slide cover72137-02030
72138BLeft seat slide cover72138-02030
72157ARight seat inner slide rail bracket cover72157-02020
72158Left seat inner slide rail bracket cover72158-02020
72201ARight seat slide rail handle sub-assembly72201-02030 · 72201-12030
72201BLeft seat slide rail handle sub-assembly72201-02030 · 72201-12030
72501DRight seat back recline adjuster connecting pipe sub-assembly72345-12040
72501ELeft seat back recline adjuster connecting pipe sub-assembly72345-12040
72503Right seat back recline adjuster lower arm sub-assembly72503-02010
72504Left seat back tilt adjuster lower arm sub-assembly72503-02010
72781Front right seat leaf spring72781-05010
72781AFront left seat leaf spring72781-05010
87510KFront right seat cushion heater assembly87510-0W170
87510LFront left seat cushion heater assembly87510-0W180
