Toyota COROLLA 锁芯组件 — Figure 6712

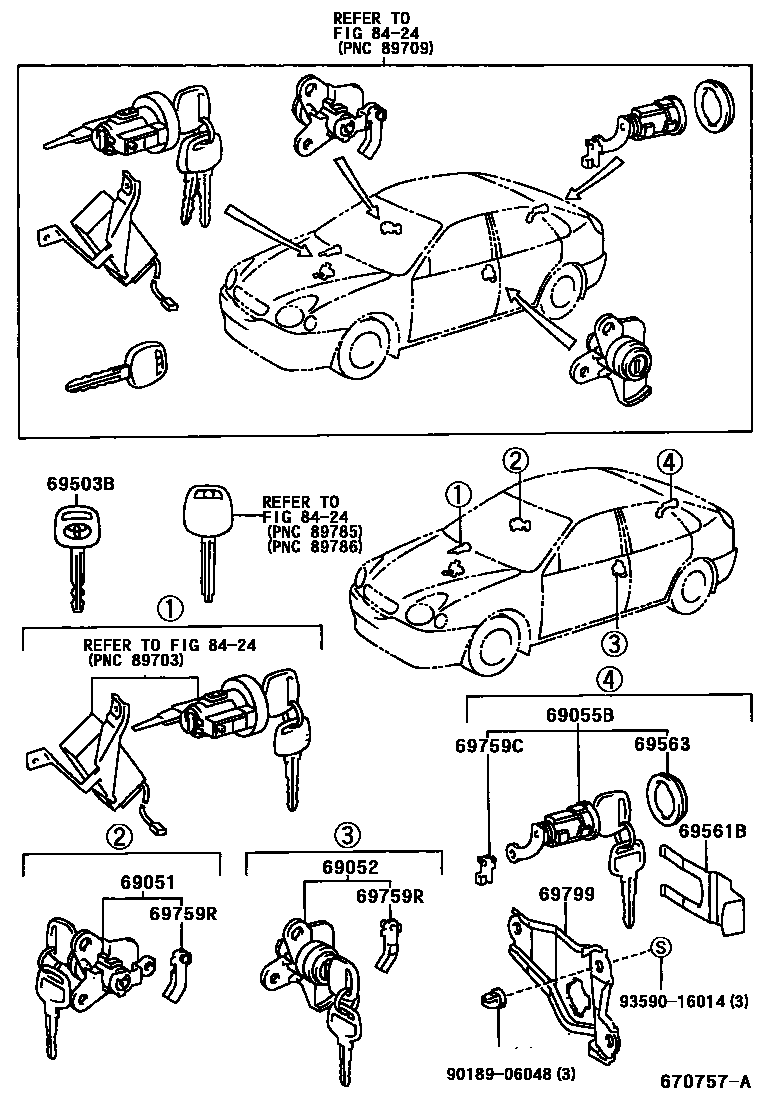

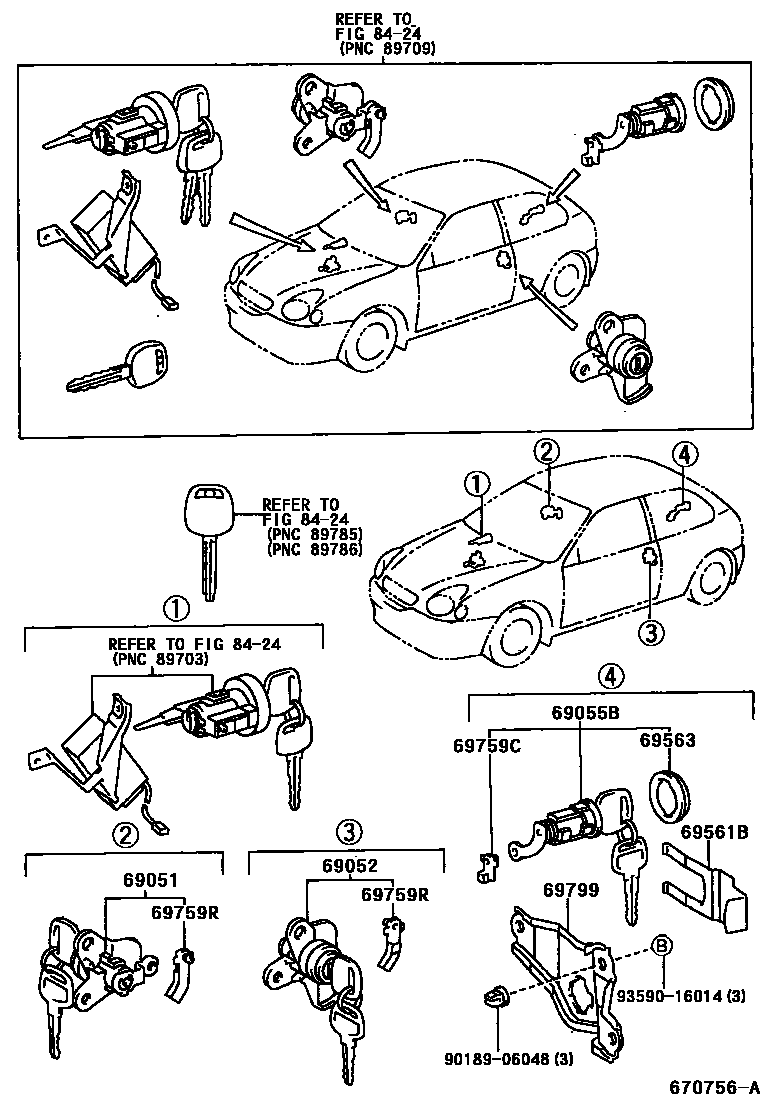

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02020 · 69051-12530 |
| 69052 | Left door lock cylinder and key assembly | 69052-02020 · 69052-12530 |
| 69055B | Rear door lock cylinder and key assembly | 69055-02020 · 69055-1A270 |
| 69503B | internal tooth key | 69515-05010 |
| 69561B | Rear door lock cylinder fixing parts | 69511-16030 · 69561-02020 · 69561-32050 |
| 69563 | Rear door lock cylinder gasket | 69563-20040 |
| 69759C | Back door lock cylinder buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
| 69799 | Back door lock cylinder bracket | 69799-02010 · 69799-12010 · 69799-12020 |
