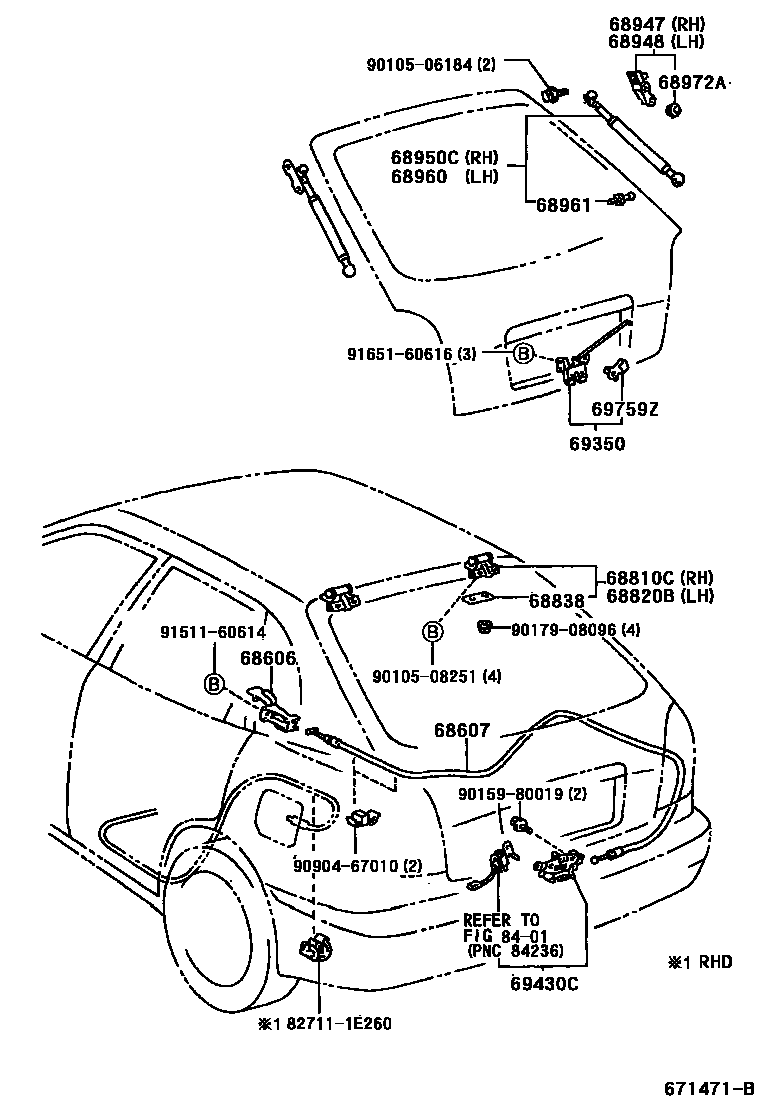

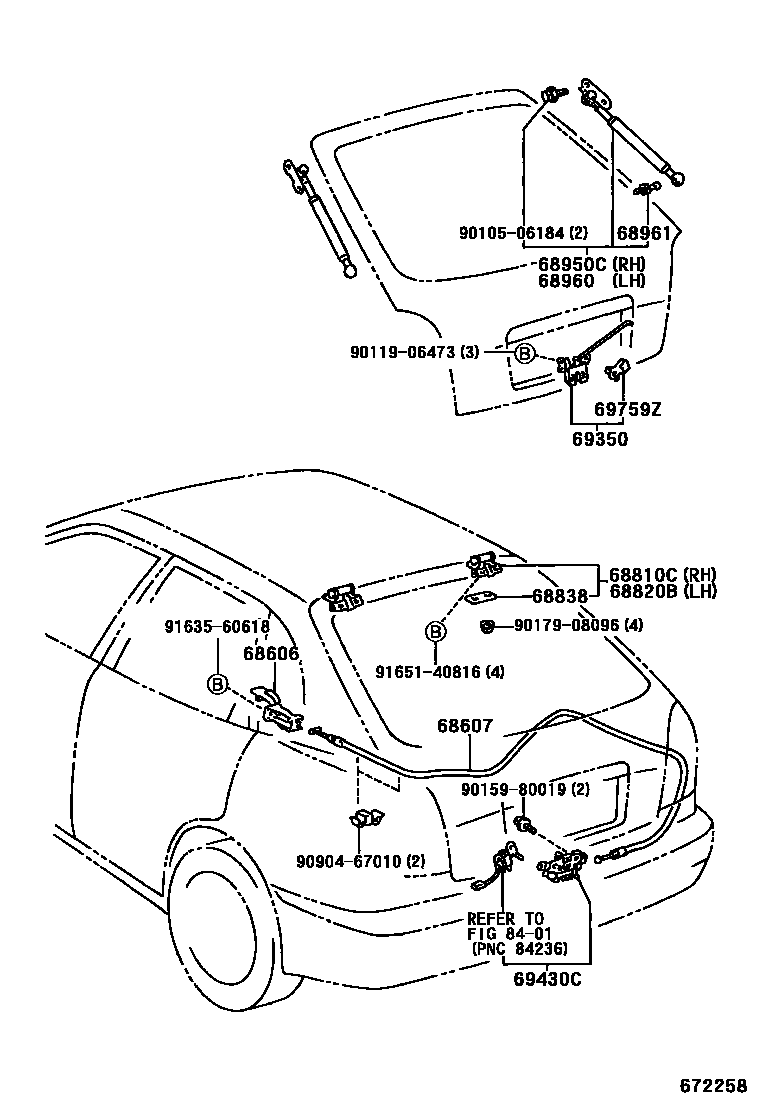

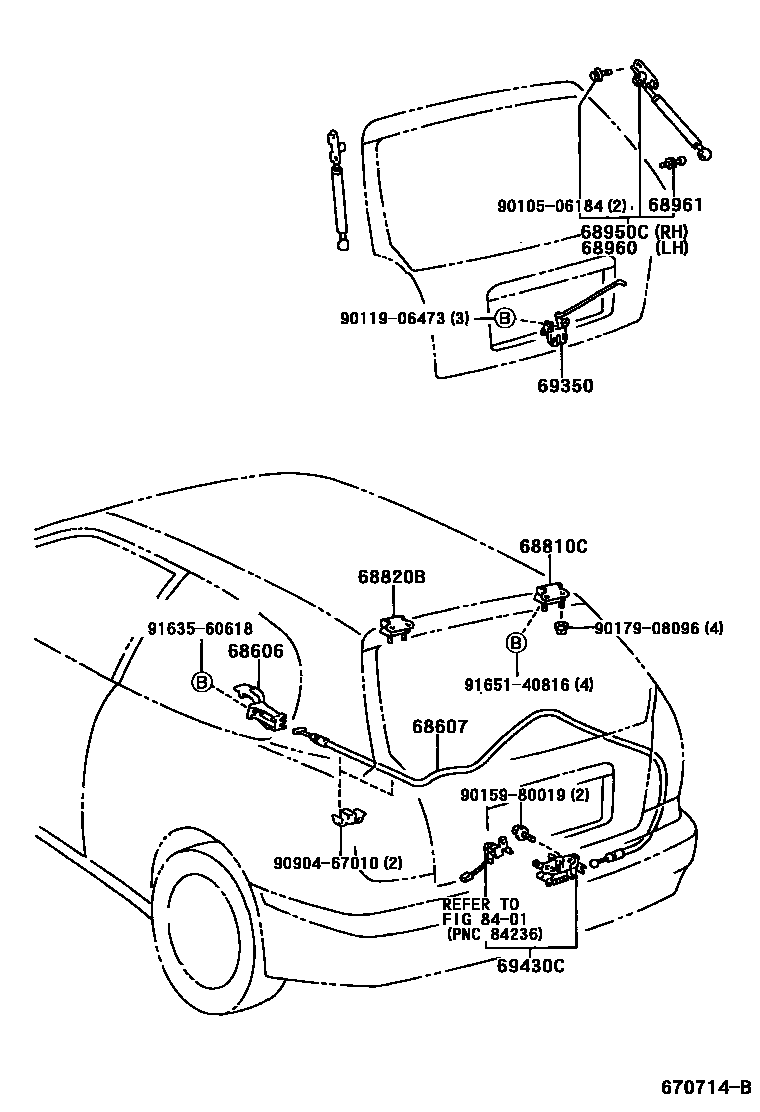

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-02020 · 64606-02030 · 64606-20091 · 64606-20161 |
| 68607 | Rear door lock control cable sub-assembly | 64607-02040 · 64607-02050 · 64607-12740 · 64607-12750 · 64607-12770 · 64607-12780 |
| 68810C | Back door right hinge assembly | 68801-05020 · 68801-12100 · 68810-44010 |
| 68820B | Back door left hinge assembly | 68801-05020 · 68801-12100 · 68810-44010 |
| 68838 | Back door hinge No. 1 gasket | 68838-05010 · 68838-20060 |
| 68947 | Back door right damping strut lower bracket | 68947-02010 |
| 68948 | Rear door left damping strut lower bracket | 68948-02010 |
| 68950C | Back door right support rod assembly | 68950-09090 · 68950-09100 · 68950-80054 · 68950-80055 · 68950-80057 · 68950-80105 |
| 68960 | Back door left support rod assembly | 68960-09060 · 68960-09070 · 68960-19675 · 68960-19685 · 68960-19705 · 68960-19805 |
| 68961 | Rear door support rod bolts | 68961-02020 · 68961-12050 |
| 68972A | Back door No. 2 support rod seal | 68972-02010 |
| 69350 | Rear door lock assembly | 69350-12200 · 69350-12210 |
| 69430C | Back door lock assembly | 69430-12320 · 69430-12330 |
| 69759Z | Door lock control link buckle | 69759-20040 |
