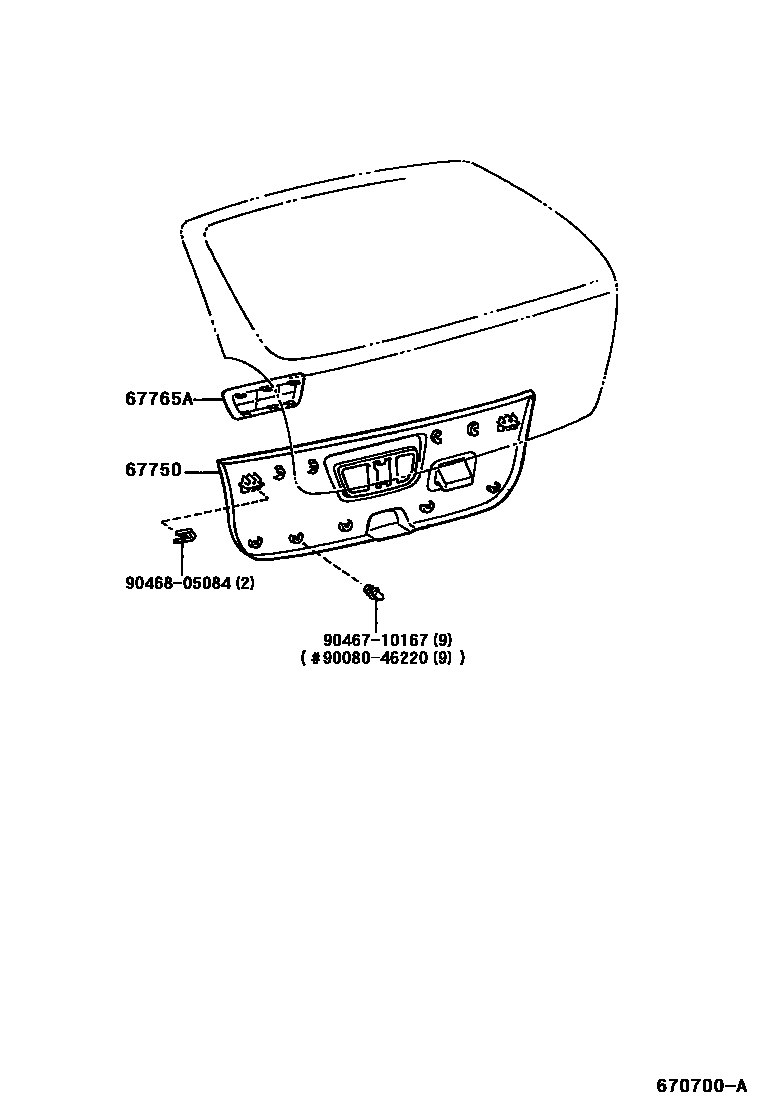

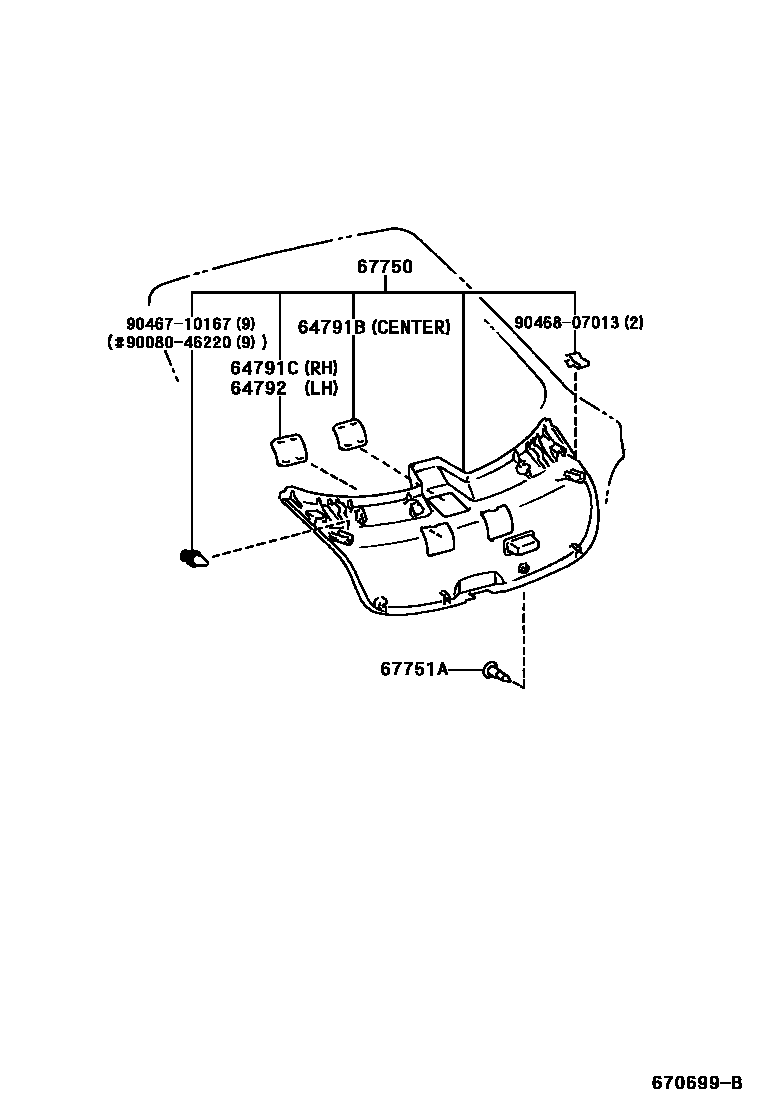

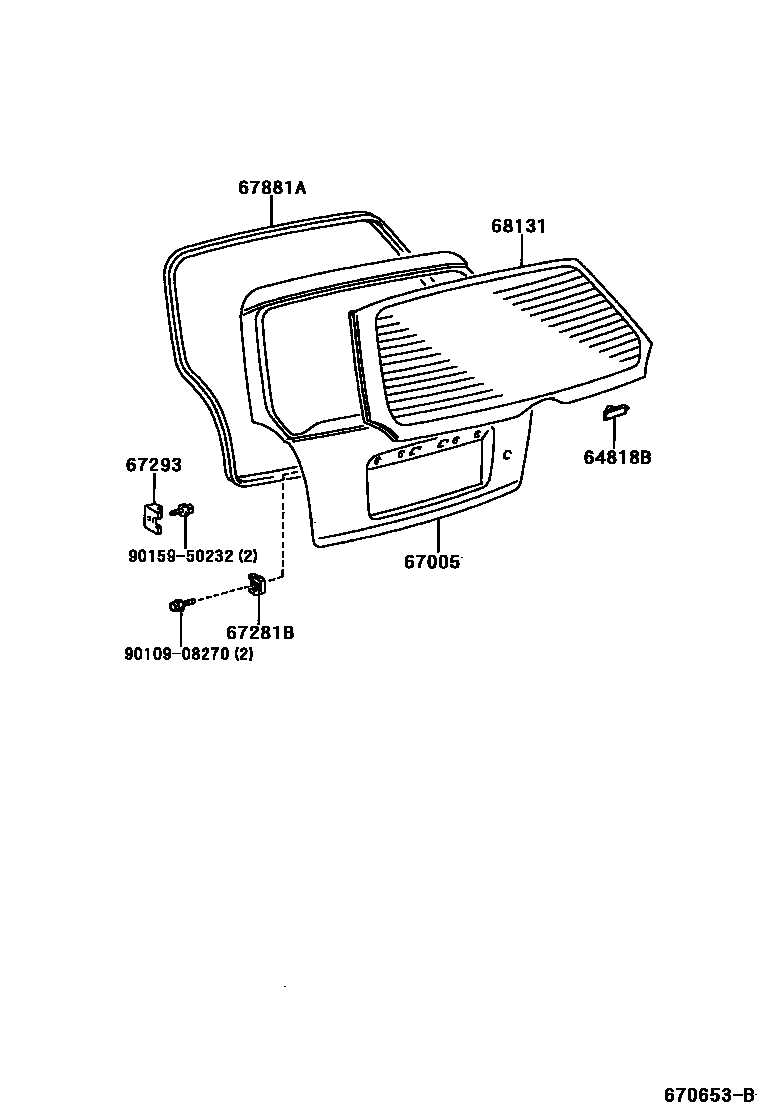

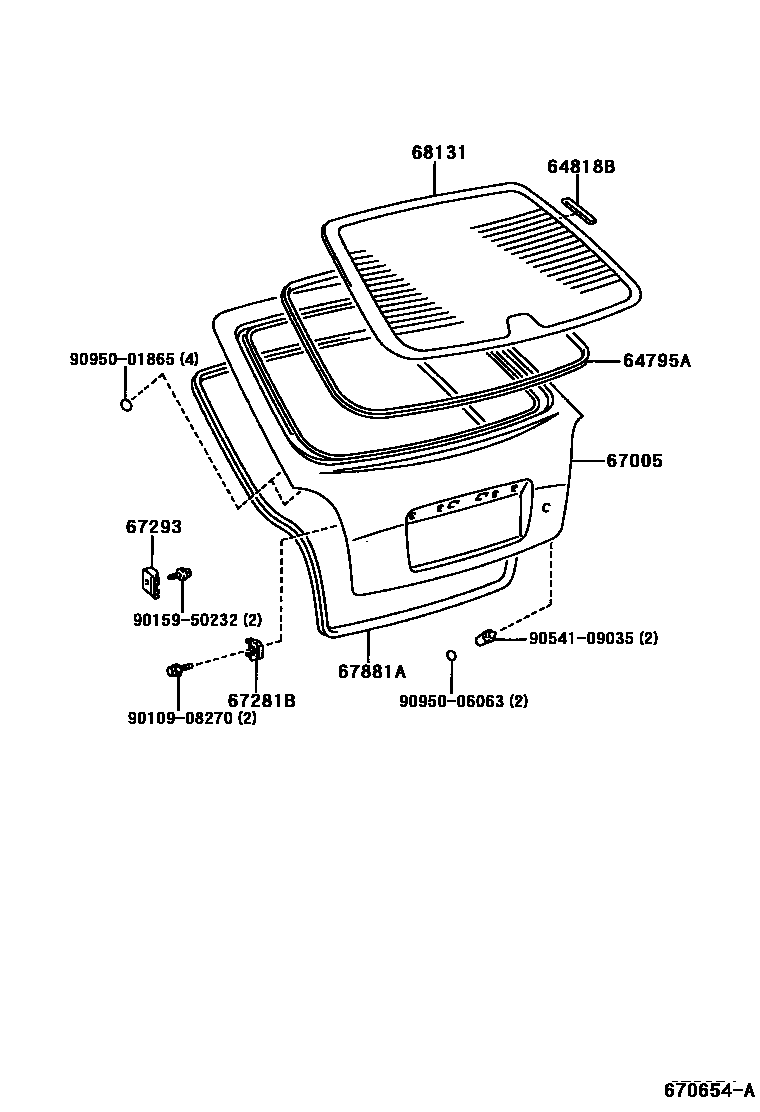

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-02010 · 64818-12030 · 64818-16010 |
| 67005 | Rear door panel sub-assembly | 67005-02040 · 67005-02050 · 67005-1A870 · 67005-1A880 · 67005-1A890 |
| 67281B | Back door lower block | 67281-02010 · 67281-20040 |
| 67293 | Back door lower block cushion | 67293-02010 · 67293-12080 · 67293-12090 |
| 67881A | Back door seal | 67881-02040 · 67881-12260 · 67881-12270 |
| 68131 | back door glass | 68131-1A590 · 68131-1A600 · 68131-1A610 · 68131-1A620 · 68131-1A640 · 68131-1A650 |
