Toyota COROLLA 前门锁和车门把手 — Figure 6703

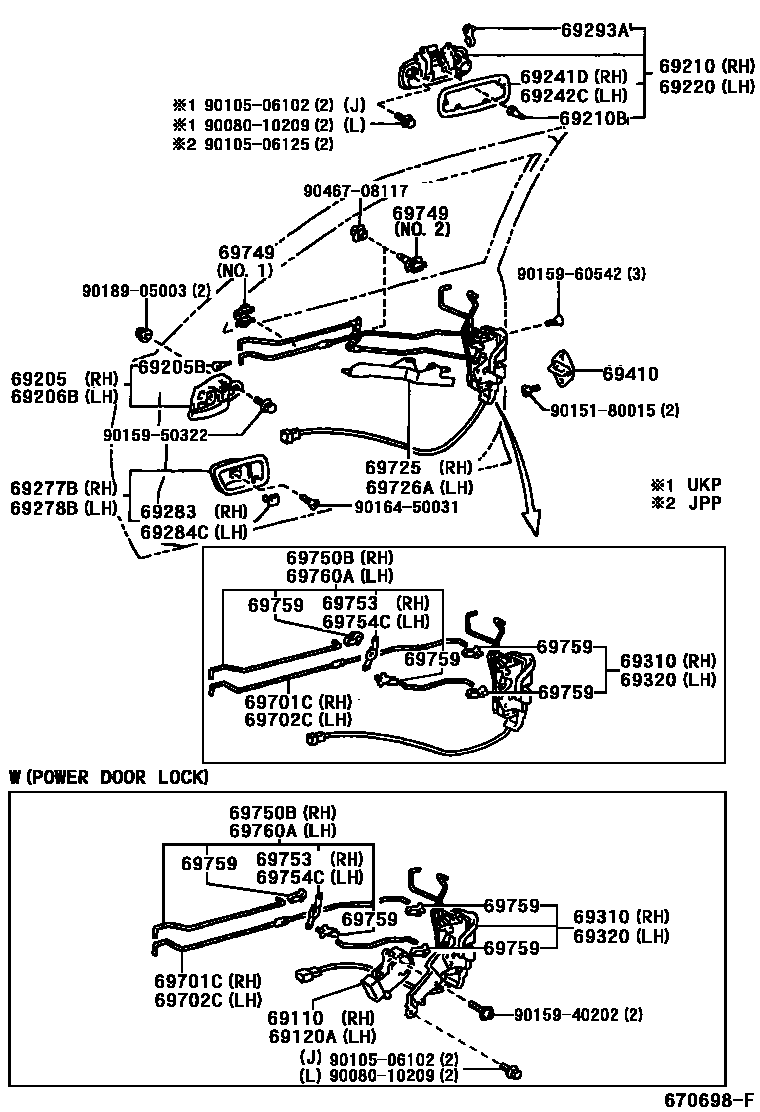

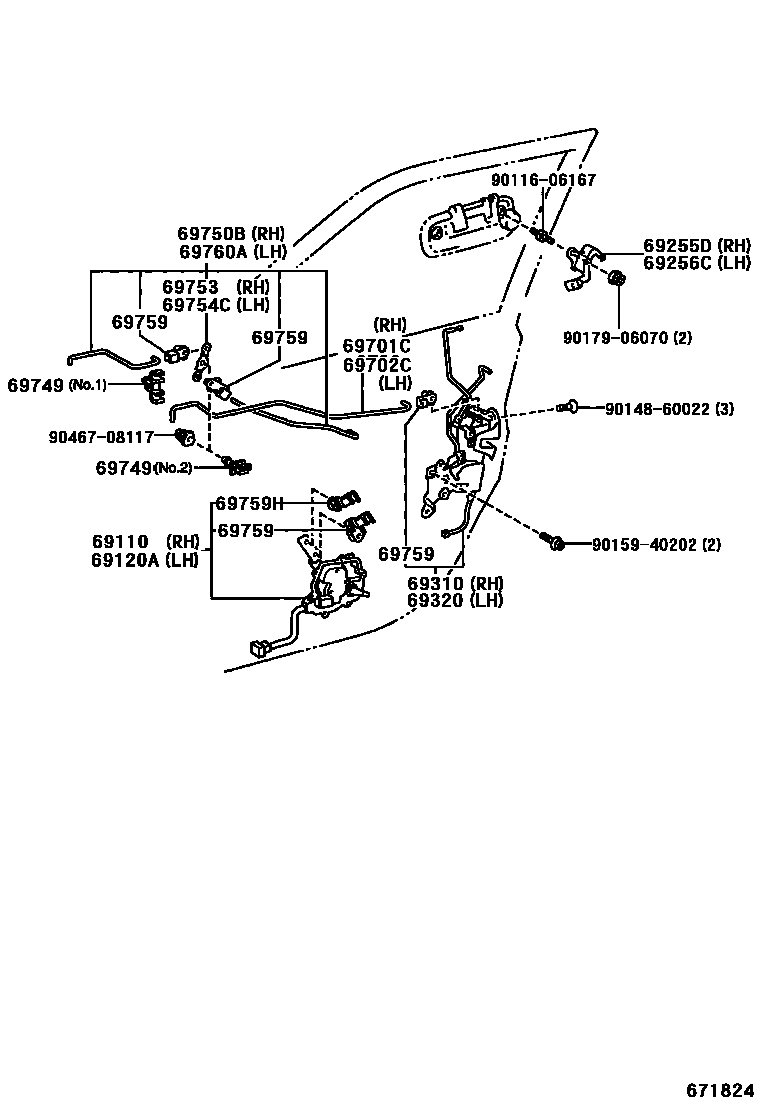

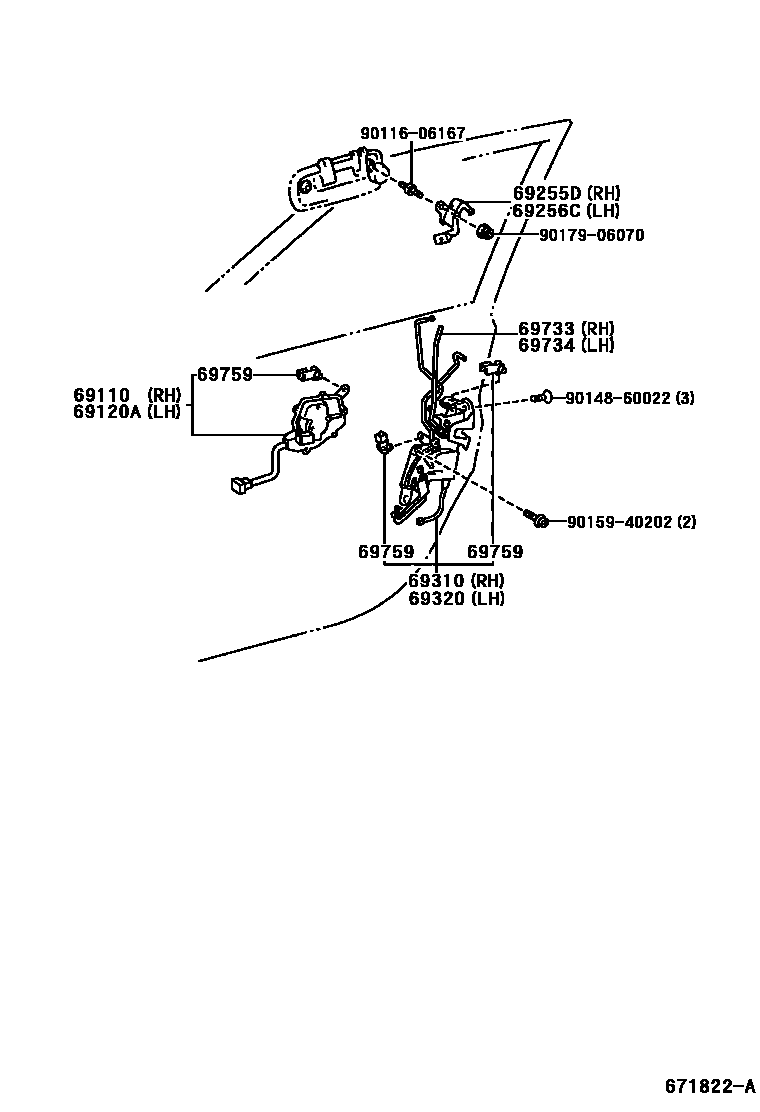

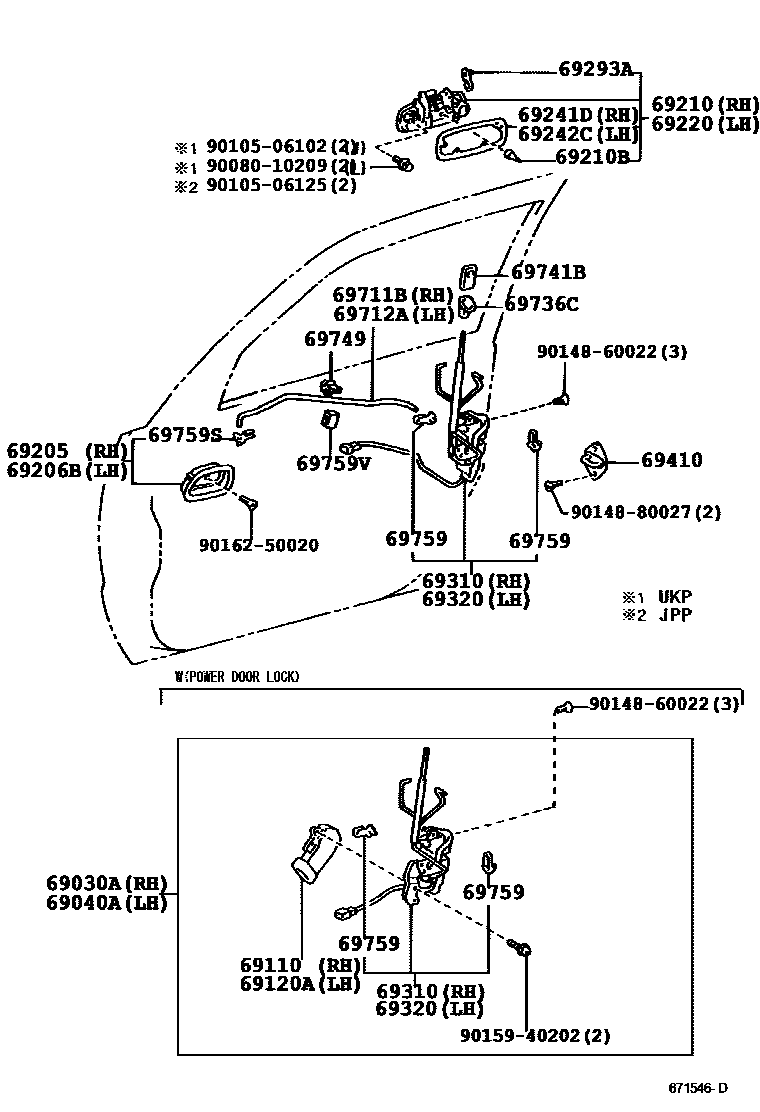

Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02100 · 69030-02110 |
| 69040A | Left front door door lock assembly with motor | 69040-02100 · 69040-02110 |
| 69110 | Right front door lock actuator assembly | 69110-12010 · 69110-12020 · 69110-12030 · 69110-12040 · 69110-12050 · 69110-12060 |
| 69120A | Left front door lock actuator assembly | 69120-12010 · 69120-12020 · 69120-12030 · 69120-12040 · 69120-12050 · 69120-12060 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-02050 · 69210-12280 |
| 69210B | Cushion pad (for front door outer handle) | 90080-54017 · 90541-04018 |
| 69220 | Left front door outer handle assembly | 69220-02050 · 69220-12280 |
| 69241D | Right front door outer handle pad | 69241-02030 · 69241-12100 |
| 69242C | Left front door outer handle pad | 69242-02030 · 69242-12050 |
| 69255D | Car door outer handle protector | 69255-12030 |
| 69256C | Left door outer handle protector | 69256-12010 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-02070 · 69310-12550 · 69310-12560 · 69310-12561 · 69310-12600 · 69310-12610 · 69310-12620 · 69310-12621 · 69310-12630 · 69310-12631 · 69310-12640 · 69310-12690 |
| 69320 | Left front door lock assembly | 69320-02070 · 69320-12560 · 69320-12570 · 69320-12571 · 69320-12590 · 69320-12610 · 69320-12620 · 69320-12621 · 69320-12630 · 69320-12631 · 69320-12640 · 69320-12680 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69701C | Right front door lock control link sub-assembly | 69701-12010 |
| 69702C | Left front door lock control link sub-assembly | 69702-12010 |
| 69711B | Right front door lock remote control lever | 69711-12170 |
| 69712A | Left front door lock remote control lever | 69712-12180 |
| 69725 | Right front door inner locking link guard | 69725-12020 |
| 69726A | Left front door inner locking link guard | 69726-12020 |
| 69733 | Right front door inner locking link | 69733-12180 |
| 69734 | Left front door inner locking link | 69734-12180 |
| 69736C | Front door locking link guide block | 69736-02030 · 69736-12121 |
| 69749 | Front door lock link clip | 69749-02040 · 69749-12070 · 69749-20040 · 69749-32030 |
| 69750B | Right front door inner locking link assembly | 69750-12080 · 69750-12090 |
| 69753 | Right-hand door lock control right-angle lever | 69753-12110 |
| 69754C | Left door lock control right angle lever | 69754-12040 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20040 · 69759-20050 · 69759-24010 · 69759-24020 · 69759-24050 · 69759-24060 · 69759-24080 · 69759-33030 · 69759-50030 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-50040 |
| 69759S | Front door inner handle buckle | 69759-22040 · 69759-22050 |
| 69759V | Front door lock link silencer | 69759-14010 · 69759-20390 |
| 69760A | Left front door inner locking link assembly | 69760-12080 · 69760-12090 |
