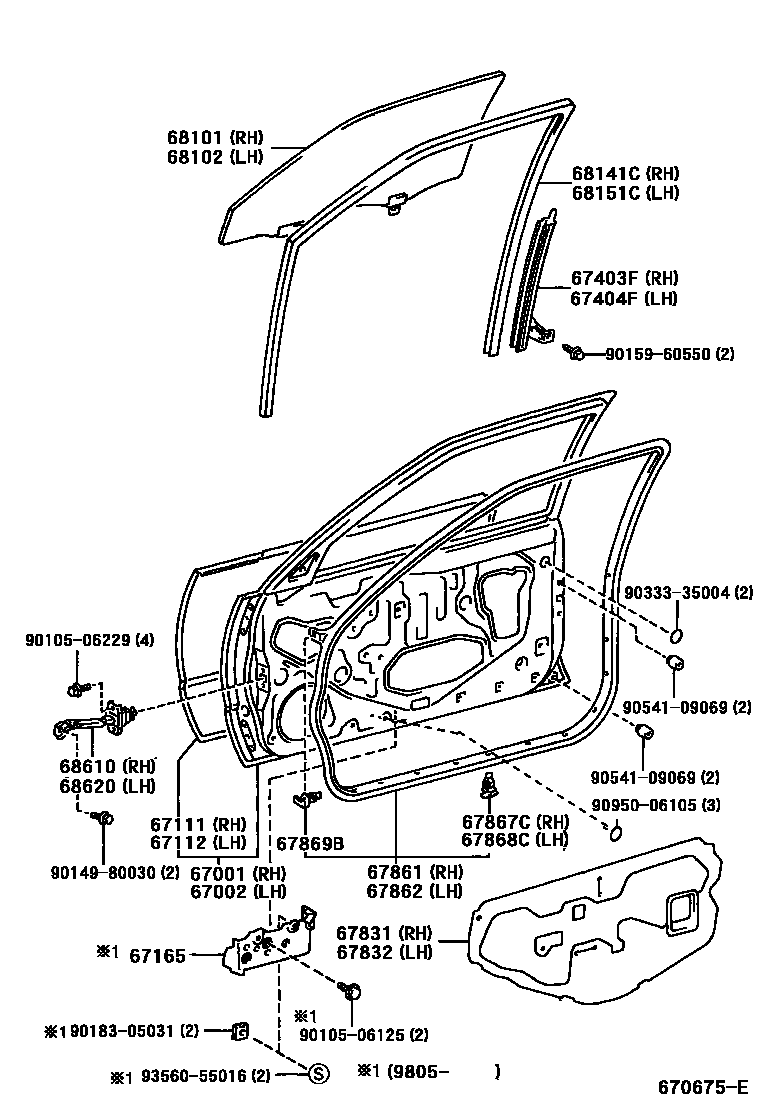

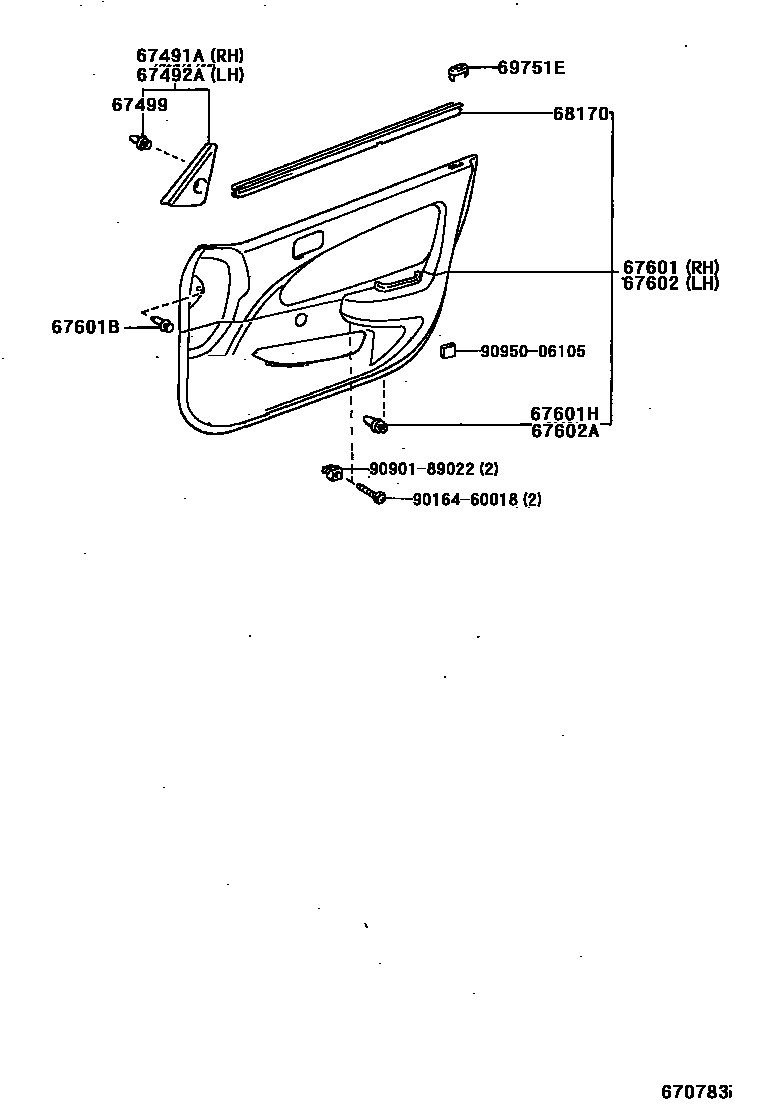

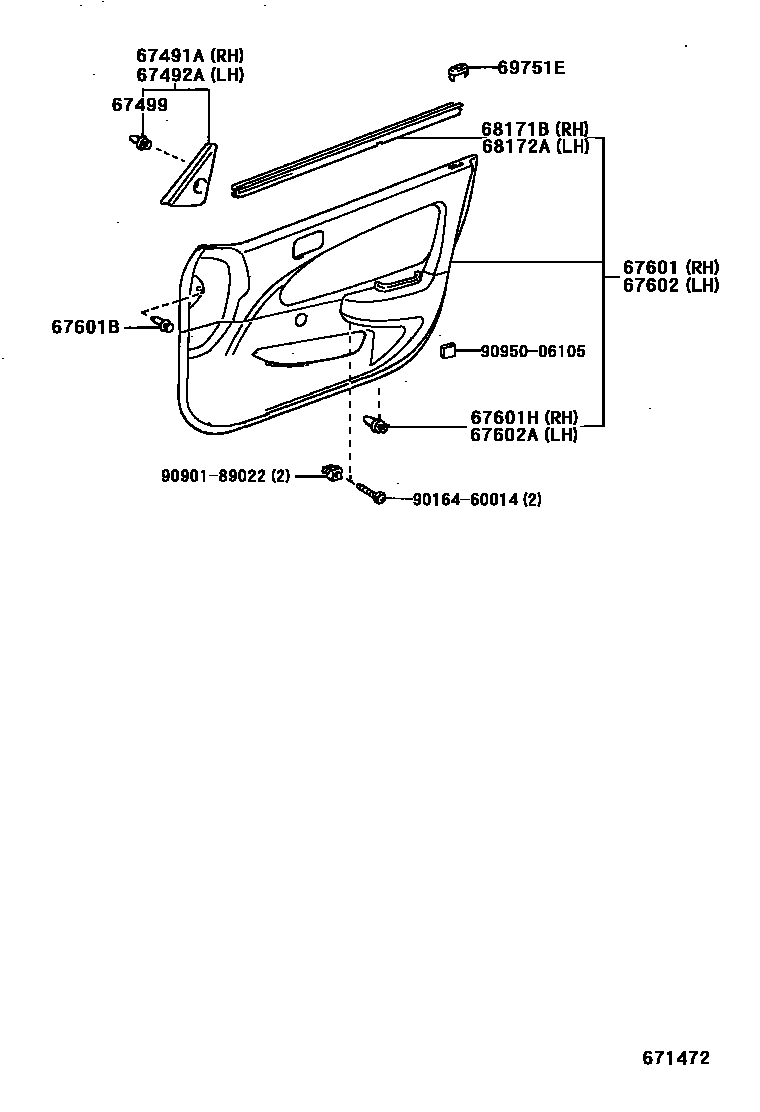

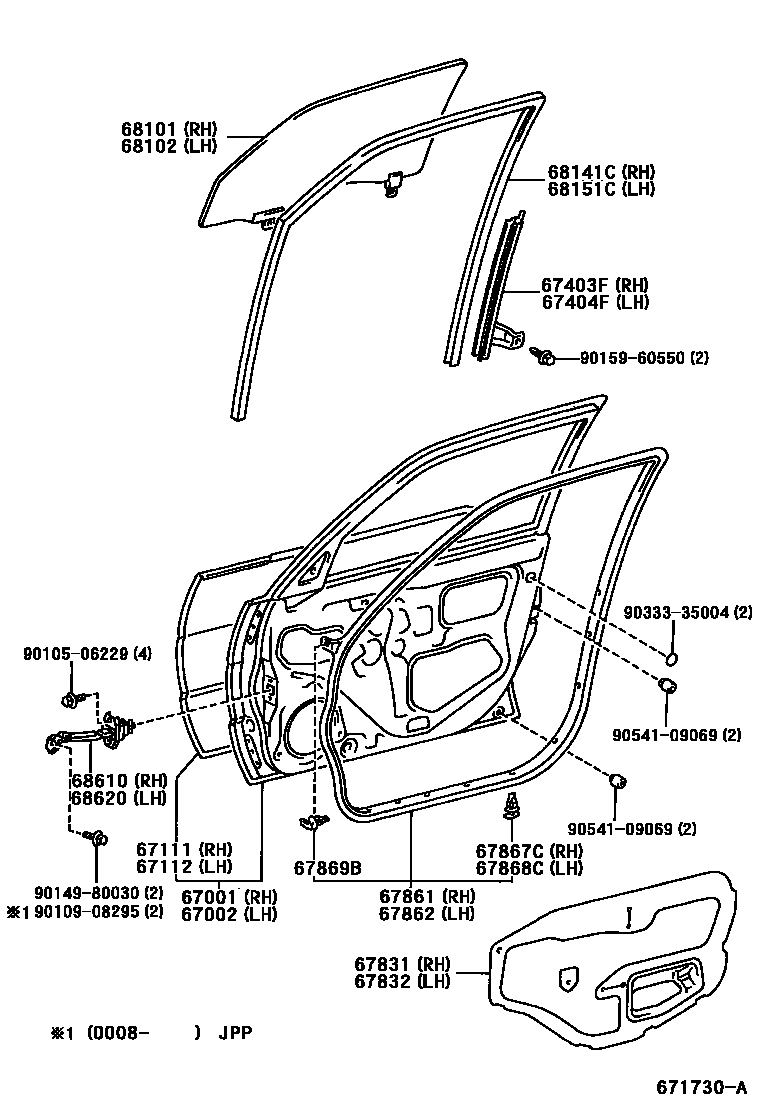

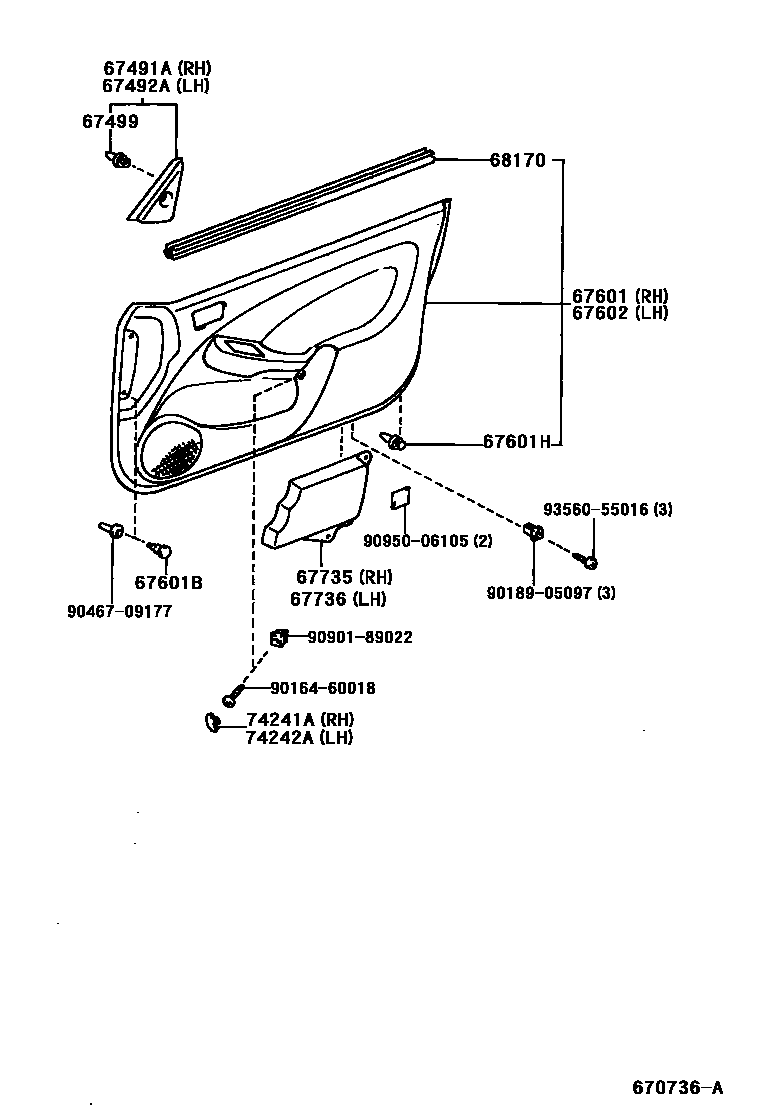

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 7 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02120 · 67001-1A560 · 67001-1A570 |
| 67002 | Left front door panel sub-assembly | 67002-02120 · 67002-1A540 · 67002-1A550 |
| 67111 | Outer right front door panel | 67111-02060 · 67111-12600 · 67111-12650 |
| 67112 | Outer left front door panel | 67112-02060 · 67112-12590 · 67112-12640 |
| 67165 | Front door inner panel front reinforcement extension section | 67165-12030 · 67166-12020 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02030 · 67403-12210 · 67403-12230 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02030 · 67404-12210 · 67404-12220 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-02100 · 67491-02110 · 67491-12400 · 67491-12410 · 67491-12420 · 67491-12430 · 67491-12440 · 67491-12450 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-02100 · 67492-02110 · 67492-12400 · 67492-12410 · 67492-12420 · 67492-12430 · 67492-12440 · 67492-12450 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 · 67771-30070 |
| 67601H | Right door trim panel fixing | 67771-12050 |
| 67602 | Left front door decorative panel sub-assembly | 67050-12380 |
| 67602A | Left door trim panel fixing | 67771-12050 |
| 67735 | Right front door lower decorative mat | 67735-12050 · 67735-12051 |
| 67736 | Left front door lower decorative mat | 67736-12050 · 67736-12051 |
| 67831 | Right front door access hole cover | 67831-02070 · 67831-12550 · 67831-12600 |
| 67832 | Left front door access hole cover | 67832-02070 · 67832-12350 · 67832-12390 |
| 67861 | Right front door seal | 67861-02090 · 67861-12880 · 67861-12890 · 67861-12891 |
| 67862 | Left front door seal | 67862-02090 · 67862-12840 · 67862-12850 · 67862-12851 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-12050 |
| 68101 | Right front door glass sub-assembly | 68101-02060 · 68101-12820 · 68101-1A400 |
| 68102 | Left front door glass sub-assembly | 68102-02060 · 68102-12820 · 68102-1A400 |
| 68141C | Right front door glass lift channel | 68141-02050 · 68141-12470 · 68141-12490 |
| 68151C | Left front door glass lift channel | 68151-02040 · 68151-12180 · 68151-12190 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12270 · 68171-12280 · 68172-12190 · 68172-12200 |
| 68171B | Right front door glass inner sealing strip | 68171-02080 |
| 68172A | Left front door glass inner sealing strip | 68172-02080 |
| 68610 | Front door opening limiter assembly | 68610-02040 · 68610-12140 · 68610-12150 · 68620-02040 · 68620-12060 |
| 68620 | Left front door opening limiter assembly | 68620-02040 · 68620-12060 · 68620-12080 |
