Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 4 PNC and OE references.

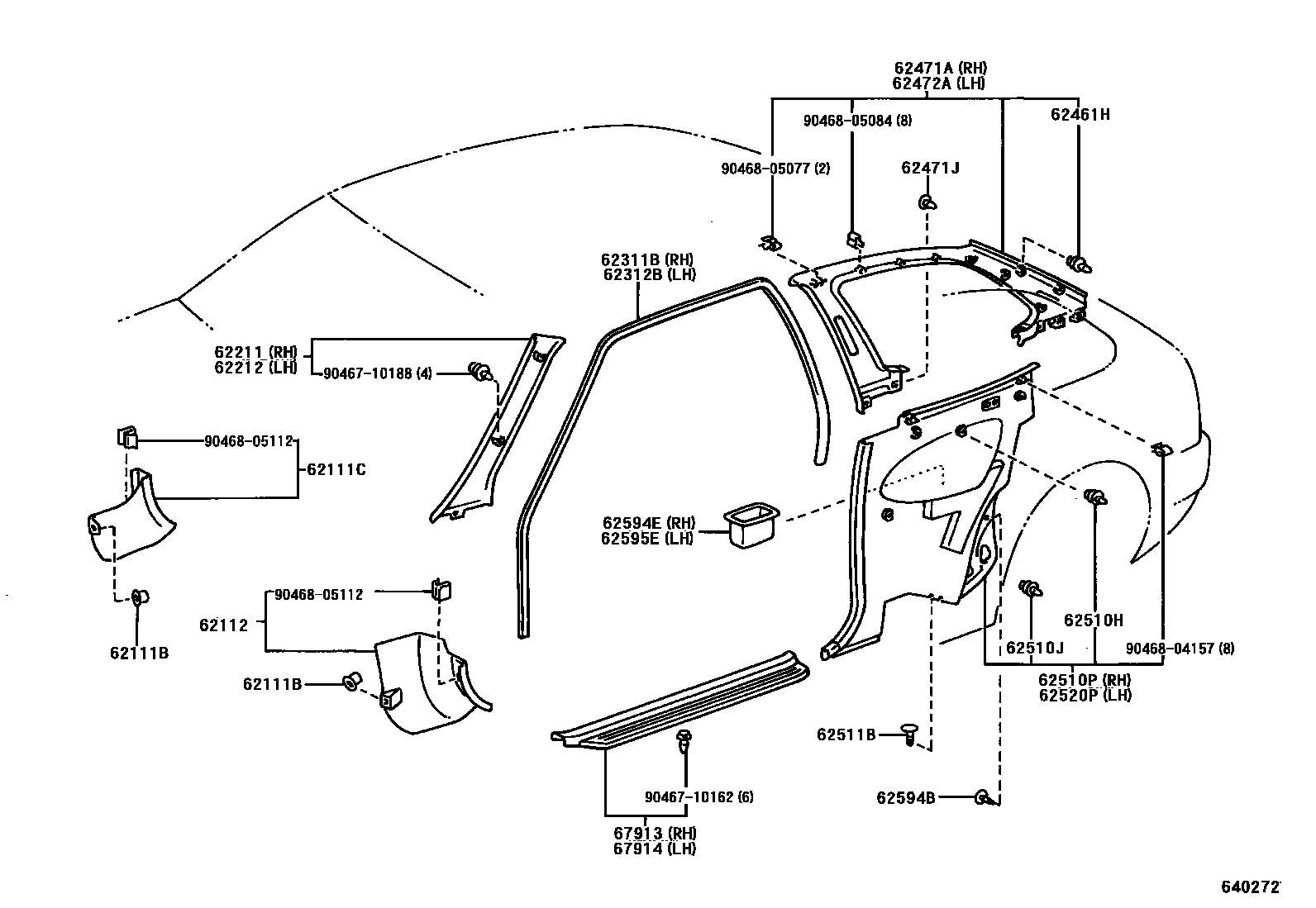

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640272
内饰板和车门防水胶条 — 640272 (199704 – 999999)

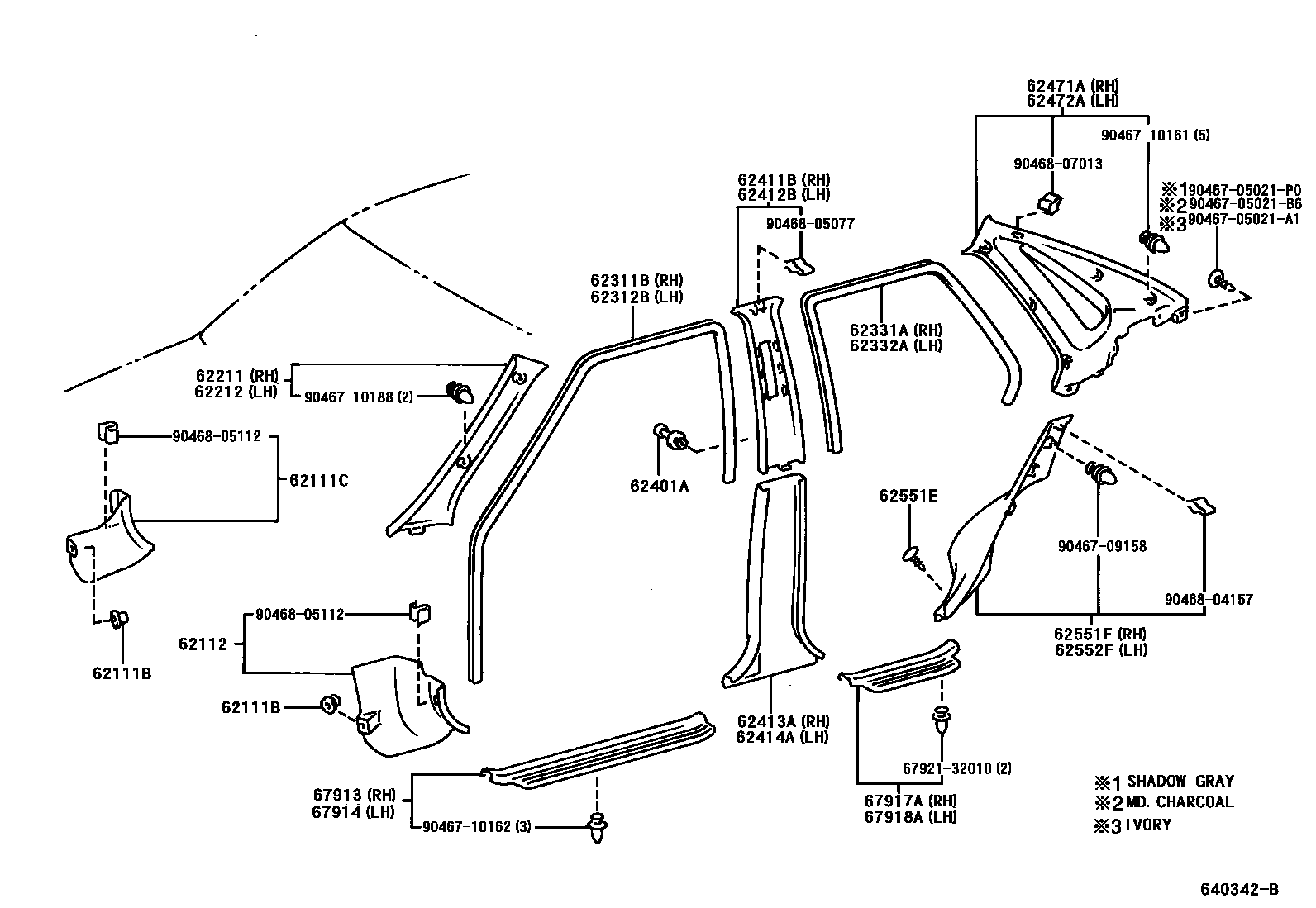

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640342B
内饰板和车门防水胶条 — 640342B (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
62111BClip (for cowl side trim panel)90467-05152
62461HClips (for roof side interior panels)90467-10161
62510HClip (for front side panel)90467-10167
62510JSide panel decorative panel fixings67771-12080
