Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

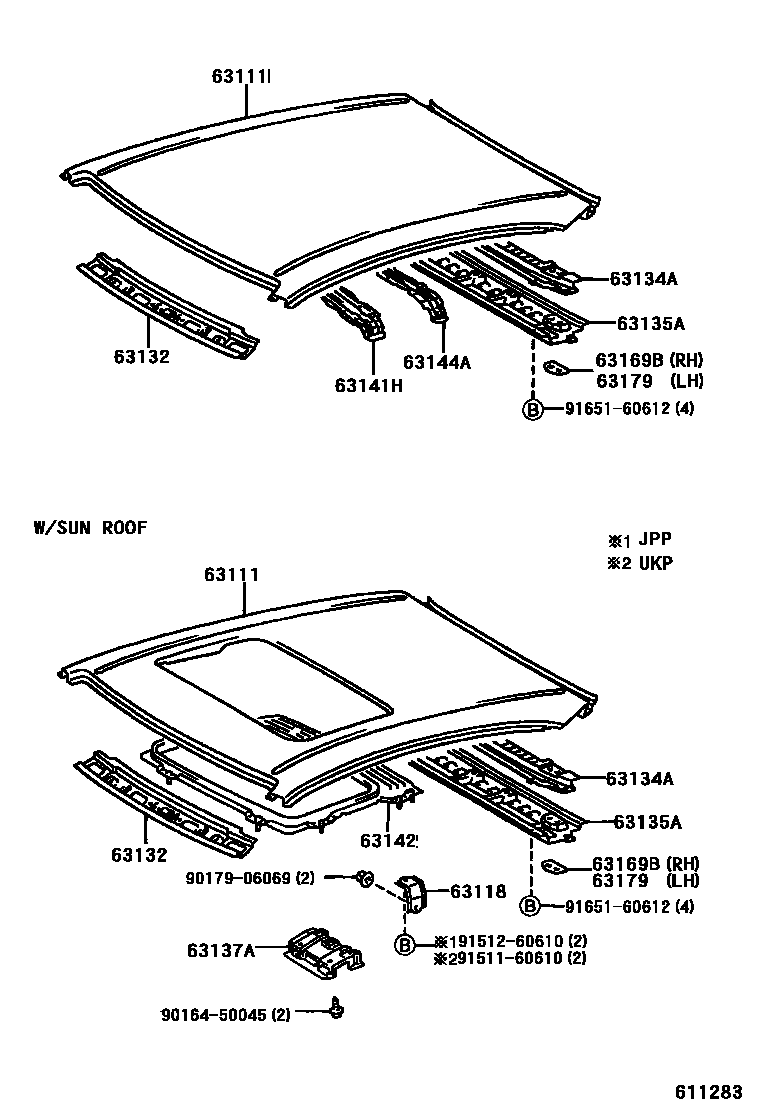

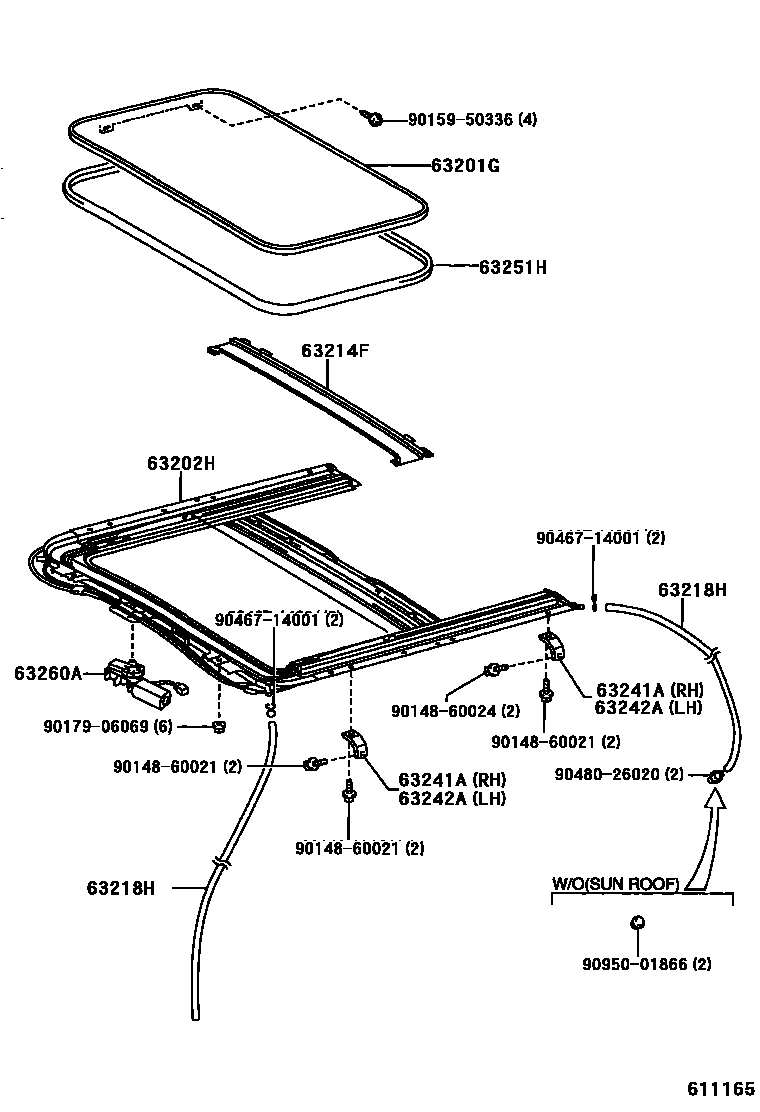

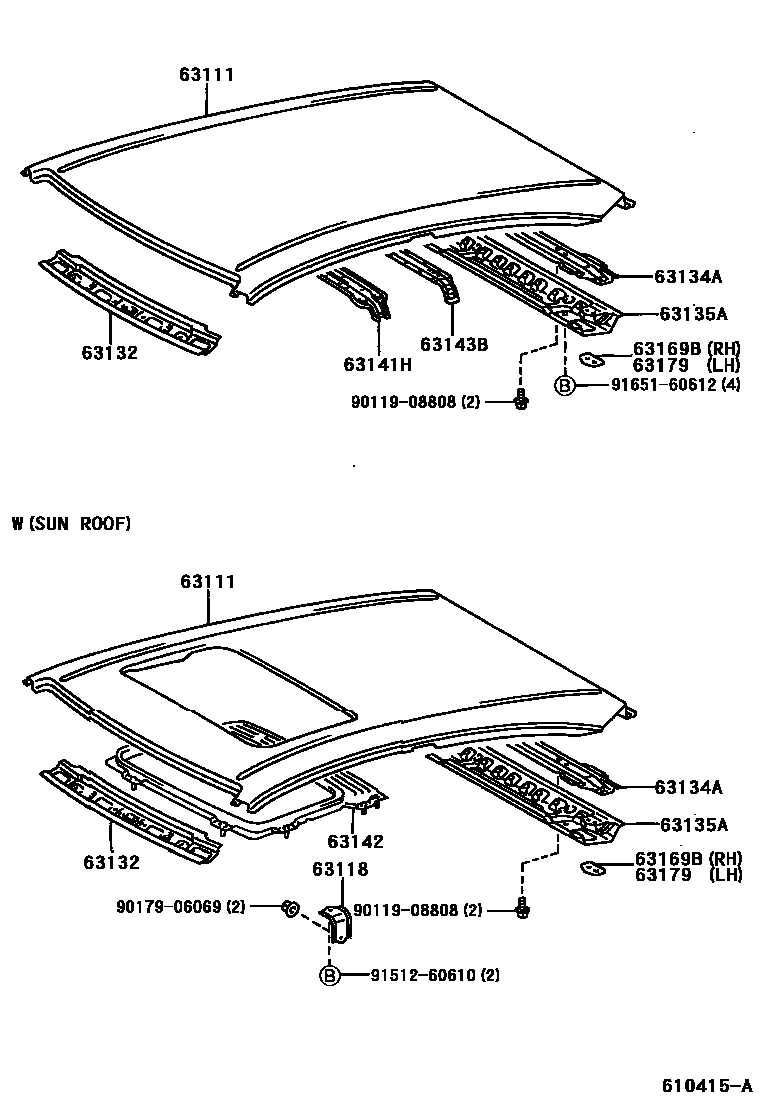

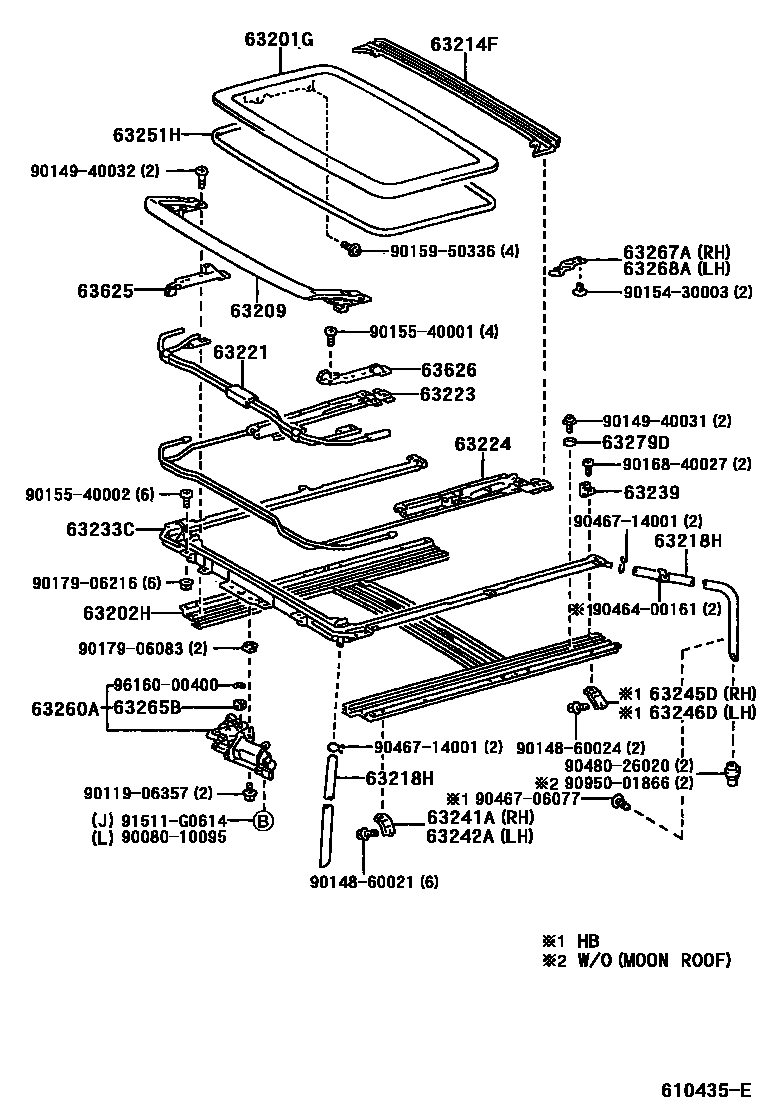

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63111 | roof panel | 63111-02090 · 63111-02100 · 63111-12720 · 63111-12730 · 63111-12740 · 63111-12750 |
| 63118 | Right roof panel bracket | 63118-12080 · 63118-12090 |
| 63132 | Windshield inner roof panel | 63132-12210 |
| 63134A | Opening frame on back door | 63134-12180 · 63134-12190 |
| 63135A | Opening frame under rear door | 63135-12120 · 63135-12130 |
| 63137A | No. 1 ceiling light bracket | 63137-02010 |
| 63141H | Center roof panel reinforcement | 63141-12200 · 63141-12240 |
| 63142 | No. 2 roof panel reinforcement | 63142-12080 |
| 63143B | No. 3 roof panel reinforcement | 63143-12080 |
| 63144A | No. 4 roof panel reinforcement | 63144-12070 |
| 63169B | Right roof panel reinforcement panel | 63169-35010 |
| 63179 | Left roof panel reinforcement panel | 63179-35010 |
| 63201G | Sliding sunroof glass sub-assembly | 63204-02020 · 63204-12080 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-02020 · 63202-12030 |
| 63209 | Roof deflector sub-assembly | 63209-12130 |
| 63214F | Roof rear drain channel | 63214-02020 · 63214-12060 |
| 63218H | Sliding skylight drain hose | 63249-02050 · 63249-02060 · 63249-12280 · 63249-12300 · 63249-12310 |
| 63221 | Sliding sunroof cable duct | 63221-12080 |
| 63223 | Right sliding sunroof transmission cable | 63223-12130 |
| 63224 | Left sliding sunroof transmission cable | 63224-12120 |
| 63233C | Sliding skylight shelf | 63233-12080 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-02030 · 63241-12100 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-02030 · 63241-12100 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-12080 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-12080 |
| 63251H | Sliding skylight seal | 63251-02030 · 63251-12160 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-02030 · 63260-12100 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-12040 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12040 |
| 63626 | Left sliding sunroof guide block | 63626-12040 |
