Toyota COROLLA 角窗 — Figure 6103

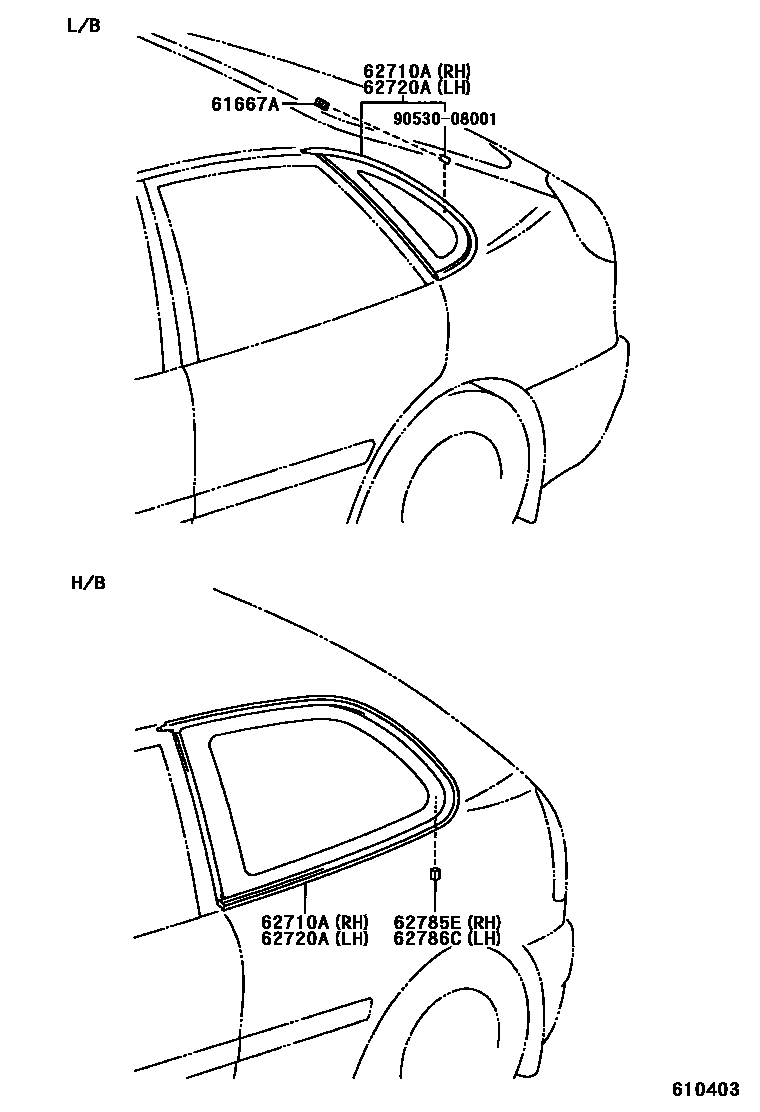

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61667A | No. 1 side panel spacer | 61667-14030 · 62785-16030 |
| 62710A | Right corner window assembly | 62710-02020 · 62710-1A010 · 62710-1A020 |
| 62720A | Left corner window assembly | 62720-02020 · 62720-1A010 · 62720-1A020 |
| 62785E | Right corner window glass spacer | 62785-16030 |
| 62786C | Left corner window glass spacer | 62785-16030 |
