Toyota COROLLA 侧梁 — Figure 6101

Toyota COROLLA EPC diagram 6101, 侧梁, with 3 images and 103 PNC and OE references.

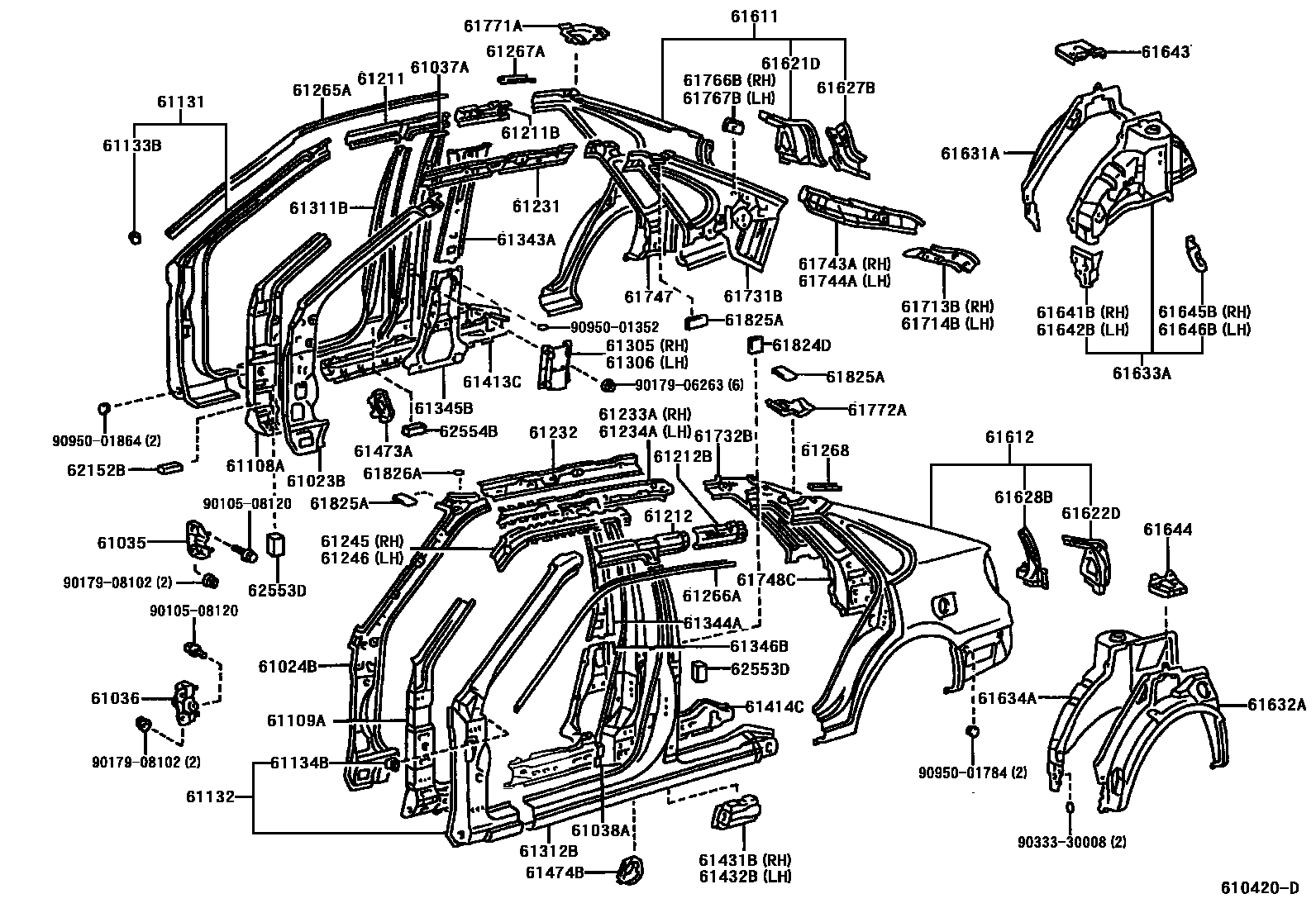

Toyota COROLLA 侧梁 EPC diagram — 610420D
侧梁 — 610420D (199704 – 999999)

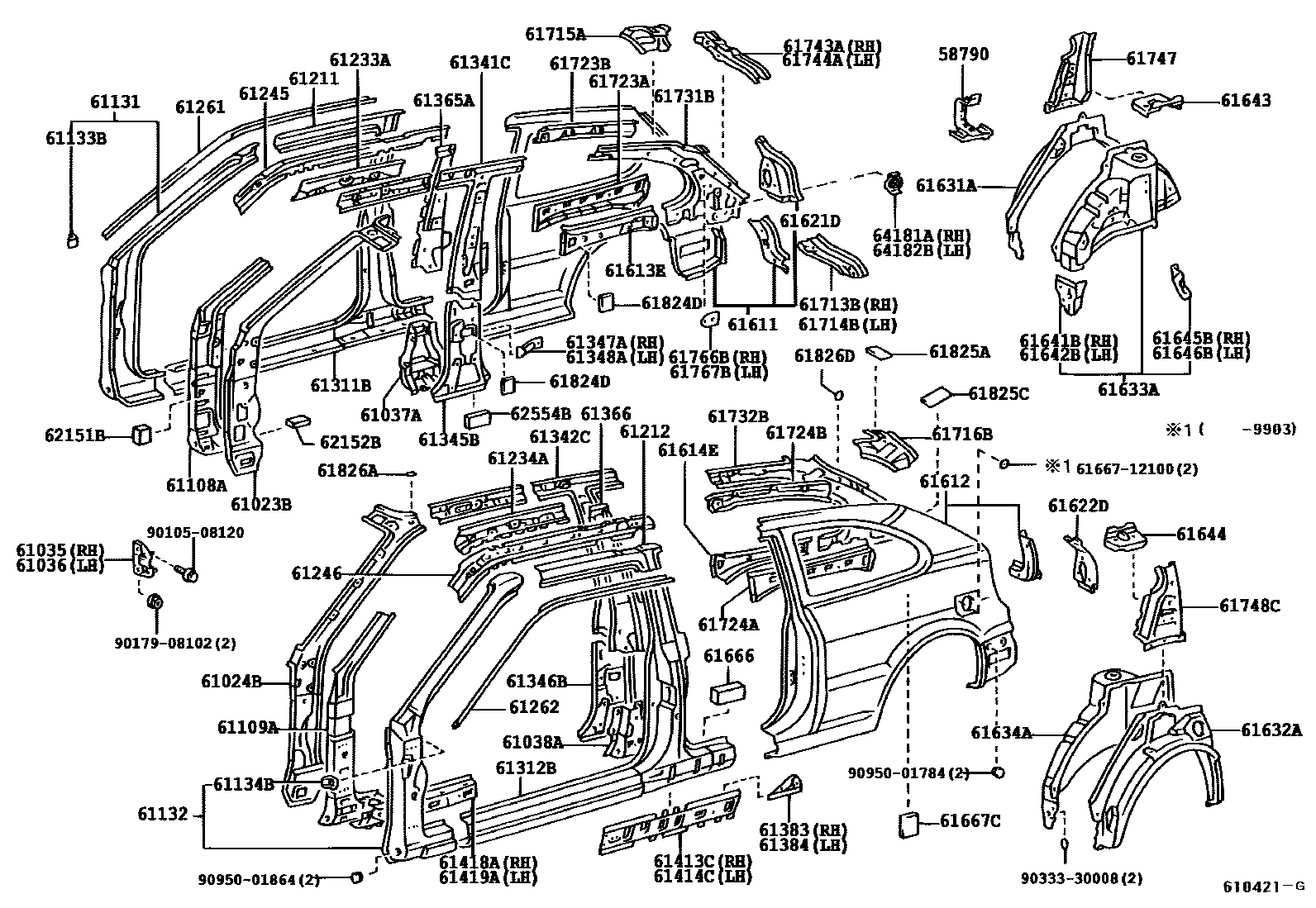

Toyota COROLLA 侧梁 EPC diagram — 610421G
侧梁 — 610421G (199704 – 999999)

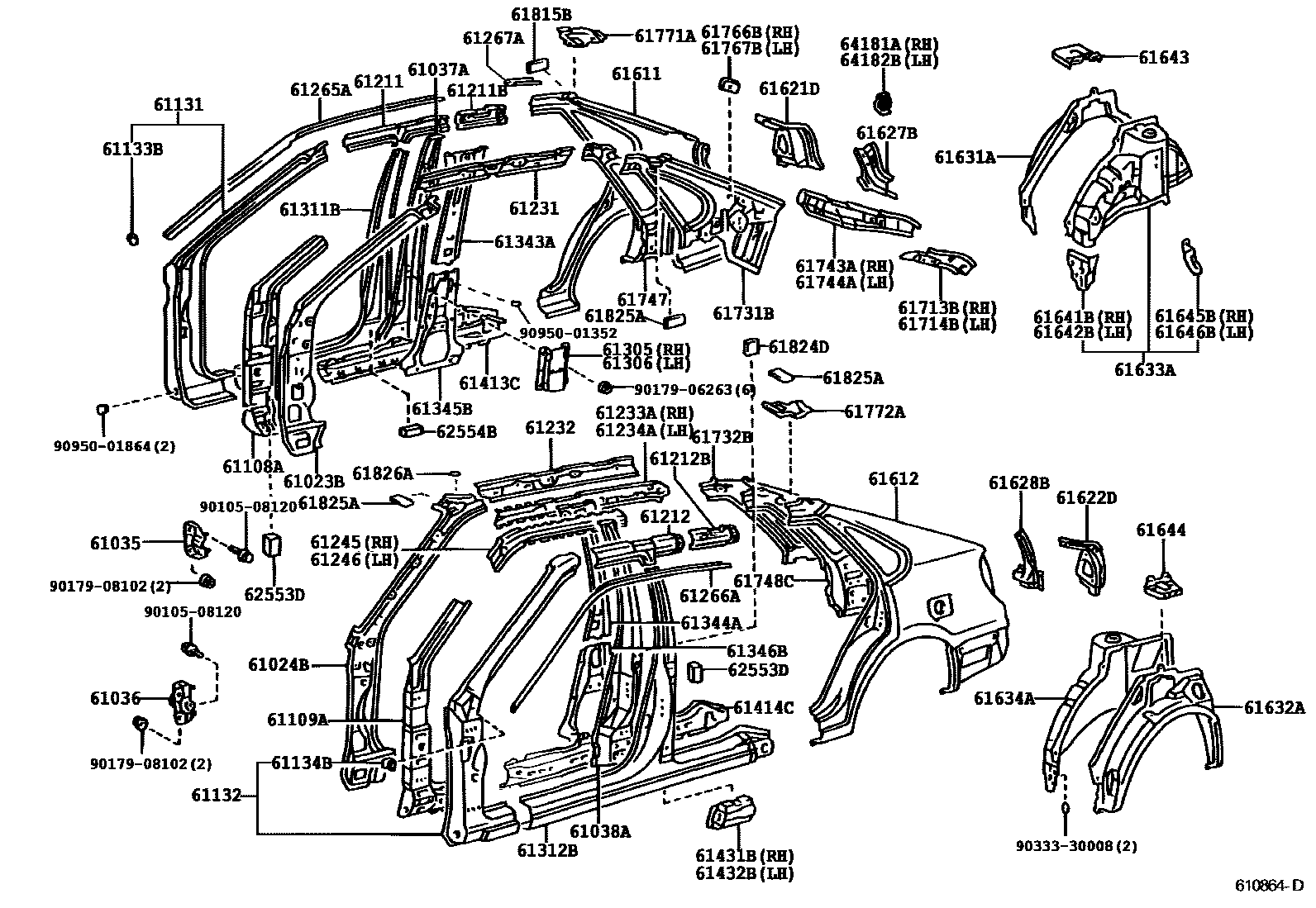

Toyota COROLLA 侧梁 EPC diagram — 610864D
侧梁 — 610864D (199809 – 999999)

PNC and OE references

PNCPart nameOE numbers
58790Jack bracket assembly58791-13080
61023BRight body inner front pillar sub-assembly61023-02060 · 61023-02070 · 61023-12230 · 61023-12240 · 61023-12900 · 61023-12901
61024BLeft body inner front pillar sub-assembly61024-02060 · 61024-02070 · 61024-12230 · 61024-12240 · 61024-12900 · 61024-12901
61035Instrument panel to right front wall side bracket sub-assembly61035-02020 · 61035-12100
61036Instrument panel to left front wall side bracket sub-assembly61036-02010 · 61036-12070
61037ARight body center pillar reinforcement sub-assembly61037-02900 · 61037-12140 · 61037-12150 · 61037-12901
61038ALeft body center pillar reinforcement sub-assembly61038-02900 · 61038-12140 · 61038-12150 · 61038-12901
61108ARight body front pillar lower reinforcement sub-assembly61108-02030 · 61108-02040 · 61108-12180 · 61108-12190 · 61108-12200 · 61108-12210
61109ALeft side body front pillar lower reinforcement sub-assembly61109-02030 · 61109-02040 · 61109-12170 · 61109-12180 · 61109-12190 · 61109-12200
61131Right body outer front upper pillar61131-02050 · 61131-12480 · 61131-12481 · 61131-12510 · 61131-12580
61132Left body outer front upper pillar61132-02080 · 61132-12490 · 61132-12491 · 61132-12510 · 61132-12580
61133BRight body outer front pillar bracket61133-12190
61134BLeft body outer front pillar bracket61133-12190
61211Roof right outer longitudinal beam61211-02040 · 61211-12380 · 61211-12390
61211BRight rear roof outer longitudinal beam61211-12370
61212Roof left outer longitudinal beam61212-02040 · 61212-12380 · 61212-12390
61212BLeft rear roof rail61212-12370
61231Inner longitudinal beam on the right side of the roof61231-1A030
61232Roof left inner longitudinal beam61232-12800
61233ANo. 2 longitudinal beam inside the right side of the roof61233-12100 · 61233-12140
61234ANo. 2 longitudinal beam on the inner left side of the roof61234-12060 · 61234-12100
61245Roof right outer longitudinal beam reinforcement61245-12010 · 61245-12020
61246Roof left outer longitudinal beam reinforcement61246-12010 · 61246-12020
61261Drainage channel on the right side of the roof61261-12150
61262Drainage channel on the left side of the roof61262-12150
61265ADrainage channel in the middle section on the right side of the roof61265-02020 · 61265-12240
61266ADrainage channel in the middle section of the left side of the roof61266-02020 · 61266-12240
61267ARoof right rear gutter61267-12240
61268Roof left rear gutter61268-12240
61305Right body center pillar lower reinforcement sub-assembly61305-02010 · 61305-12130
61306Left body center pillar lower reinforcement sub-assembly61306-02010 · 61306-12130
61311BRight body outer center pillar61311-02030 · 61311-12280 · 61311-12281 · 61311-12290 · 61311-12310
61312BLeft body outer center pillar61312-02030 · 61312-12320 · 61312-12321 · 61312-12330 · 61312-12350
61341CRight inner middle pillar61341-12150
61342CLeft side inner center pillar61342-12150
61343ARight body inner center pillar61343-12160
61344ALeft body inner center pillar61344-12160
61345BRight body inner middle and lower pillar61345-12040 · 61345-12050 · 61345-12060
61346BLeft side inner middle and lower pillar61346-12040 · 61346-12050 · 61346-12060
61347ARight seat belt anchor to center pillar reinforcement61347-12400
61348ALeft seat belt anchor to center pillar reinforcement61348-12380
61365ANo. 3 seat belt anchor to center pillar reinforcement61365-12190
61366Left No. 3 seat belt anchor to center pillar reinforcement61366-12130
61383Right body outer center pillar extension61383-12090
61384Left body outer center pillar extension61384-12010
61413CRight side door sill panel No. 2 reinforcement61413-12100 · 61413-12900 · 61433-02901
61414CLeft side door sill panel No. 2 reinforcement61414-12120 · 61414-12900 · 61434-02901
61418ARight side door sill panel reinforcement61418-12120
61419ALeft side rocker panel reinforcement61419-12120
61431BRight side door sill panel No. 6 reinforcement61431-12010
61432BLeft side door sill panel No. 6 reinforcement61432-12010
61473ARight column No. 3 lower plate61473-12030
61474BLeft column No. 4 lower plate61474-12030
61611Right side hoarding61601-02910 · 61601-1E942 · 61601-1E943 · 61601-1E945
61612left side panel61602-02908 · 61602-1E944 · 61602-1E945 · 61602-1E947
61613ERight side inner panel61613-12050
61614ELeft side inner panel61614-12050
61621DBack door right opening slot61621-02030 · 61621-12430 · 61621-12911
61622DRear door left opening slot61622-02030 · 61622-12430 · 61622-12910
61627BRight rear side panel extension61627-02020 · 61627-12160
61628BExtension on left rear side panel61628-02020 · 61628-12170
61631ARight wheel cover outer panel61631-02040 · 61631-12320 · 61631-12330
61632ALeft side wheel cover outer panel61632-02040 · 61632-12340
61633ARight wheel housing lining panel61607-02130 · 61607-12750 · 61607-12770
61634ALeft side wheel housing lining panel61608-02110 · 61608-12730 · 61608-12750
61641BRight wheel housing corner panel61641-02020 · 61641-12070
61642BLeft side wheel housing corner panel61642-02020 · 61642-12070
61643Right wheel housing center corner panel61643-12080
61644Left side wheel housing center corner panel61644-12090
61645BRight rear side wheel housing corner panel61645-02020 · 61645-12120
61646BLeft rear side wheel housing corner panel61646-02020 · 61646-12110
61666Side panel seals61667-12120
61667CNo. 1 side panel seal61667-12130
61713BRoof right outer reinforcement61713-02010 · 61713-12100 · 61713-12110
61714BRoof left outer reinforcement61714-02010 · 61714-12090 · 61714-12100
61715ARoof right inner upper extension61715-12040
61716BLeft front roof inner extension61716-12050
61723ANo. 1 right corner window opening fixing piece61723-12110
61723BNo. 2 right corner window opening fixing piece61728-12030
61724ANo. 1 left corner window opening fixing piece61724-12110
61724BNo. 2 left corner window opening fixing piece61729-12020
61731BRoof right inner panel61731-02040 · 61731-12700 · 61731-12913
61732BRoof left inner panel61732-02040 · 61732-12660 · 61732-12913
61743ARear door opening right reinforcement61743-02020 · 61743-12050 · 61743-12060
61744ARear door opening left reinforcement61744-02020 · 61744-12050 · 61744-12060
61747Roof right inner panel to wheel housing bracket61747-02040 · 61747-12280 · 61747-12290
61748CRoof left inner panel to wheel arch bracket61748-02040 · 61748-12280 · 61748-12290
61766BRight seat belt anchor to roof inner reinforcement61766-12220 · 61766-12290
61767BLeft-hand seat belt anchor to roof inner reinforcement61766-12220 · 61766-12290
61771ABack window opening right corner panel61771-02010 · 61771-12050
61772ARear window opening left corner panel61772-02010 · 61772-12050
61815BRight inner upper cover of the roof61815-02030
61824DNoise Control Panel No. 161824-02030 · 61824-02040 · 61824-05020 · 61824-50020
61825ANoise Control Panel No. 261815-32020 · 61824-02030 · 63345-02020 · 63345-12010
61825CNo. 2 silencer panel gasket63346-12010
61826ANoise Control Panel No. 361824-02030 · 61824-12040 · 61824-12050
61826DNoise Control Panel No. 361824-12040 · 61824-12050
62151BFront cowl side silencer pads62553-12120
62152BNo. 2 silencer pad on cowl side62152-12050 · 62554-12160
62553DNo. 3 column pad62553-02010 · 62553-12120
62554BNo. 4 column pad62554-02020 · 62554-12130 · 62554-12160
64181ARear right seat belt anchor reinforcement64181-16020
64182BRear left seat belt anchor reinforcement64181-16020
