Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

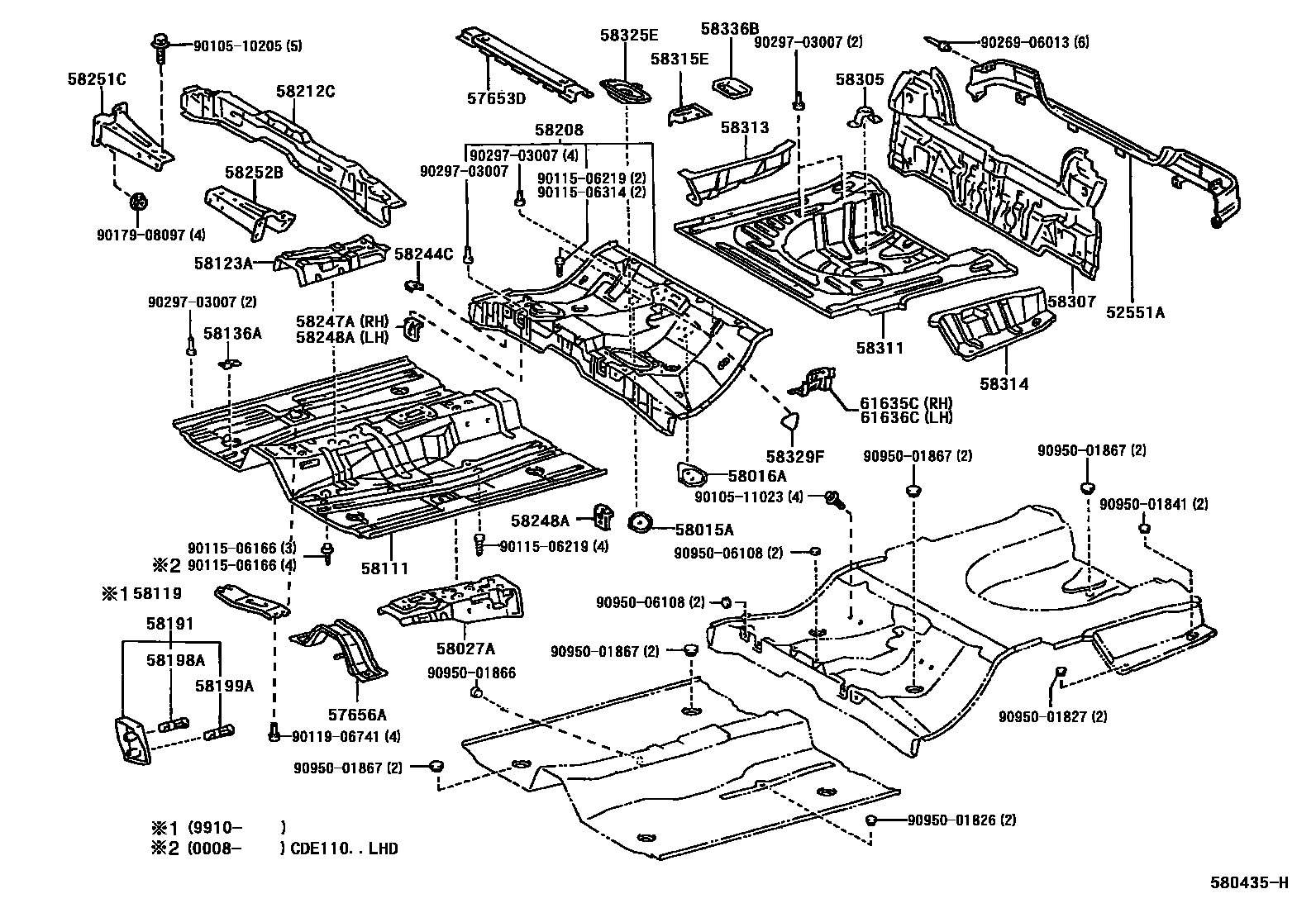

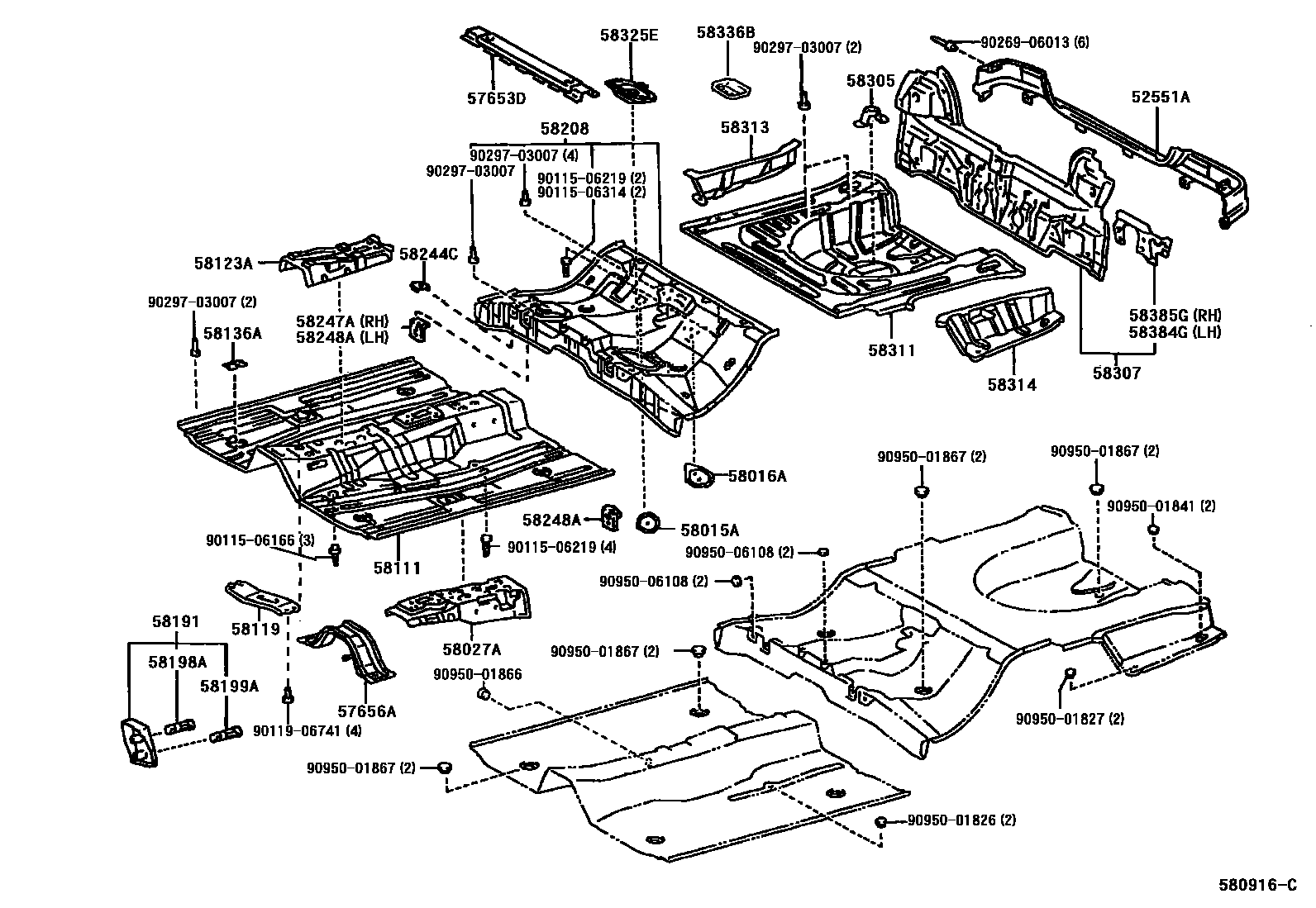

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52551A | Rear bumper curved filler | 52551-12050 · 52551-12070 |
| 57653D | No. 2 rear floor cross member | 57606-02020 · 57653-12050 · 57653-12060 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57509-12020 · 57509-12030 · 57656-12080 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02010 · 58015-12040 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02010 · 58016-12010 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-02010 · 58027-12121 · 58027-12161 |
| 58111 | front floor pan | 58111-02040 · 58111-12262 |
| 58119 | front floor front side panel | 58119-12010 |
| 58123A | shift lever bracket | 58013-02040 · 58013-12060 |
| 58136A | Front floor access hole cover | 58136-12030 |
| 58191 | Front floor footrest | 58191-02020 · 58191-12110 · 58192-02020 · 58192-12060 |
| 58198A | No. 1 footrest clip | 58198-02040 · 58198-02050 · 58198-12030 · 58198-12040 |
| 58199A | Footrest clip No. 2 | 58198-02050 · 58199-02030 · 58199-12020 |
| 58208 | central floor base | 58211-02902 · 58211-12905 · 58211-12911 |
| 58212C | Center floor front floor | 58212-12900 |
| 58244C | Rear right seat cushion mounting bracket | 58244-13030 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-13050 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-13050 |
| 58251C | Front floor right bracket | 58251-12020 |
| 58252B | Front floor left bracket | 58252-12030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-12040 |
| 58307 | Body lower back panel sub-assembly | 58307-1A907 · 58307-1A908 · 58308-02010 |
| 58311 | rear floor pan | 58311-02060 · 58311-12210 · 58311-12220 · 58311-12221 |
| 58313 | Rear floor right panel | 58313-02901 · 58313-12902 · 58313-12904 |
| 58314 | rear floor left panel | 58314-12250 · 58314-12260 |
| 58315E | Rear floor right front side panel extension | 58315-12070 |
| 58325E | Rear floor access hole cover | 58325-02030 · 58325-12100 |
| 58329F | Rear floor manhole cover No. 2 | 58329-16010 |
| 58336B | Rear floor pan reinforcement | 58336-12060 |
| 58384G | Body lower back panel upper right corner panel | 58384-02020 |
| 58385G | Body lower back panel upper left corner panel | 58385-02020 |
| 61635C | Right wheel cover bracket | 61635-12060 · 61635-12061 |
| 61636C | Left side wheel cover bracket | 61636-12070 · 61636-12071 |
