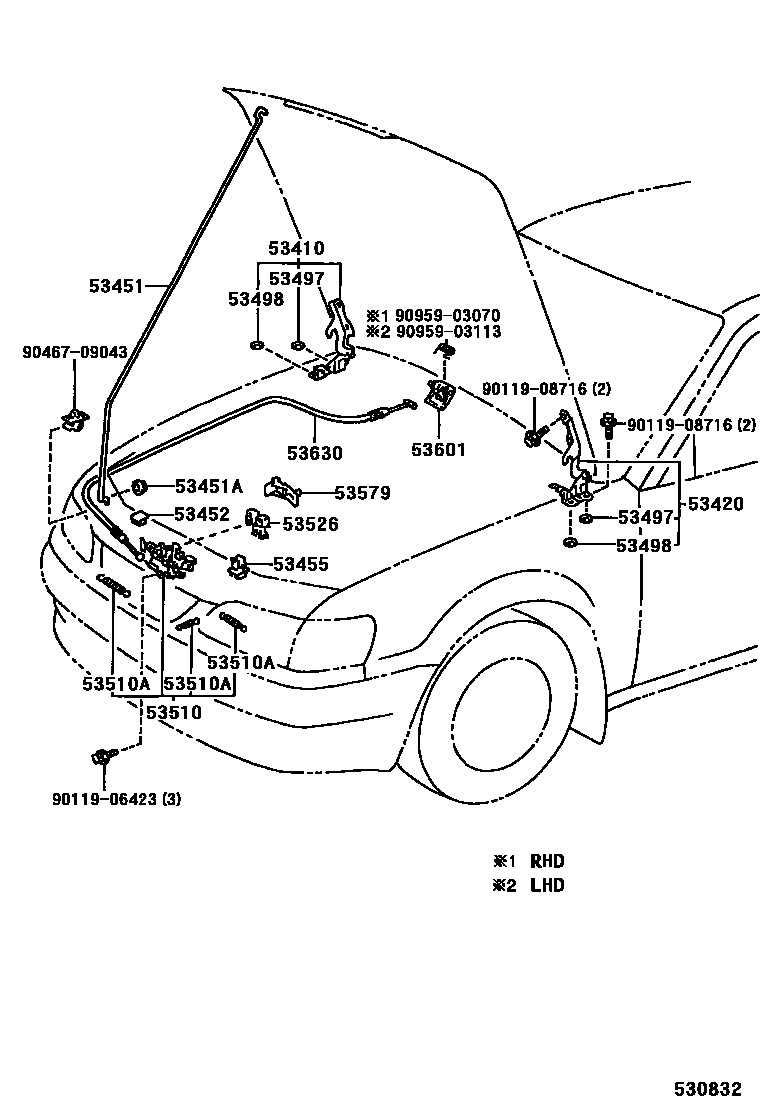

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02031 · 53410-12340 |
| 53420 | Engine cover left hinge assembly | 53420-02031 · 53420-12340 |
| 53451 | Engine cover support rod | 53451-02040 · 53451-12200 |
| 53451A | Gasket (for engine cover support rod) | 53454-02020 · 53454-12010 |
| 53452 | Engine cover stay rod fixing | 53452-02010 · 53452-12030 |
| 53455 | Engine cover support rod clip | 53455-02030 · 53455-12100 |
| 53497 | No. 1 engine cover hinge gasket | 53497-05010 · 53497-12060 · 53497-12070 · 53497-12080 · 53497-12100 |
| 53498 | No. 2 engine cover hinge gasket | 53497-12060 · 53497-12070 · 53497-12080 |
| 53510 | Engine cover lock assembly | 53510-02060 · 53510-02070 · 53510-02080 · 53510-02090 · 53510-12620 · 53510-12650 · 53510-12660 · 53510-12670 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-09057 · 90506-12067 · 90506-20065 · 90506-20066 |
| 53526 | No. 2 hood lock opening lever guard | 53526-12040 |
| 53579 | Engine hood lock nut cover | 53579-12010 |
| 53630 | Engine hood lock control cable assembly | 53630-02030 · 53630-12480 · 53630-12500 |
