Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 2 PNC and OE references.

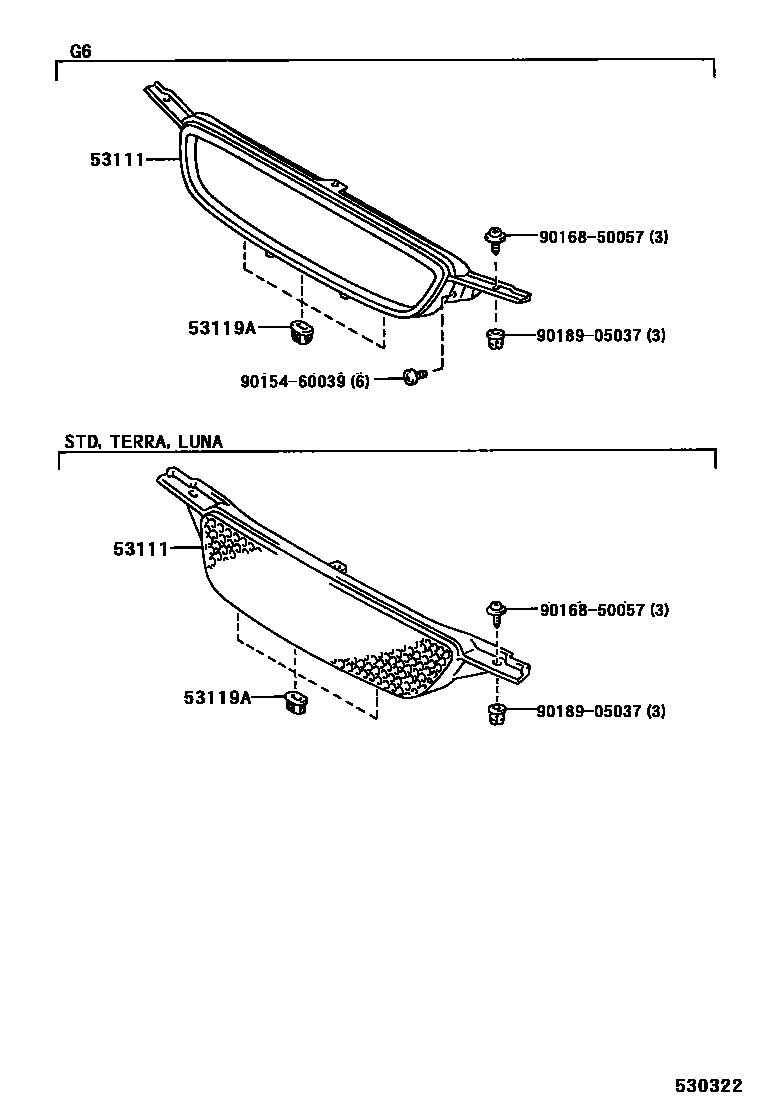

Toyota COROLLA radiator grille EPC diagram — 530322
radiator grille — 530322 (199704 – 199911)

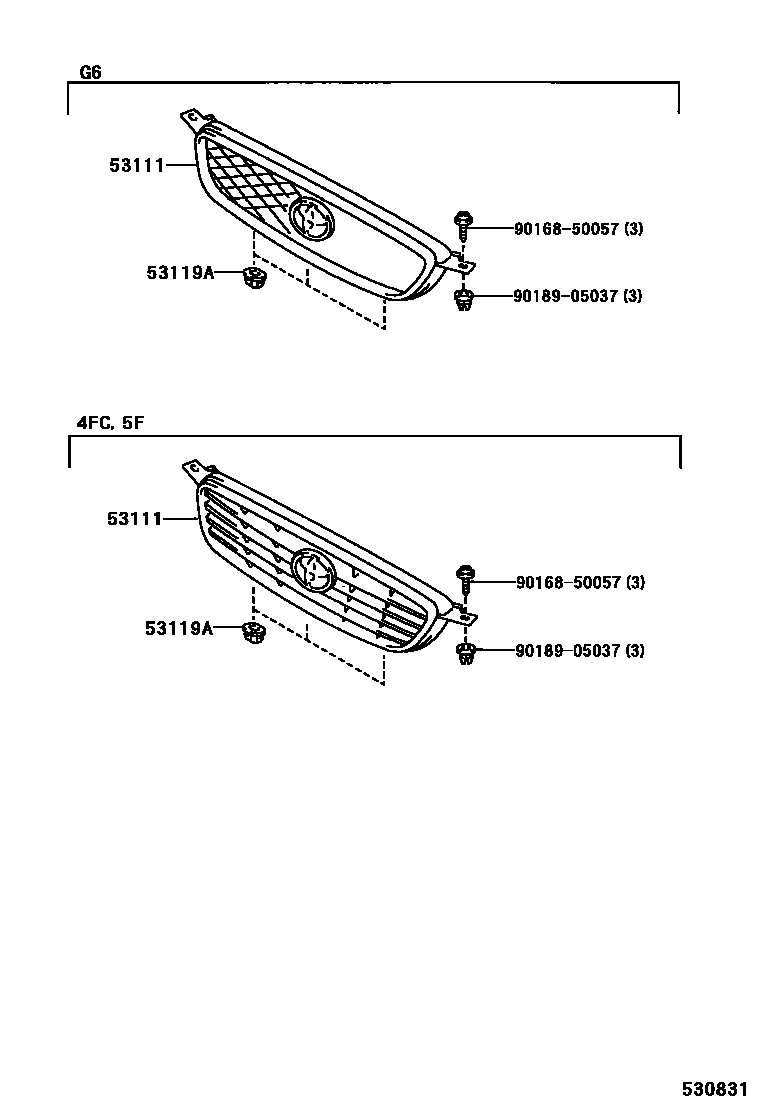

Toyota COROLLA radiator grille EPC diagram — 530831
radiator grille — 530831 (199910 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-1A140 · 53111-02060 · 53111-02070 · 53111-02090 · 53111-1A300 · 53111-1A310 · 53111-1A311 · 53111-1A430 · 53111-1A440
53119ARadiator grille to front fender bumper53119-02010 · 53119-12110
