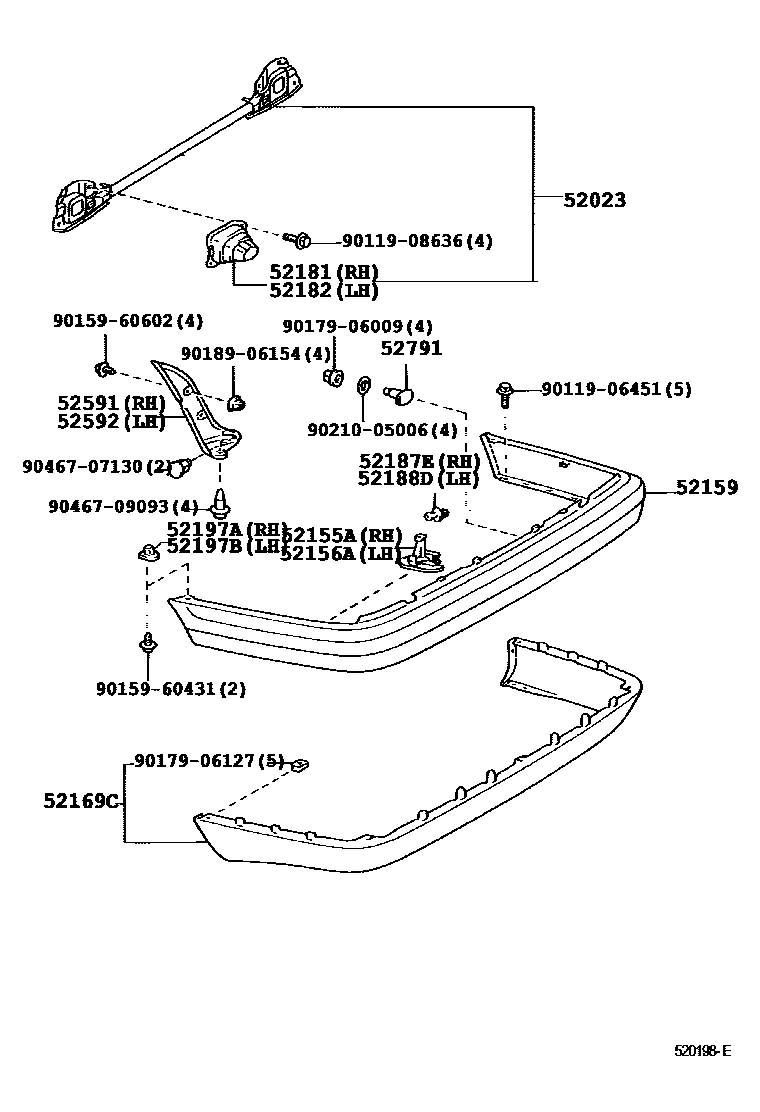

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02040 · 52023-12110 · 52023-12180 |
| 52155A | Rear bumper right side bracket | 52155-02030 · 52155-12230 |
| 52156A | Rear bumper left bracket | 52155-02030 · 52155-12230 |
| 52159 | rear bumper cover | 52159-02150 · 52159-1A710 · 52159-1A720 |
| 52169C | Rear bumper lower cover | 52169-02020 · 52169-12070 · 52169-12090 |
| 52181 | Rear bumper right arm | 52181-12410 · 52181-12430 |
| 52182 | Rear bumper left arm | 52182-12330 · 52182-12350 |
| 52187E | Rear bumper right positioning guide rod | 52187-05010 · 52187-16070 |
| 52188D | Rear bumper left positioning guide rod | 52187-05010 · 52187-16070 |
| 52197A | Rear bumper right seal support | 52197-02020 · 52197-16020 |
| 52197B | Rear bumper left seal support | 52197-02020 · 52197-16020 |
| 52591 | Rear bumper right seal | 52591-02020 · 52591-12110 |
| 52592 | Rear bumper left seal | 52592-02010 · 52592-12030 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12010 · 90109-06354 · 90109-06355 |
