Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

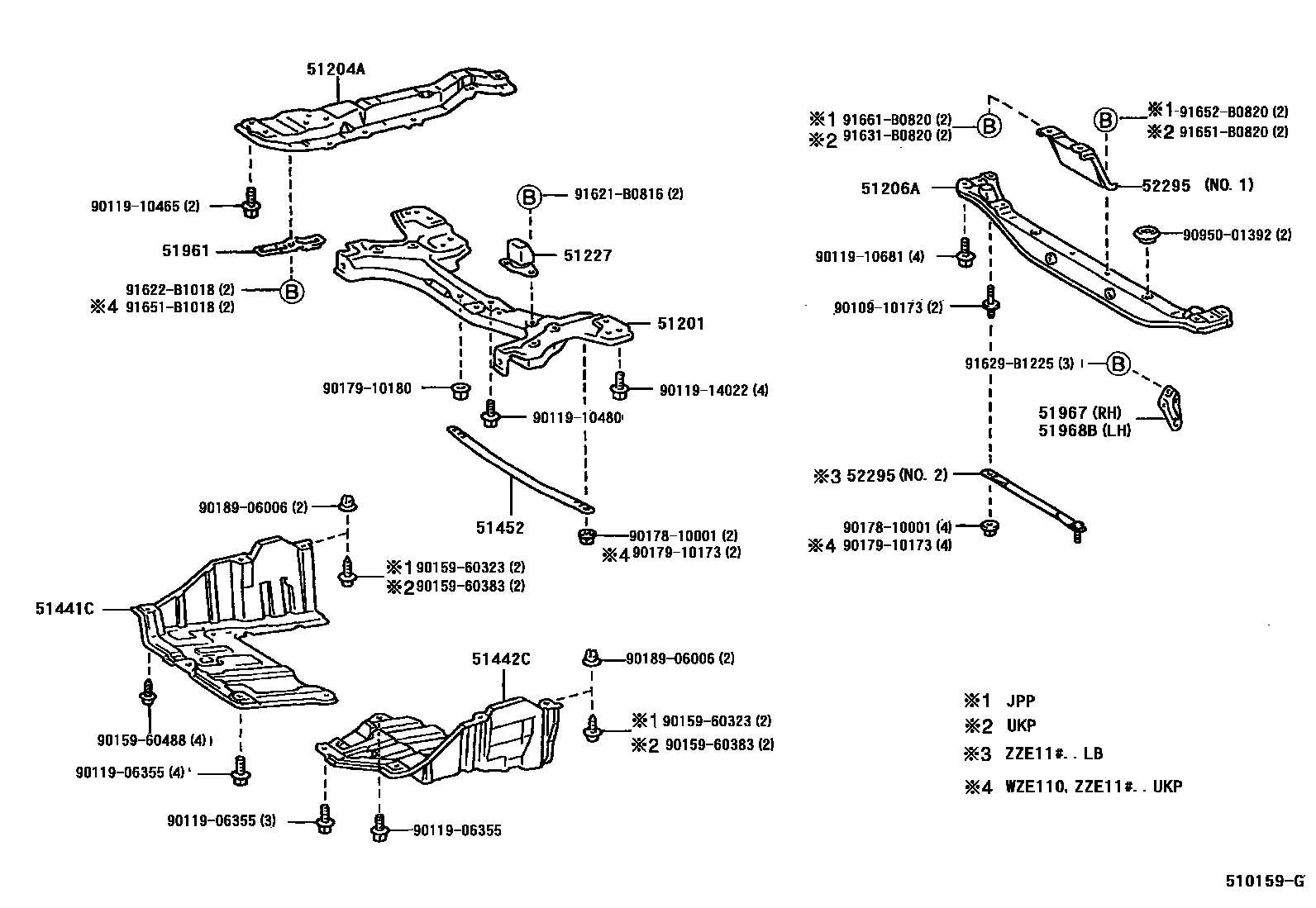

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02070 · 51201-12380 · 51201-12410 |
| 51204A | Engine center mount beam sub-assembly | 51204-02030 · 51204-02031 · 51204-12080 · 51204-12081 · 51204-12082 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02030 · 51206-12040 |
| 51227 | Front suspension cross member shock absorber counterweight | 51227-02020 · 51227-12040 |
| 51441C | Engine right bottom cover | 51410-02010 · 51410-12030 · 51441-02030 · 51441-02040 · 51441-12160 · 51441-12170 |
| 51442C | Engine left bottom cover | 51420-02010 · 51420-12020 · 51442-02030 · 51442-02040 · 51442-02050 · 51442-02060 · 51442-12120 · 51442-12130 · 51442-12140 · 51442-12150 |
| 51452 | Front cross member to front suspension cross member bracket | 51452-12010 · 51452-12030 |
| 51961 | No. 1 hook | 51960-02010 · 51960-12060 |
| 51967 | Rear transport hook | 51095-12120 · 51967-02010 · 51967-12220 |
| 51968B | Left rear transport hook | 51968-02010 · 51968-12110 · 51968-12140 |
| 52295 | Right rear suspension cross member bracket | 52295-02020 · 52295-12020 · 52295-12030 |
