Toyota COROLLA Brake Pedal & Bracket — Figure 4701

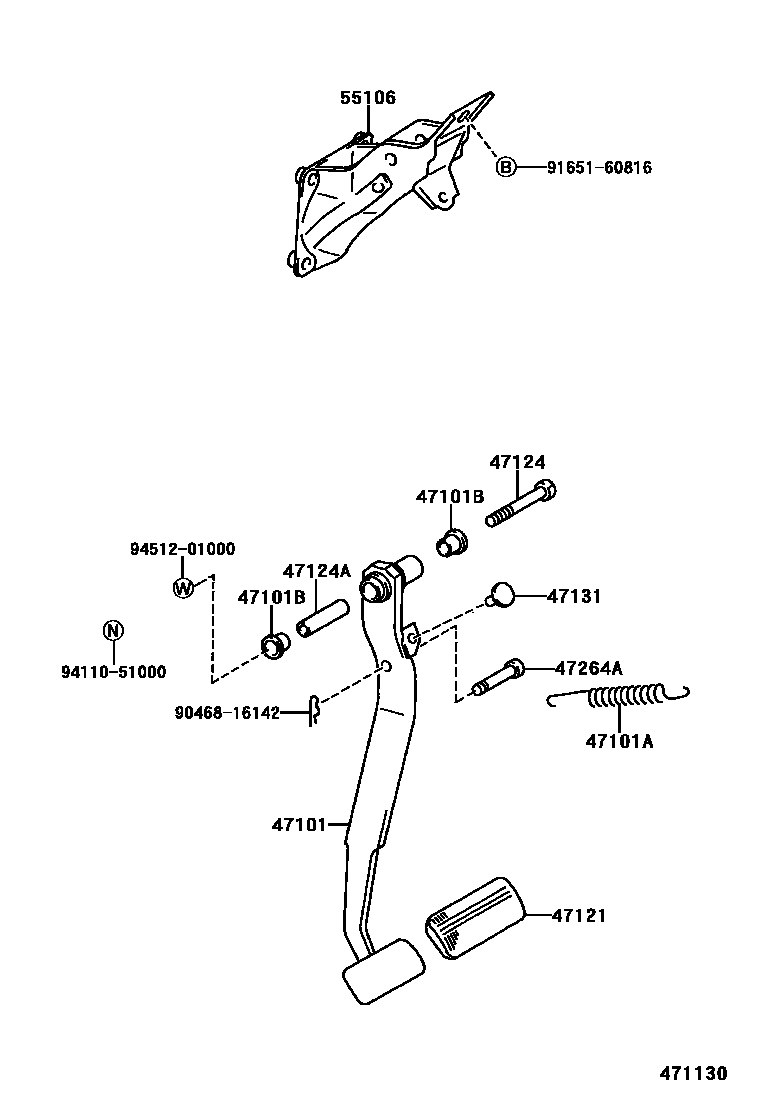

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-02050 · 47101-02060 · 47101-02061 · 47101-12530 · 47101-12540 · 47101-12550 · 47101-12560 · 47101-12570 |
| 47101A | Spring (for brake pedal return) | 90507-14037 · 90905-07026 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-12040 · 31321-14020 · 47121-12020 |
| 47124 | brake pedal shaft | 90101-10039 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 47148-12060 |
| 55106 | Brake pedal bracket sub-assembly | 55106-02030 · 55106-02040 · 55106-12630 · 55106-12640 |
