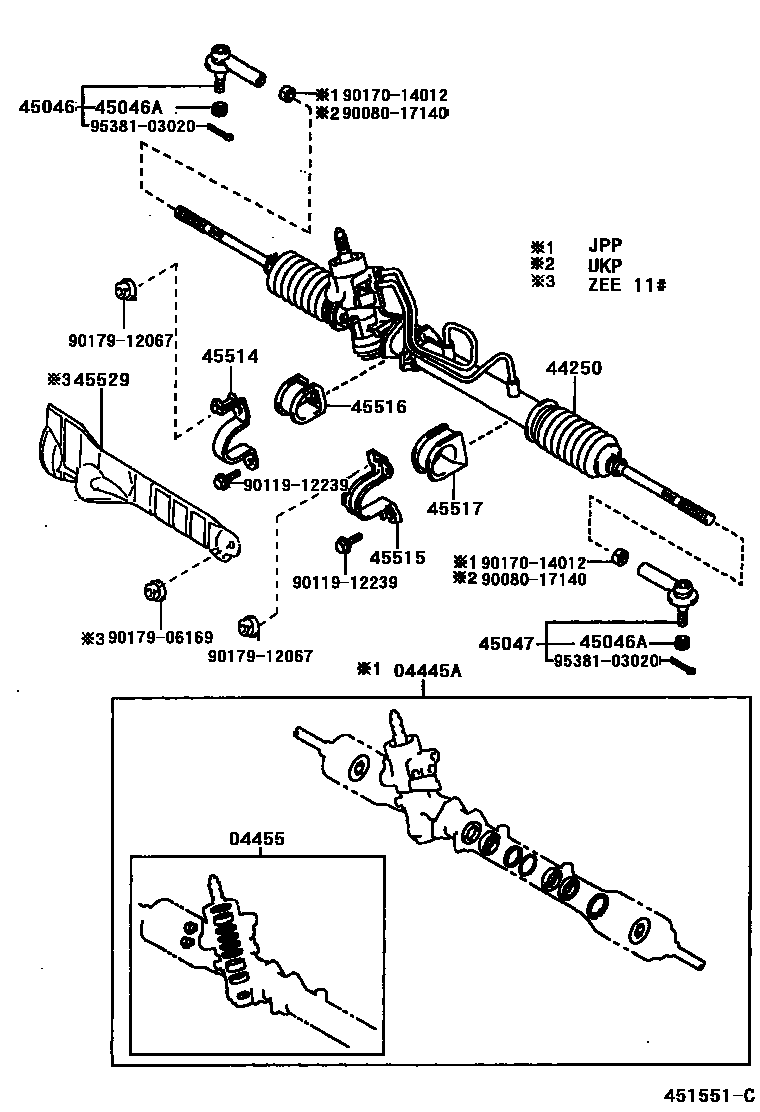

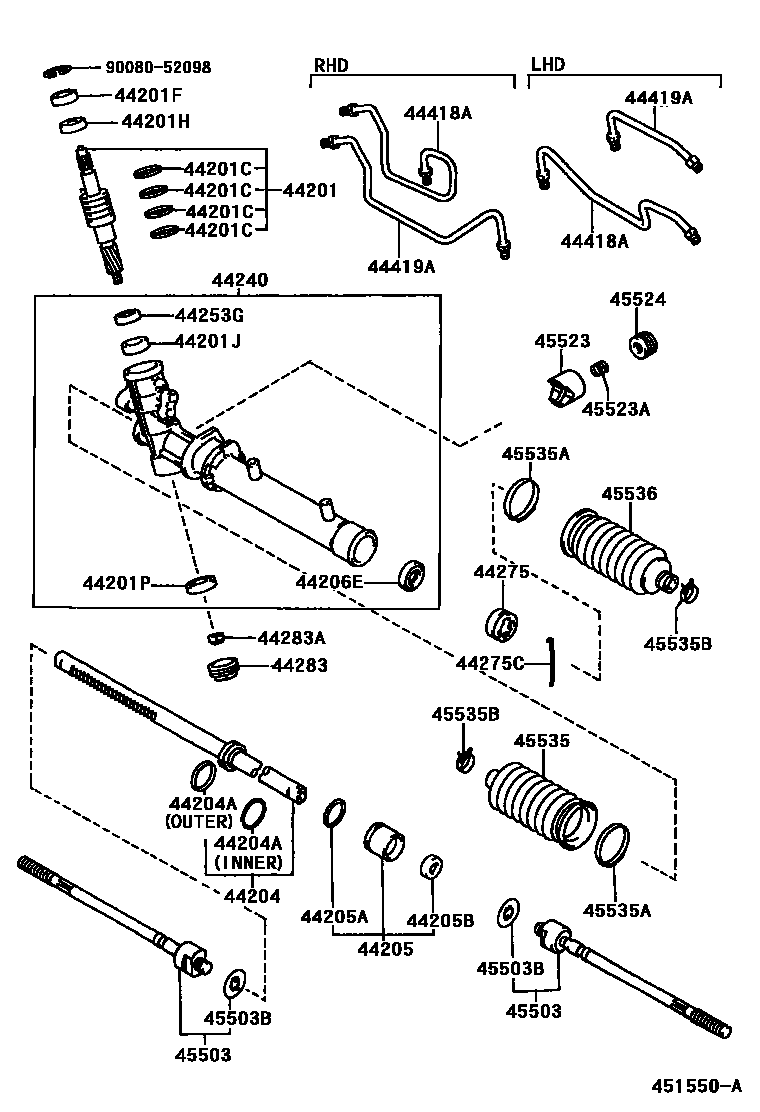

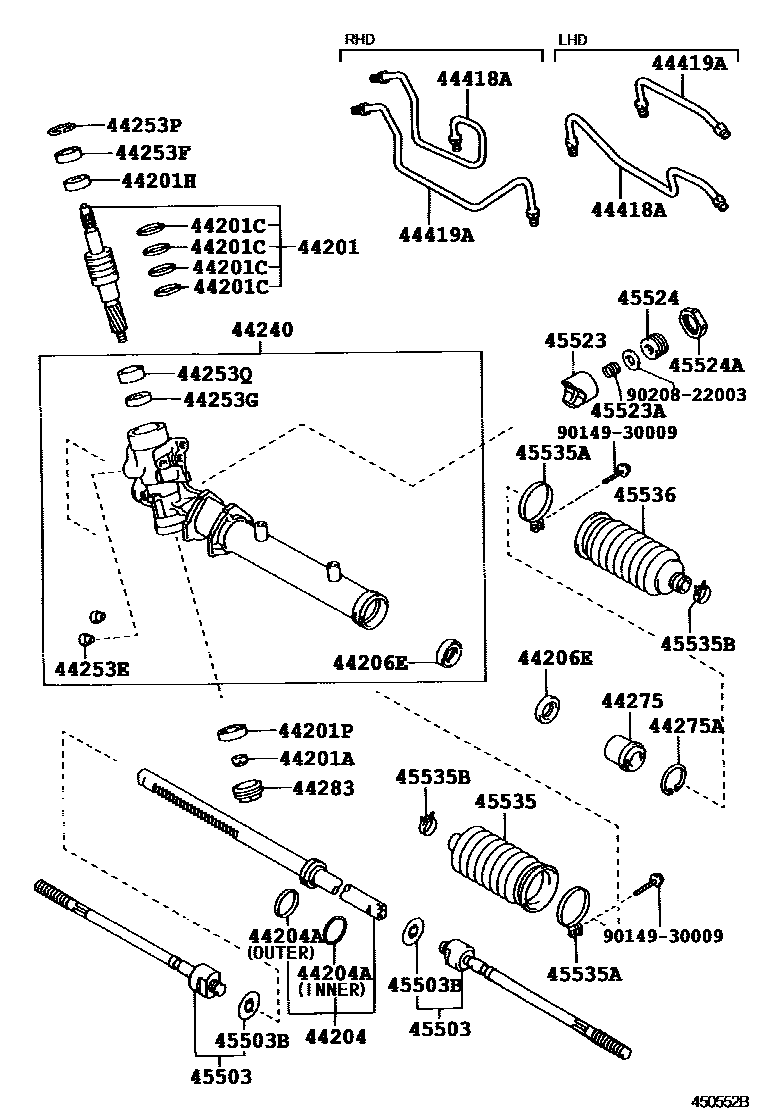

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-12150 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-12090 |
| 44201 | Power steering control valve sub-assembly | 44201-02040 · 44201-02041 · 44201-02050 · 44201-02051 · 44201-02061 · 44201-12440 · 44201-12470 |
| 44201A | Lock nut (for power steering control valve) | 90179-12098 |
| 44201C | Ring (for power steering control valve) | 90560-33003 · 90562-33002 · 90562-33008 |
| 44201F | Oil seal (for power steering control valve) | 90311-19015 |
| 44201H | Bearing (for upper power steering control valve) | 44219-02020 · 90369-19005 |
| 44201J | Bearing (for central power steering control valve) | 90080-36096 |
| 44201P | Bearing (for lower power steering control valve) | 90080-36097 · 90363-12014 |
| 44204 | Power steering rack sub-assembly | 44204-02020 · 44204-02030 · 44204-12160 · 44204-12170 |
| 44204A | Ring (for steering rack piston) | 90080-30041 · 90080-56028 · 90301-33003 · 90562-37004 |
| 44205 | Cylinder end stopper sub-assembly | 44205-02020 |
| 44205A | O-ring (for cylinder end stopper) | 90080-30042 |
| 44205B | Oil seal (for cylinder end stop) | 90311-24013 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90310-24009 · 90310-24012 · 90311-24012 |
| 44240 | Power steering rack housing assembly | 44240-02030 · 44240-02031 · 44240-02040 · 44240-02041 · 44240-12220 · 44240-12280 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-02052 · 44250-02053 · 44250-02061 · 44250-02062 · 44250-02111 · 44250-12540 · 44250-12541 · 44250-12580 · 44250-12581 |
| 44253E | Connector seat (for power steering rack housing) | 90410-06002 |
| 44253F | No. 1 oil seal (for power steering rack housing) | 90311-19007 |
| 44253G | No. 2 oil seal (for power steering rack housing) | 90310-23005 · 90311-26005 |
| 44253P | Hole snap ring (for power steering rack housing) | 90521-41003 |
| 44253Q | Bushing (for power steering rack housing) | 90389-28001 |
| 44275 | Cylinder end stop | 44275-02030 · 44275-12090 |
| 44275A | Bore snap ring (for cylinder end stop) | 90521-50002 |
| 44275C | Coil (for cylinder end stop) | 90080-58071 |
| 44283 | Rack housing cover | 44283-02020 · 44283-12010 |
| 44283A | Nut (for rack housing cover) | 90080-17139 |
| 44418A | Right steering pressure oil pipe | 44418-02031 · 44418-02040 · 44418-12130 · 44418-12140 |
| 44419A | Left steering pressure oil pipe | 44419-02031 · 44419-02040 · 44419-12130 · 44419-12140 |
| 45046 | Right tie rod end sub-assembly | 45046-29305 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-29305 |
| 45503 | Steering rack end sub-assembly | 45503-09130 · 45503-19215 |
| 45503B | Jaw washer (for steering rack end) | 90080-21009 · 90214-14009 |
| 45514 | No. 1 steering rack housing bracket | 45514-12090 · 45514-12110 · 45514-12120 |
| 45515 | No. 2 steering rack housing bracket | 45515-12170 · 45515-12180 · 45515-12190 · 45515-12200 |
| 45516 | No. 1 steering rack housing seal | 45516-02020 · 45516-12060 |
| 45517 | No. 2 steering rack housing seal | 45517-02010 · 45517-12111 |
| 45523 | Rack guide block (for steering gear) | 45053-12010 · 45504-02020 |
| 45523A | Spring (for steering gear rack guide block) | 90080-50225 · 90501-30015 · 90501-40040 |
| 45524 | Steering rack guide block spring cover | 45059-02010 · 45524-12041 · 45524-42010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-33003 |
| 45529 | Steering rack dust cover heat insulation pad | 45529-12030 · 45529-12040 |
| 45535 | No. 1 steering rack dust cover | 45535-02010 · 45535-12060 · 45535-12100 |
| 45535A | Clamp (for steering rack dust boot) | 90080-46255 · 90460-52001 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46256 · 90467-19019 |
| 45536 | No. 2 steering rack dust cover | 45535-02010 · 45535-12060 · 45535-12100 |
