Toyota COROLLA 动力转向配管 — Figure 4503

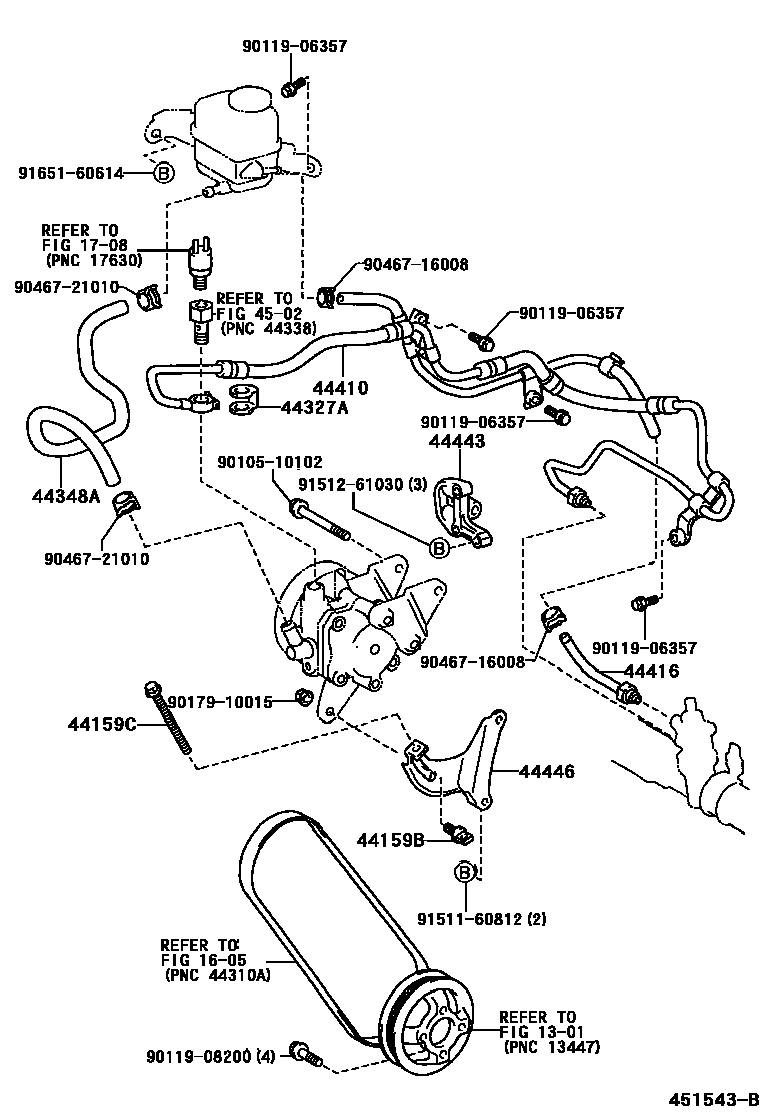

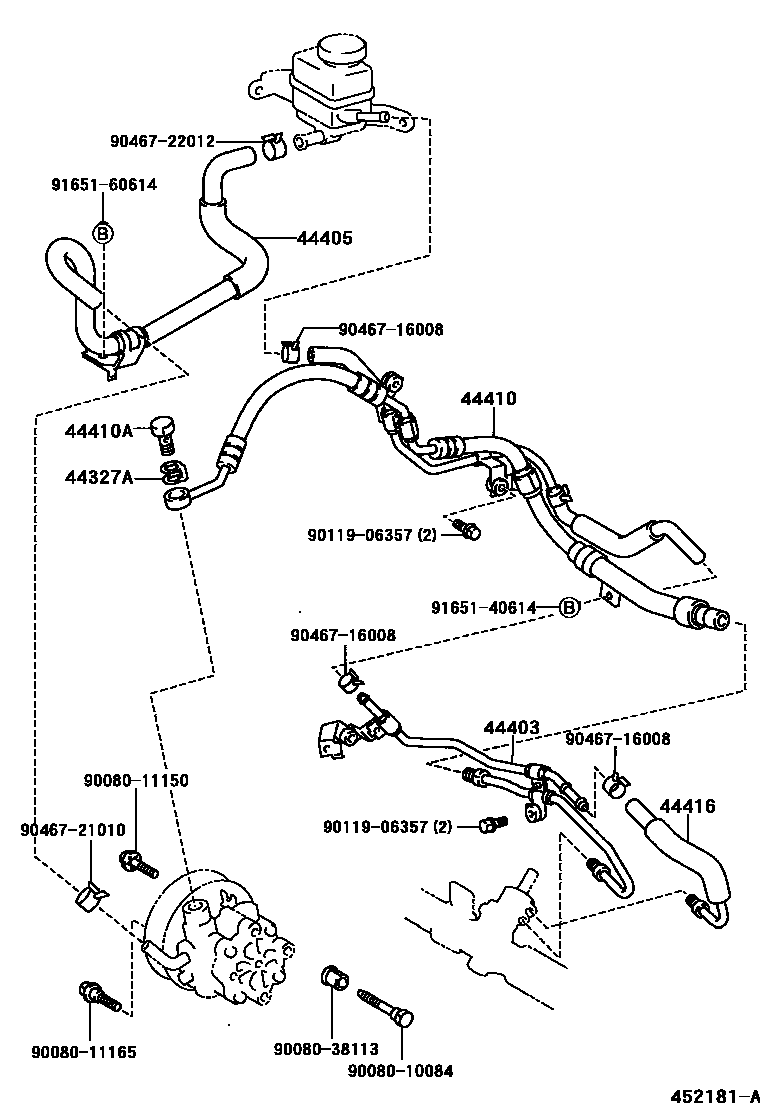

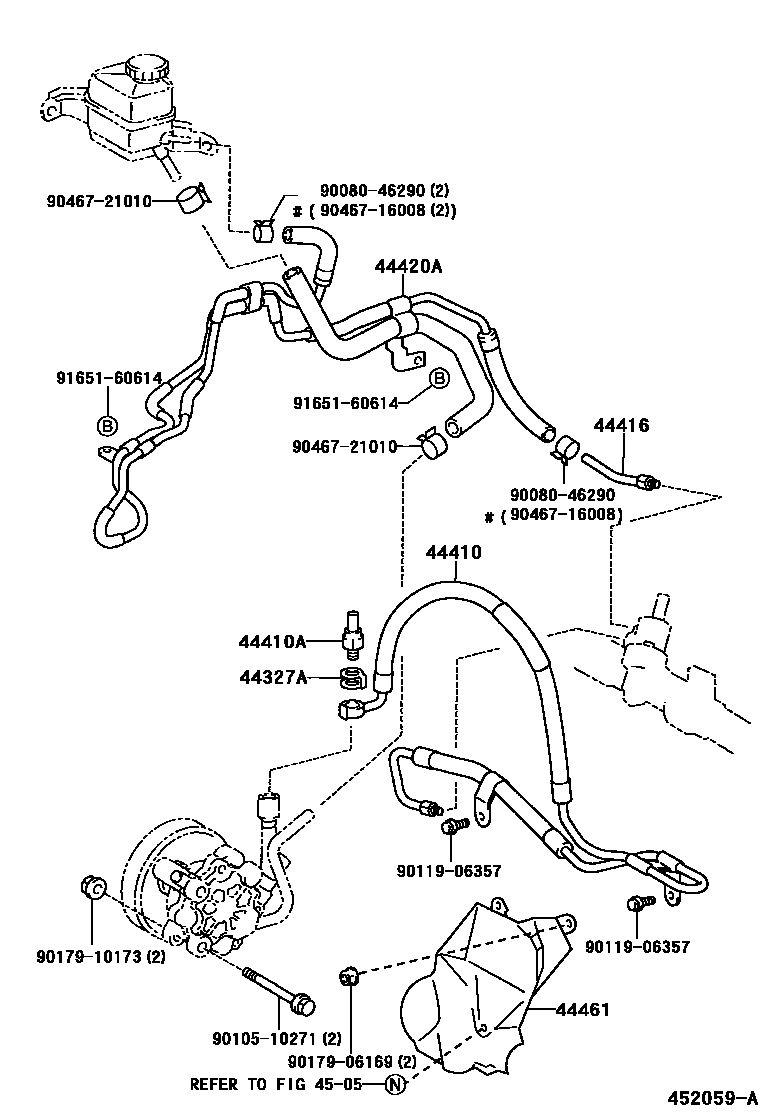

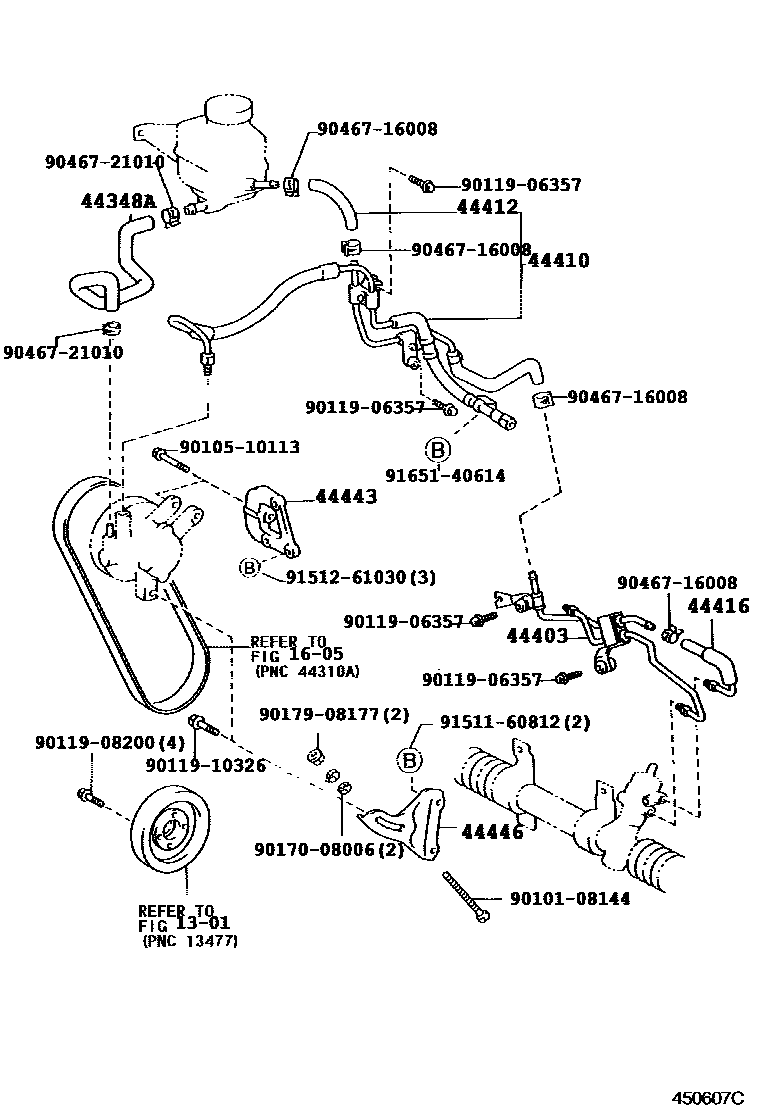

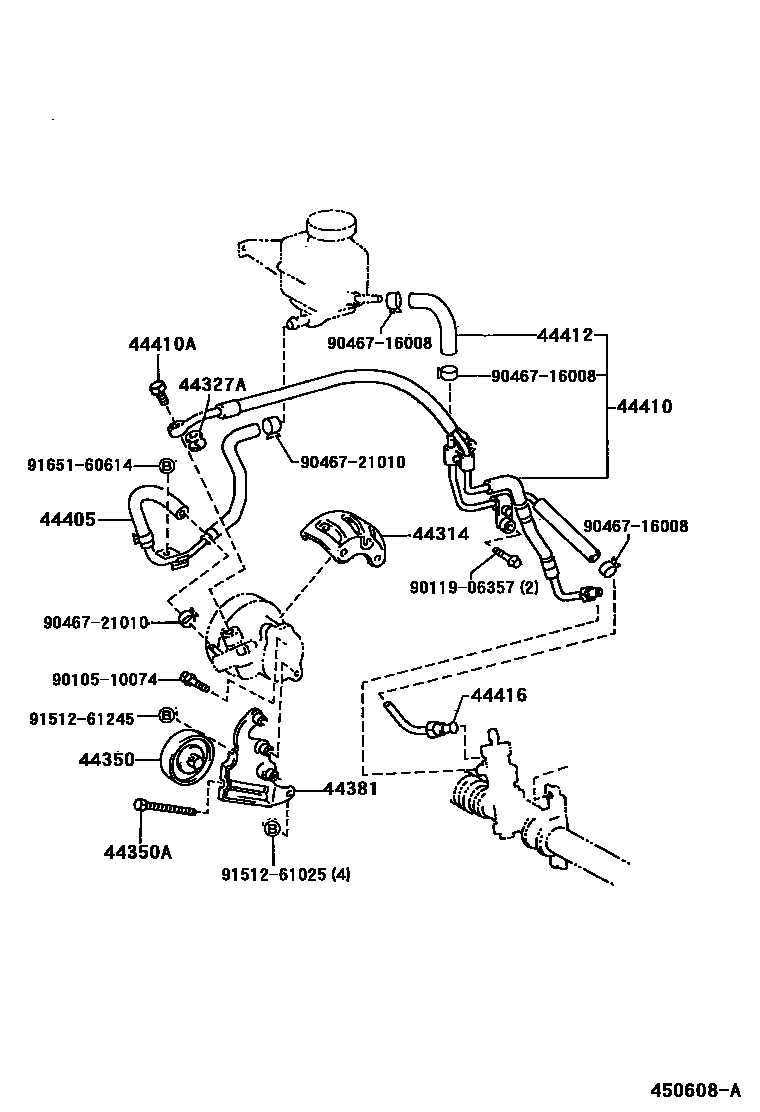

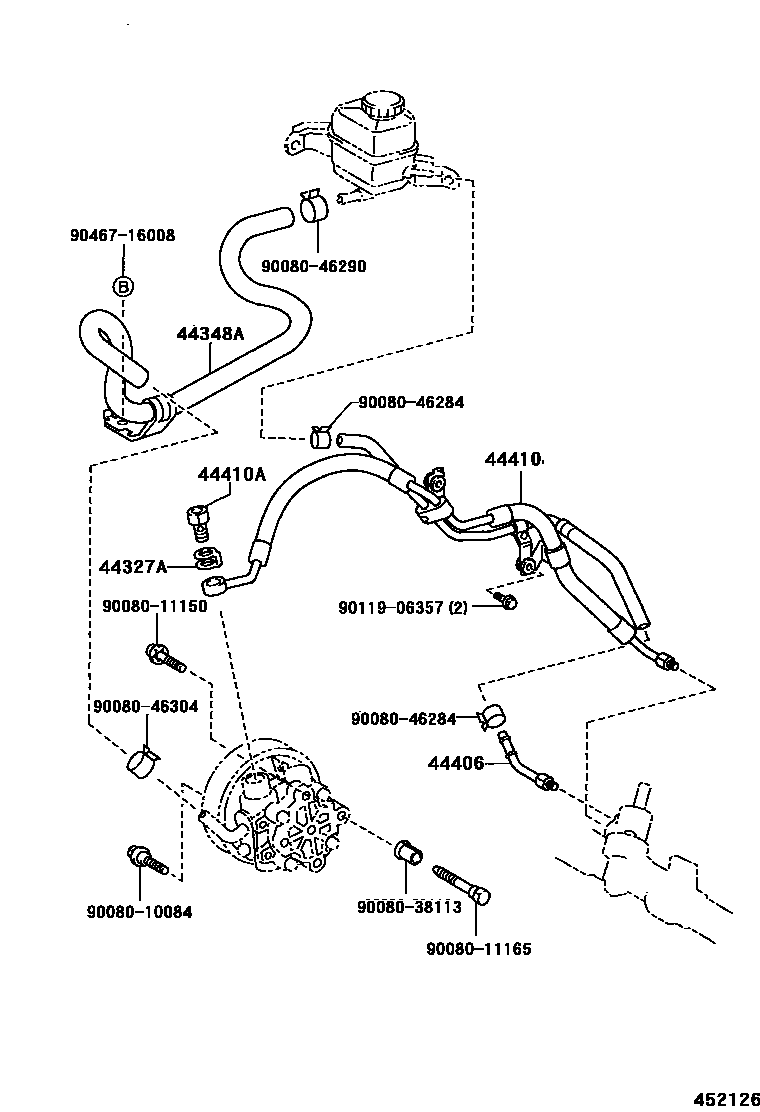

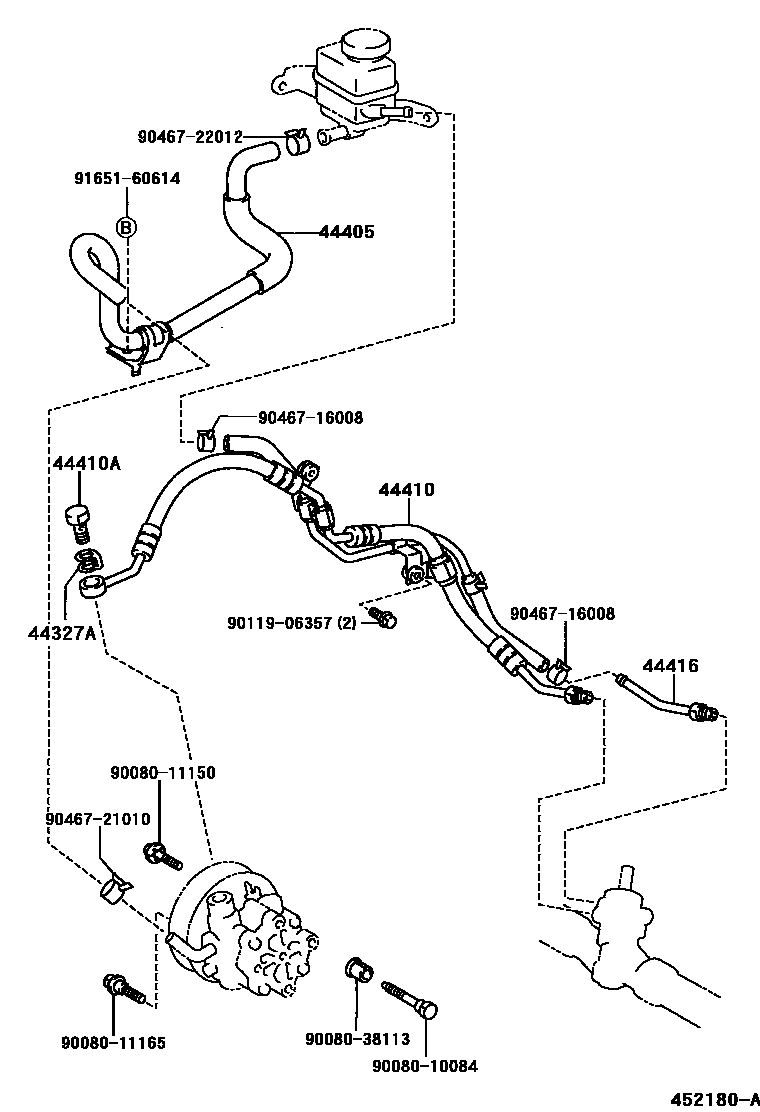

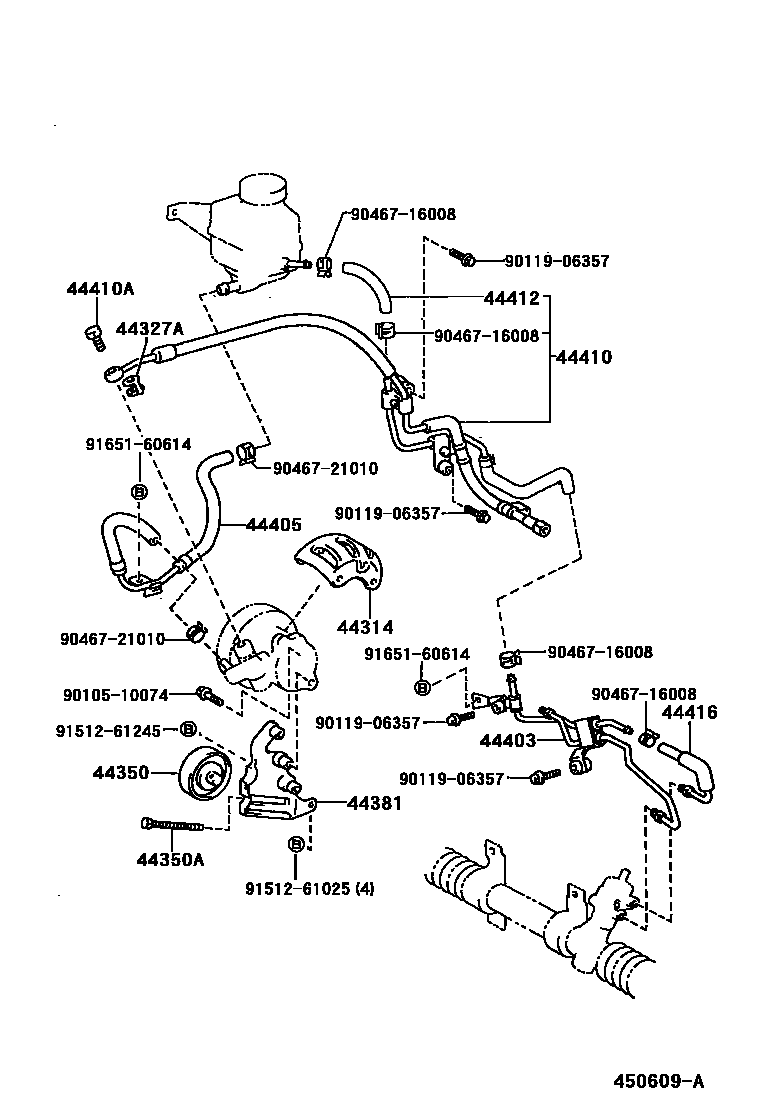

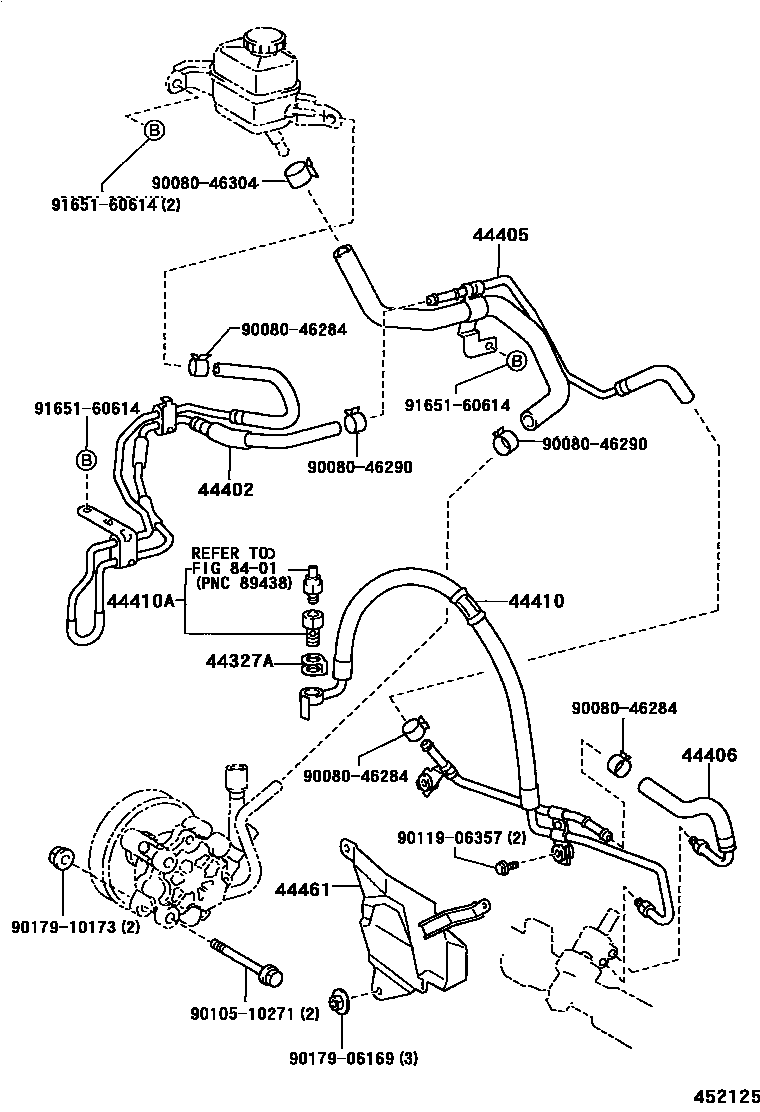

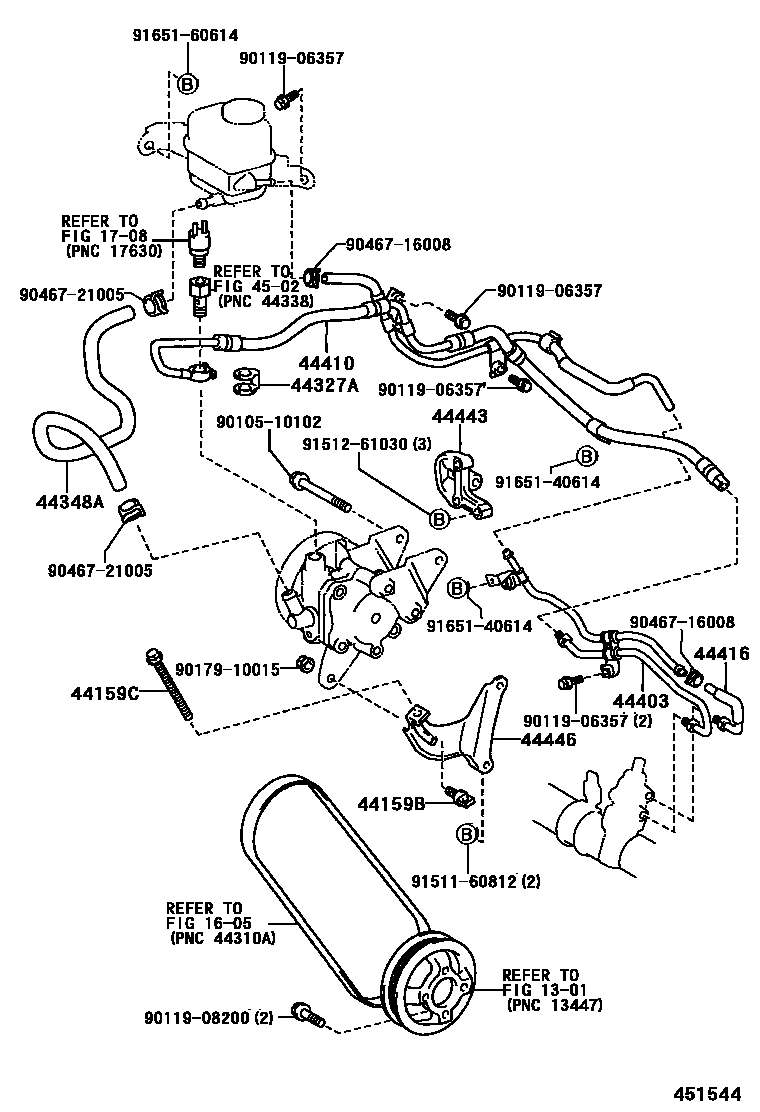

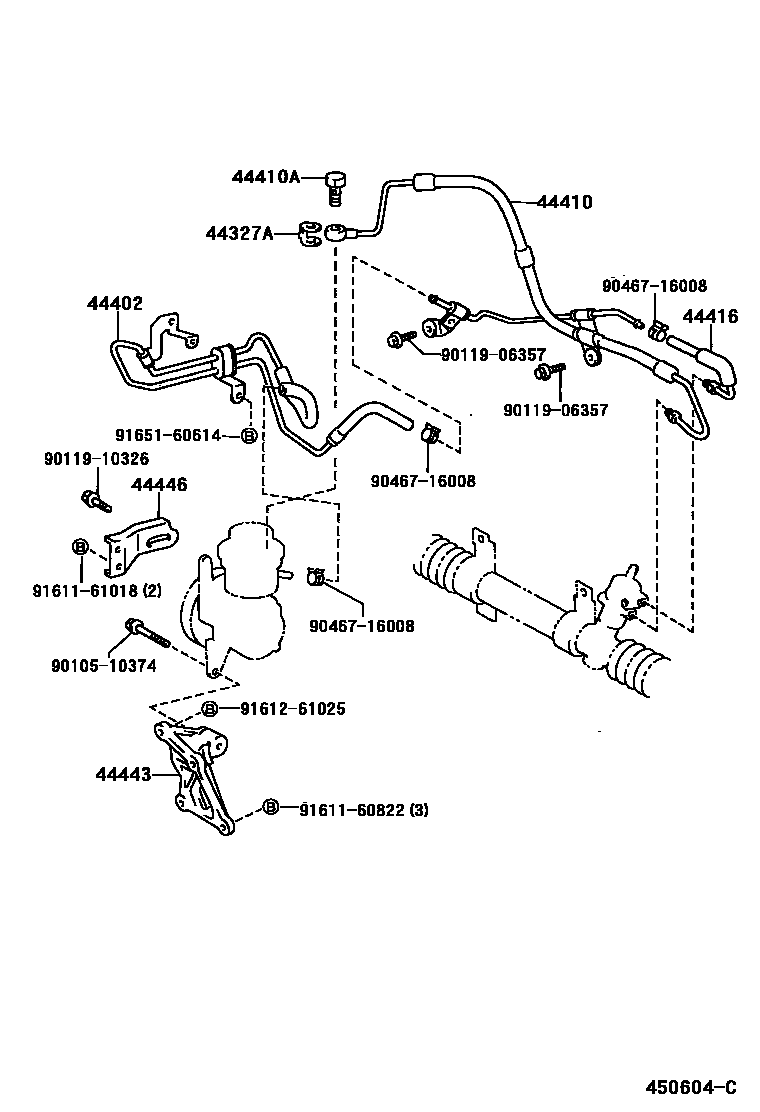

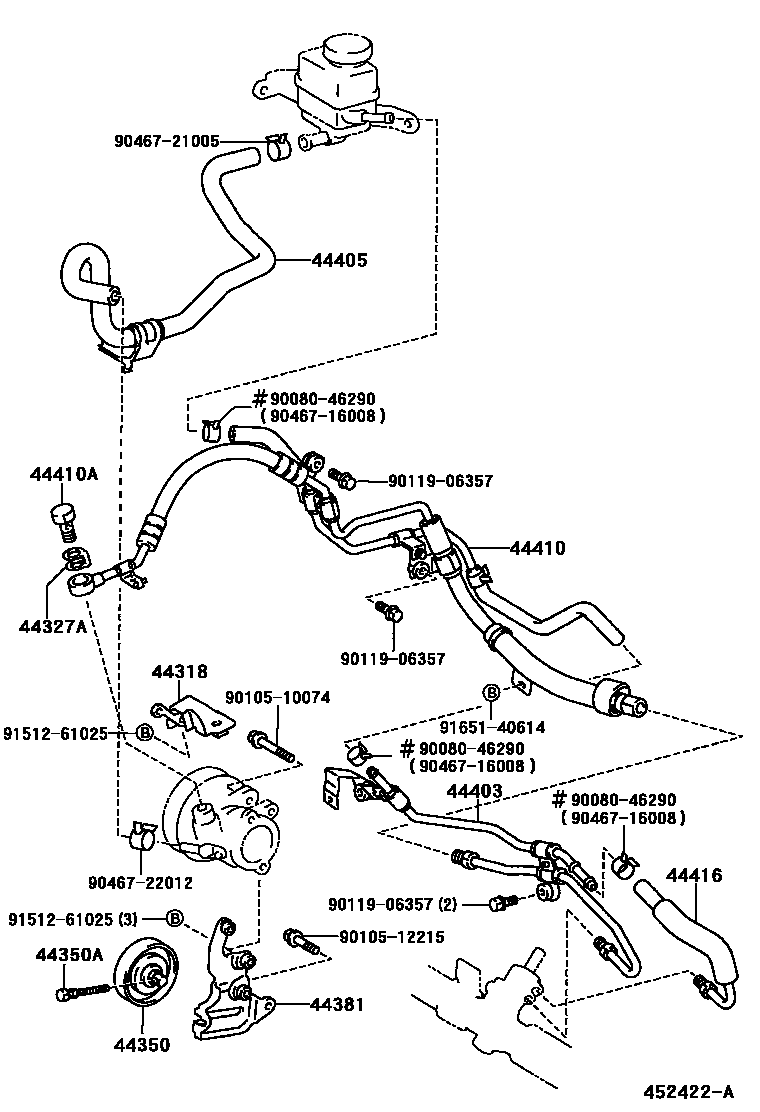

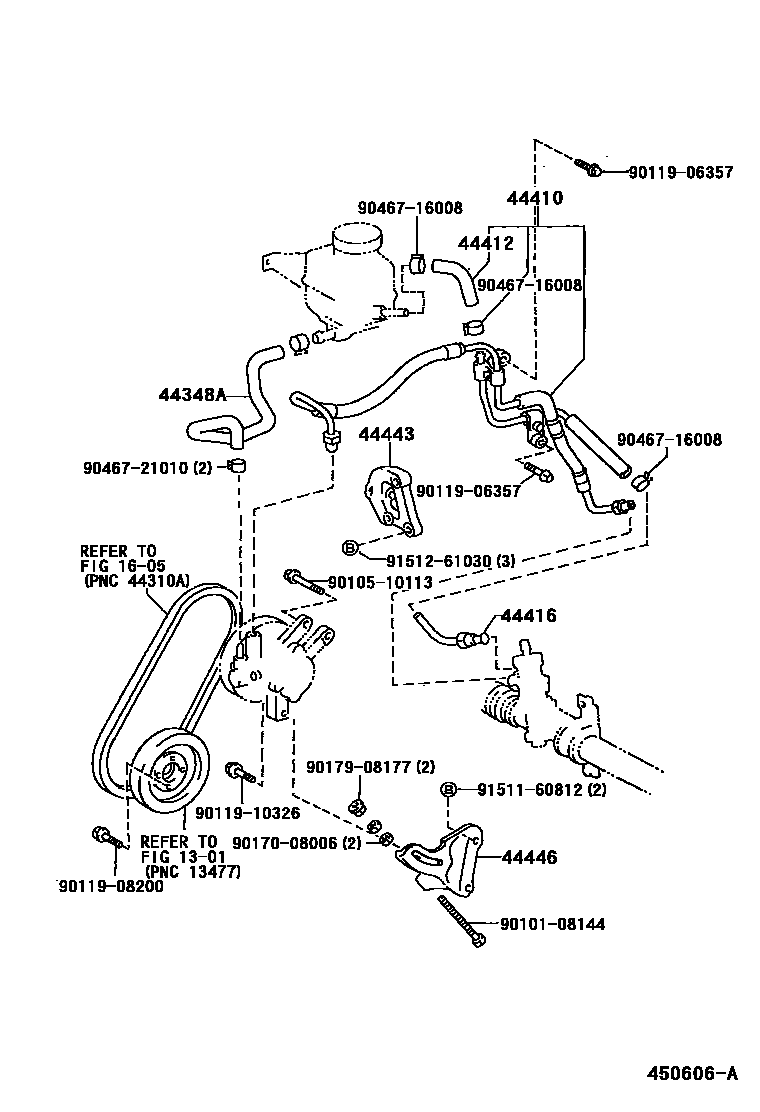

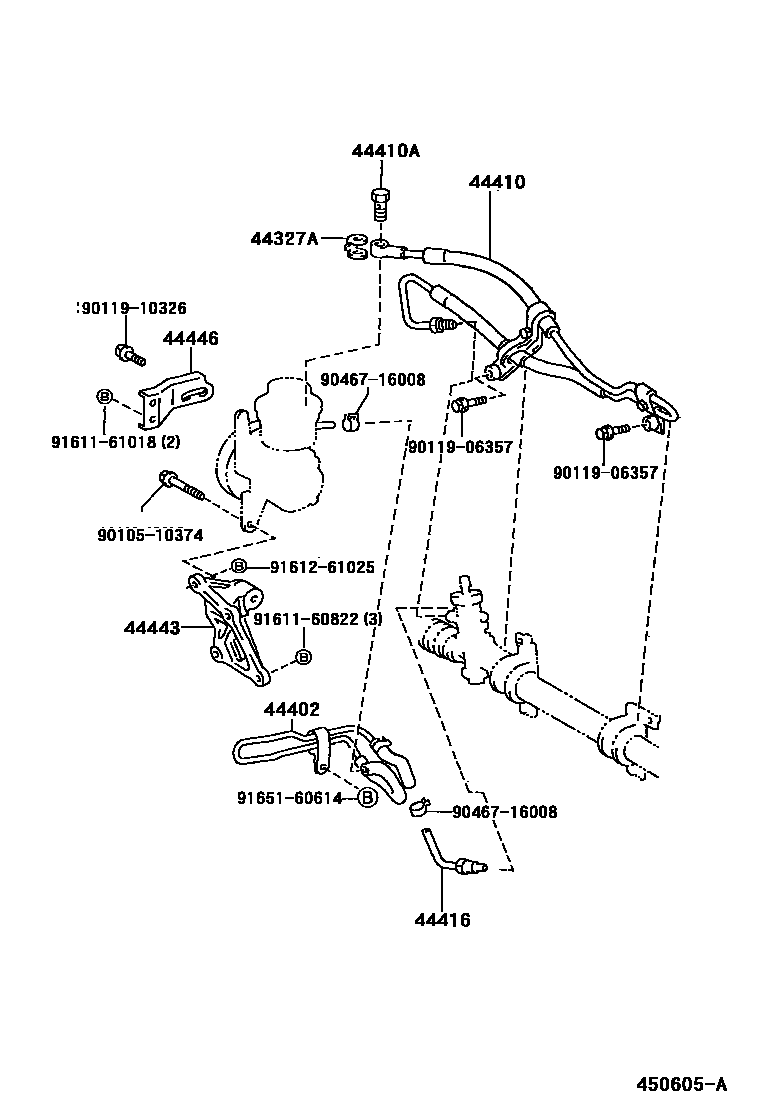

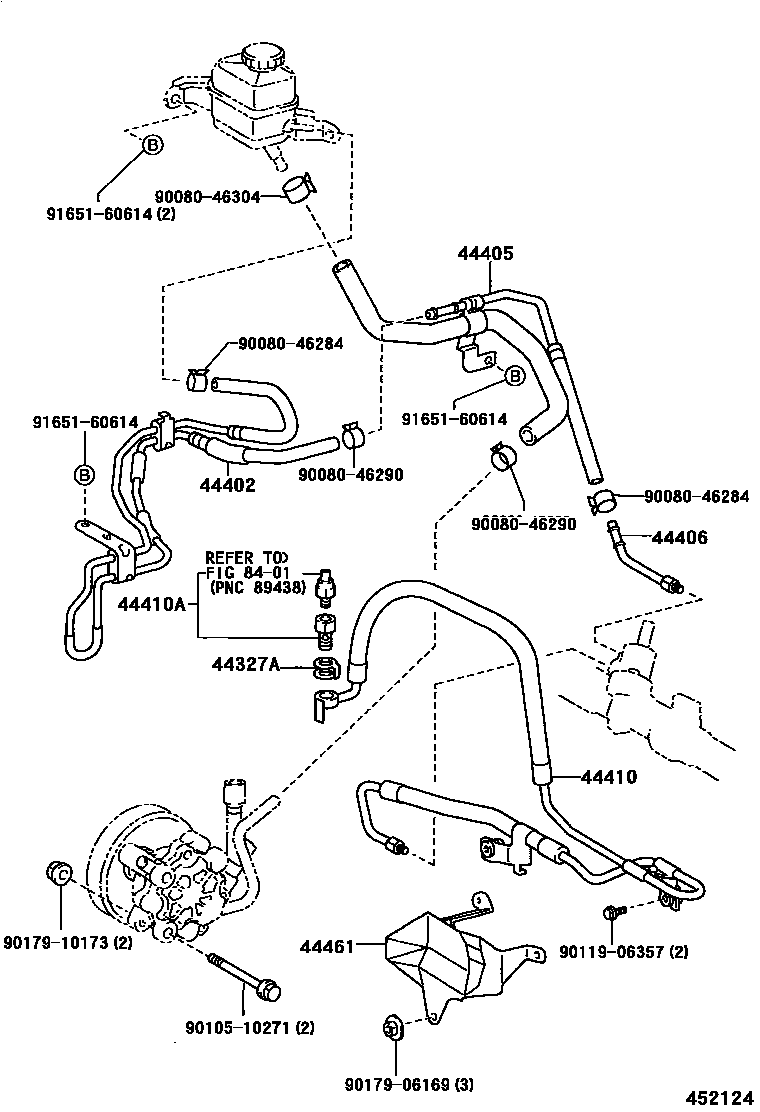

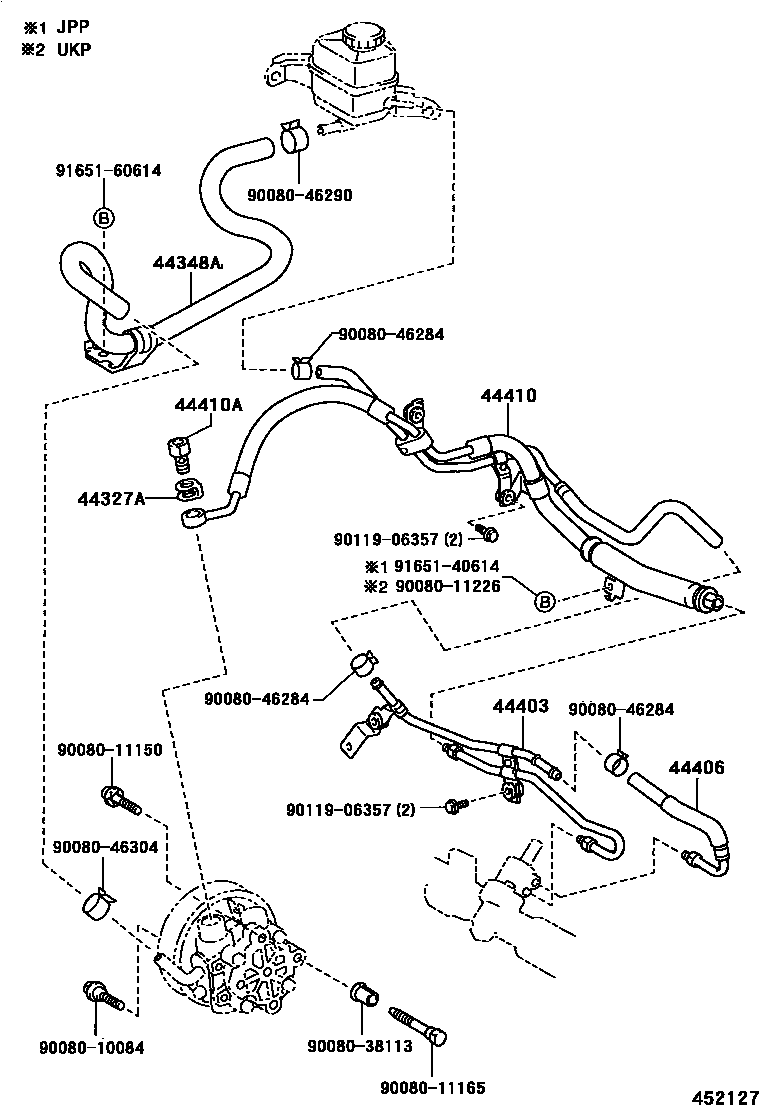

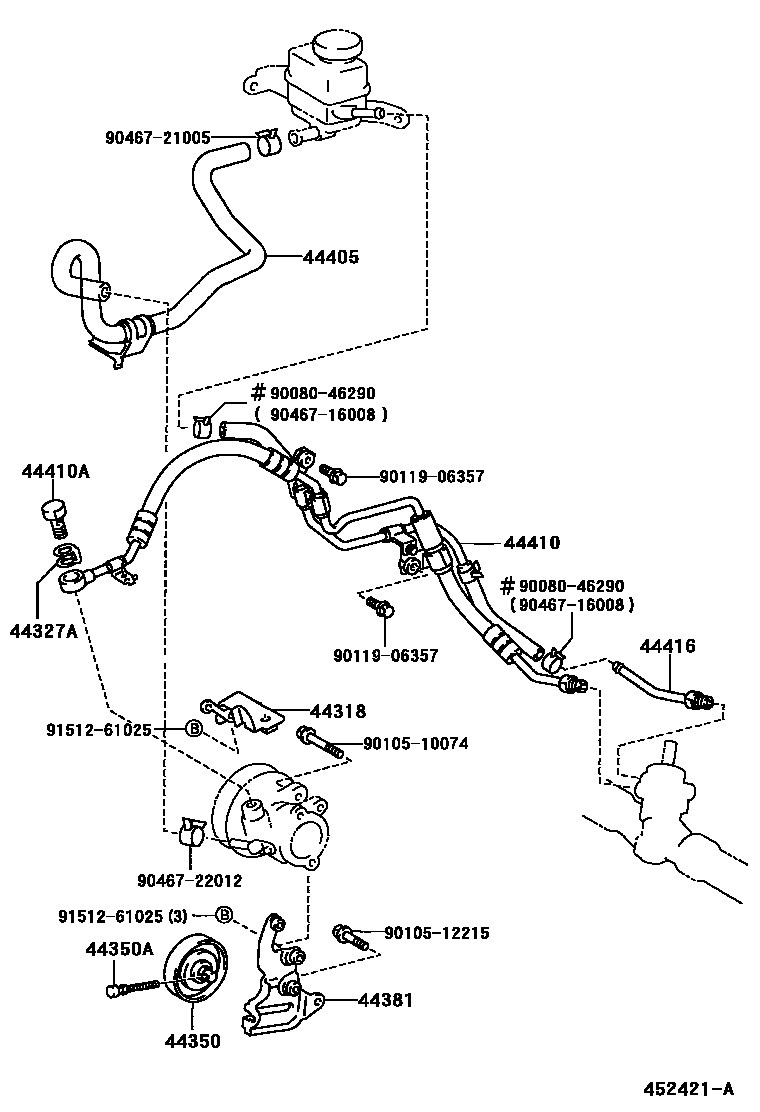

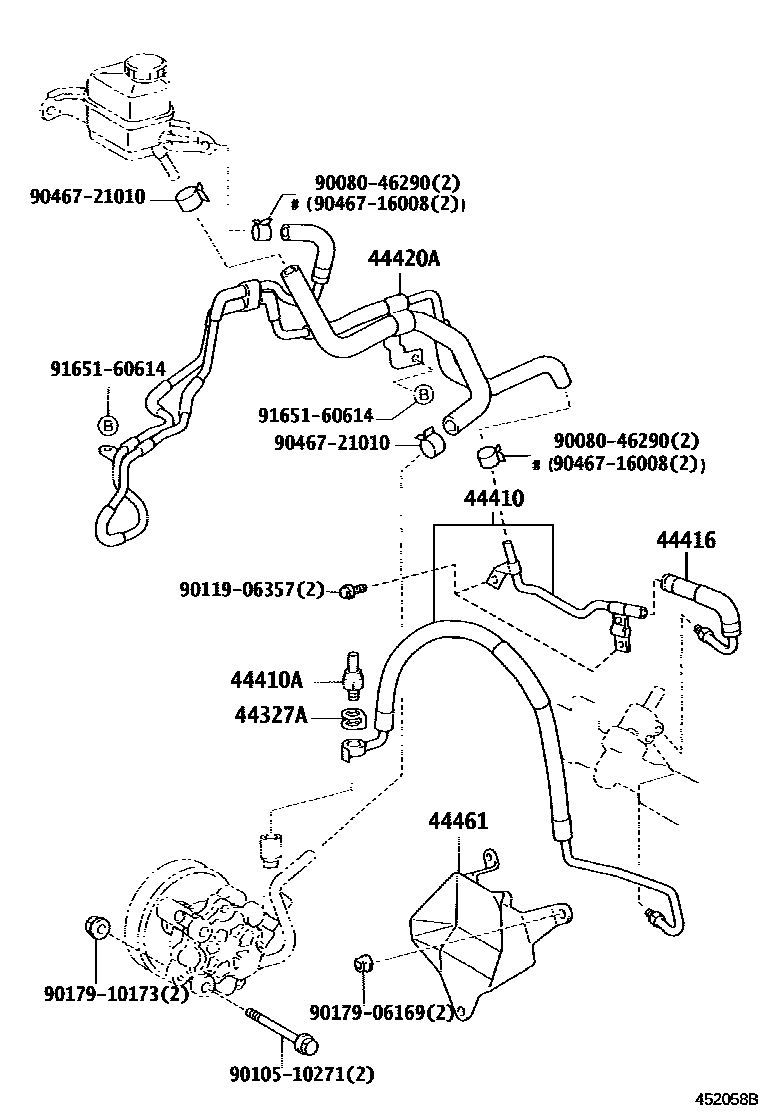

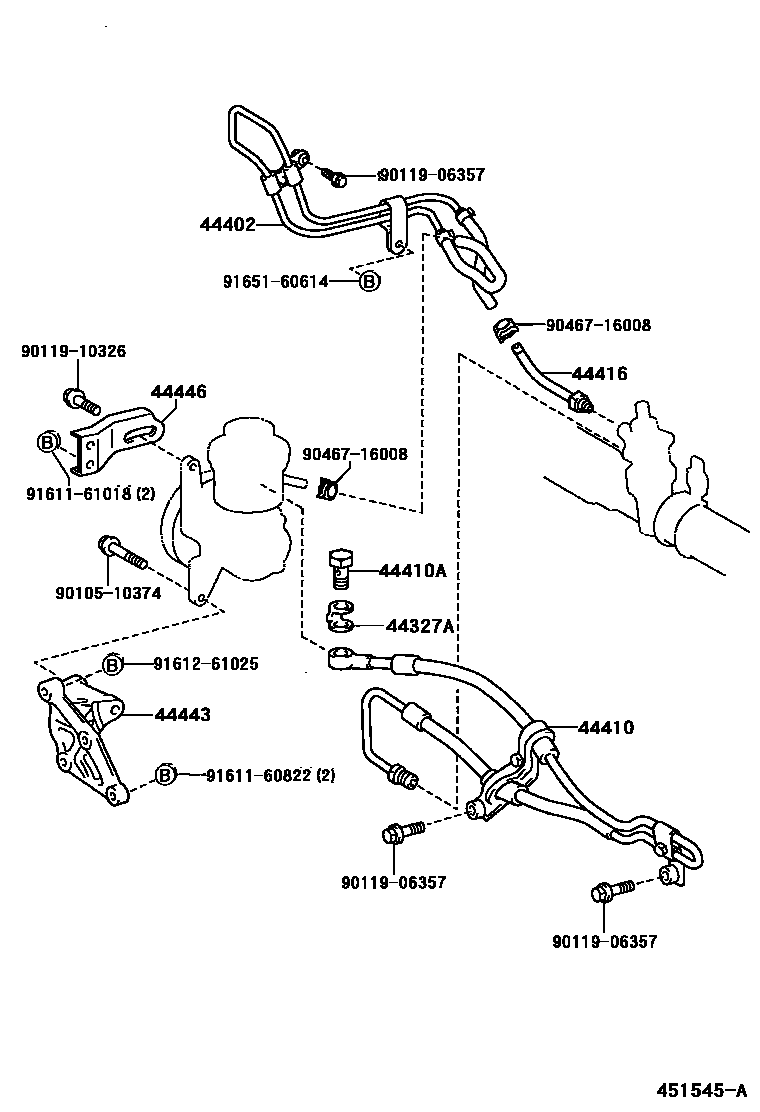

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 19 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44159B | Adjustment bolt No. 1 (for pump bracket assembly) | 44159-16010 |
| 44159C | No. 2 adjusting bolt (for pump bracket assembly) | 44159-16020 |
| 44314 | pulley cover | 44314-12010 |
| 44318 | Vane pump drive pulley spacer | 44318-12010 |
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-02020 · 44348-02030 · 44348-12070 |
| 44350 | Power steering idler assembly | 44350-12052 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 · 90109-08253 |
| 44381 | Power steering idler bracket | 44381-12020 · 44381-20040 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-02040 · 44402-12150 · 44402-12210 · 44402-12230 |
| 44403 | No. 1 pressure supply pipe sub-assembly | 44403-02030 · 44403-12040 · 44403-12050 · 44403-12061 · 44403-12080 · 44403-12090 |
| 44405 | No. 1 pipe assembly (oil storage tank to pump) | 44405-02030 · 44405-02040 · 44405-12161 · 44405-12170 · 44405-12180 |
| 44406 | Oil return pipe sub-assembly | 44406-02050 · 44406-02061 · 44416-02020 · 44416-02030 |
| 44410 | Pressure supply pipe assembly | 44040-02050 · 44040-02061 · 44040-12121 · 44040-12160 · 44040-12173 · 44040-12182 · 44040-12200 · 44040-12210 · 44040-12220 · 44040-12230 · 44040-12240 · 44040-12250 · 44410-02070 · 44410-02080 · 44410-12391 · 44410-12492 · 44410-12560 · 44410-12570 · 44410-12580 · 44410-12590 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-12170 · 90401-16012 |
| 44412 | Oil return hose | 44412-12200 |
| 44416 | Oil return pipe (for steering gear outlet) | 44406-12160 · 44406-12190 · 44406-12200 · 44406-12210 · 44406-12220 · 44416-12230 · 44416-12240 |
| 44420A | Oil return pipe assembly | 44420-12140 · 44420-12150 |
| 44443 | pump bracket | 44443-10030 · 44443-12100 · 44443-16020 |
| 44446 | Adjust the stand | 44446-02030 · 44446-05010 · 44446-10050 · 44446-12060 |
| 44461 | Refrigerant pipe insulation pad | 44461-12010 · 44461-12020 |
