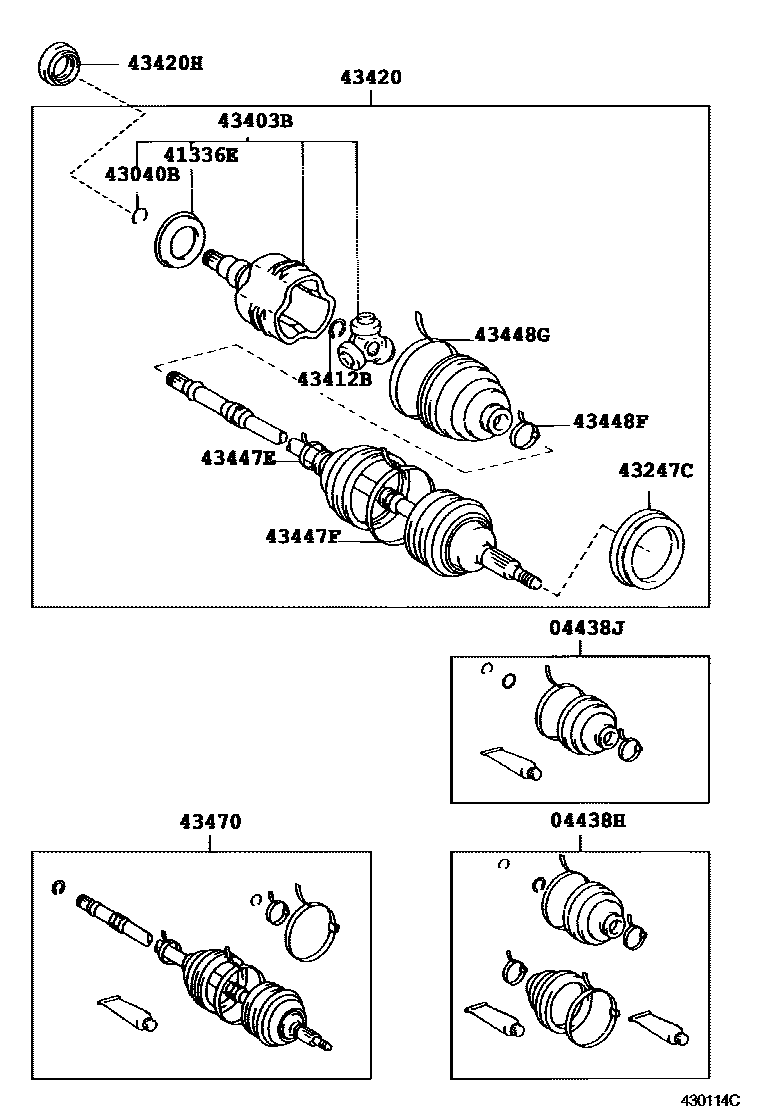

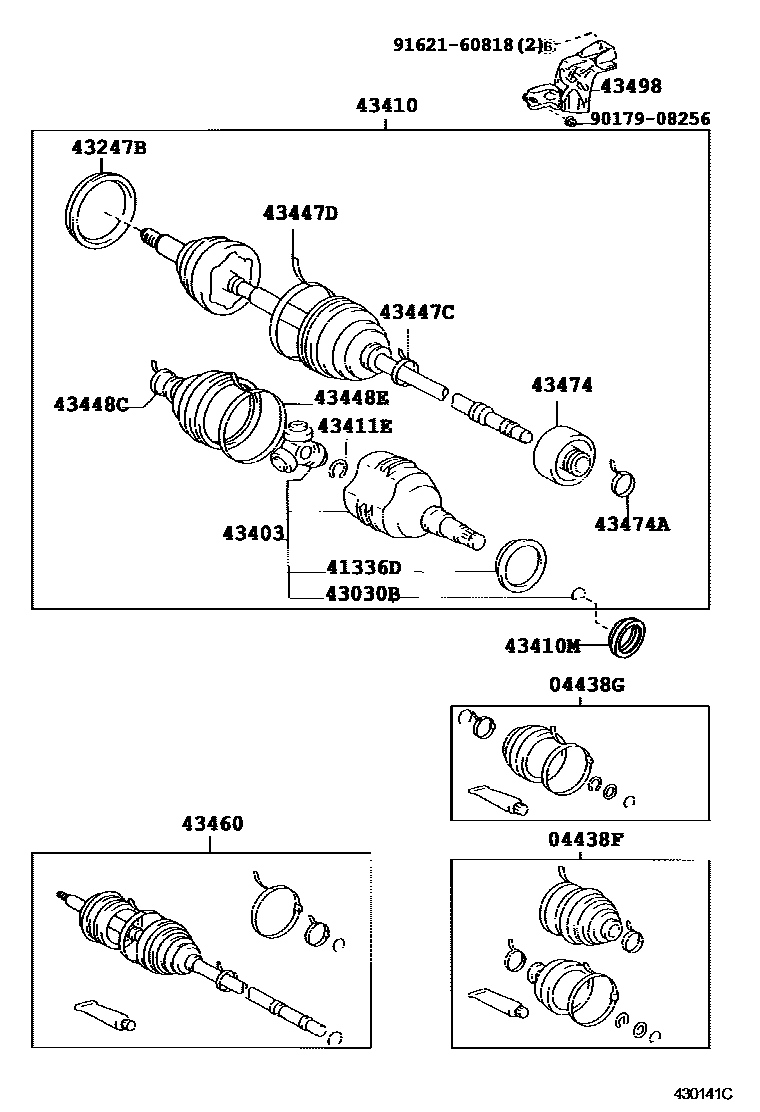

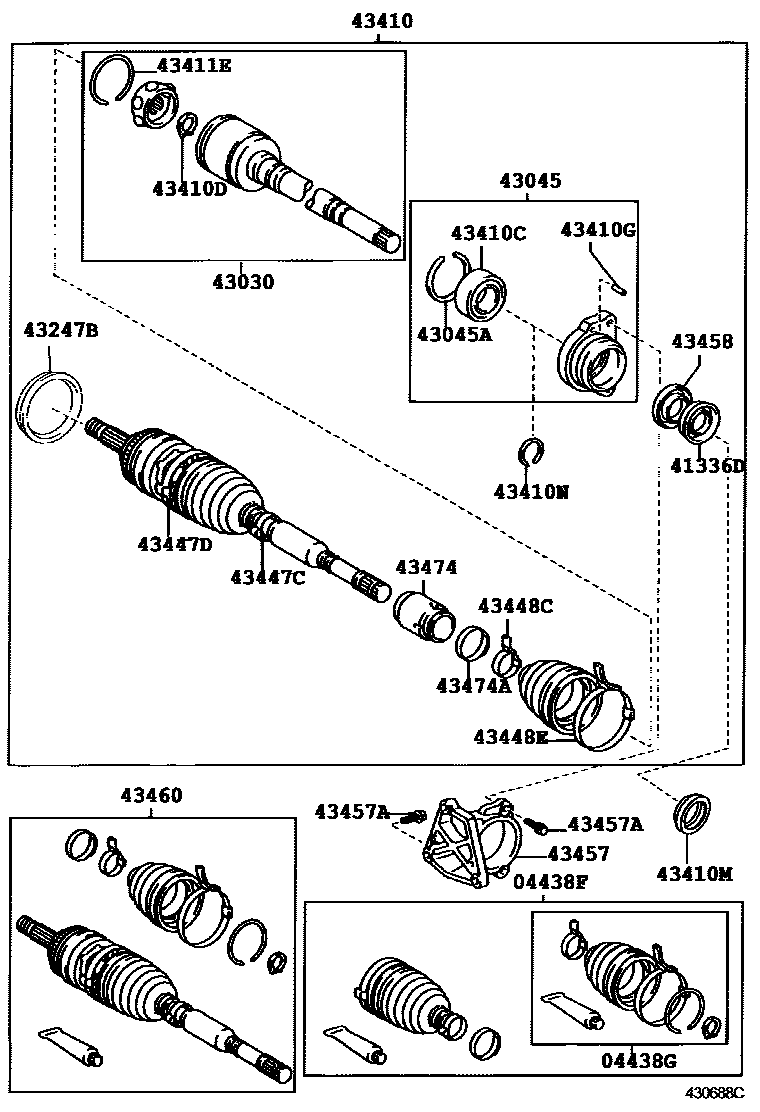

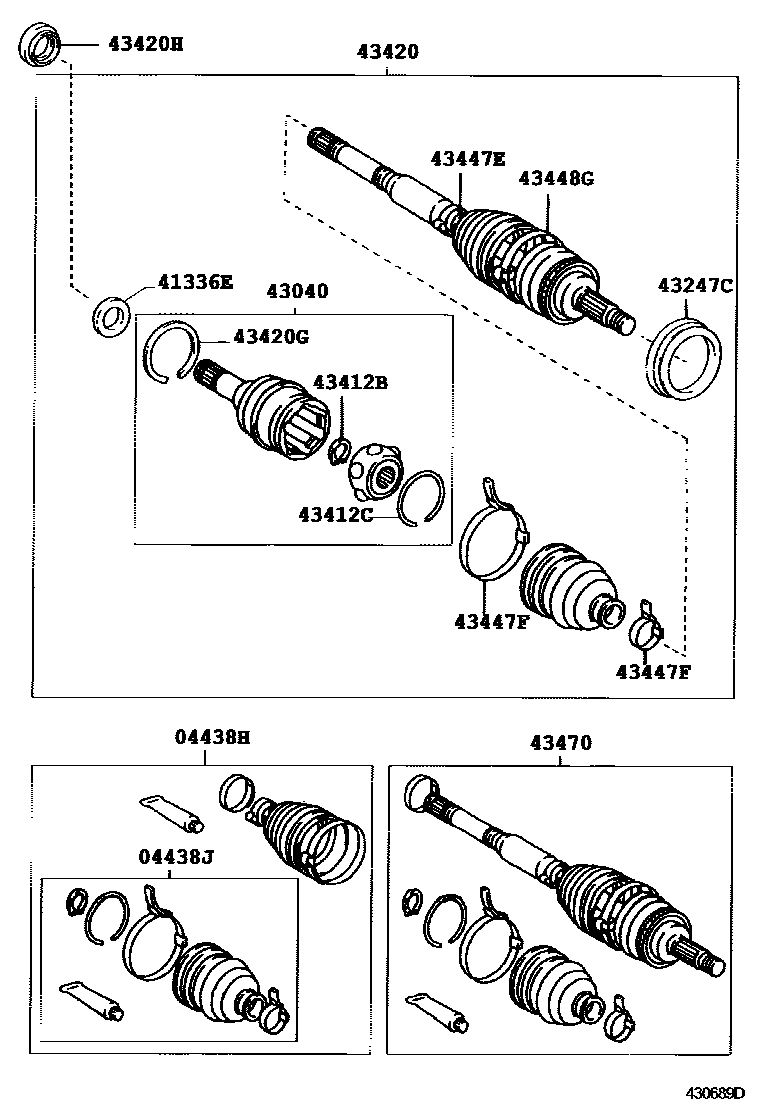

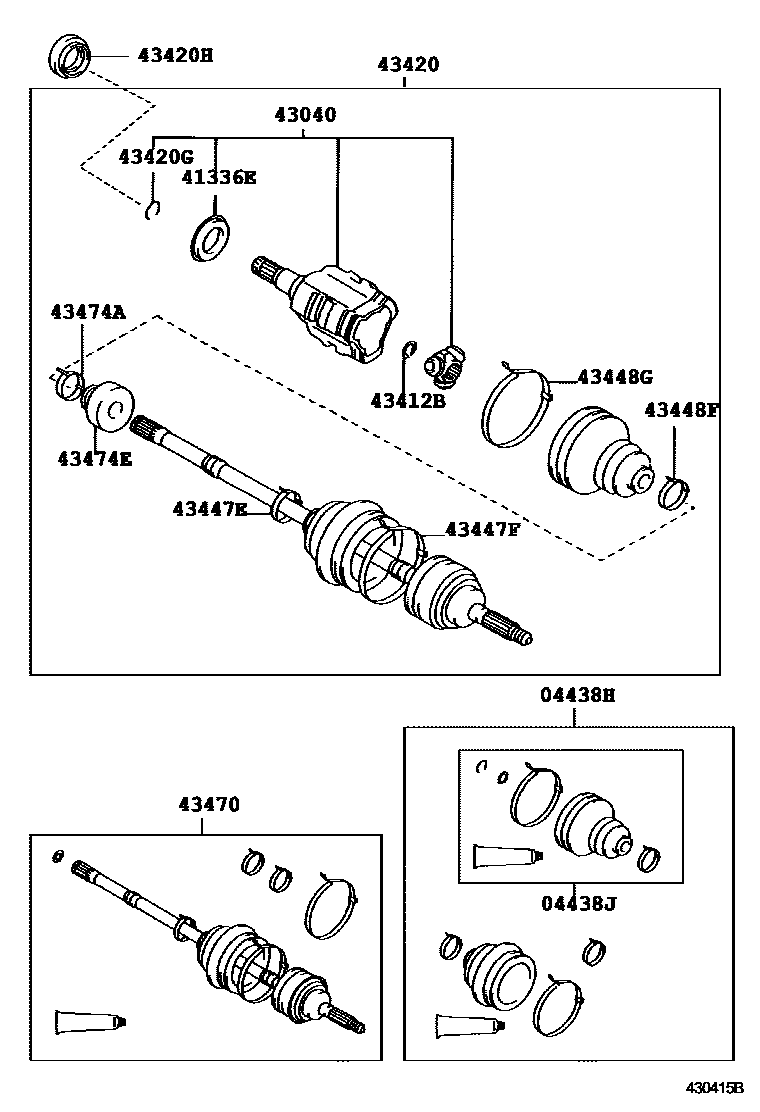

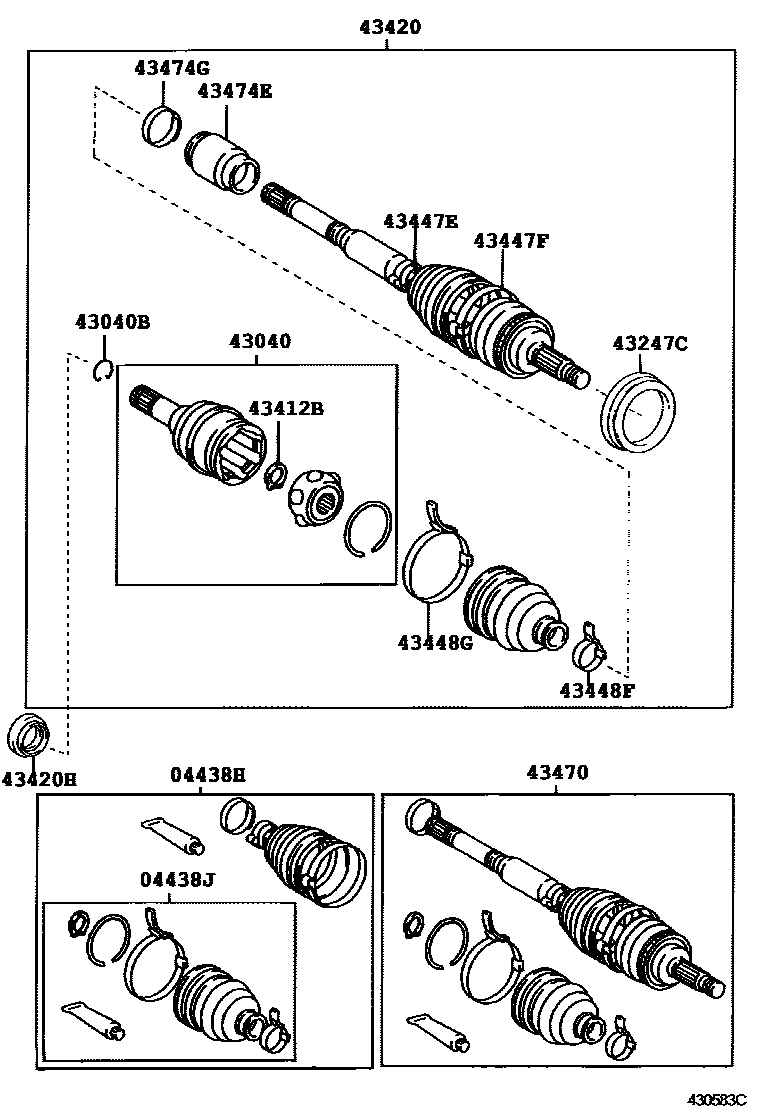

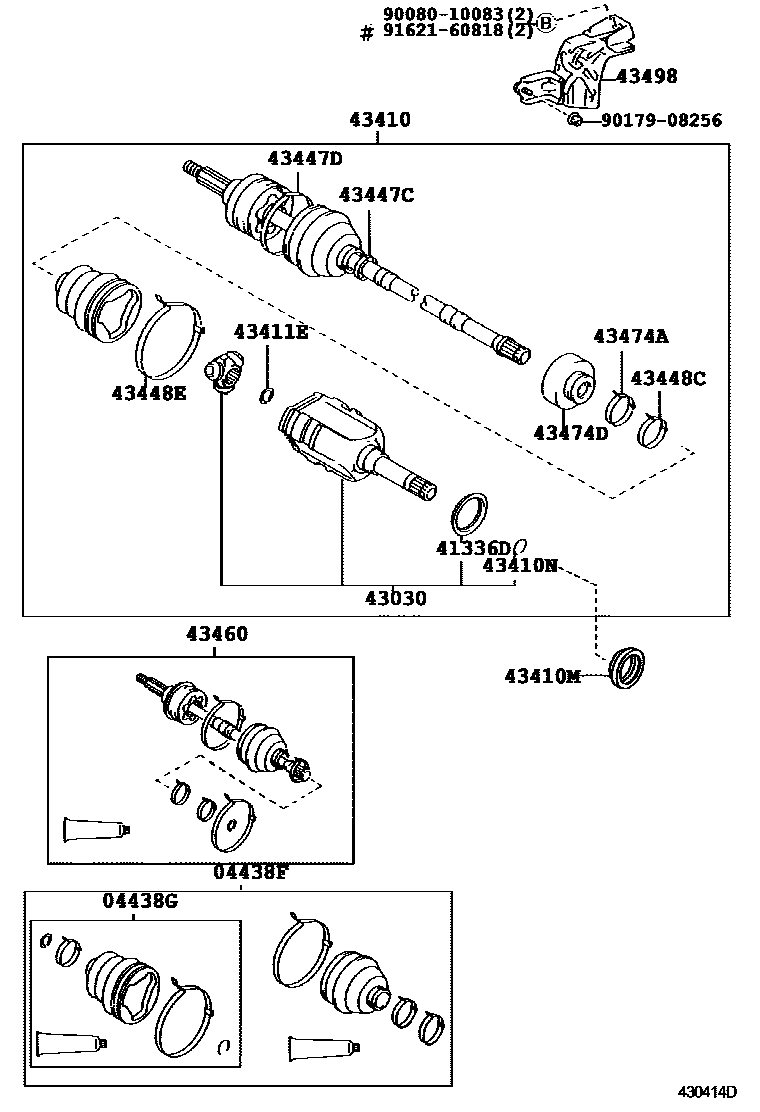

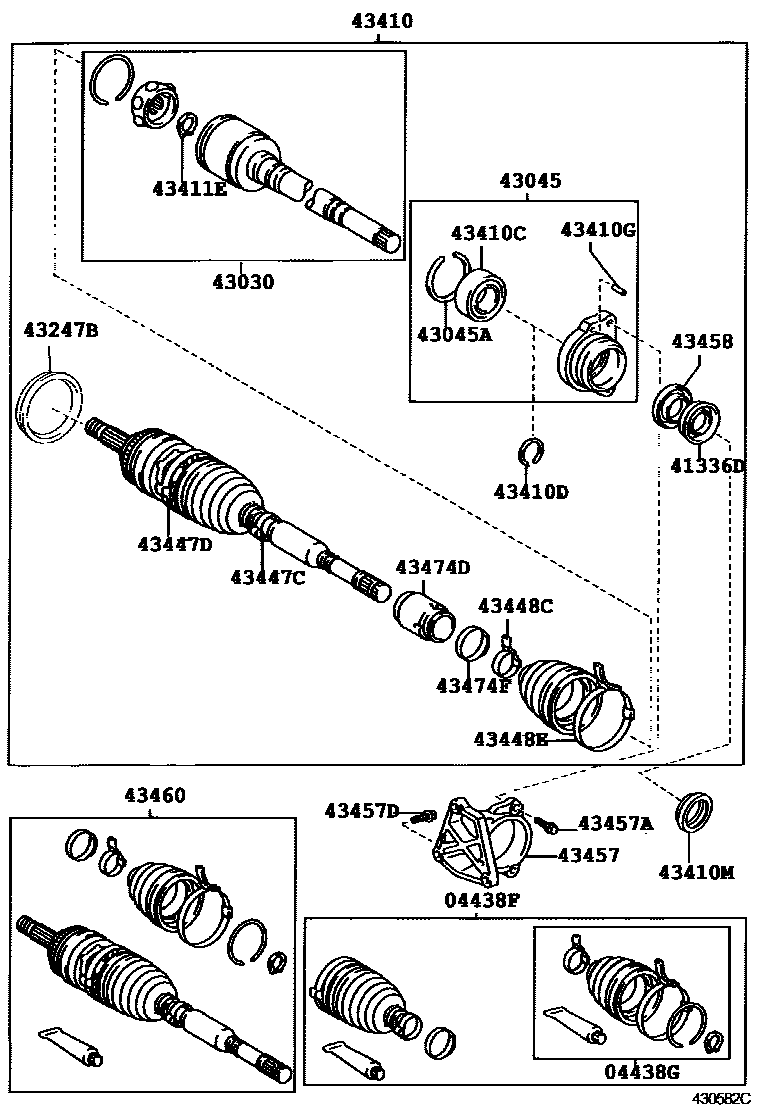

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 8 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-05060 · 04438-05140 · 04438-12172 · 04438-12290 · 04438-12440 · 04438-12520 · 04438-20131 · 04438-20132 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-05050 · 04438-05130 · 04438-12410 · 04438-12420 · 04438-12430 · 04438-12510 · 04438-20121 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-05060 · 04438-05140 · 04438-12172 · 04438-12290 · 04438-12440 · 04438-12520 · 04438-20131 · 04438-20132 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-05050 · 04438-05130 · 04438-12410 · 04438-12420 · 04438-12430 · 04438-12510 · 04438-20121 |
| 41336D | Right front driveshaft dust cover | 41336-05010 · 41336-12010 · 41336-12020 · 41336-12050 · 41336-32010 |
| 41336E | Left front driveshaft dust cover | 41336-05010 · 41336-12010 · 41336-28020 · 41336-32020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12050 · 43030-12100 · 43403-05030 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-12040 · 43040-12080 · 43403-05030 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-20010 · 43045-20050 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 · 96153-00680 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43030-20020 · 43403-12040 |
| 43403B | Left front axle inner universal joint assembly | 43040-20010 · 43040-32040 · 43403-12040 |
| 43410 | Right front driveshaft assembly | 43410-05190 · 43410-05200 · 43410-12350 · 43410-12351 · 43410-12352 · 43410-12440 · 43410-12450 · 43410-12460 · 43410-12470 · 43410-12570 · 43410-20341 · 43410-20342 · 43410-20343 · 43410-20440 · 43410-20441 · 43410-20450 · 43410-20451 |
| 43410C | Bearings (for front driveshaft) | 90363-36004 · 90363-41002 |
| 43410D | Shaft snap ring (for front drive shaft) | 90520-23056 · 90520-33008 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34012 · 90311-34016 · 90311-34023 · 90311-35033 · 90311-40025 · SU001-00426 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52056 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-12020 · 90080-52090 · 90520-22005 · 90520-71002 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-12020 · 90080-52090 · 90520-22005 · 90520-23056 |
| 43412C | Outer shaft snap ring (for left front axle inner drive shaft) | 90520-71002 |
| 43420 | Left front drive shaft assembly | 43420-02170 · 43420-02180 · 43420-05190 · 43420-05200 · 43420-12280 · 43420-12290 · 43420-12300 · 43420-12320 · 43420-12321 · 43420-12322 · 43420-12340 · 43420-12341 · 43420-12342 · 43420-12400 · 43420-12500 · 43420-20111 · 43420-20112 · 43420-20281 · 43420-20282 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52056 · 90521-33002 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34012 · 90311-34013 · 90311-34017 · 90311-34022 · 90311-34026 · 90311-34028 · 90311-35033 · 90311-50024 · SU001-00425 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-05050 · 42345-16010 · 42345-16030 · 42345-22030 · 90949-01078 · 90949-01A65 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-05060 · 42345-12010 · 42345-16020 · 42345-16040 · 42345-20120 · 42345-20130 · 90949-01080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-05050 · 42345-16010 · 42345-16030 · 42345-20100 · 42345-22030 · 90949-01078 · 90949-01A65 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-05060 · 42345-12010 · 42345-16020 · 42345-16040 · 42345-20120 · 42345-20130 · 90949-01080 · 90949-01108 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-05010 · 90949-01078 · 90949-01108 · 90949-01804 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-05020 · 42346-12010 · 42346-22010 · 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-05010 · 90949-01078 · 90949-01804 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-05020 · 42346-12010 · 42346-22010 · 90949-01076 |
| 43457 | drive shaft bearing bracket | 43457-12040 · 43457-20070 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10285 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90080-10235 |
| 43458 | Front drive shaft dust cover | 43458-12010 · 43458-20011 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09260 · 43460-09270 · 43460-19655 · 43460-19656 · 43460-19657 · 43460-19658 · 43460-19815 · 43460-29098 · 43460-29099 · 43460-29147 · 43460-29148 · 43460-29149 · 43460-29150 · 43460-29167 · 43460-29168 · 43470-19875 · 43470-19885 · 43470-19895 · 43470-80001 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09430 · 43470-09440 · 43470-09550 · 43470-09560 · 43470-19875 · 43470-19885 · 43470-19895 · 43470-29107 · 43470-29108 · 43470-29237 · 43470-29238 · 43470-29345 · 43470-29346 · 43470-29347 · 43470-29348 · 43470-29355 · 43470-29358 · 43470-80001 · 43470-80005 |
| 43474 | drive shaft damper | 43474-12020 · 43474-12040 · 43474-12110 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-05110 · 42345-14010 · 90080-46119 · 90949-01078 |
| 43474D | Right front driveshaft shock absorber | 43474-12060 · 43474-12070 |
| 43474E | Left front driveshaft shock absorber | 43474-12060 · 43474-12080 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-12020 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-12020 |
| 43498 | Driveshaft insulation pad | 43409-12050 |
