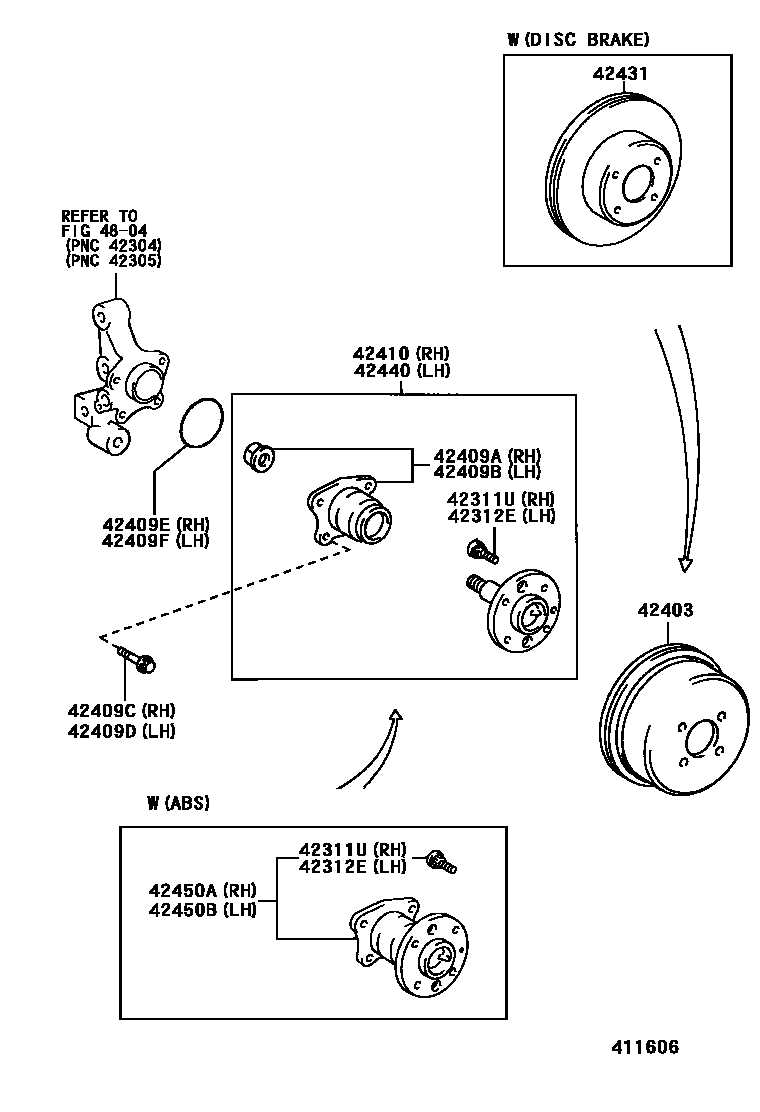

Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102
Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02047 · 90942-02049 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 · 90942-02049 |
| 42403 | Rear brake drum sub-assembly | 42431-02030 · 42431-12180 · 42431-20250 |
| 42409A | Rear axle right bearing sub-assembly | 42409-19015 |
| 42409B | Rear axle left bearing sub-assembly | 42409-19015 |
| 42409C | Bolt (for rear axle right bearing) | 90105-10404 |
| 42409D | Bolt (for rear axle left bearing) | 90105-10404 |
| 42409E | O-ring (for rear axle right bearing) | 90301-61002 |
| 42409F | O-ring (for rear axle left bearing) | 90301-61002 |
| 42410 | Rear axle right hub and bearing assembly | 42410-02040 · 42410-12090 |
| 42431 | rear brake disc | 42431-12150 · 42431-12190 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-02040 · 42410-12090 |
| 42450A | Rear axle right hub and bearing assembly | 42450-02030 · 42450-02040 · 42450-02050 · 42450-12030 · 42450-12040 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-02030 · 42450-02040 · 42450-02050 · 42450-12030 · 42450-12040 |
