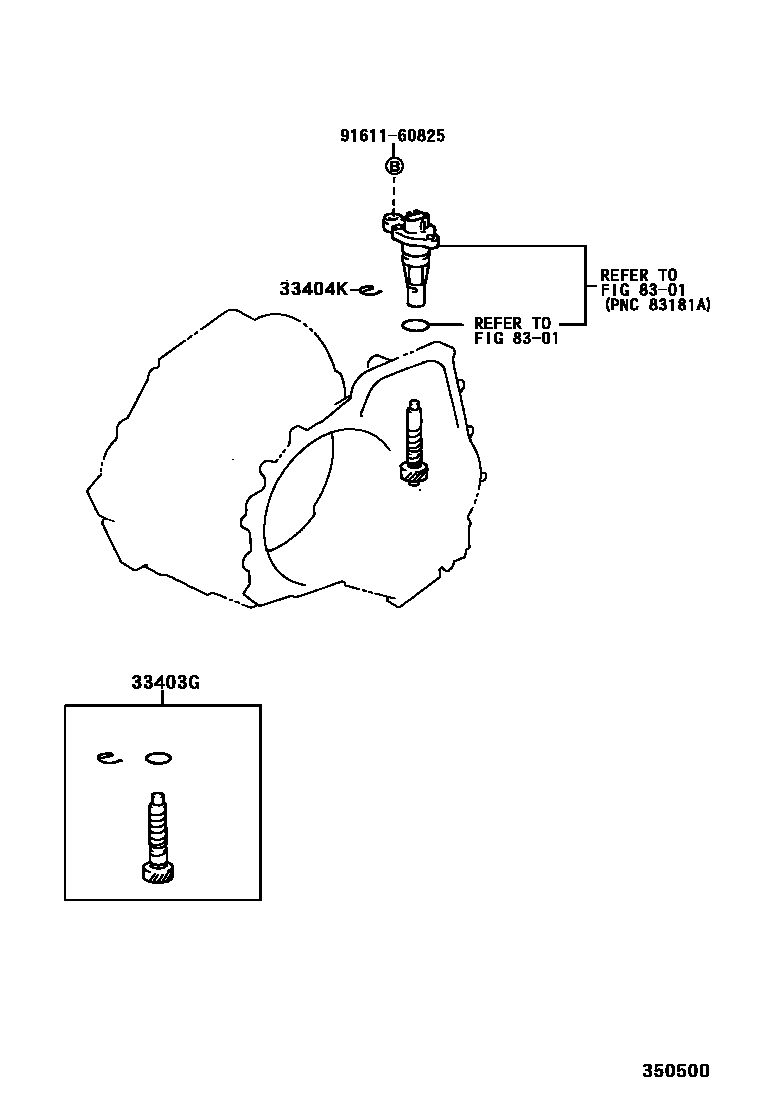

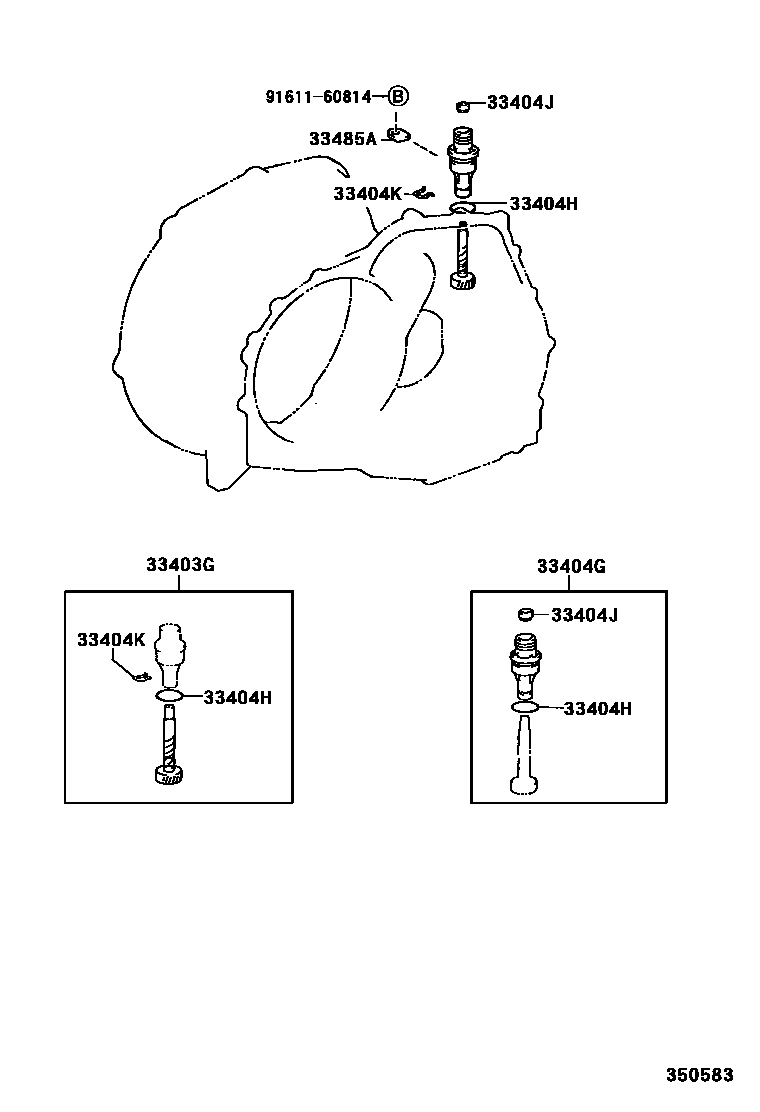

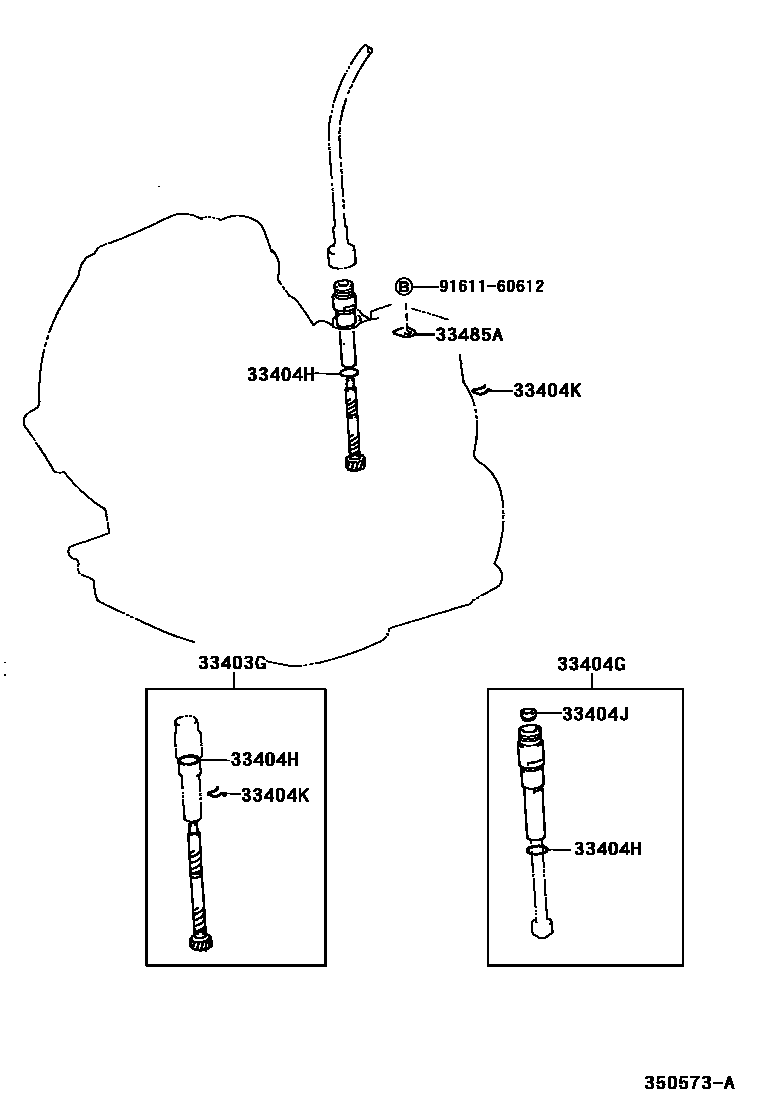

Toyota COROLLA 速度表从动齿轮(ATM) — Figure 3505
Toyota COROLLA EPC diagram 3505, 速度表从动齿轮(ATM), with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403G | Speedometer driven gear sub-assembly (ATM) | 33403-19285 · 33403-19295 · 33403-19305 · 33403-19455 · 33403-19465 · 33403-19515 |
| 33404G | Speedometer shaft sleeve sub-assembly (ATM) | 33404-12030 · 33404-32010 |
| 33404H | O-ring (for automatic transmission speedometer shaft sleeve) | 96711-24018 · 96711-24030 |
| 33404J | Oil seal (for automatic transmission speedometer shaft sleeve) | 90310-09001 |
| 33404K | Clamp (for automatic transmission speedometer shaft sleeve) | 90468-12005 |
| 33485A | Speedometer sleeve locking plate (ATM) | 33485-14010 · 33485-30020 |
