Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501

Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 2 PNC and OE references.

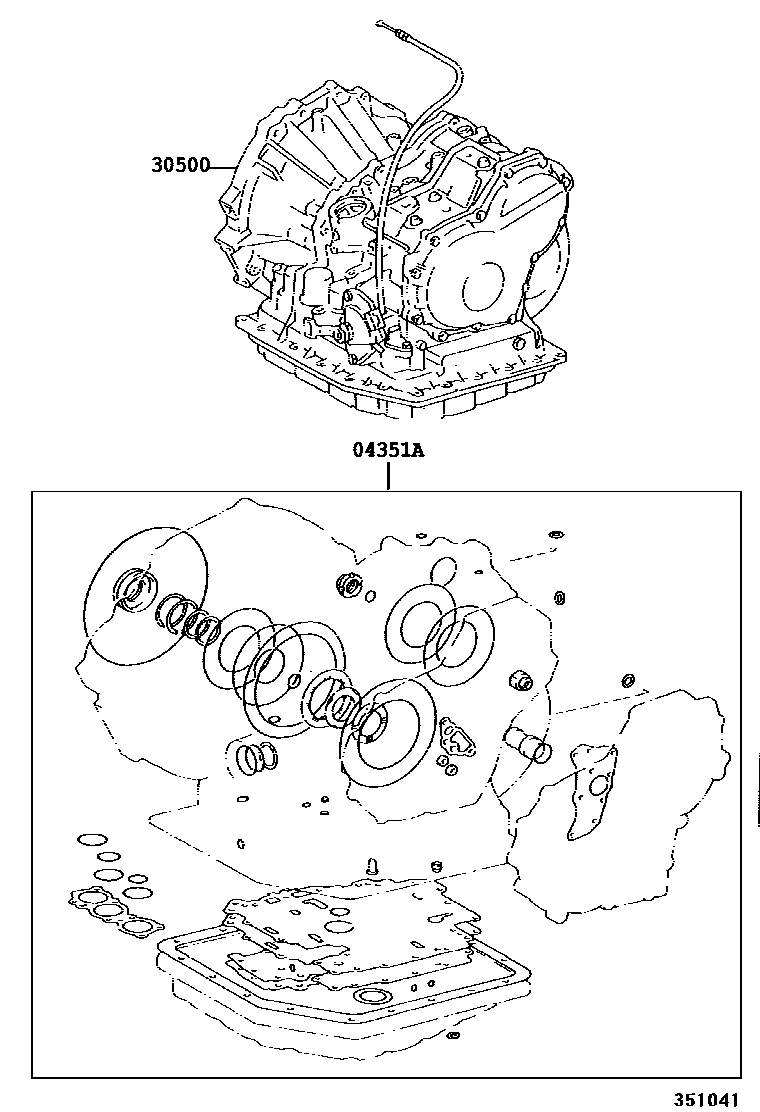

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 351041
传动桥或变速器总成和衬垫组件(ATM) — 351041 (199910 – 999999)

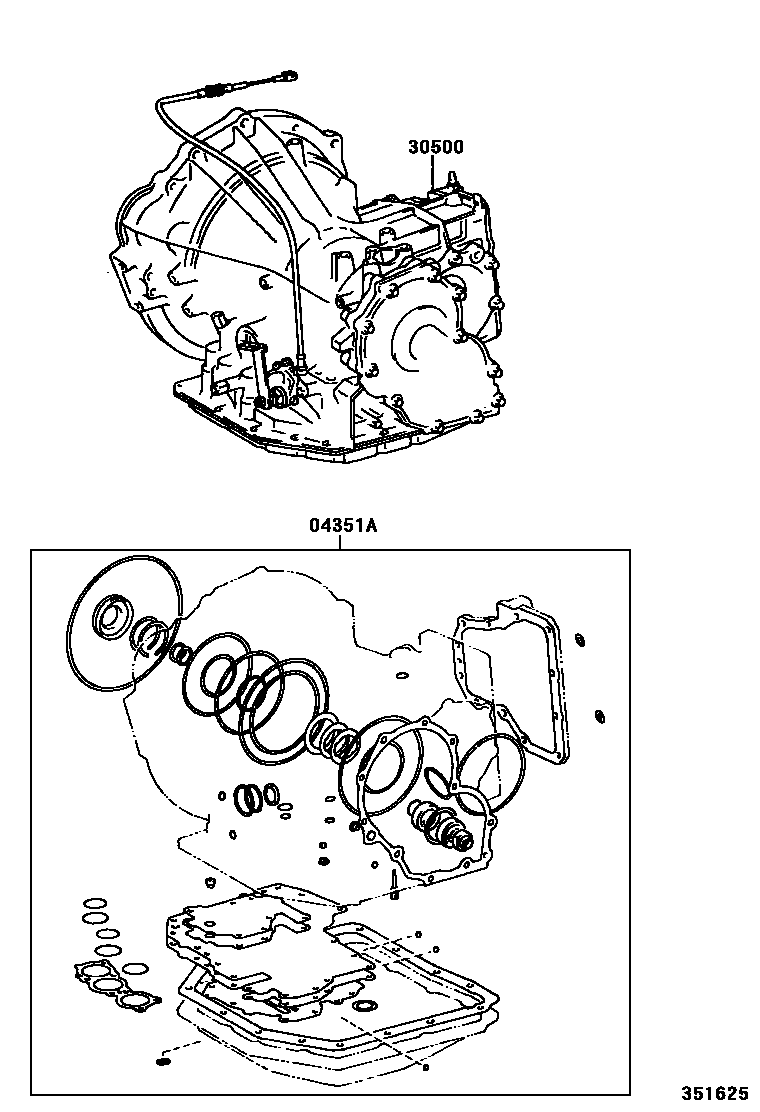

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — 351625
传动桥或变速器总成和衬垫组件(ATM) — 351625 (199704 – 199911)

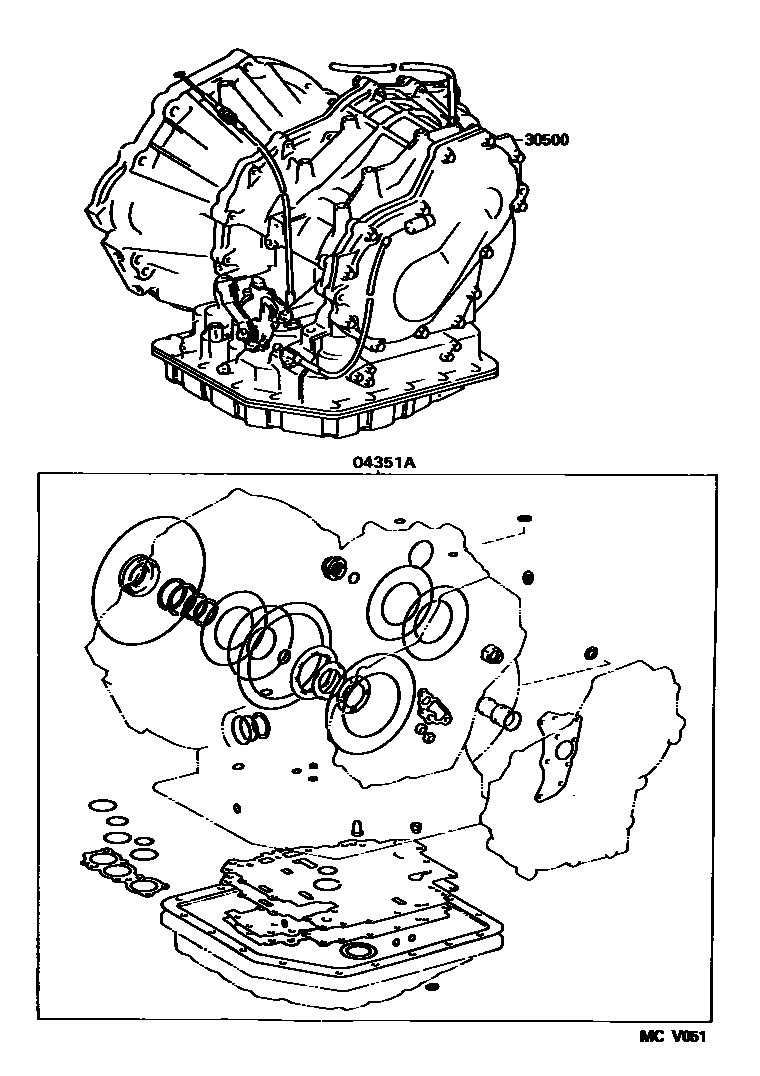

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) EPC diagram — MCV051
传动桥或变速器总成和衬垫组件(ATM) — MCV051 (199704 – 199911)

PNC and OE references

PNCPart nameOE numbers
04351ATransaxle overhaul gasket assembly (ATM)04351-12110 · 04351-12150 · 04351-12151 · 04351-12170 · 04351-16070
30500Automatic transmission axle assembly30500-1A430 · 30500-1A560 · 30500-1A650
