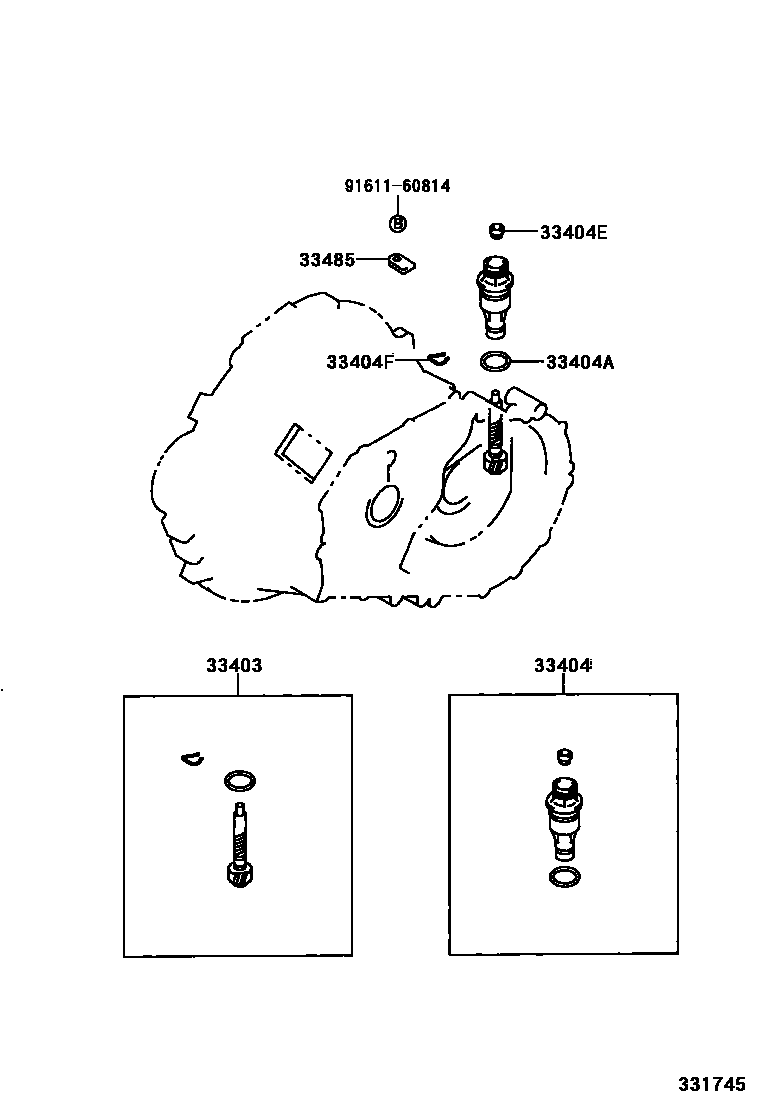

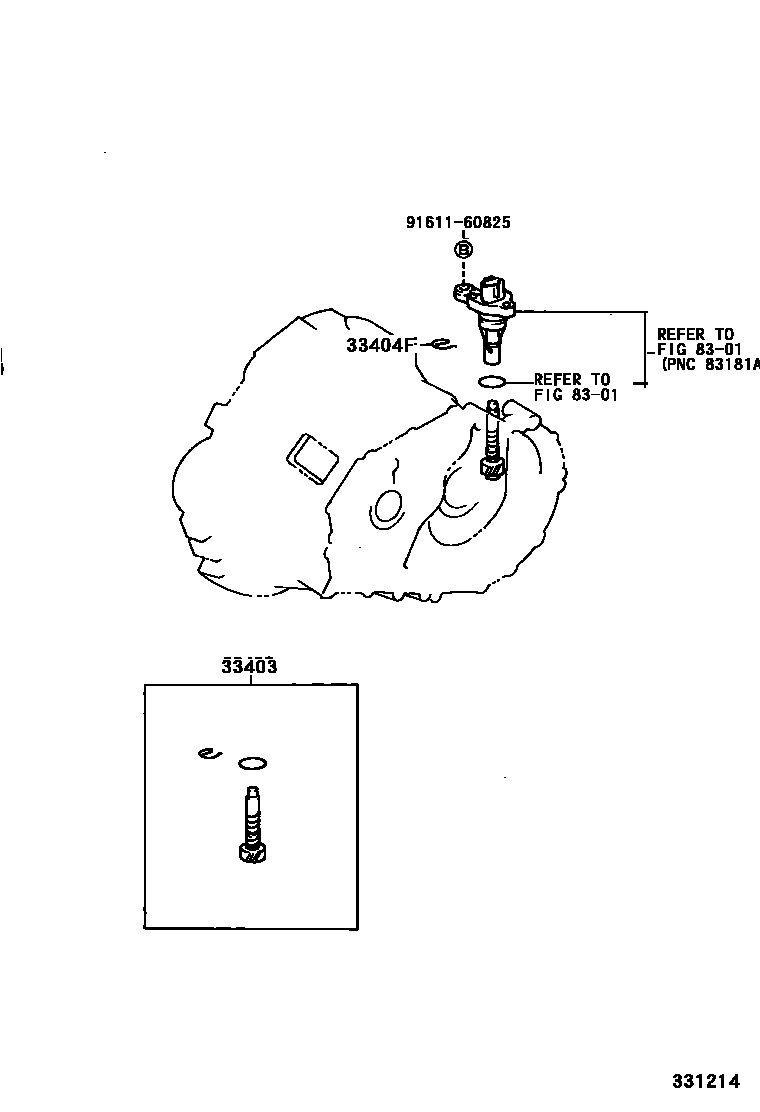

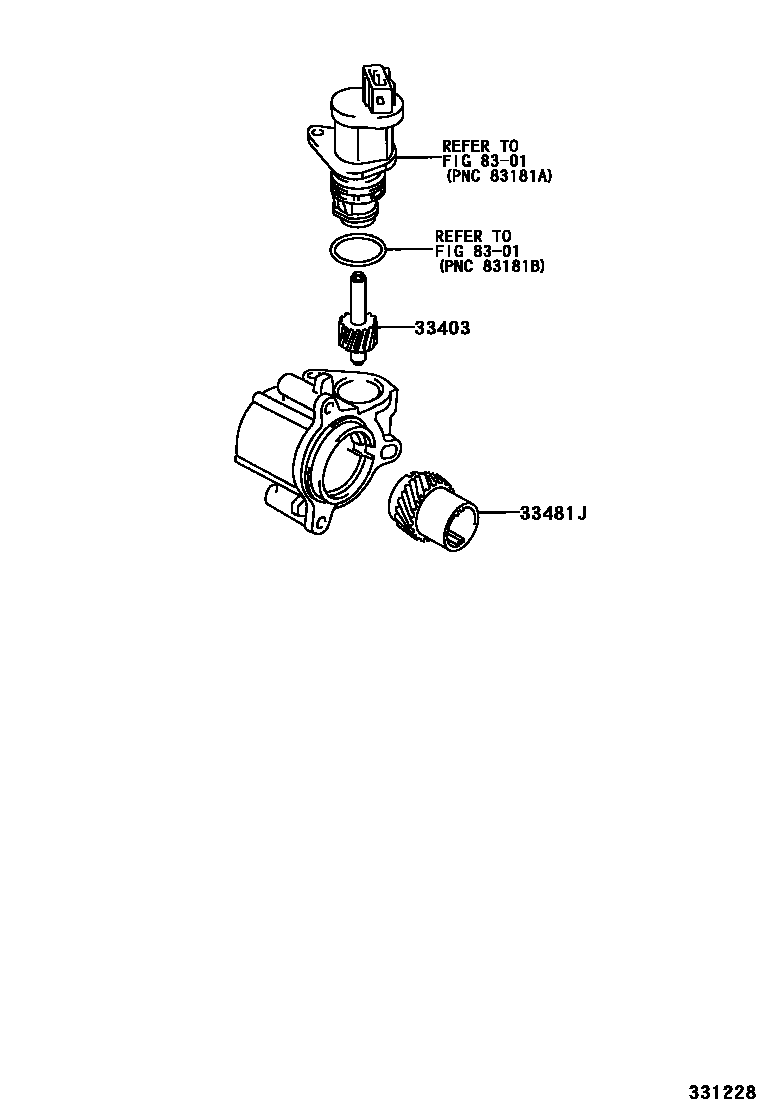

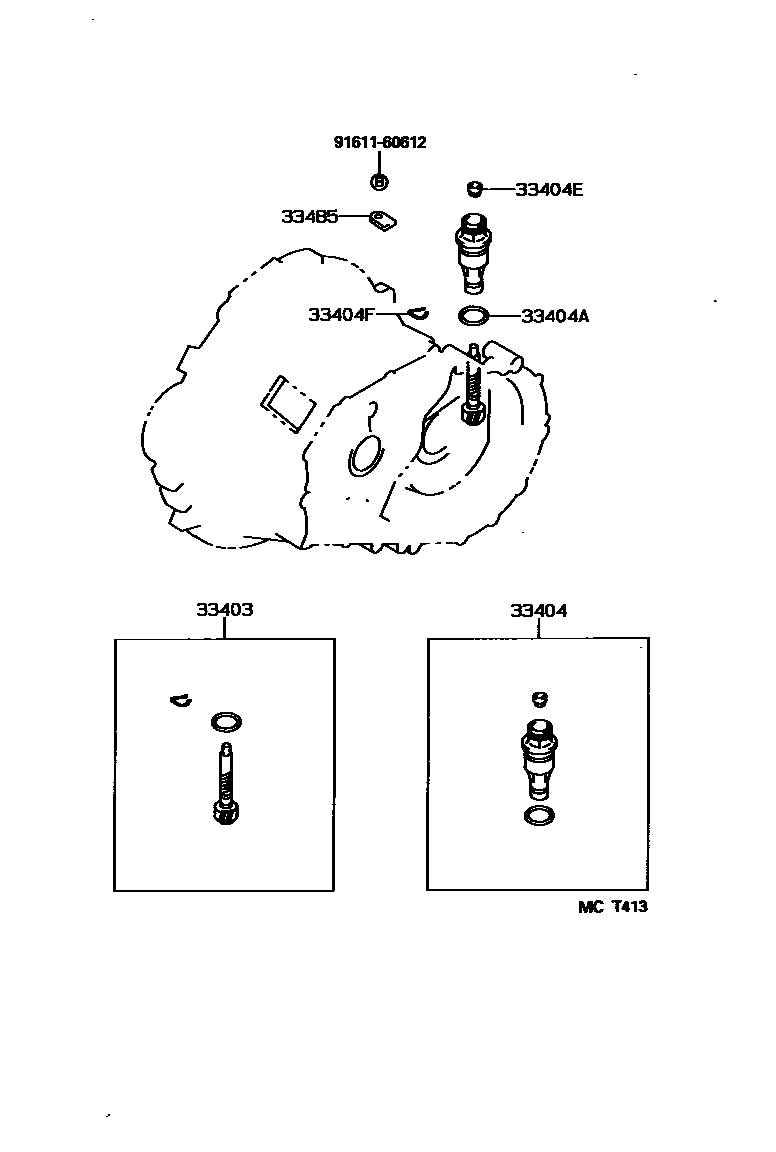

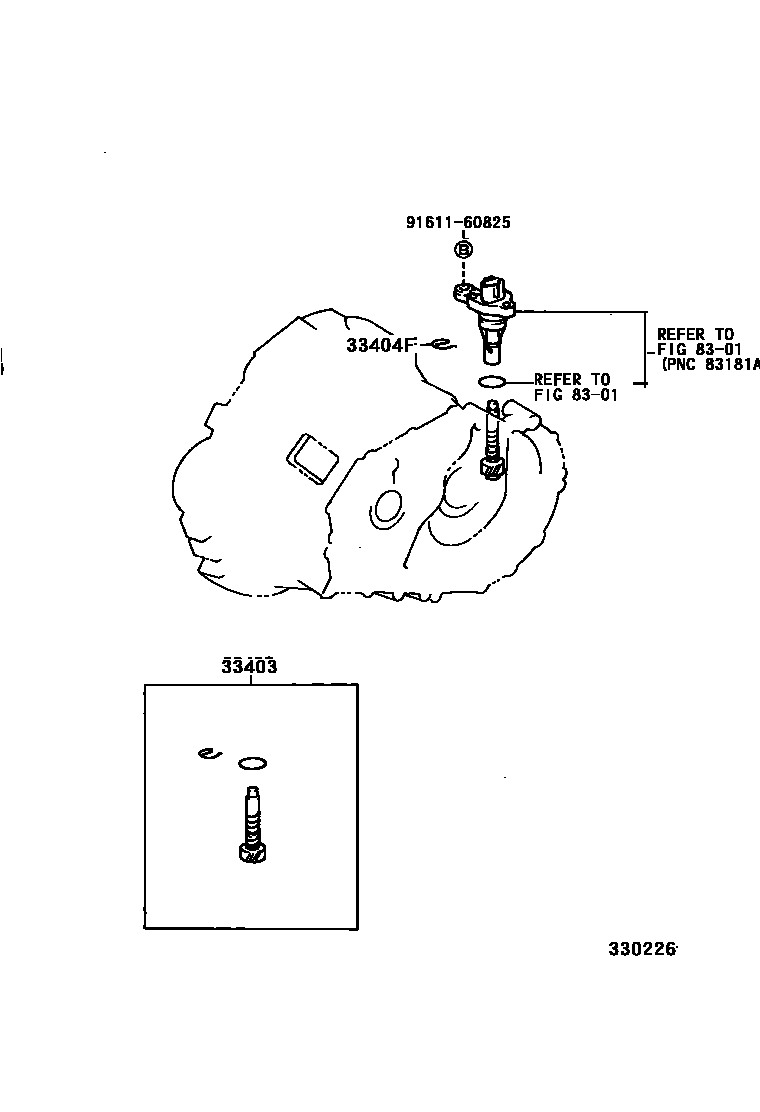

Toyota COROLLA 速度表从动齿轮(MTM) — Figure 3304
Toyota COROLLA EPC diagram 3304, 速度表从动齿轮(MTM), with 6 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403 | Speedometer driven gear sub-assembly (MTM) | 33403-02010 · 33403-19285 · 33403-19295 · 33403-19385 · 33403-19445 · 33403-19455 · 33403-19465 · 33403-19615 · 33403-39115 |
| 33404 | Speedometer shaft sleeve sub-assembly (MTM) | 33404-12030 · 33404-16010 |
| 33404A | O-ring (for manual transmission speedometer shaft sleeve) | 96711-24018 · 96711-24030 |
| 33404E | Oil seal (for manual transmission speedometer shaft sleeve) | 90310-09001 |
| 33404F | Clamp (for manual transmission speedometer shaft sleeve) | 90468-12005 |
| 33481J | Speedometer driving gear (MTM) | SU001-00415 |
| 33485 | Speedometer sleeve locking plate (MTM) | 33485-14010 · 33485-30020 |
