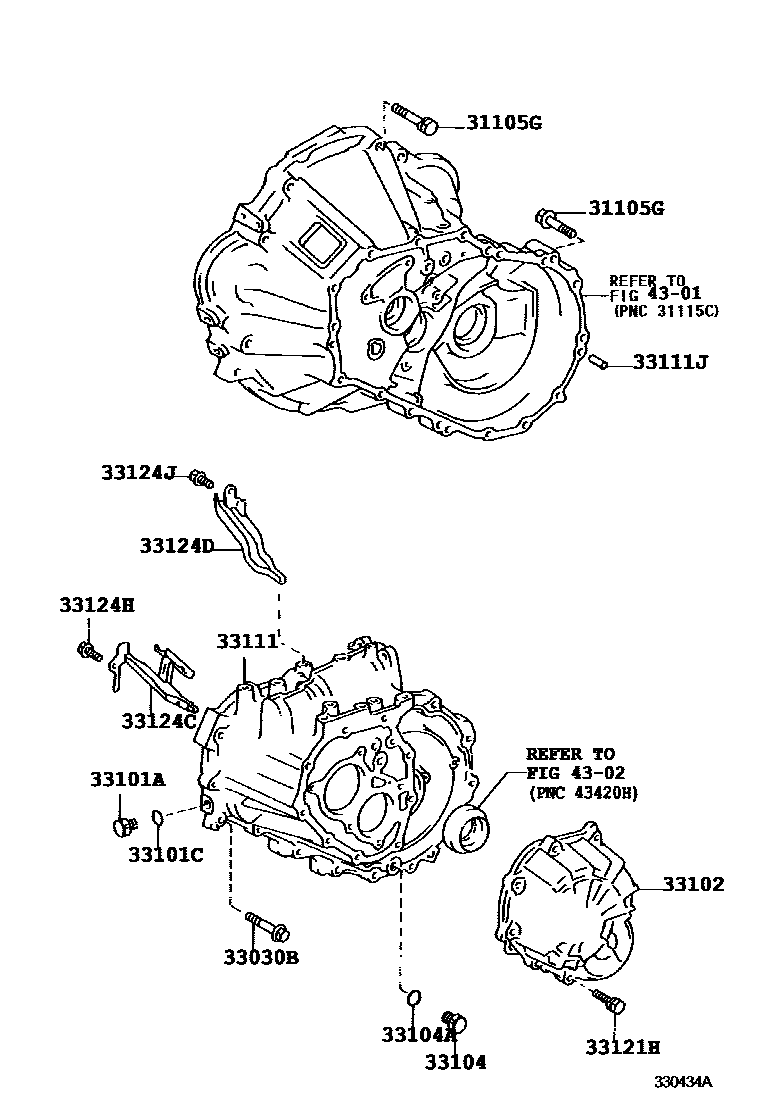

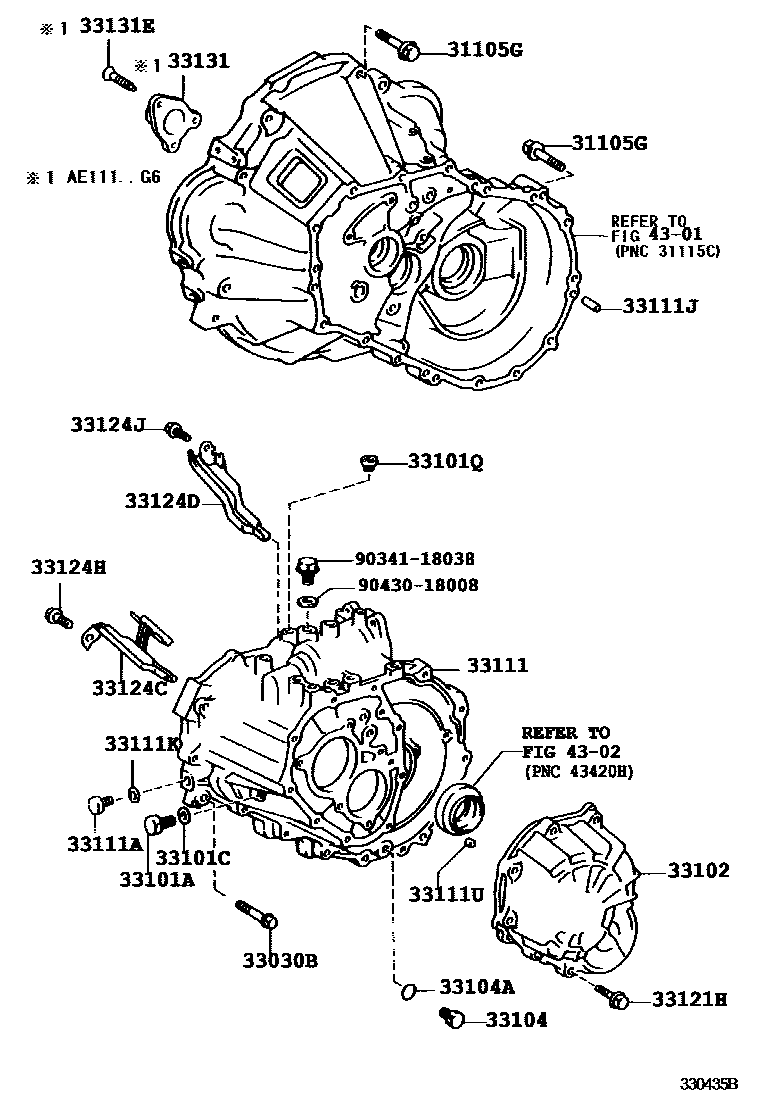

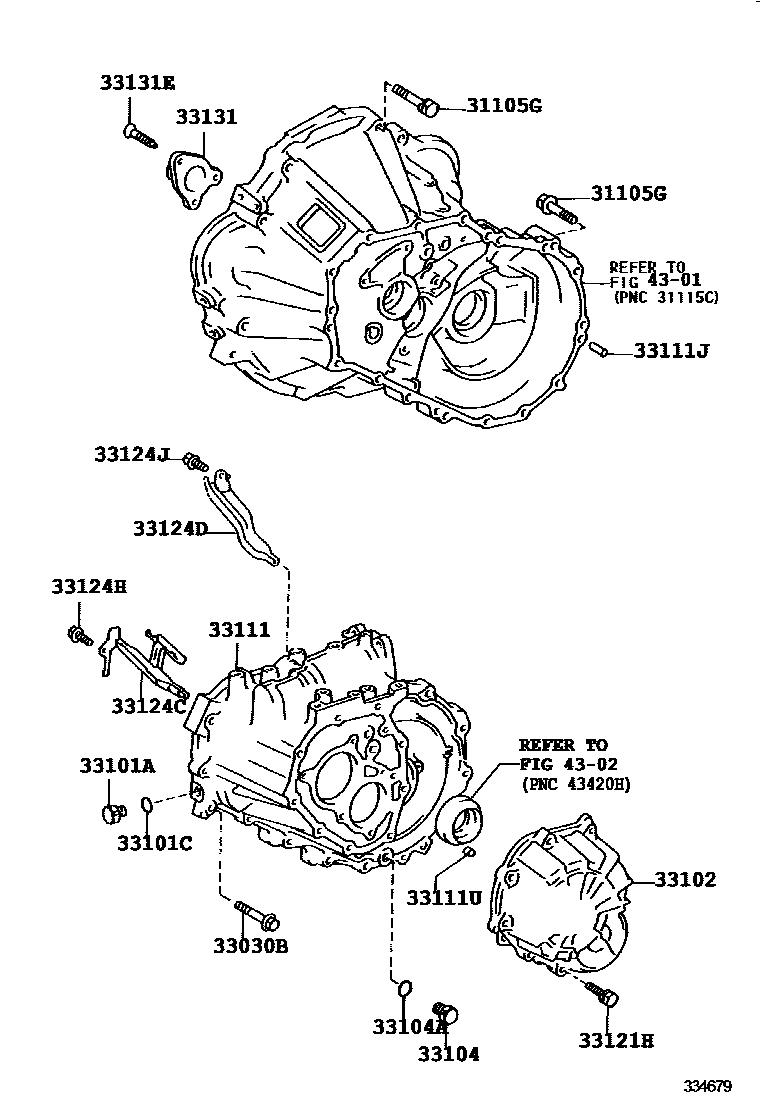

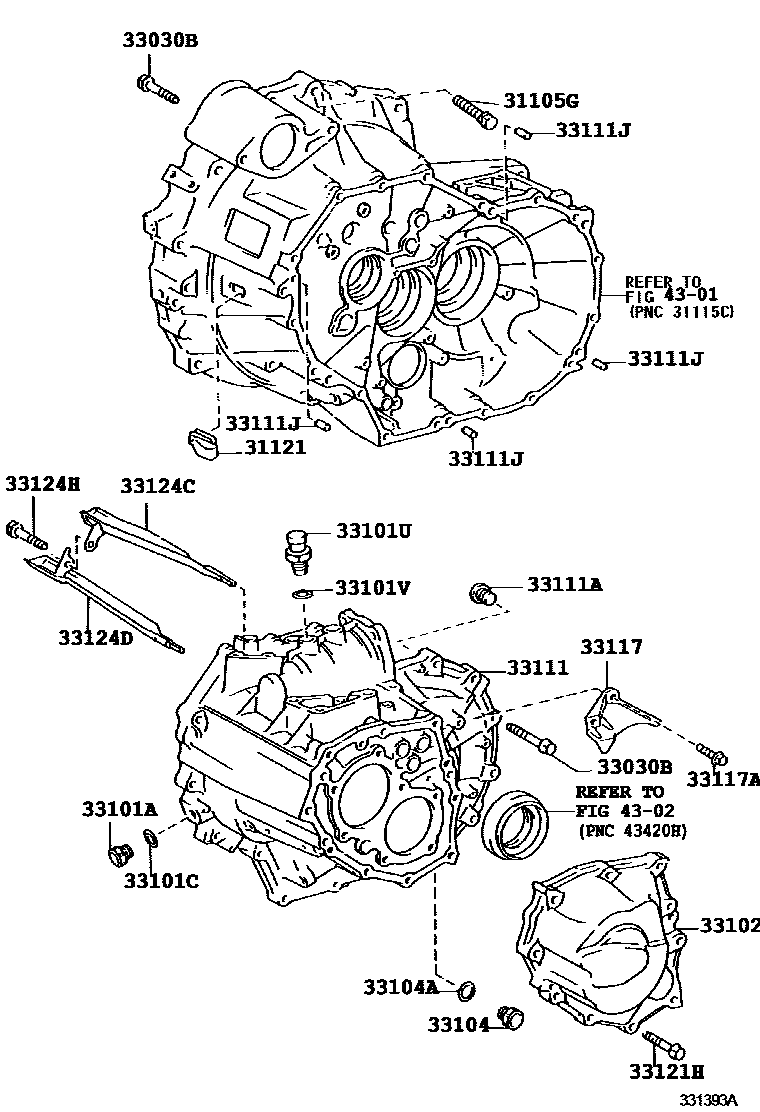

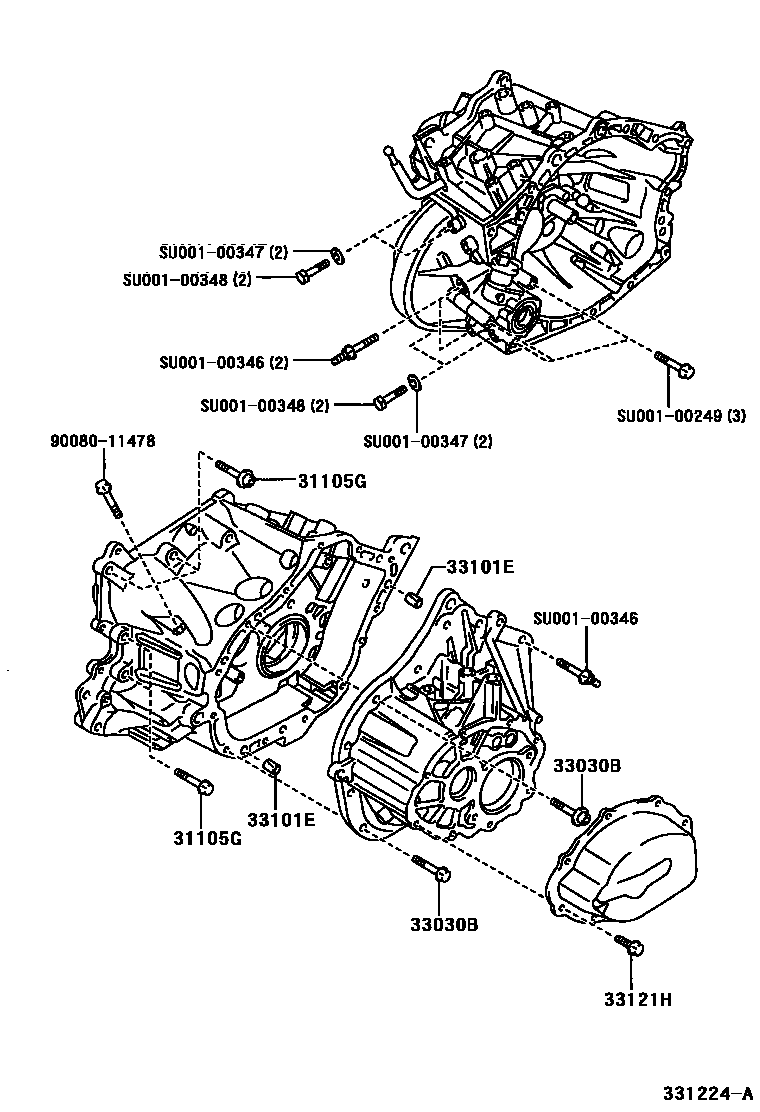

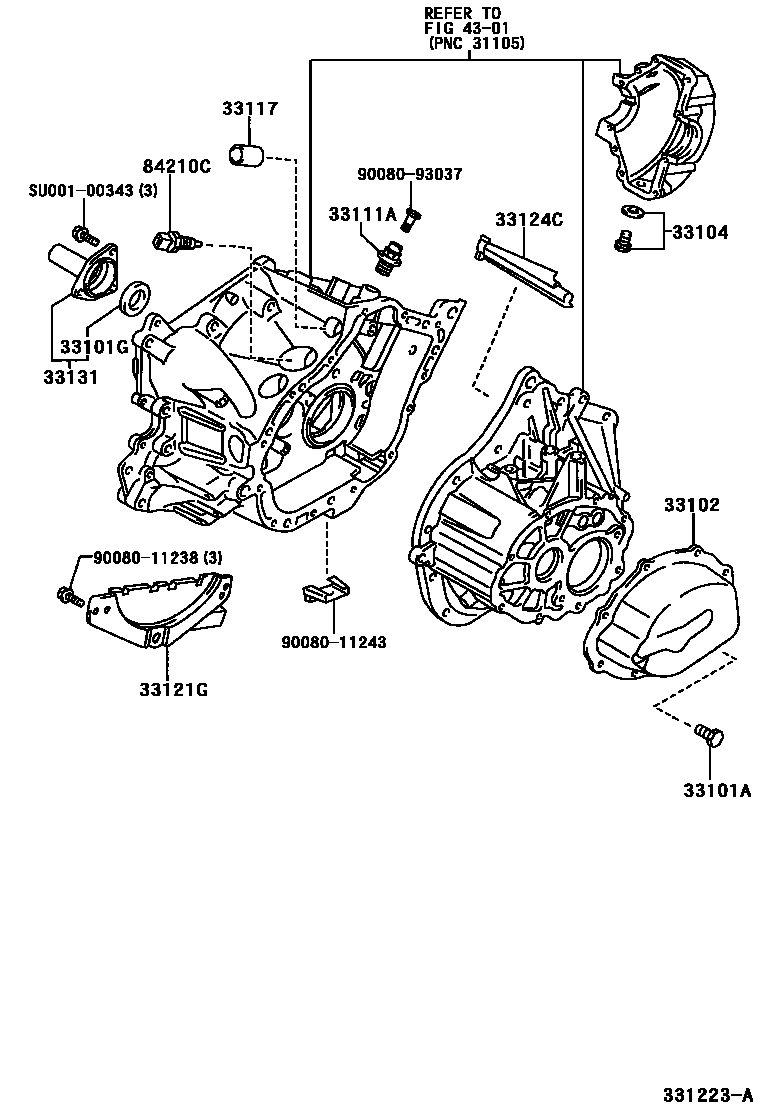

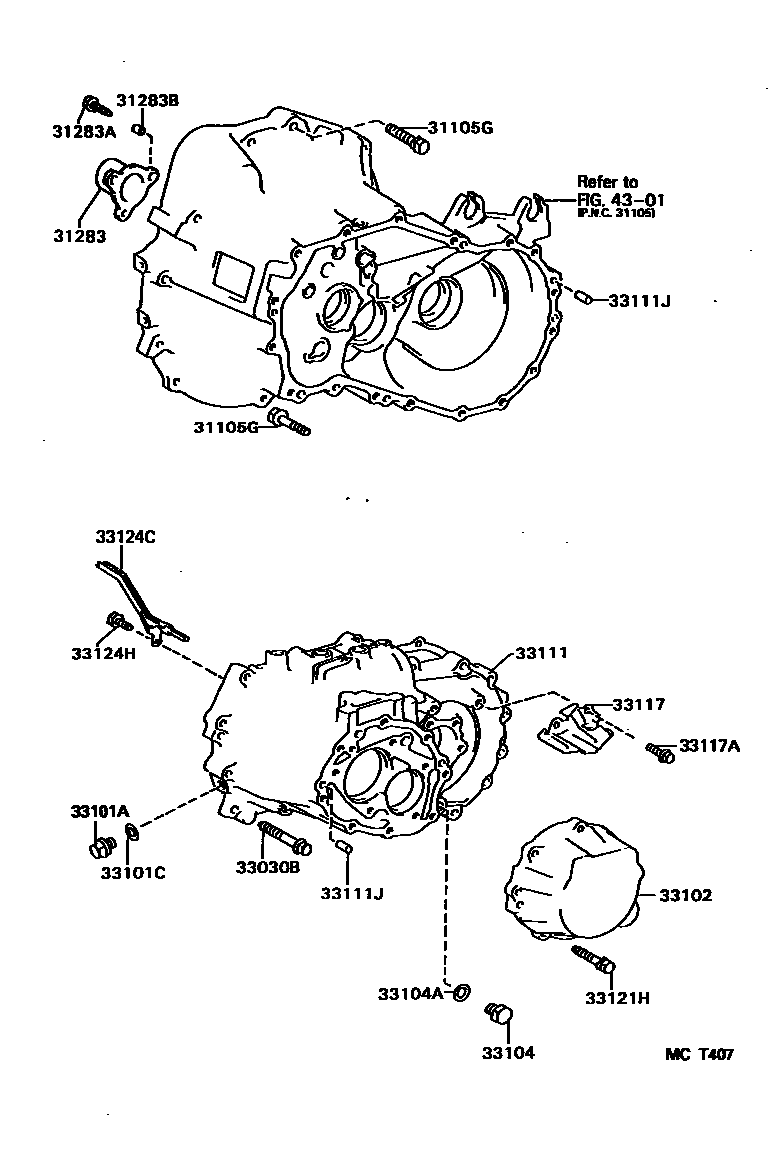

Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302
Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 7 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90080-11184 · 90080-11239 · 90105-08040 · 90105-10077 · 90105-10097 · 90119-12042 · 90119-12168 · 91619-61255 · 91619-61260 · 91621-60614 · 91642-81055 · 91651-41022 |
| 31121 | No. 1 clutch housing cover | 31121-20010 |
| 31283 | Clutch release bearing hub retaining ring | 31283-32010 |
| 31283A | Bolt (for clutch release bearing hub retaining ring) | 90105-06023 |
| 31283B | Ring pin (for clutch release bearing hub retaining ring) | 90253-08002 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08042 · 90105-08064 · 90105-08086 · 90105-08126 · SU001-00356 · SU001-00357 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 · 90341-18033 · 90341-18038 · SU001-00253 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33101E | Direct sales (for gearbox) | SU001-00359 |
| 33101G | Oil seal (for front input shaft) | SU001-00208 |
| 33101Q | No. 1 screw plug (for gearbox) | 90341-14008 |
| 33101U | Breather plug (for manual transmission) | 90930-03148 |
| 33101V | Gasket (for manual transmission breather plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-10023 · 33102-12021 · 33102-12041 · 33102-12050 · 33102-20050 · 33102-33020 · SU001-00027 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · SU001-00280 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-28040 · 33101-28041 · 33111-12220 · 33111-16052 · 33111-16053 · 33111-16062 · 33111-16063 · 33111-28050 · 33111-32030 |
| 33111A | Manual transmission plug | 90080-93036 · 90341-12004 · 90341-18023 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111K | Gasket (for gearbox) | 90430-18008 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33117 | manual transmission protector | 33107-12030 · 33117-32011 · SU001-00241 |
| 33117A | Bolts (for manual transmission guard) | 90105-08040 |
| 33121G | manual gearbox cover | 33121-02010 |
| 33121H | Bolt with washer (for gearbox cover) | 90105-08273 · 90119-08630 · 90119-08A34 · 91611-60835 · SU001-00343 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-10012 · 33124-12012 · 33124-20050 · 33124-28050 · 33124-33010 · SU001-00342 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-10021 · 33124-12021 · 33124-12050 · 33124-28060 |
| 33124H | Bolt (for oil collection pipe) | 90119-08648 · 91611-60820 · 91651-60618 |
| 33124J | Bolts with washers | 91611-60820 |
| 33131 | Front bearing retainer (MTM) | 33131-12080 · SU001-00183 |
| 33131E | Screw (for front bearing retainer) | 90149-60028 |
| 84210C | Reversing light switch assembly | SU001-00467 |
