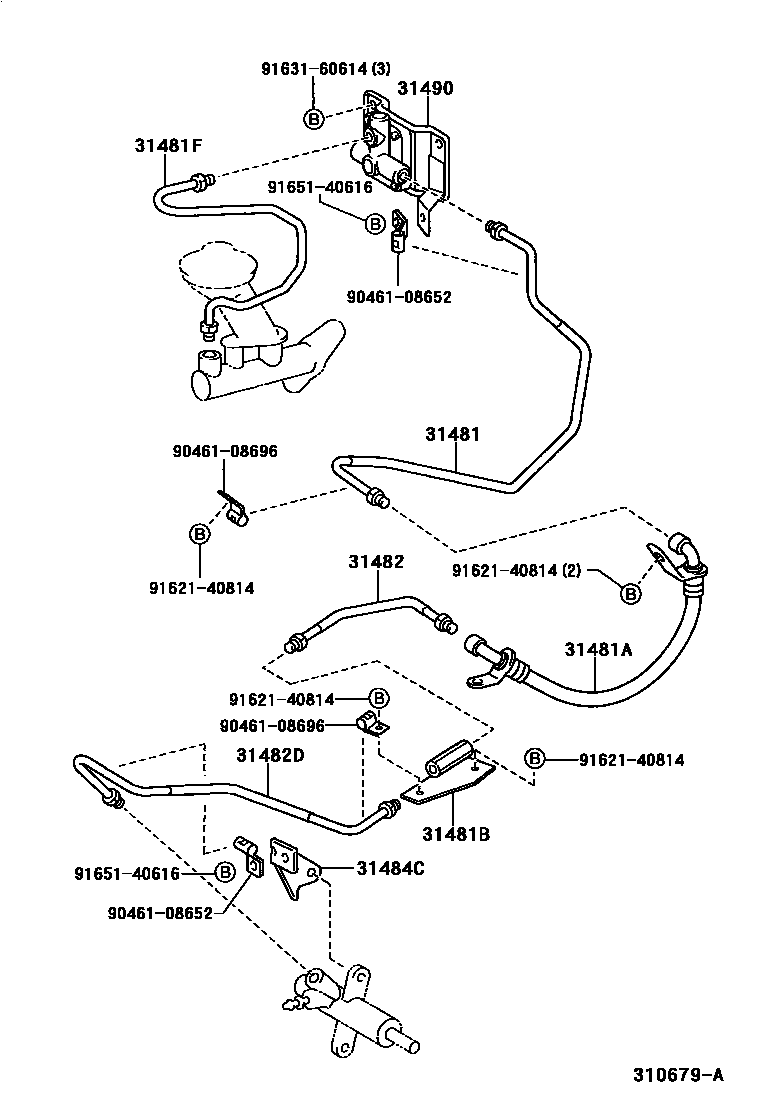

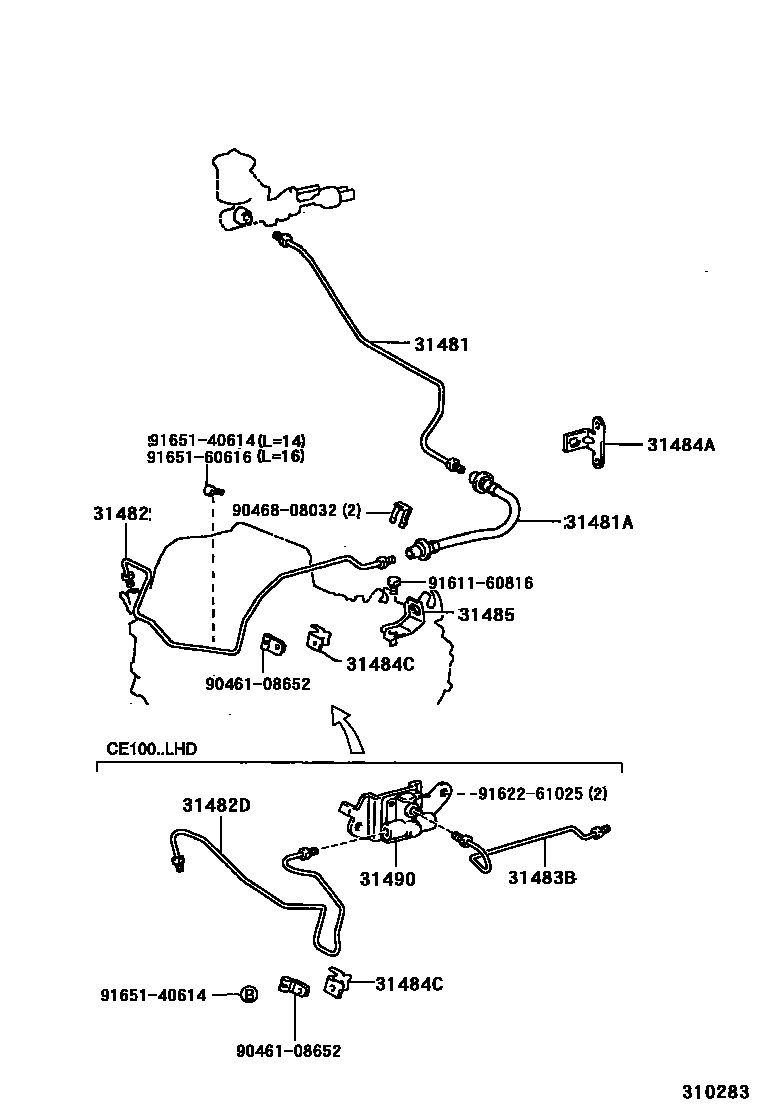

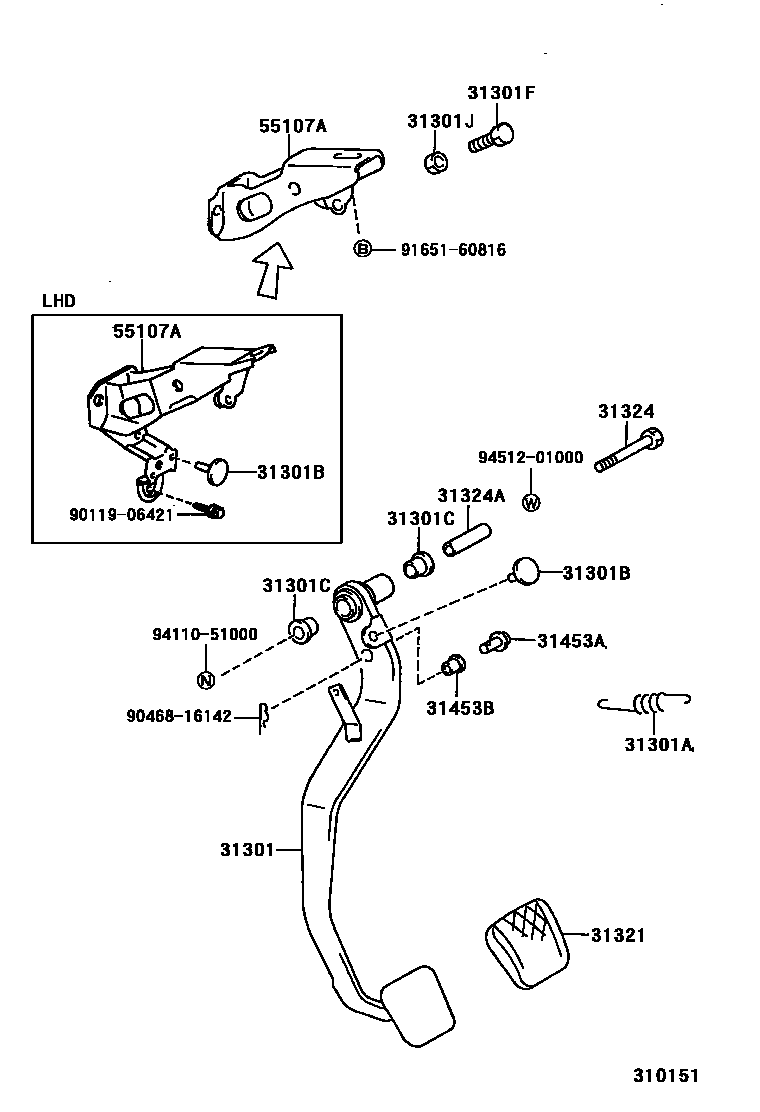

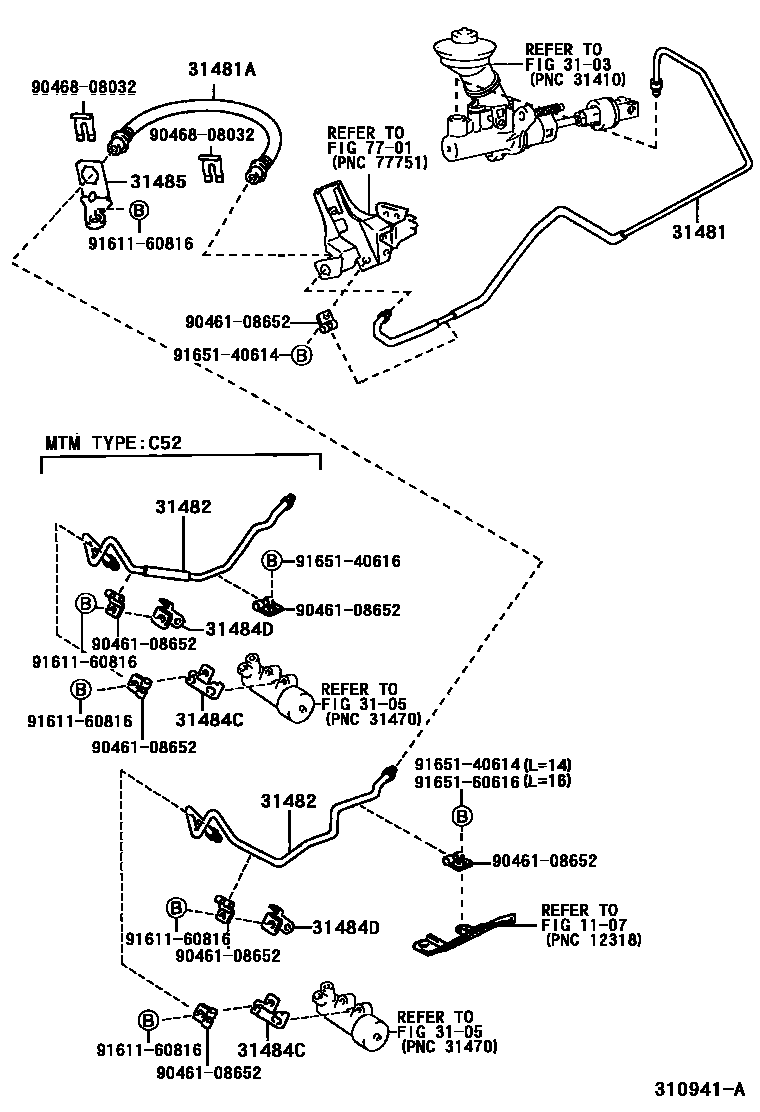

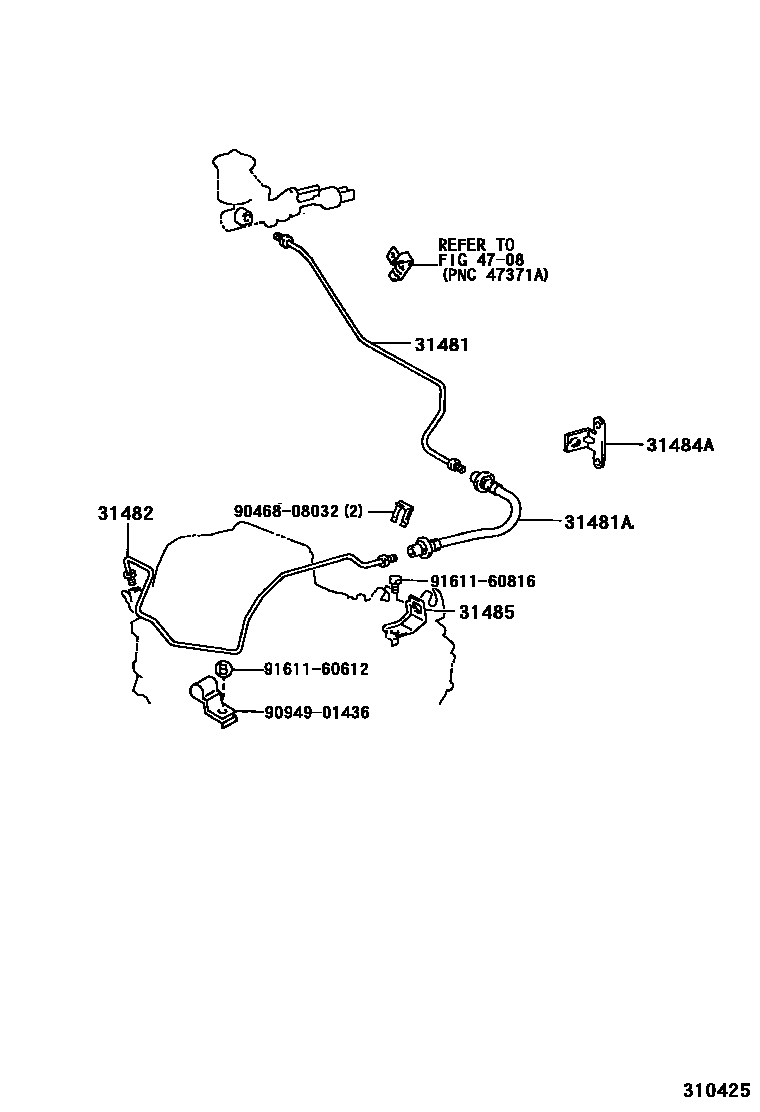

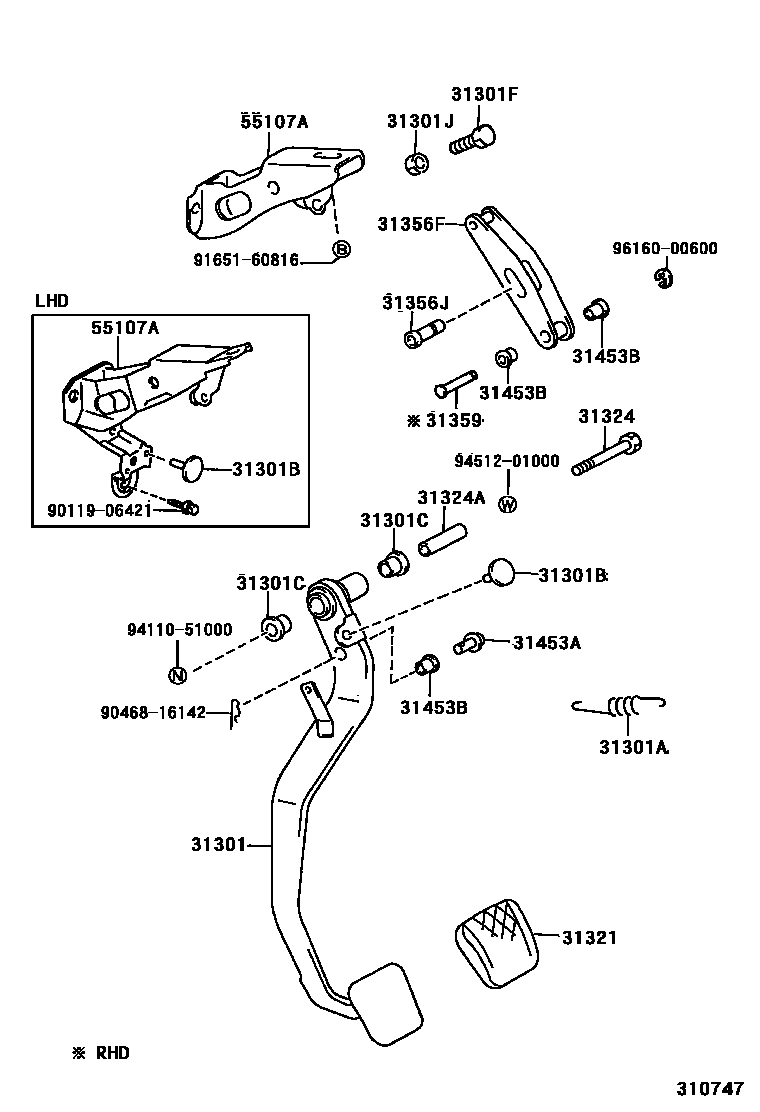

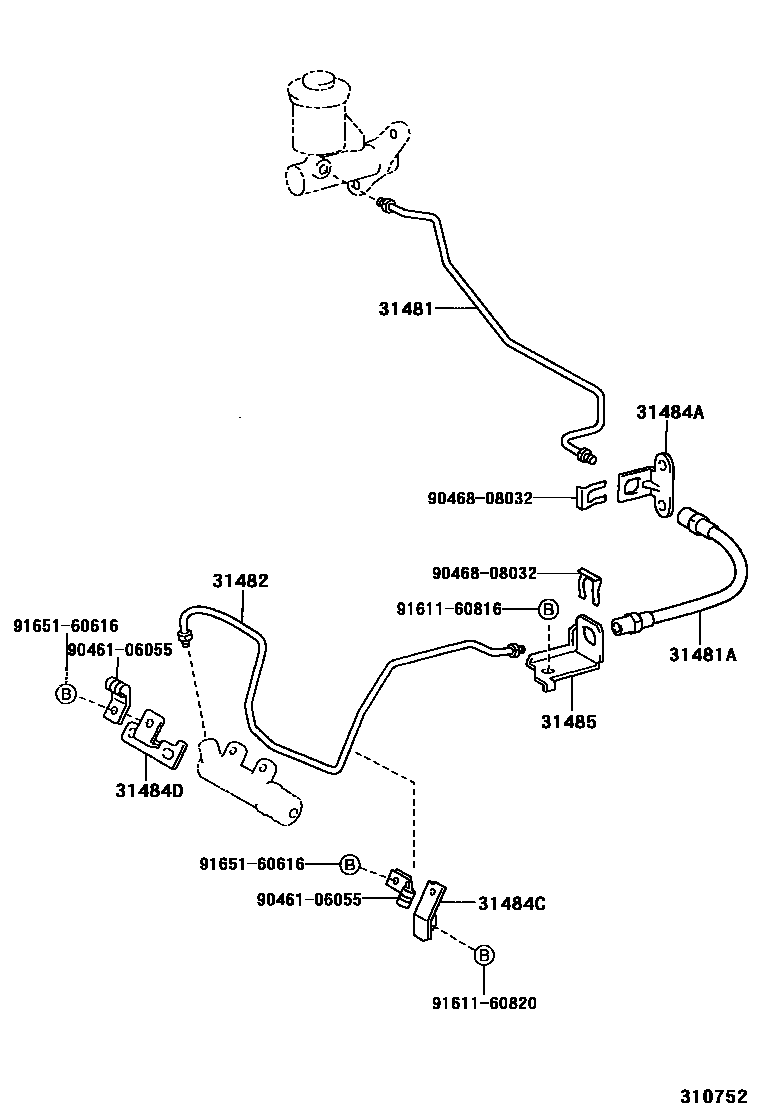

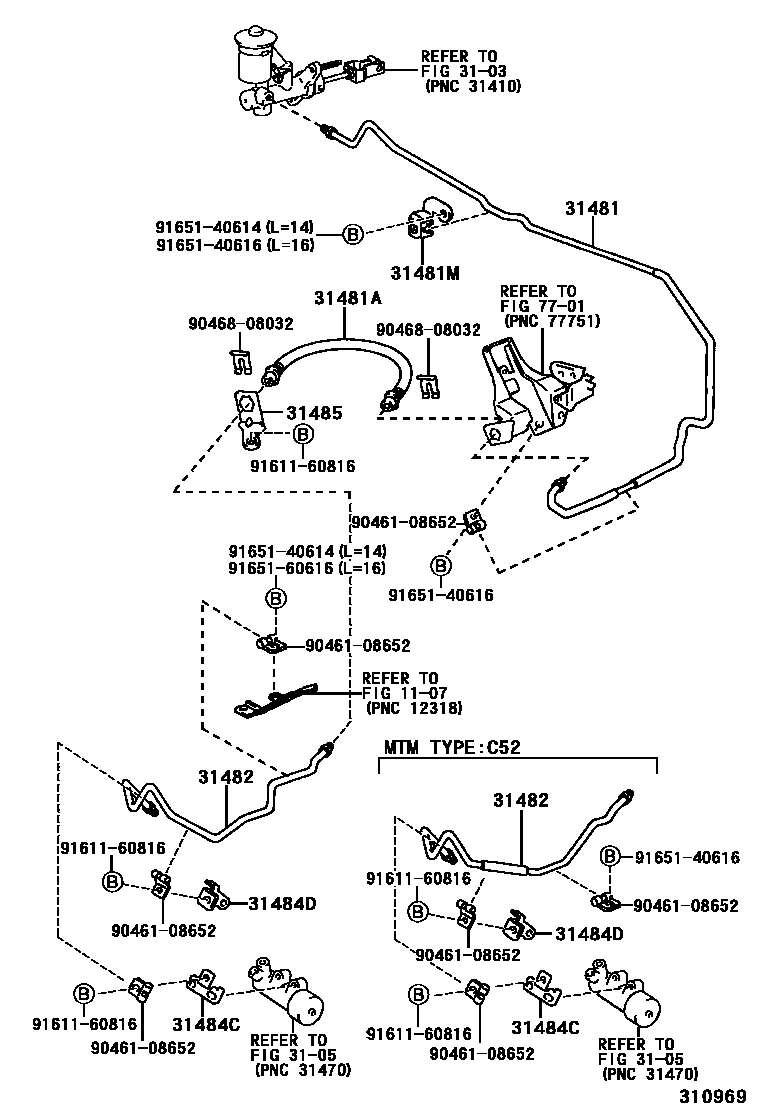

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

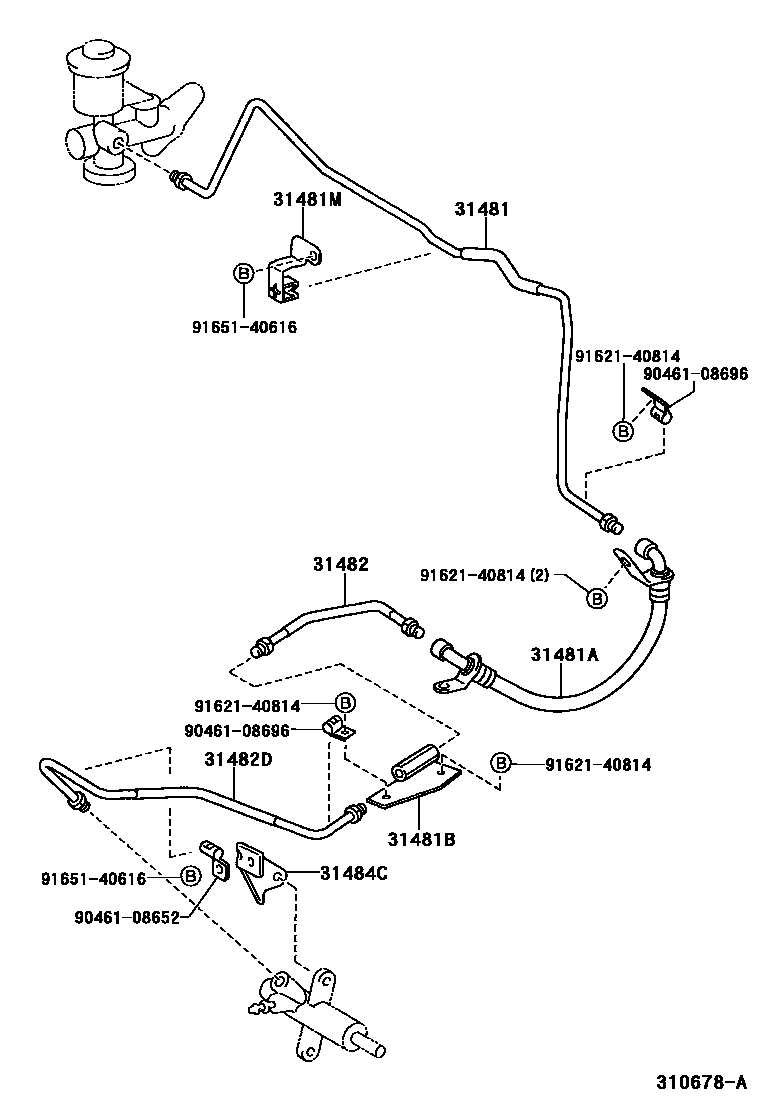

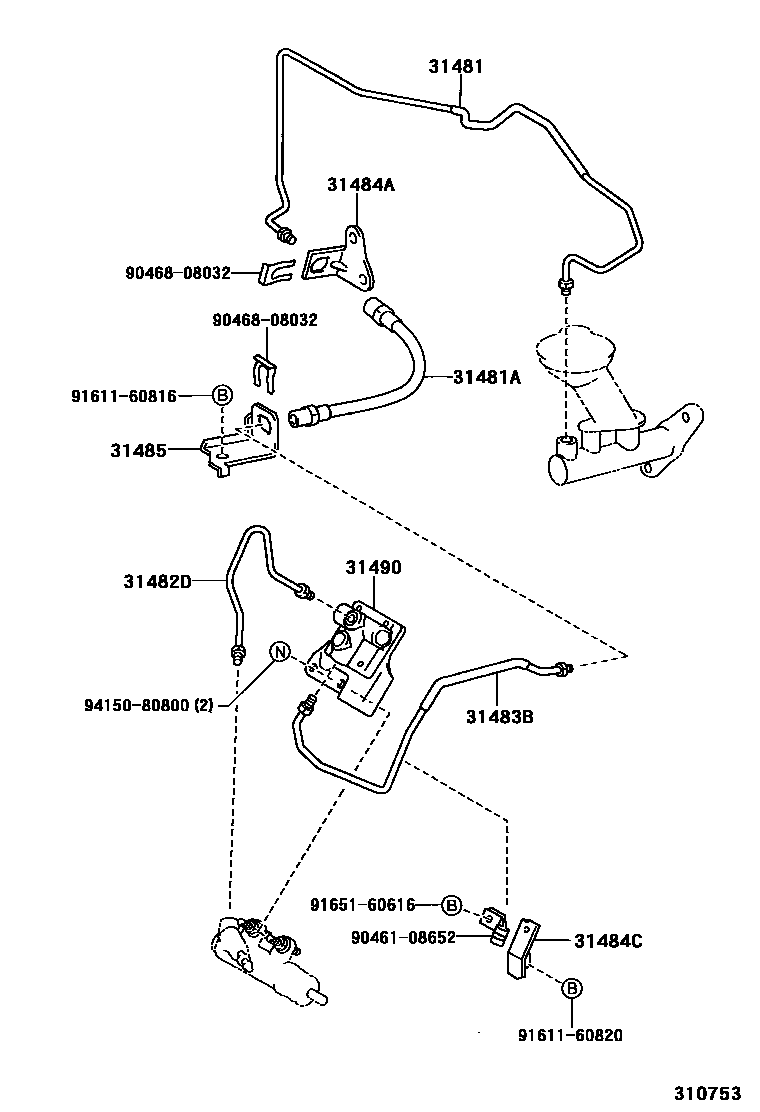

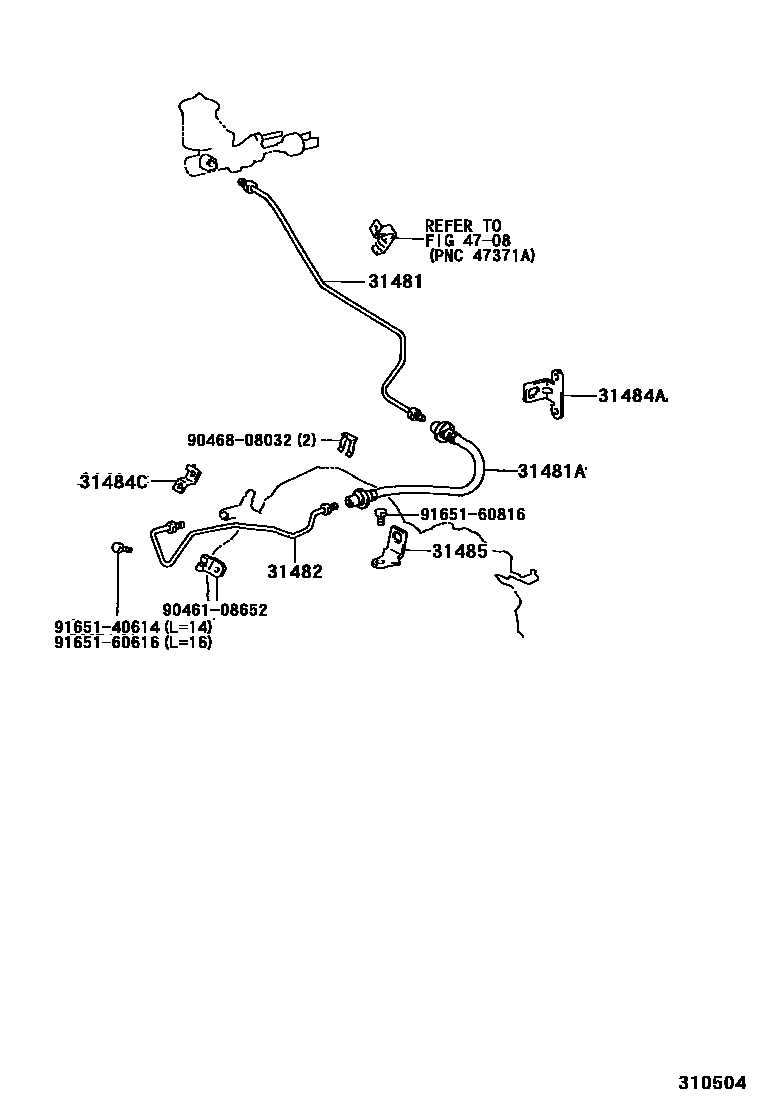

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 11 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02060 · 31301-02070 · 31301-12420 · 31301-12430 · 31310-12030 · 31310-12051 |
| 31301A | Spring (for clutch pedal) | 90506-14063 · 90506-23045 · 90506-26023 · 90905-06029 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 94120-41000 |
| 31321 | clutch pedal pad | 31321-12040 · 31321-14020 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10039 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31356F | No. 1 clutch pedal center plate | 31356-12010 · 31356-12020 |
| 31356J | Collar (for No. 1 clutch pedal center plate) | 90386-08055 |
| 31359 | Clutch pedal center spring pin | 31359-12010 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 47148-12010 · 47148-12030 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02060 · 31481-02070 · 31481-02080 · 31481-02090 · 31481-02100 · 31481-02110 · 31481-12210 · 31481-12240 · 31481-12270 · 31481-12280 · 31481-12290 · 31481-12300 |
| 31481A | No. 1 clutch hose | 90080-93030 · 90080-93031 · 90080-93035 · 90931-01061 · 90931-01102 · 90931-01118 · 90931-01121 · 90931-01124 · 90931-01126 · 90931-01138 · 90931-01145 |
| 31481B | Pipe fitting (for clutch pipe) | 90904-12073 |
| 31481F | Pipe from clutch master cylinder to clutch accumulator | 31481-12260 |
| 31481M | Clamp (for clutch master cylinder tube) | 47371-12210 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-02070 · 31482-02080 · 31482-02100 · 31482-02110 · 31482-02120 · 31482-12060 · 31482-12070 · 31482-12200 · 31482-12210 · 31482-12220 · 31482-20570 · 31482-32020 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-02130 · 31482-12170 · 31482-12230 · 31482-12260 · 31482-12261 |
| 31483B | Accumulator to flexible hose pipe | 31483-12010 · 31483-12020 · 31483-12021 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12160 · 31484-12240 |
| 31484C | No. 1 clutch tube bracket | 31484-12110 · 31484-12300 · 31484-20320 · 31484-20460 · 31484-32050 |
| 31484D | No. 2 clutch tube bracket | 31484-12270 · 31484-12271 · 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12180 · 31484-12190 · 31484-20511 |
| 31490 | Clutch pressure accumulator assembly | 31490-12020 · 31490-12040 · 31490-12050 · 31490-12051 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02020 · 55107-02030 · 55107-12160 · 55107-12170 · 55107-12180 · 55107-12190 |
